LT8471

8471fd

For more information www.linear.com/8471

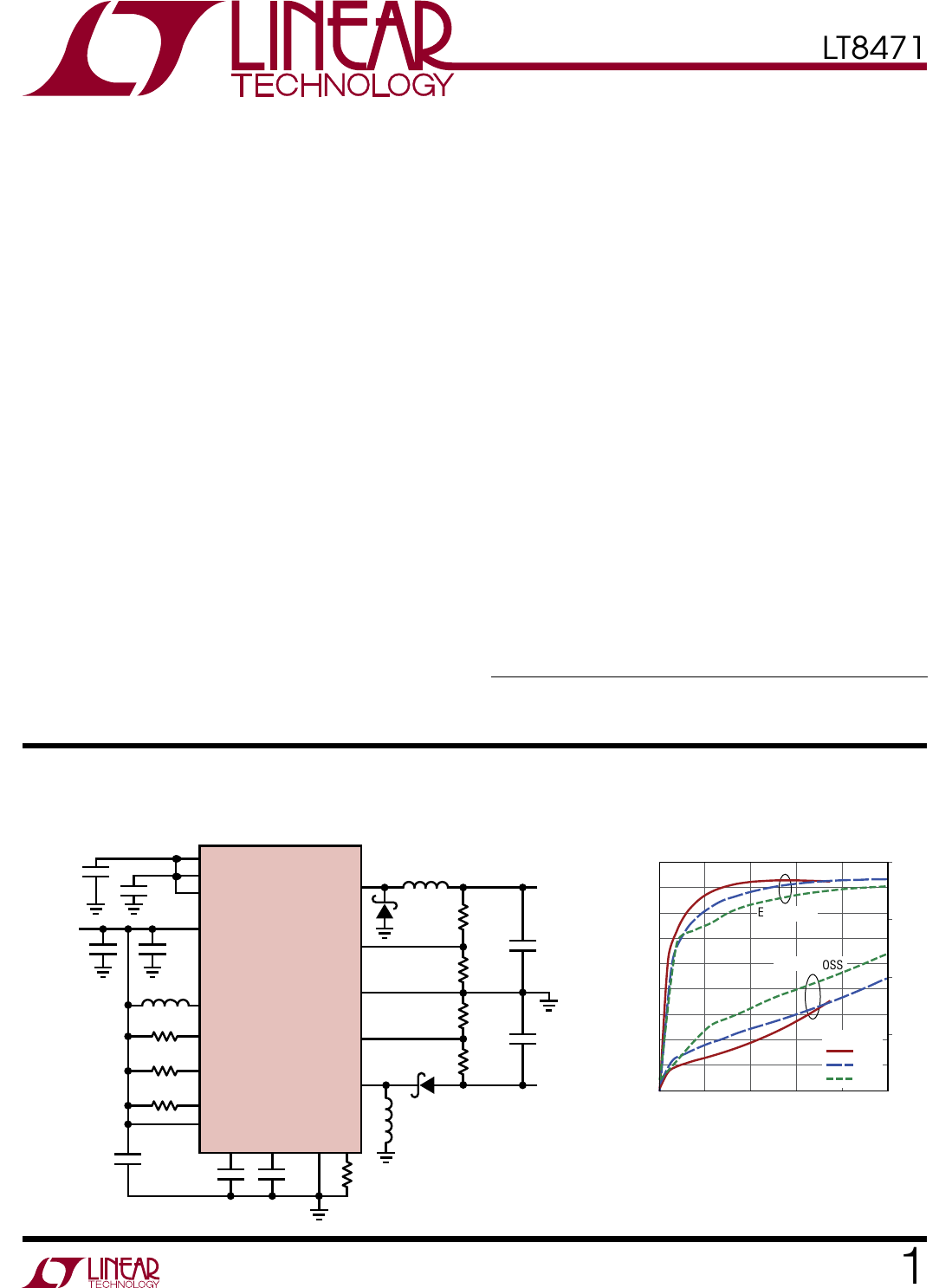

Typical applicaTion

FeaTures DescripTion

Dual Multitopology

DC/DC Converters with 2A

Switches and Synchronization

The LT

8471 is a dual PWM DC/DC converter containing

two internal 2A, 50V switches and an additional 500mA

switch to facilitate step-down and inverting conversion.

Each 2A channel can be independently configured as a

buck, boost, SEPIC, flyback or inverting converter. Ca-

pable of generating positive and negative outputs from a

single input rail, the LT8471 is ideal for many local power

supply designs.

The LT8471 has an adjustable oscillator, set by a resistor

placed from the RT pin to ground. Additionally, the LT8471

can be synchronized to an external clock. The free running

or synchronized switching frequency range of the part can

be set between 100kHz and 2MHz.

Additional features such as frequency foldback, soft-start,

and power good are integrated. The LT8471 is available in

20-lead TSSOP and 28-Lead (4mm × 5mm) QFN packages.

6V to 32V to ±5V, Dual DC/DC Converter Efficiency and Power Loss

Load from VOUT1 to VOUT2

applicaTions

n Dual 2A and One 500mA, 50V Internal Power

Switch Channels

n 2A Primary Channels Can Be Buck, Boost, SEPIC,

ZETA, Flyback or Inverting DC/DC Converter

n 500mA Skyhook Channel Efficiently Generates

Boosted Input Voltage

n Wide Input Voltage Range of 2.6V to 50V

n UVLO and OVLO Programmable on OV/UV Pin

n Soft-Start Programmable for Each Channel

n Fixed Frequency PWM (Set by RT Pin or

Synchronized to External Clock)

n Anti-Phase Switching Reduces Input Ripple

n 20-Lead TSSOP and 28-Lead QFN Packages

n Dual Rail Power for Signal Chain.

n Buck/Buck, Buck/Boost, Boost/Boost, Boost/Invert,

Invert/Invert, Buck/Invert L, LT, LTC , LT M, Linear Technology and the Linear logo are registered trademarks of Linear

Technology Corporation. All other trademarks are the property of their respective owners.

RTSYNC

LT8471

8471 TA01a

SHOUT

VIN2

VIN1

SS2

SS1

OV/UV

FB2

GND

FB1

VOUT1

1.5A

VOUT2

–5V

0.65A

47µF

×2

10µH

15µH

1µF

2.2µF 2.2µF

0.1µF 187k

2.2µF

PG1

PG2

59k

316k

59k

1µF

47µF

×2

0.1µF

6V TO 32V

10µH

100k

475k

POWER LOSS

LOAD CURRENT (A)

EFFICIENCY (%)

POWER LOSS (W)

8471 F10b

00.2 0.4 0.6 0.8 1.0

EFFICIENCY

18V

32V

VCC =

LT8471 3333333333 EEEEEEEEEE

LT8471

8471fd

For more information www.linear.com/8471

absoluTe MaxiMuM raTings

VIN1, VIN2 Voltages ..................................... –0.3V to 50V

C1, C2 Voltages .......................................... –0.4V to 50V

E1, E2 Voltages ........................................... –60V to 50V

VC1 to VE1 and VC2 to VE2 Voltages ............ –0.4V to 60V

VIN1 to VE1 and VIN2 to VE2 Voltages

Low Side Configurations (Note 6) .......... –0.4V to 40V

High Side Configurations (Note 6) ......... –0.4V to 60V

VIN1 to VC1 and VIN2 to VC2 Voltages

High Side Configurations (Note 6) ......... –0.4V to 40V

C3 Voltage ................................................. –0.4V to 50V

RT Voltage ................................................... –0.3V to 5V

SYNC Voltage ............................................ –0.3V to 5.5V

(Note 1)

pin conFiguraTion

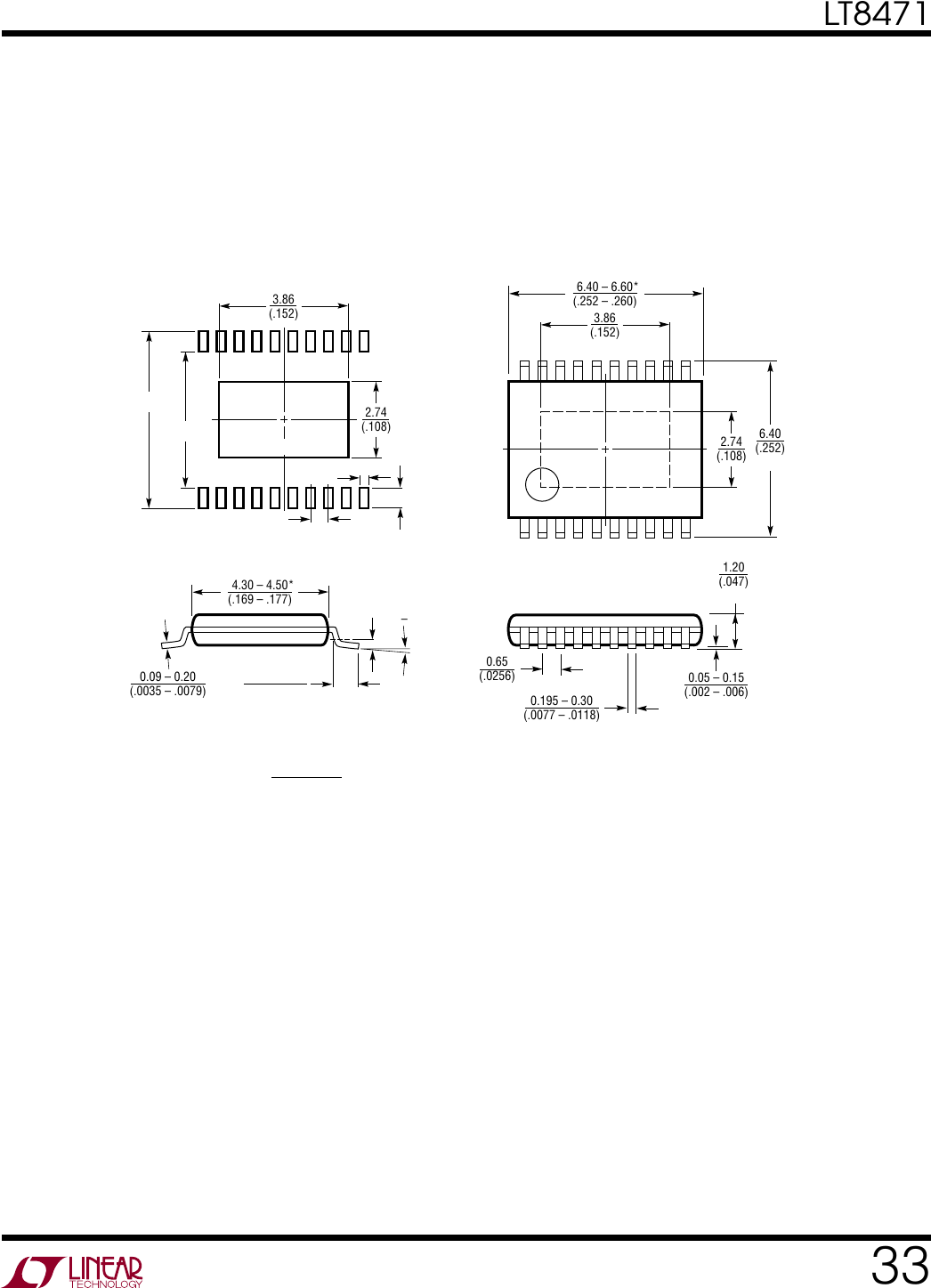

FE PACKAGE

20-LEAD PLASTIC TSSOP

TOP VIEW

VIN1

PG1

FB1

OV/UV

SS1

SYNC

GND

VIN2

PG2

FB2

SS2

SHOUT

GND

θJA = 38°C/W

EXPOSED PAD (PIN 21) IS GND, MUST BE SOLDERED TO PCB

9 10

TOP VIEW

UFD PACKAGE

28-LEAD (4mm × 5mm) PLASTIC QFN

11 12 13

28 27 26 25 24

VIN1

PG1

FB1

OV/UV

SS1

SYNC

VIN2

PG2

FB2

SS2

SHOUT

GND

815

GND

θJA = 44°C/W, θJC = 8°C/W

EXPOSED PAD (PIN 29) IS GND, MUST BE SOLDERED TO PCB

SS1, SS2 ................................................... –0.3V to 2.5V

FB1, FB2 Voltages ..................................... –2.5V to 2.5V

PG1, PG2 Voltages ..................................... –0.3V to 50V

OV/UV Voltage ............................................. –0.3V to 5V

SHOUT Voltage ......................................... –0.3V to 50V

Operating Junction Temperature Range

LT8471E (Notes 2, 5) ......................... –40°C to 125°C

LT8471I (Notes 2, 5) .......................... –40°C to 125°C

LT8471H (Notes 2, 5) .........................–40°C to 150°C

Storage Temperature Range .................. –65°C to 150°C

Lead Temperature (Soldering, 10 sec)

FE Package .......................................................300°C

LT847 1

LT8471

8471fd

For more information www.linear.com/8471

orDer inForMaTion

LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE

LT8471EFE#PBF LT8471EFE#TRPBF LT8471FE 20-Lead Plastic TSSOP –40°C to 125°C

LT8471IFE#PBF LT8471IFE#TRPBF LT8471FE 20-Lead Plastic TSSOP –40°C to 125°C

LT8471HFE#PBF LT8471HFE#TRPBF LT8471FE 20-Lead Plastic TSSOP –40°C to 150°C

LT8471EUFD#PBF LT8471EUFD#TRPBF 8471 28-LEAD (4mm × 5mm) Plastic QFN –40°C to 125°C

LT8471IUFD#PBF LT8471IUFD#TRPBF 8471 28-LEAD (4mm × 5mm) Plastic QFN –40°C to 125°C

Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container.

Consult LTC Marketing for information on nonstandard lead based finish parts.

For more information on lead free part marking, go to: http://www.linear.com/leadfree/

For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/

elecTrical characTerisTics

PARAMETER CONDITIONS MIN TYP MAX UNITS

Input Voltage (VIN1, VIN2)l2.6 50 V

Quiescent Current (VIN1, Skyhook Disabled) VOV/UV = 1.3V, Not Switching 2.2 3.3 mA

Quiescent Current (VIN1, Skyhook Enabled) VOV/UV = 1.3V, C3 = 5V, Not Switching 2.4 4 mA

Quiescent Current (VIN2) VOV/UV = 1.3V, Not Switching 29 42 µA

Quiescent Current in Shutdown (VIN1 + VIN2) VOV/UV = 0V 0.01 1 μA

Positive Feedback Voltage (FB1, FB2) l773 789 805 mV

Negative Feedback Voltage

(FB1, FB2) (LT8471E,I)

(LT8471H)

–806

–806 –788

–788 –770

–767 mV

Feedback Pin Bias Current (FB1, FB2) VFB = Positive Feedback Voltage, Current Out of Pin

VFB = Negative Feedback Voltage

–100 30

0200

100 nA

Error Amp Transconductances Primary Channels, ∆I = 2μA 70 μmhos

Error Amp Voltage Gains Primary Channels 95 V/V

Reference Line Regulation 2.6V ≤ VIN1 ≤ 50V 0.008 0.05 %/V

Switching Frequency, fOSC RT = 46.4k

RT = 732k

1.55

100 1.8

117 2.05

135 MHz

kHz

Switching Frequency in Foldback All Channels. Compared to Normal fOSC 1/8 Ratio

Switching Frequency Range Synchronizing l100 2000 kHz

SYNC High Level for Sync l1.3 V

SYNC Low Level for Sync l0.4 V

SYNC Clock Pulse Duty Cycle VSYNC = 0V to 2V 35 65 %

Recommended Minimum SYNC Ratio fSYNC/fOSC ¾ Ratio

Switching Phase Between Primary Channels RT = 46.4k

RT = 732k 170

170 200

200 Deg

Deg

Skyhook Boost Voltage VSHOUT – VC2, Skyhook Enabled 3.0 4.25 5.4 V

Minimum Switch Off-Time Primary Channels (Note 7)

Skyhook Channel (Note 7) 170

100 ns

Minimum Switch On-Time Primary Channels(Note 7)

Skyhook Channel (Note 7) 220

30 ns

The l denotes the specifications which apply over the full operating

temperature range, otherwise specifications are at TA = 25°C. VIN1 = VIN2 = 5V, unless otherwise noted (Note 2).

LT8471

8471fd

For more information www.linear.com/8471

PARAMETER CONDITIONS MIN TYP MAX UNITS

Switch Current Limit (Primary Channels) Minimum Duty Cycle (Note 3)

Maximum Duty Cycle (Notes 3, 4)

2.1

1.35 2.55

1.8 3.2

2.5 A

Switch Current Limit (Skyhook) (Note 3) l400 500 600 mA

Primary Switches VCESAT IC1 or IC2 = 1.5A 300 mV

Skyhook Switch VCESAT IC3 = 250mA 250 mV

C1, C2 Leakage Current VC1 = VC2 = 12V, VE1 = VE2 = 0V, VOV/UV = 0V,

Current into Pin 0.01 1 μA

C3 Leakage Current VC3 = 12V, VOV/UV = 0V 0.01 1 μA

E1, E2 Leakage Current VOV/UV = 0V, Current Out of Pin

VC1 = VC2 = 20V, VE1 = VE2 = 5V

VC1 = VC2 = 5V, VE1 = VE2 = –10V

0.01

µA

Schottky Reverse Leakage VREVERSE = 12V

VREVERSE = 50V 0.01

0.02 1

2µA

µA

Schottky Forward Voltage IDIODE = 100mA 650 mV

Start-Up Characteristics

Soft-Start Charge Current VSS1, VSS2 = 50mV, Current Flows Out of

SS1, SS2 Pins

l5.5 8.5 11.5 µA

OV/UV Current for OVLO Current into OV/UV Pin. VOV/UV Internally Clamped

to 1.37V, Current Rising

l76 80 84 µA

OV/UV Pin Bias Current VOV/UV =1V 0.01 0.5 µA

OV/UV Minimum Input Voltage High Active Mode, OV/UV Rising

Active Mode, OV/UV Falling

1.165

1.13 1.215

1.18 1.265

1.22 V

OV/UV Input Voltage Low Shutdown Mode l0.3 V

FB Pin Threshold for Power Good

(Positive Output Voltage) FB Rising

FB Falling

715

708 740

730 765

752 mV

FB Pin Threshold for Power Good

(Negative Output Voltage) FB Falling

FB Rising

–766

–755 –736

–727 –706

–699 mV

PG1, PG2 Voltage Output Low VFB = 0.6V, IPG = 250μA 0.32 0.6 V

PG1, PG2 Leakage VPG1, VPG2 = 12V, PG Driver Off 0.01 1 µA

Note 1: Stresses beyond those listed under Absolute Maximum Ratings

may cause permanent damage to the device. Exposure to any Absolute

Maximum Rating condition for extended periods may affect device

reliability and lifetime.

Note 2: The LT8471E is guaranteed to meet performance specifications from

0°C to 125°C junction temperature. Specifications over the –40°C to 125°C

operating junction temperature range are assured by design, characterization

and correlation with statistical process controls. The LT8471I is guaranteed

over the full –40°C to 125°C. The LT8471H is guaranteed over the full –40°C

to 150°C operating junction temperature range. Operating lifetime is derated

at junction temperatures greater than 125°C.

elecTrical characTerisTics

The l denotes the specifications which apply over the full operating

temperature range, otherwise specifications are at TA = 25°C. VIN1 = VIN2 = 5V, unless otherwise noted (Note 2).

Note 3: Current limit guaranteed by design and/or correlation to static test.

Note 4: Current Limit measured at equivalent switching frequency of 1MHz.

Note 5: This IC includes overtemperature protection that is intended

to protect the device during momentary overload conditions. Junction

temperature will exceed 150°C when overtemperature protection is active.

Continuous operation above the specified maximum operating junction

temperature may impair device reliability.

Note 6: Low side and high side configurations are discussed in the Switch

Configurations and the Skyhook Regulator section.

Note 7: Minimum switch on-time, off-time is guaranteed by design.

LT847 1 m, [ \ L7 HEW 5

LT8471

8471fd

For more information www.linear.com/8471

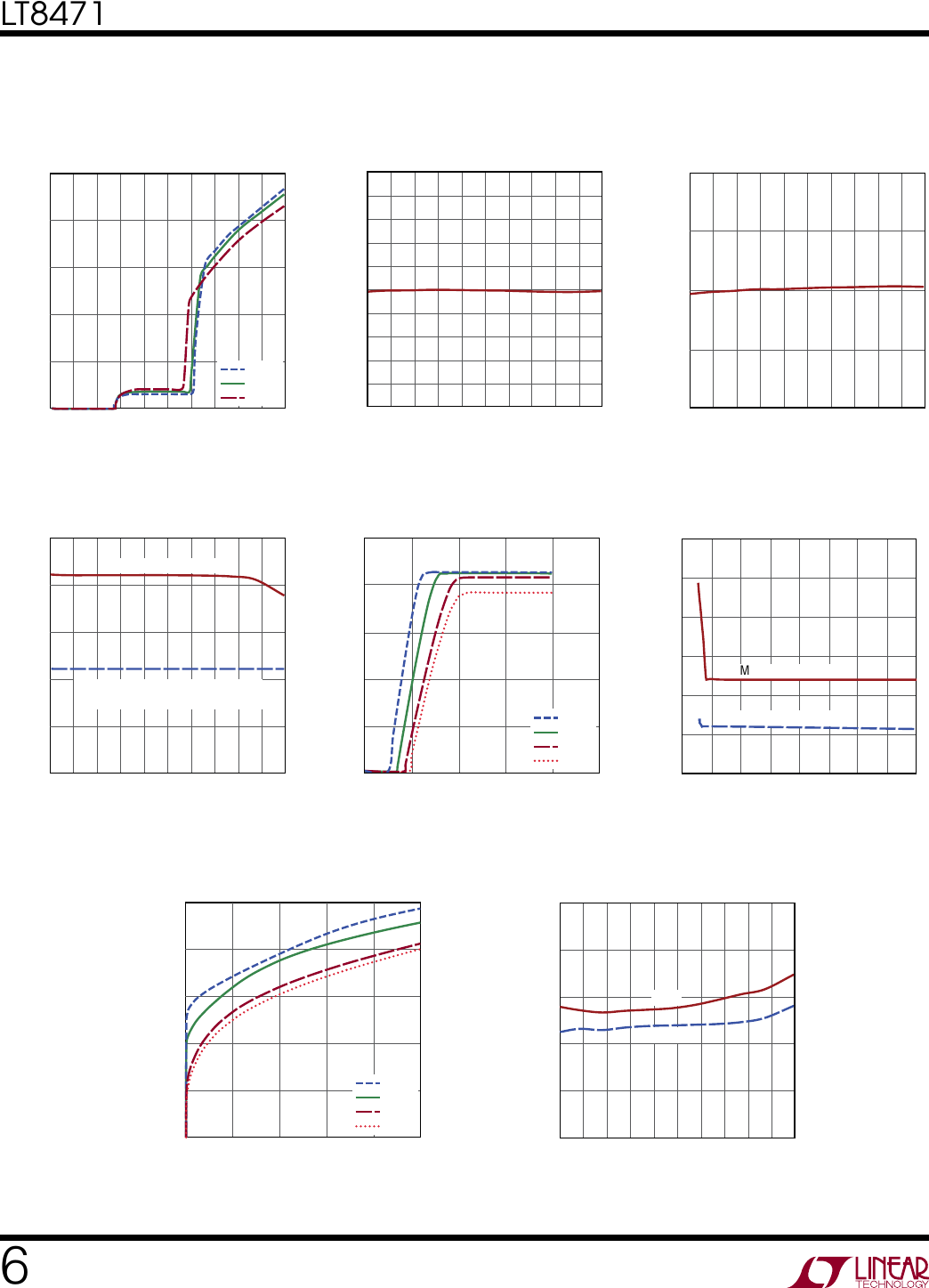

Typical perForMance characTerisTics

Switch Current Limit

at Minimum Duty Cycle

Skyhook Current Limit

vs Temperature Feedback Voltages

Oscillator Frequency

Switching Frequency

During Soft-Start Internal UVLO for VIN1 and VIN2

Primary Switch Current Limit

at 500kHz CH1, CH2 Switch VCESAT Skyhook Switch VCESAT

TA = 25°C, unless otherwise specified.

DUTY CYCLE (%)

SWITCH CURRENT LIMIT (A)

2.0

2.5

3.0

1.5

1.0

40 80

20 60 100

0.5

3.5

8471 G01 SWITCH CURRENT (A)

SWITCH VCESAT (V)

0.4

0.5

0.3

0.2

1 2

0.5 1.5 2.5

0.1

0.6

8471 G02 SWITCH CURRENT (A)

SWITCH VCESAT (V)

0.1

0.2

0.3

0.4

0.5

0.1 0.2 0.3 0.4 0.5 0.6

8471 G03

1.0

2.0

3.0

0.5

1.5

2.5

–50 110

–30 –10 10 30 50 70 90 130 150

TEMPERATURE (°C)

SWTICH CURRENT LIMIT (A)

8471 G04

–50 110

–30 –10 10 30 50 70 90 130 150

TEMPERATURE (°C)

SWITCH CURRENT LIMIT (A)

0.3

0.5

0.8

1.0

8471 G05

755

765

785

805

775

795

–50 –25 0 25 50 75 100 125 150

TEMPERATURE (°C)

FB VOLTAGE (mV)

–755

–765

–785

–805

–775

–795

8471 G06

+ FB

– FB

TEMPERATURE (°C)

–55

FREQUENCY (MHz)

1.0

1.2

0.8

0.6

–15 5 45

–35 25 65 105

85 125

0.4

0.2

8471 G07

RT = 732k

RT = 84.5k

FB VOLTAGE (V)

NORMALIZED OSCILLATOR FREQUENCY (fSW/fNOM)

0.25

0.50

0.75

1.00

–0.8 –0.4 0 0.4 0.8

8471 G08

2.0

2.1

2.3

2.5

2.2

2.4

–50 110

–30 –10 10 30 50 70 90 130 150

TEMPERATURE (°C)

SUPPLY VOLTAGE (V)

8471 G09

VIN1

VIN2

LT847 1 ’/ L i ‘\\ 6 L7LJCU§QB

LT8471

8471fd

For more information www.linear.com/8471

Typical perForMance characTerisTics

SHOUT-C2 Regulation Voltage

vs Temperature SHOUT-C2 Voltage vs SS1

Minimum Switch On-Time/

Switch Off-Time

Skyhook Diode Forward Voltage

PG Threshold vs Temperature

(FB Falling)

OV/UV Pin Current OV/UV Overvoltage Threshold OV/UV Undervoltage Threshold

TA = 25°C, unless otherwise specified.

0 4

0.5 1 1.5 2 2.5 3 3.5 4.5 5

OV/UV VOLTAGE (V)

CURRENT INTO PIN (mA)

8471 G10

–40°C

27°C

125°C 75

–50 110

–30 –10 10 30 50 70 90 130 150

TEMPERATURE (°C)

OV/UV PIN CURRENT (µA)

8471 G11

–50 110

–30 –10 10 30 50 70 90 130 150

TEMPERATURE (°C)

1.10

OV/UV VOLTAGE (V)

1.15

1.20

1.25

1.30

8471 G12

–50 110

–30 –10 10 30 50 70 90 130 150

TEMPERATURE (°C)

SHOUT-C2 VOLTAGE (V)

8471 G13

MINIMUM VIN2-C2 VOLTAGE NEEDED

TO OPERATE HIGH SIDE SWITCHES

REGULATION VOLTAGE

SS1 VOLTAGE (V)

SHOUT- C2 VOLTAGE (V)

1 2

0.5 1.5 2.5

8471 G14

–55°C

25°C

125°C

150°C 100

200

250

400

150

300

350

05 10 15 20 25 30 35 40

VIN (V)

SWITCH ON-TIME/SWITCH OFF-TIME (ns)

8471 G15

MINIMUM ON-TIME

MINIMUM OFF-TIME

SKYHOOK DIODE CURRENT (mA)

SKYHOOK DIODE VF (V)

0.2

0.4

0.6

0.8

1.0

100 200 300 400 500

8471 G16

–55°C

25°C

125°C

150°C 90

–50 110

–30 –10 10 30 50 70 90 130 150

TEMPERATURE (°C)

THRESHOLD (%)

8471 G17

+ FB

– FB

LT847 1

LT8471

8471fd

For more information www.linear.com/8471

pin FuncTions

C1, C2 (Pins 1, 20): Collector Pins. These are the collec-

tors of the primary internal NPN power switches. If either

pin is tied to a DC voltage, it must be locally bypassed; if

either pin is a switching pin, minimize trace area connected

to the pin to minimize EMI. When the Skyhook channel is

used, the C2 pin must be tied to the input voltage of the

Skyhook channel.

C3 (Pin 13): Skyhook Collector Pin. This is the collector of

the internal NPN power switch for the Skyhook channel.

If the Skyhook channel is used, minimize the metal trace

area connected to this pin to minimize EMI. If the Skyhook

channel is not used, tie the C3 pin to GND.

E1, E2 (Pins 2, 19): Emitter Pins. These are the emit-

ters of the primary internal NPN power switches. Unless

grounded, minimize trace area connected to these pins

to minimize EMI.

FB1, FB2 (Pins 5, 16): Feedback Pins for Primary Chan-

nels. Connect a resistor divider between VOUT, FB and

GND to set the output voltage.

GND (Pins 10, 11,12, Exposed Pad 21): Ground. All of the

ground pins must be soldered directly to the local ground

plane. The exposed pad metal of the package provides both

electrical contact to ground and good thermal contact to

the printed circuit board.

OV/UV (Pin 6): Overvoltage/Undervoltage Pin. Tie to 1.215V

(typical) or more to enable the device; ground to shut down.

Configurable as a UVLO and OVLO by connecting to an

external resistor divider. See the Applications Information

section for more information.

PG1, PG2 (Pins 4, 17): Power Good Pins. Connect pull-up

resistors to these pins. These open-drain output pins are

pulled low when their respective output voltages are more

than 7.5% below their target output voltages (as set by

the external feedback resistors). When the output voltage

is above 92.5% of the target voltage, the respective PG

pin driver turns off, allowing the PG voltage to rise and

indicate that the regulated output voltage is good.

RT (Pin 7): Timing Resistor Pin. Adjusts the switching

frequency. Place a resistor from this pin to ground to set

the frequency to a fixed free-running level. Do not float

this pin.

SHOUT (Pin 14): Skyhook Output Voltage Pin. This is the

cathode of the internal Schottky diode and the output of

the Skyhook boost converter.

SS1, SS2 (Pins 8, 15): Soft Start Pins. Place a soft-start

capacitor on each pin. Upon start-up, the SS pins will be

charged by (nominally) 250k resistors to about 2.15V.

SYNC (Pin 9): To synchronize the switching frequency

to an outside clock, simply drive this pin with a clock.

The high voltage level of the clock needs to exceed 1.3V,

and the low level should be less than 0.4V. Drive this pin

to less than 0.4V to revert to the internal free running

clock. See the Applications Information section for more

information.

VIN1 (Pin 3): Input Supply Pin 1. This is the power supply

pin for primary channel 1 and the Skyhook channel. This

pin also provides power to additional circuitry common

to all channels. VIN1 must be greater than 2.6V for any

channel to operate. VIN1 must be locally bypassed.

VIN2 (Pin 18): Input Supply Pin 2. This is the power supply

pin for primary channel 2 and must be greater than 2.6V

when channel 2 is in use. VIN2 must be locally bypassed.

LT8471 ||__I| E 4 ' E] + . 4—1 J 13%- a E} E 91 EH? '<1 _1="" g="" a="" b="" %="" gm?="" in="" ,="" ‘ﬁ="" $p7c="" e="" —»="" *="" |="" e]="" 2="" il—="" me]="" 3="" 1:="" ¢="" #="" i="" 5&6="" —=""> _ 4:0: RRRRRRR _ é nnnnnnnnnn ||__I| L7LJCUEN2

LT8471

8471fd

For more information www.linear.com/8471

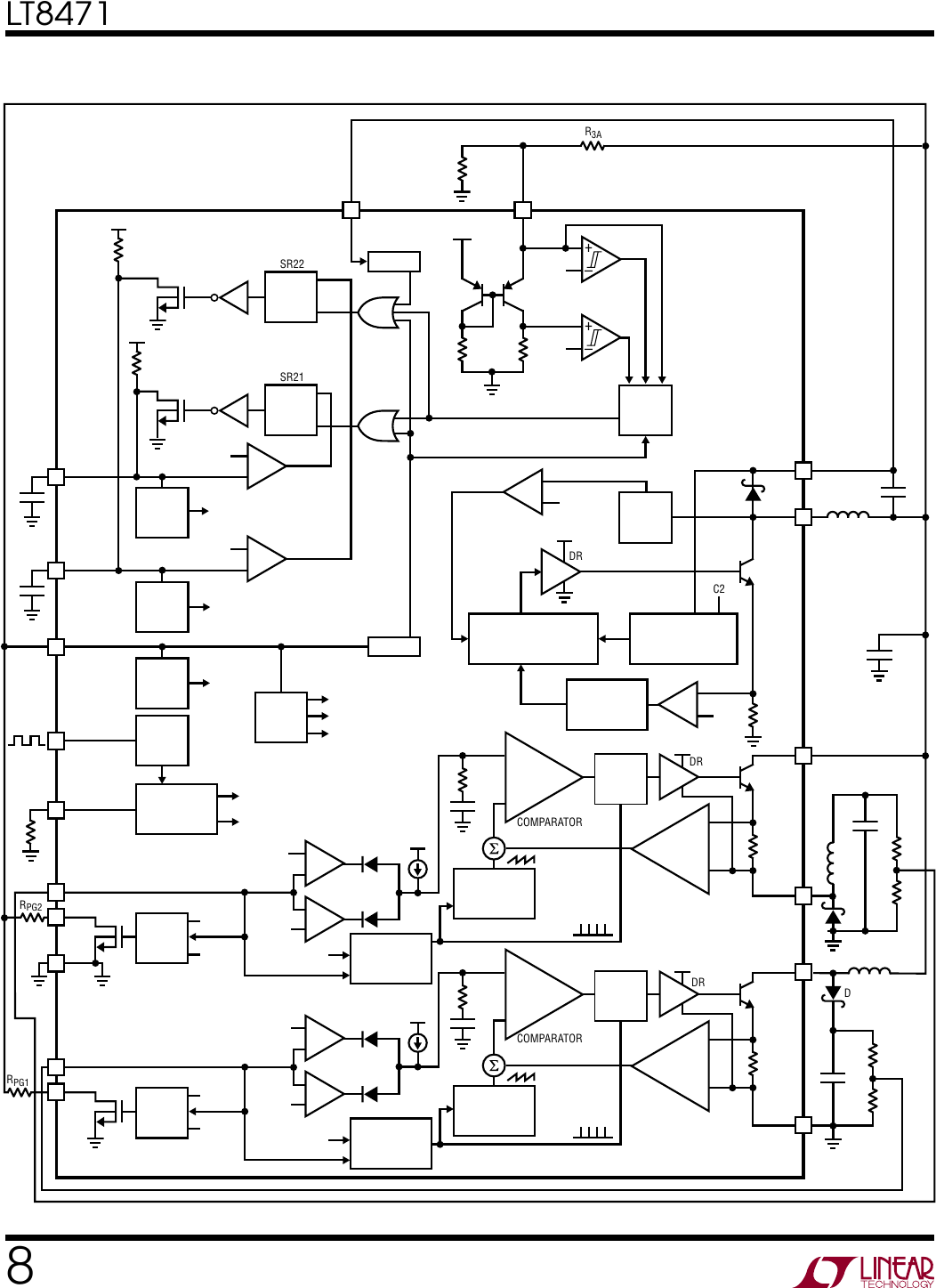

block DiagraM

8471 BD

250k

SR22

2.15V

UVLO

OV/UVVIN2

UVLO

SHOUT

250k

SR21

SOFT-

START

SOFT-

START

VC1 0.5V

DRIVER

50mV

INTERNAL

SUPPLY

REG

SYNC

BLOCK

VOLTAGE

REFS

2.15V

0.73V

–0.727V

VC2

ADJUSTABLE

OSCILLATOR

FREQUENCY

FOLDBACK

RAMP

GENERATOR

OSC

–0.788V

0.789V

COMPARATOR

1.215V

–

SKYHOOK

DISABLE

–

DRIVER

CSS1

R3A

50mV

0.789V

–0.788V

VC1

VC2

CSS2

RPG2

VIN2

VOUT2

OV/UV

LOGIC

PEAK

DETECT

Q3 SWITCH CONTROL

AND COMPENSATION SHOUT-C2

VOLTAGE COMPARE

–

40mV 80mΩ

RSENSE2

RSENSE1

VOUT1

R2B

R2A

R1B

R1A

0.5V

1.215V

1.37V

R3B

DSH

VIN1

FB2

PG2

GND

SYNC

VIN1

SS2

SS1

OSC

PGOOD

DET.

PGOOD

DET.

0.73V

–0.727V FREQUENCY

FOLDBACK

–0.788V

FB1

PG1

OSC

CURRENT LIMIT

CONTROLLER

–

R Q

SR12

A42

A32

RAMP

GENERATOR

VIN1

R Q

SR11

A41

A31

CVCC

VCC

A43

RPG1

LT847 1

LT8471

8471fd

For more information www.linear.com/8471

operaTion

The LT8471 consists of two primary channels, each with

a 2A power switch. One Skyhook channel is also avail-

able with a 500mA power switch to support the primary

channels when performing step-down conversions. The

maximum voltage between VIN1 and E1 (or VIN2 and E2) is

40V when E1 (or E2) is grounded. This is the case for boost,

SEPIC, flyback and dual-inductor inverting topologies. The

maximum allowed voltage between VIN1 and E1 (or VIN2

and E2) is 60V when E1 (or E2) is allowed to toggle, such

as in buck, ZETA and single-inductor inverting topologies.

Primary Channels

The two primary channels, 1 and 2, can be independently

configured as boost, buck, SEPIC, ZETA, flyback or invert-

ing DC/DC converters to adapt into various applications.

Both channels use a constant-frequency, current mode

control scheme to provide line and load regulation (refer

to the Block Diagram). The channel 1 clock is in phase

with the internal oscillator or the SYNC pin if it is toggling.

In order to reduce transient switching spikes, the clock

for channel 2 is approximately 180° out-of-phase with

the channel 1 clock.

At the start of each clock phase, an SR latch (SR11/SR12

in the Block Diagram) is set, turning on the internal power

switch (Q1/Q2 in the Block Diagram) for the respective

channel. An amplifier (A41/A42 in the Block Diagram) and

a comparator (A31/A32 in the Block Diagram) monitor the

current flowing through the internal power switch, turning

the switch off when the current reaches a level determined

by the voltage at VC1/VC2. An error amplifier measures

the output voltage through an external resistor divider tied

to the FB1/FB2 pin and servos the VC1/VC2 voltage. If

the error amplifier’s output (VC1/VC2) increases, more

current is delivered to the output; if it decreases, less

current is delivered. An internal clamp on the VC1/VC2

voltage provides current limit.

Both of the primary channels contain a power good com-

parator which trips when the corresponding FB pin voltage

is at 92.5% of its regulated value. The PG1 and PG2 outputs

are driven by open-drain N-channel MOSFET devices that

are off when the respective output is in regulation, allow-

ing external resistors to pull the PG1/PG2 pins high. The

PG1 and PG2 pin states are only valid when the respective

channel is enabled and VIN1 is above 2.6V.

Skyhook Channel

When either channel is configured as a buck, ZETA or

single-inductor inverting converter, the respective VIN

pin(s) must be boosted above the input voltage, VCC. The

boosted supply provides base current to the appropriate

Q1 and/or Q2 NPN power switch. The Skyhook channel

provides this boosted voltage to the SHOUT pin which

must also be connected to VIN2 and/or VIN1 as needed.

The Skyhook is a constant-frequency, voltage mode

boost converter including a Schottky diode integrated on

chip. The Skyhook output, SHOUT, is regulated to a fixed

voltage (4.25V typical) above the C2 pin which must be

connected to a DC voltage (typically VCC). If the Skyhook is

not needed it can be disabled by tying the C3 pin to GND.

This also reduces the current draw from VIN1. Refer to

the Applications Information section for more information

about the proper use of the Skyhook channel.

The Skyhook operates as follows: An error amplifier mea-

sures the output voltage (SHOUT) through the SHOUT-C2

voltage comparator and servos an internal control volt-

age. The control voltage determines the on-time of the

Q3 power switch for each cycle, and thus, the amount of

current being delivered to SHOUT. Loop compensation

is integrated in the chip. Comparator A43 monitors the

current in the power switch Q3 in order to detect over

current conditions. If current in excess of 500mA (typ) is

detected, switch Q3 is immediately turned off.

Start-Up Operation

Several functions are provided to enable a clean start-up

for the LT8471.

• First, the OV/UV pin voltage is monitored by an inter-

nal voltage reference to give a precise turn-on voltage

range. An external resistor (or resistor divider) can be

connected from the input power supply to the OV/UV

pin to provide a user-programmable undervoltage and

overvoltage lockout function.

• Second, the soft-start circuitry provides for a gradual

ramp-up of the switch current for the primary channels

LT8471 ‘IO

LT8471

8471fd

For more information www.linear.com/8471

Input Supply Requirements

VIN1 is the main power supply of the LT8471. It powers

channel 1, the Skyhook channel and most of the internal

control and bias circuits for both channels. It must be

powered up to enable any channel of the LT8471. VIN2

is the power supply for channel 2, and only needs to be

powered up when channel 2 is used. When VIN2 is not

powered up, channel 2 will shut down.

Switch Configurations and the Skyhook Regulator

The primary channel NPN power switches can be connected

in low side or high side configurations. A low side connec-

tion is when the power switch is on the lower voltage side

of the inductor while the switch is on. The boost, SEPIC,

flyback and dual-inductor inverting configurations use low

side power switches. Conversely, a high side connection is

when the power switch is on the higher voltage side of the

inductor when it is on. The buck, ZETA and single-inductor

inverting configurations use high side power switches.

Channels 1 and 2 can be configured for high side or low

side switching and do not need to be configured in the

same way as the other.

applicaTions inForMaTion

operaTion

In the low side configurations, the E pin is typically tied

to ground and the respective C pin toggles. VIN for the

respective channel must operate in a range of 2.6V to 40V.

High side configurations require that the C pin be tied to a

positive DC voltage supply and the respective E pin toggles.

The channel’s VIN pin should be at least 2.2V (typical) higher

than the respective C pin to provide adequate drive to the

base of the NPN power switch. When configured with a

high side switch, the channel’s VIN can operate up to 50V

above ground, 60V above the respective E pin voltage, and

40V above the respective C pin voltage.

The Skyhook boost regulator is available to provide ad-

ditional VIN voltage when it is needed to support high side

switch topologies. When enabled, the Skyhook output

voltage (SHOUT) is regulated to 4.25V (typical) above

the C2 pin voltage. Figure 1 shows an example where the

application input voltage is 6V to 32V. The Skyhook boost

converter regulates SHOUT, VIN1 and VIN2 to 10.25V to

36.25V insuring that the VIN1 and VIN2 pins are typically

4.25V above the C1 and C2 pins. More information about

the Skyhook regulator is available in later sections.

and a gradual ramp-up of duty cycle for the Skyhook

channel. When the part is brought out of shutdown, the

external SS capacitors are first discharged (providing

protection against OV/UV pin glitches and slow ramp-

ing). Next, internal 250k resistors pull the SS pins up

to ~2.15V. By connecting an external capacitor to each

of the SS pins, the voltage ramp rates on the pins can

be set. Typical values for the soft-start capacitor range

from 100nF to 1μF.

• Finally, the primary channels’ switching frequency is

folded back by 2, 4, or 8 times when the correspond-

ing FB pin voltage is below certain thresholds (see

the Typical Performance Characteristics section). This

feature reduces the minimum duty cycle that the part

can achieve, thus allowing better control of the switch

current during start-up. The slope compensation func-

tion is disabled during foldback to increase the available

current that can be delivered to the output.

Thermal Shutdown Operation

Not shown in the Block Diagram is the thermal shutdown

circuit. If the temperature of the part exceeds approximately

164°C, the SR21 and SR22 latches are set. A full soft-start

cycle will then be initiated after the temperature drops

below approximately 162.5°C. The thermal shutdown

circuit protects the power switches as well as the external

components connected to the LT8471.

LT847 1 85.5 @ L7 LJUW 1 1

LT8471

8471fd

For more information www.linear.com/8471

Internal Undervoltage Lockouts

The LT8471 monitors VIN1 and VIN2 supply voltages in case

either drops below a minimum operating level (typically

about 2.35V and 2.25V, respectively).

When VIN1 is detected low, all power switches are de-

activated, and while sufficient VIN1 voltage persists, the

soft-start capacitors for both SS1 and SS2 are discharged.

After VIN1 is detected high, the channel 1 power switch is

re-enabled and SS1 begins charging.

When VIN2 is detected low, the channel 2 power switch is

deactivated, and while sufficient VIN1 voltage persists, the

soft-start capacitor for SS2 is discharged. After both VIN1

and VIN2 are detected high, the channel 2 power switch is

re-enabled and SS2 begins charging.

Oscillator

The internal free-running oscillator can set the operating

frequency of the LT8471. When the SYNC pin is driven low

(< 0.4V), the frequency of operation is set by a resistor

from RT to ground. An internally trimmed timing capacitor

resides inside the IC. The oscillator frequency is calculated

using the following formula:

fOSC =

85.5

where fOSC is in MHz and RT is in kΩ. Conversely, RT

(in kΩ) can be calculated from the desired frequency (in

MHz) using:

RT=

85.5

fOSC

– 1

Clock Synchronization

The operating frequency of the LT8471 can be synchro-

nized to an external clock source. To synchronize to the

external source, simply provide a digital clock signal into

the SYNC pin. The LT8471 will operate at the SYNC clock

frequency. The LT8471 will revert to the internal free-

running oscillator clock after SYNC is driven low for a few

free-running clock cycles.

Driving SYNC high for an extended period of time effectively

stops the operating clock and prevents latches SR11 and

SR12 from becoming set (see the Block Diagram). As a

result, the switching operation of the LT8471 stops, and

all the power switches are turned off.

The duty cycle of the SYNC signal must be between 35%

and 65% for proper operation. Also, the frequency of the

SYNC signal must meet the following two criteria:

1. SYNC may not toggle outside the frequency range of

100kHz to 2MHz unless it is set low to enable the free-

running oscillator.

2. The SYNC frequency can always be higher than the

free-running oscillator frequency, fOSC, but should not

be less than 25% below fOSC.

Operating Frequency Selection

There are several considerations in selecting the operat-

ing frequency of the converter. The first is staying clear

of sensitive frequency bands, which cannot tolerate any

spectral noise. For example, in products incorporating RF

communications, the 455kHz IF frequency is sensitive to

any noise, therefore switching above 600kHz is desired.

Some communications have sensitivity to 1.1MHz, and in

that case, a 1.5MHz switching converter frequency may be

employed. The second consideration is the physical size

of the converter. As the operating frequency goes up, the

inductor and filter capacitors go down in value and size.

The trade-off is efficiency, since the switching losses due to

NPN base charge (see the Power and Thermal Calculation

section), Schottky diode charge, and other capacitive loss

terms increase proportionally with frequency.

Soft-Start

The LT8471 contains soft-start circuitry to limit peak

switch currents during start-up. High start-up current is

inherent in switching regulators since the feedback loop

is saturated due to VOUT being far from its final value. The

regulator tries to charge the output capacitor as quickly as

possible, which results in large peak currents.

The start-up current can be limited by connecting external

capacitors (typically 100nF to 1μF) to the SS1 and SS2 pins.

The capacitors are slowly charged to ~2.15V by internal

applicaTions inForMaTion

LT8471 12

LT8471

8471fd

For more information www.linear.com/8471

applicaTions inForMaTion

250k resistors after the part is activated. SS1 pin voltages

below ~0.8V reduce the duty cycle of the Skyhook channel,

and below ~1.4V reduce the current limit of channel 1.

SS2 voltages below ~1.4V reduce the current limit of

channel 2. Thus, the gradual ramping of the SS voltages

also gradually increases the current limits of the primary

channels and the duty cycle of the Skyhook channel. This,

in turn, allows the output capacitors for each channel to

charge gradually toward its final value while limiting the

start-up currents.

In the event of a shutdown (OV/UV pin), internal undervolt-

age lockout (UVLO) or a thermal lockout, the soft-start

capacitors are automatically discharged to <50mV before

charging resumes, assuring that the soft-starting occurs

after every reactivation of the chip.

Shutdown

The OV/UV pin is used to enable and disable the chip. When

configured properly, the OV/UV pin can serve as both an

undervoltage and an overvoltage detector as discussed

further in the next section. When the OV/UV voltage is

below 1.215V (typ) switching activity is disabled as shown

in Figure 1 (lockout state). When OV/UV is below 300mV,

quiescent current becomes very low and the part is com-

pletely in shutdown. Voltages between 1.215V and 1.37V

enable the part (ACTIVE state) for normal operation. The

OV/UV pin is internally clamped to approximately 1.37V

and should always be connected through a resistor to

limit the current. If the OV/UV pin current exceeds 80μA

(typ), switching is disabled and the part enters the lock-

out state. See the OV/UV pin current graph in the Typical

Performance Characteristics section.

When in the lockout state, the power switches are disabled

and the SR21 and SR22 latches are set. This causes the

soft-start capacitors to discharge until active operation

is enabled. Although the power switches are disabled,

the lockout state does not necessarily reduce quiescent

current until the OV/UV voltage is near or below the shut-

down threshold.

Due to the 1.37V clamping circuit, OV/UV should always

be connected through a resistor to limit the current. If

the over and undervoltage functions are not used, the

OV/UV pin can be driven digitally through a current

limiting resistor.

Figure 2 shows how to configure an overvoltage lockout

(OVLO) and/or undervoltage lockout (UVLO) for the

Figure 1. Chip States vs OV/UV Voltage Figure 2. Configurable OVLO and UVLO

LOCKOUT/

ACTIVE

75µA/

80µA

COVLO

CUVLO

8471 F02

OV/UV

1.18V

1.37V

LT8471

R3A

VIN1

R3B

(OPTIONAL) –

–

LOCKOUT

(POWER SWITCHES OFF,

SS CAPACITORS DISCHARGED)

LOCKOUT

(POWER SWITCHES OFF,

SS CAPACITORS DISCHARGED)

SHUTDOWN

(LOW QUIESCENT CURRENT)

OV/UV

SINKS > 80µA

OV/UV (V)

ACTIVE (NORMAL OPERATION)

1.37V

1.215V

0.3V

0.0V

8471 F01

LT847 1 RSA R35 RaA R33 RaA R33 RaA R33 VOVLO VUVLo Vovm Vovm 7 1 L7HEJWEGR 1 3

LT8471

8471fd

For more information www.linear.com/8471

LT8471. Comparator CUVLO detects undervoltage condi-

tions by comparing the OV/UV pin to typical thresholds

of 1.215V (rising) and 1.18V (falling). The COVLO com-

parator detects over voltage conditions by comparing the

OV/UV pin current to typical thresholds of 80μA (rising)

and 75μA (falling).

Possible reasons to use the UVLO and/or OVLO functions

are as follows: A switching regulator draws constant power

from the source, so source current increases as source

voltage drops. This looks like a negative resistance load

to the source and can cause the source to current-limit

or latch up under low source voltage conditions. UVLO

prevents the regulator from operating at source voltages

where these problems might occur. The OVLO function

is used to stop the switching regulator(s) in cases where

the input supply voltage overshoots higher than desired.

As an example, VIN1 overvoltage and undervoltage thresh-

olds can be set independently by properly choosing R3A

and R3B. Use the following formulas to determine the

resistor values:

R3A =VOVLO+

80µA

⎛

⎝

⎜

⎞

⎠

⎟–1.37 •VUVLO–

1.18 •80µA

⎛

⎝

⎜⎞

⎠

⎟

R3B =1.18

VUVLO–– 1.18

⎛

⎝

⎜

⎞

⎠

⎟•R3A

where:

VOVLO+ is the desired rising OVLO threshold

VUVLO– is the desired falling UVLO threshold

After R3A and R3B have been selected, the UVLO and OVLO

rising and falling thresholds can be determined using:

VOVLO+=1.37 •R3A +R3B

R3B

⎛

⎝

⎜

⎞

⎠

⎟+80µA •R3A

VOVLO–=1.37 •R3A +R3B

R3B

⎛

⎝

⎜

⎞

⎠

⎟+75µA •R3A

VUVLO+=1.215 •R3A +R3B

R3B

⎛

⎝

⎜

⎞

⎠

⎟

VUVLO–=1.18 •R3A +R3B

R3B

⎛

⎝

⎜

⎞

⎠

⎟

where:

VOVLO+ and VOVLO– are the rising and falling OVLO

thresholds, respectively.

VUVLO+ and VUVLO– are the rising and falling UVLO

thresholds, respectively.

There are a few limitations in selecting the OVLO and UVLO

threshold voltages.

1. The UVLO threshold must be at least 2.6V so that it’s

higher than the minimum operating voltage the input

supply. If the UVLO function is not needed, R3B can be

omitted and R3A can be calculated using:

R3A =VOVLO+– 1.37V

80µA

⎛

⎝

⎜

⎞

⎠

⎟

2. The following relationship must be satisfied:

OVLO+

VUVLO–>1.37

1.18 =1.16

As the ratio of VOVLO to VUVLO gets closer to 1.161, the

required resistances for R3A and R3B become smaller,

thus increasing the operating current.

applicaTions inForMaTion

LT847 1 Vom ﬂ 1.37'5V

LT8471

8471fd

For more information www.linear.com/8471

The following example shows how to select R3A and R3B

to disable the LT8471 for VIN1 voltages below 5V and

above 15V.

First, check that the ratio of the OVLO to the UVLO thresh-

old is greater than 1.161. Here, the ratio is 15V/5V = 3V,

which satisfies the second rule just mentioned.

Next, calculate:

R3A =

15V

80µA –

1.37 •5V

1.18 •80µA =114.9k

Choose R3A to be a standard value resistance of 118k.

Next, calculate:

R3B =

1.18V

5V – 1.18V

⎛

⎝

⎜⎞

⎠

⎟•118k =36.5k

Choose R3B to be a standard value resistance of 36.5k.

After selecting the standard value resistors for R3A and

R3B, calculate the final thresholds using the formulas

previously provided.

VOVLO+=1.37 •

118k

36.5k

⎛

⎝

⎜⎞

⎠

⎟+80µA •118k

=15.24V

VOVLO–=1.37 •118k +36.5k

36.5k

⎛

⎝

⎜⎞

⎠

⎟+75µA •118k

=14.65V

VUVLO+=1.215 •118k +36.5k

36.5k

⎛

⎝

⎜⎞

⎠

⎟=5.14V

VUVLO–=1.18 •118k +36.5k

36.5k

⎛

⎝

⎜⎞

⎠

⎟=4.99V

Setting the Output Voltage (Primary Channels)

The output voltage is programmed with a resistor divider

between the output and the FB pin. Choose 1% or better

resistors according to:

RA=RB•VOUT

VFB

– 1

⎛

⎝

⎜

⎞

⎠

⎟

where VFB is the feedback voltage (0.789V typical for

positive VOUT and –0.788V for negative VOUT). Reference

designators are as shown in the Block Diagram.

For example, for VOUT = 10V, choose R1B = 10k, then

choose:



R1A =10k •

10V

0.789V – 1

⎛

⎝

⎜⎞

⎠

⎟115k

Start-Up Sequencing

Connecting one primary channel's PG pin to the other

channel's SS pin is an easy way to sequence the start-up

order of the outputs. For example, in most applications,

connecting PG1 to SS2 will make the channel 1 output

come up before the channel 2 output during the start-up.

Because the skyhook channel does soft-start with the

SS1 pin (see more details in the Soft-Start section), the

following guidelines need to be applied if both power-up

sequencing and the skyhook channel are used:

1. Connect PG1 directly to SS2 to make channel 1's output

come up first (see Figure 12).

2. Connect a 147k resistor between PG2 and SS1 to make

channel 2's output come up first.

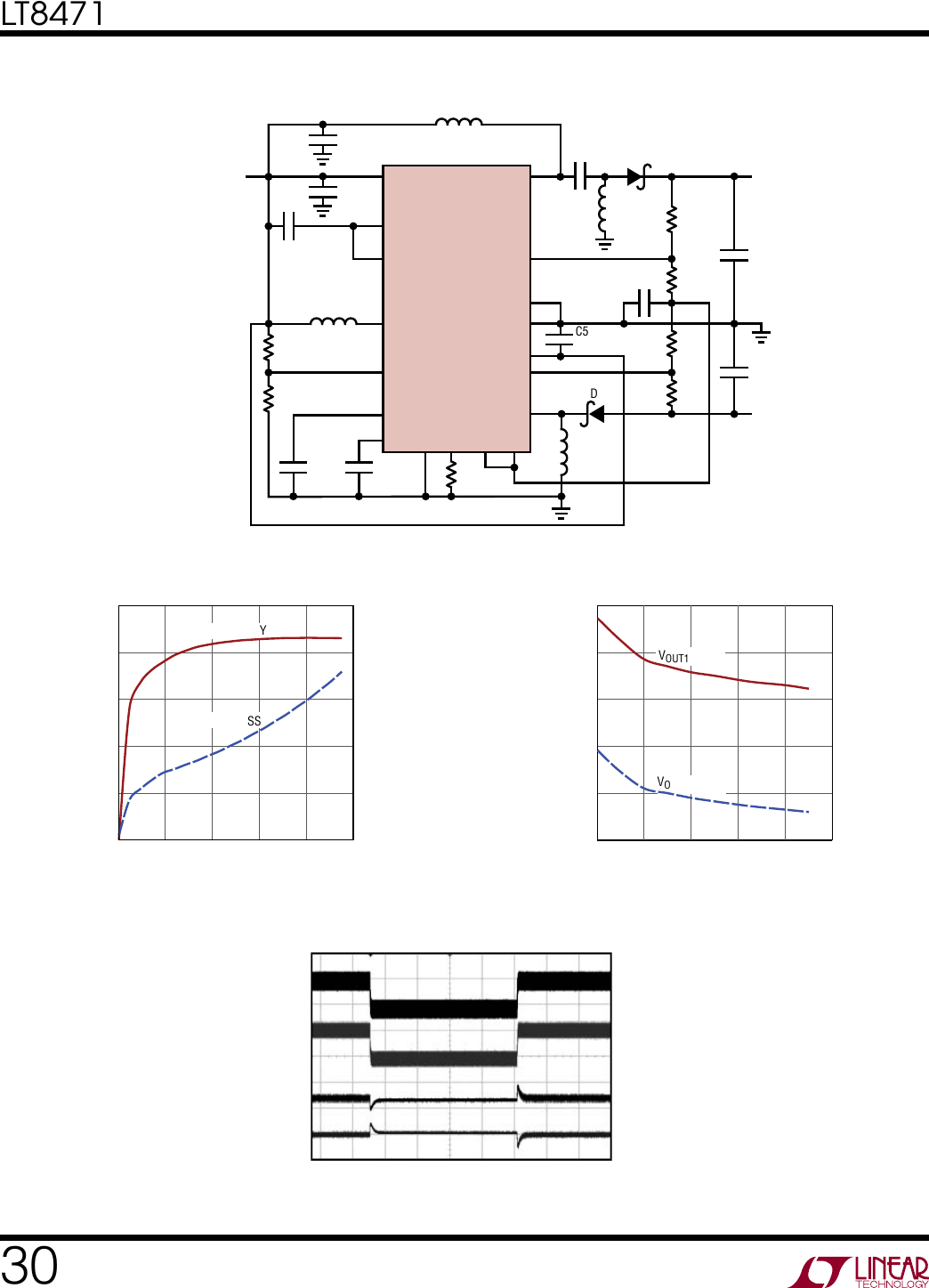

An example using a 147k resistor connected between PG2

and SS1 is shown in Figure 9a. In this application, chan-

nel 1 is configured as a boost converter, and channel 2 is

configured as a buck converter. The buck converter has

to start up first as its output is connected to the input of

the boost converter.

applicaTions inForMaTion

LT847 1 VOUT’VCC VD Vom VD ‘VOUTI IVOUT‘ VD Vom VD VOUT L7HEJWEGR 1 5

LT8471

8471fd

For more information www.linear.com/8471

Power Switch Duty Cycle (Primary Channels)

In order to maintain loop stability and deliver adequate

current to the load, the internal power switches (Q1 and

Q2 in the Block Diagram) cannot remain on for 100% of

each clock cycle. The maximum allowable duty cycle is

given by:

DCMAX =

–MIN

(OFF)TIME

⎛

⎝

⎜

⎞

⎠

⎟•100%

where TP is the clock period and MIN(OFF)TIME is typically

170ns (refer to the Electrical Characteristics section).

The application should be designed so that the steady state

duty cycle does not exceed DCMAX. Duty cycle equations

for several common topologies are given below, where VD

is the diode forward voltage drop and VCESAT is typically

300mV at 1.5A.

DCBOOST ≅

OUT

– V

CC +

VOUT +VD– VCESAT

DCBUCK ≅VOUT +VD

VCC +VD– VCESAT

DC1L _INV ≅VOUT +VD

VCC +VD– VCESAT +VOUT

DC2L _INV ≅VOUT +VD

VCC +VD– VCESAT +VOUT

DCSEPIC ≅VD+VOUT

VCC +VOUT +VD– VCESAT

DCZETA ≅VD+VOUT

VCC +VOUT +VD– VCESAT

where VCC is the positive input voltage to the DC/DC con-

verter. See the Typical Applications section for examples.

The LT8471 can be used in configurations where the duty

cycle is higher than DCMAX, but it must be operated in the

discontinuous conduction mode so that the effective duty

cycle is reduced.

Inductor Selection (Primary Channels)

General Guidelines: The high frequency operation of

the LT8471 allows for the use of small surface mount

inductors. For high efficiency, choose inductors with

high frequency core material, such as ferrite, to reduce

core losses. To improve efficiency, choose inductors

with more volume for a given inductance. The inductor

should have low DCR (copper wire resistance) to reduce

I2R losses, and must be able to handle the peak inductor

current without saturating. Note that in some applications,

the current handling requirements of the inductor can be

lower, such as in the SEPIC topology, where each inductor

only carries a fraction of the total switch current. Molded

chokes or chip inductors usually do not have enough

core area to support peak inductor currents in the 2A to

3A range. To minimize radiated noise, use a toroidal or

shielded inductor. Note that the inductance of shielded

core types will drop more as current increases, and will

saturate more easily. See Table 1 for a list of inductor

manufacturers. Thorough lab evaluation is recommended

to verify that the following guidelines properly suit the

final application.

Table 1. Inductor Manufacturers

VENDOR PART NUMBER WEB

Coilcraft MSS1038, MSS7341 and

LPS4018 www.coilcraft.com

Coiltronics DR, LD and CD Series www.coiltronics.com

Sumida CDRH105R Series www.sumida.com

Würth Elektronik WE-LHMI and WE-TPC Series www.we-online.com

Minimum Inductance: Although there can be a trade-

off with efficiency, it is often desirable to minimize

board space by choosing smaller inductors. When

choosing an inductor, there are two conditions that

limit the minimum inductance; (1) providing adequate

load current, and (2) avoiding subharmonic oscillation.

Choose an inductance that is high enough to meet both

of these requirements.

applicaTions inForMaTion

LT847 1 DC - vCC VouT 'om Vac VOUT Vom IOUT Vac Vow lam Vcc IVOUT‘ IOUT Vcc ‘Vom‘ 'om V00 ‘Vourl IOUT 16 L7LJCUEN2

LT8471

8471fd

For more information www.linear.com/8471

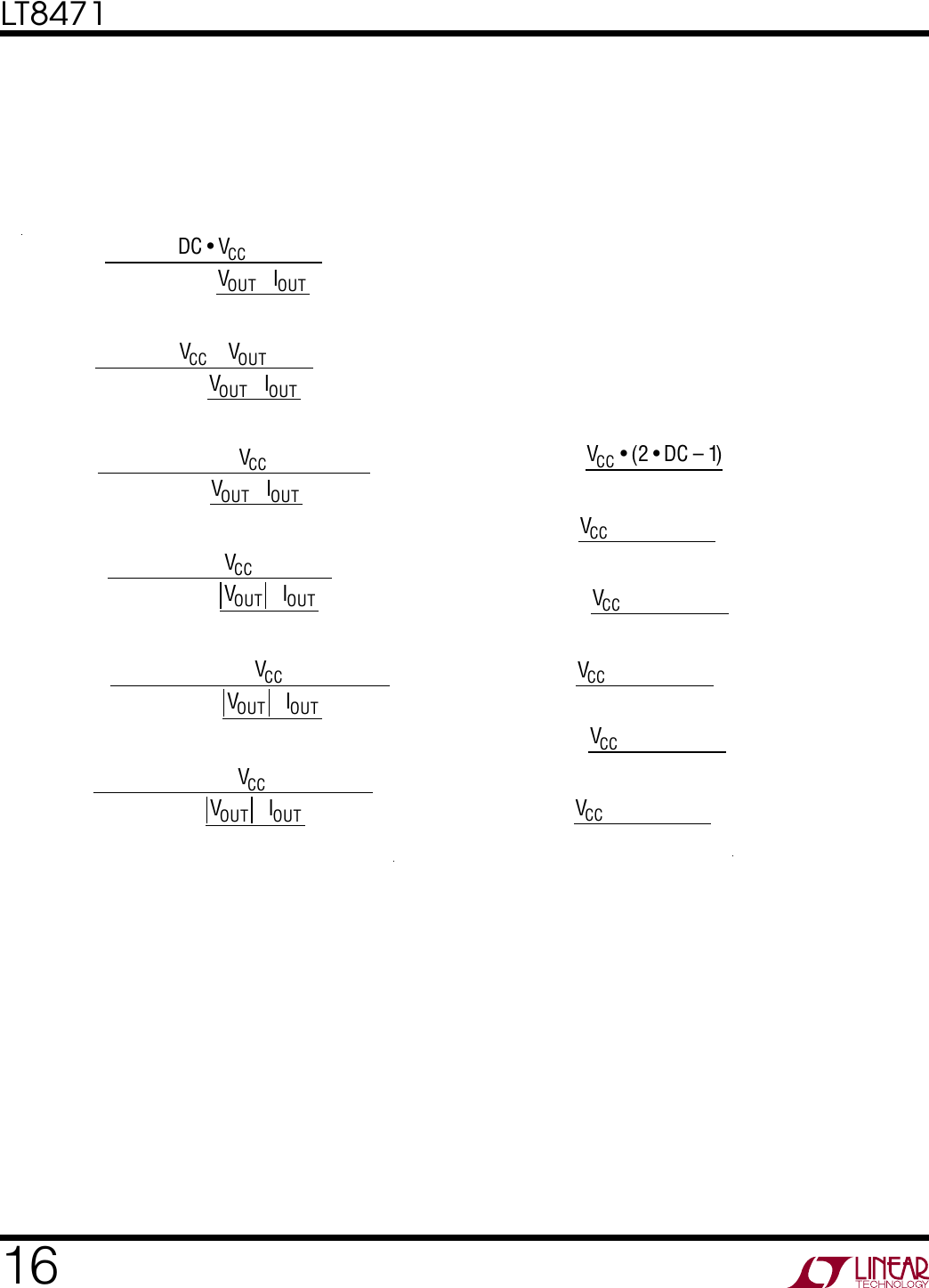

Adequate Load Current: Small value inductors result in

increased ripple currents and thus, due to the limited peak

switch current, decrease the average current that can be

provided to a load (IOUT). In order to provide adequate

load current, L should be at least:

LBOOST >

DC •V

2•f•ILIM –VOUT •IOUT

VCC •η

⎛

⎝

⎜

⎞

⎠

⎟

LBUCK >DC •(VCC – VOUT )

2•f•ILIM −VOUT •IOUT

VCC •η

⎛

⎝

⎜

⎞

⎠

⎟

LSEPIC >DC •VCC

2•f•ILIM –VOUT •IOUT

VCC •η– IOUT

⎛

⎝

⎜

⎞

⎠

⎟

L1L _INV >DC •VCC

2•f•ILIM –VOUT •IOUT

VCC •η

⎛

⎝

⎜

⎞

⎠

⎟

L2L _INV >DC •VCC

2•f•ILIM −VOUT •IOUT

VCC •η– IOUT

⎛

⎝

⎜

⎞

⎠

⎟

LZETA >DC •VCC

2•f•ILIM −VOUT •IOUT

VCC •η– IOUT

⎛

⎝

⎜

⎞

⎠

⎟

where:

L = L1||L2 for dual uncoupled inductor topologies.

L = L1 = L2 for dual-coupled inductor topologies.

DC = Switch duty cycle in steady state.

ILIM = Switch current limit, typically about 2.3A at 50%

duty cycle (see the Typical Performance Characteristics

section).

η = Power conversion efficiency (typically 88% for boost,

75% for dual inductor, 85% for buck and 80% for 1L

inverting topologies at high currents).

VCC = Positive input voltage to the DC/DC converter. See

the Typical Applications section for examples.

f = Switching frequency.

Negative values of L indicate that the output load current

IOUT exceeds the switch current limit capability of the

LT8471.

Avoiding Subharmonic Oscillations: The LT8471’s internal

slope compensation circuit will prevent subharmonic oscil-

lations that can occur when the duty cycle is greater than

50%, provided that the inductance exceeds a minimum

value. In applications that operate with duty cycles greater

than 50%, the inductance must be at least:

LBOOST >

•(2 •DC – 1)

(1– DC) •f

LSEPIC >VCC •(2 •DC – 1)

(1– DC) •f

L2L _INV >VCC •(2 •DC – 1)

(1– DC) •f

LBUCK >VCC •(2 •DC – 1)

L1L _INV >VCC •(2 •DC – 1)

(1– DC) •f

LZETA >VCC •(2 •DC – 1)

(1– DC) •f

where:

L = L1||L2 for dual uncoupled inductor topologies.

L = L1 = L2 for dual-coupled inductor topologies.

DC = Switch duty cycle in steady state.

VCC = Positive input voltage to the DC/DC converter. See

the Typical Applications section for examples.

f = Switching frequency.

applicaTions inForMaTion

LT847 1 Vac VCESAT ‘VOUT IOUT‘ Vac Vcc VCESAT ‘VOUT IOUT‘ Vac Vcc VCESAT ‘VOUT IOUTI Vac Vow VD ‘VOUT IOUTI Vac (‘VOUT‘ VD ‘VOUT IOUTI Vcc (‘VOUT‘ VD VC E SAT VC E SAT VCESAT VCESAT VCESAT L7 LJUW 17

LT8471

8471fd

For more information www.linear.com/8471

Maximum Inductance: Excessive inductance can reduce

current ripple to levels that are difficult for the current

comparator (A3 in the Block Diagram) to easily distinguish,

thus causing duty cycle jitter and/or poor regulation. The

maximum inductance can be calculated using:

LMAX =

CC −

CESAT

IMIN(RIPPLE) •f•DC

for inverting, boost, ZETA and SEPIC topologies, or:

LMAX =

−

DC)•V

CC −

CESAT

IMIN(RIPPLE) •f•DC

for the buck topology.

where:

LMAX = L1||L2 for dual uncoupled inductor topologies.

LMAX = L1 = L2 for dual-coupled inductor topologies.

I(MIN)RIPPLE is typically 120mA.

DC = Switch duty cycle in steady state.

VCC = Positive input voltage to the DC/DC converter. See

the Typical Applications section for examples.

f = Switching frequency.

Maximum Current Rating: Finally, the inductor(s) must

be rated to handle the peak operating current to prevent

inductor saturation resulting in efficiency loss. In steady

state, the peak input inductor current (continuous conduc-

tion mode only) is given by:

L _PEAK =VOUT •IOUT

VCC •η+(VCC −VCESAT )•DC

2•L•f(BOOST)

L _PEAK =VOUT •IOUT

VCC •η+(VCC −VCESAT )•DC

2•L•f(1L_INV)

L _PEAK =IOUT +(VCC – VCESAT)•DC •(1−DC)

2•L•f(BUCK)

L1_PEAK =VOUT •IOUT

VCC •η+(VCC −VCESAT )•DC

2•L1•f(SEPIC)

L2_PEAK =IOUT +(VOUT +VD)•(1−DC)

2•L2 •f(SEPIC)

L1_PEAK =VOUT •IOUT

VCC •η+(VCC −VCESAT )•DC

2•L1•f(2L_INV)

L2_PEAK =IOUT +( VOUT +VD)•(1−DC)

2•L2 •f(2L_INV)

L1_PEAK =VOUT •IOUT

VCC •η+(VCC −VCESAT )•DC

2•L1•f(ZETA)

L2_PEAK =IOUT +( VOUT – VD)•(1−DC)

2•L

•f(ZETA)

Note that the inductor current can be higher during load

transients. It can also be higher during start-up if inad-

equate soft-start capacitance is used.

applicaTions inForMaTion

LT8471

8471fd

For more information www.linear.com/8471

Capacitor Selection (Primary Channels)

Low ESR (equivalent series resistance) capacitors should

be used at the output to minimize the output ripple voltage.

Multilayer ceramic capacitors are an excellent choice, as

they have an extremely low ESR and are available in very

small packages. X5R or X7R dielectrics are preferred, as

these materials retain their capacitance over wider voltage

and temperature ranges. A 4.7μF to 20μF output capaci-

tor is sufficient for most applications, but systems with

very low output currents may need only a 1μF or 2.2μF

output capacitor. Always use a capacitor with a sufficient

voltage rating. Many capacitors rated at 2.2μF to 20μF,

particularly 0805 or 0603 case sizes, have greatly reduced

capacitance at the desired output voltage. Solid tantalum

or OS-CON capacitors can be used, but they will occupy

more board area than ceramic ones and will have higher

ESR with greater output ripple.

Low ESR capacitors should also be used as the input de-

coupling capacitors, which should be placed as closely as

possible to the LT8471. Ceramic capacitors make a good

choice for this purpose. A 2.2μF to 4.7μF input capacitor

is sufficient for most applications.

Table 2 shows a list of several ceramic capacitor manufac-

turers. Consult the manufacturers for detailed information

on their entire selection of ceramic capacitors.

Table 2. Ceramic Capacitor Manufacturers

VENDOR WEB

Kemet www.kemet.com

Murata www.murata.com

Taiyo-Yuden www.t-yuden.com

TDK www.tdk.com

Compensation Theory (Primary Channels)

Like all other current mode switching regulators, the

primary channels of LT8471 need to be compensated for

stable and efficient operation. For each primary channel,

two feedback loops are used—a fast current loop which

does not require compensation, and a slower voltage

loop which does. In order to reduce the PCB footprint, the

voltage loop compensation network is integrated inside

the LT8471. Therefore, only the inductor and the output

capacitor are available for adjusting the loop stability.

Standard bode plot analysis can be used to analyze and

adjust the voltage feedback loop.

As with any feedback loop, identifying the gain and phase

contribution of the various elements in the loop is critical.

Figure 3 shows the key equivalent elements of a boost/

buck/inverting converter. Because of the fast current con-

trol loop, the power stage of the IC, inductor and diode

have been replaced by a combination of the equivalent

transconductance amplifier gmp and the current controlled

current source (which converts IVIN to η • VIN • IVIN/VOUT

for boost converters, IVIN to η • VIN • DC/VOUT for buck

and single inductor inverting converters). gmp acts as

a current source where the peak input current, IVIN, is

proportional to the VC voltage. η is the efficiency of the

switching regulator, and is typically about 88%.

Note that the maximum output currents of gmp and gma

are finite. The limits for gmp are in the Electrical Character-

istics section (switch current limit), and gma is nominally

limited to about ±5μA.

applicaTions inForMaTion

Figure 3. Boost/Buck/Inverting Converter Equivalent Model

–

gma

RCRO

BOOST:

BUCK AND SINGLE

INDUCTOR INVERTING:

CC: COMPENSATION CAPACITOR

COUT: OUTPUT CAPACITOR

CPL: PHASE LEAD CAPACITOR

gma: TRANSCONDUCTANCE AMPLIFIER INSIDE IC

gmp: POWER STAGE TRANSCONDUCTANCE AMPLIFIER

RC: COMPENSATION RESISTOR

RL: OUTPUT RESISTANCE DEFINED AS VOUT DIVIDED BY ILOAD(MAX)

RO: OUTPUT RESISTANCE OF gma

RA, RB: FEEDBACK RESISTOR DIVIDER NETWORK

RESR: OUTPUT CAPACITOR ESR

8471 F03

COUT

CPL

RESR

IVIN

VOUT

gmp

REFERENCE

• IVIN

η • VIN

VOUT

η • VIN • IVIN • DC

VOUT

LT847 1 DC Gain: VIN R_ RB RB RA'RB VIN \ \ 1 Cic Ra RC-RO RL 7W ‘VOUT‘ VIN 2°“'DC°L L7HEJWEGR 1 9

LT8471

8471fd

For more information www.linear.com/8471

From Figure 3, the DC gain, poles and zeros can be cal-

culated as follows:

DC Gain:

Boost Converters:

ADC =(gma •RO)•gmp •η•VIN

VOUT

•RL

⎛

⎝

⎜

⎞

⎠

⎟

•RB

RA+RB

Buck Converters:

ADC =(gma •RO)•gmp •(η•RL)•RB

RA+RB

Single Inductor Inverting Converters:

ADC =(gma •RO)•gmp •η•VIN

VIN +2•VOUT

•RL

⎛

⎝

⎜

⎞

⎠

⎟

•RB

RA+RB

Output Pole:

Boost Converters: P1=2

2•π•RL•COUT

Buck Converters: P1=1

2•π•RL•COUT

Single Inductor Inverting Converters:

P1=2•VOUT +VIN

2•π•RL•COUT •VIN +VOUT

( )

Error Amp Pole: P2 =

2•π•RO•CC

Error Amp Zero: Z1=1

2•π•RC•CC

ESR Zero: Z2 =1

2•π•RESR •COUT

High Frequency Pole: P3> fS

Phase Lead Zero: Z4 =1

2•π•RA•CPL

Phase Lead Pole: P4 =1

2•π•CPL •RA•RB

RA+RB

Error Amp Filter Pole:

P5 =1

2•π•RC•RO

RC+RO

•CF

,CF<CC

RHP Zero:

Boost Converters: Z3 =(1−DC)2•RL

2•π•L

Buck Converters: Z3 = ∞

Single Inductor Inverting Converters:

Z3 =(1−DC)2•RL

2•π•DC •L

applicaTions inForMaTion

LT847 1 20 L7ELUEN2

LT8471

8471fd

For more information www.linear.com/8471

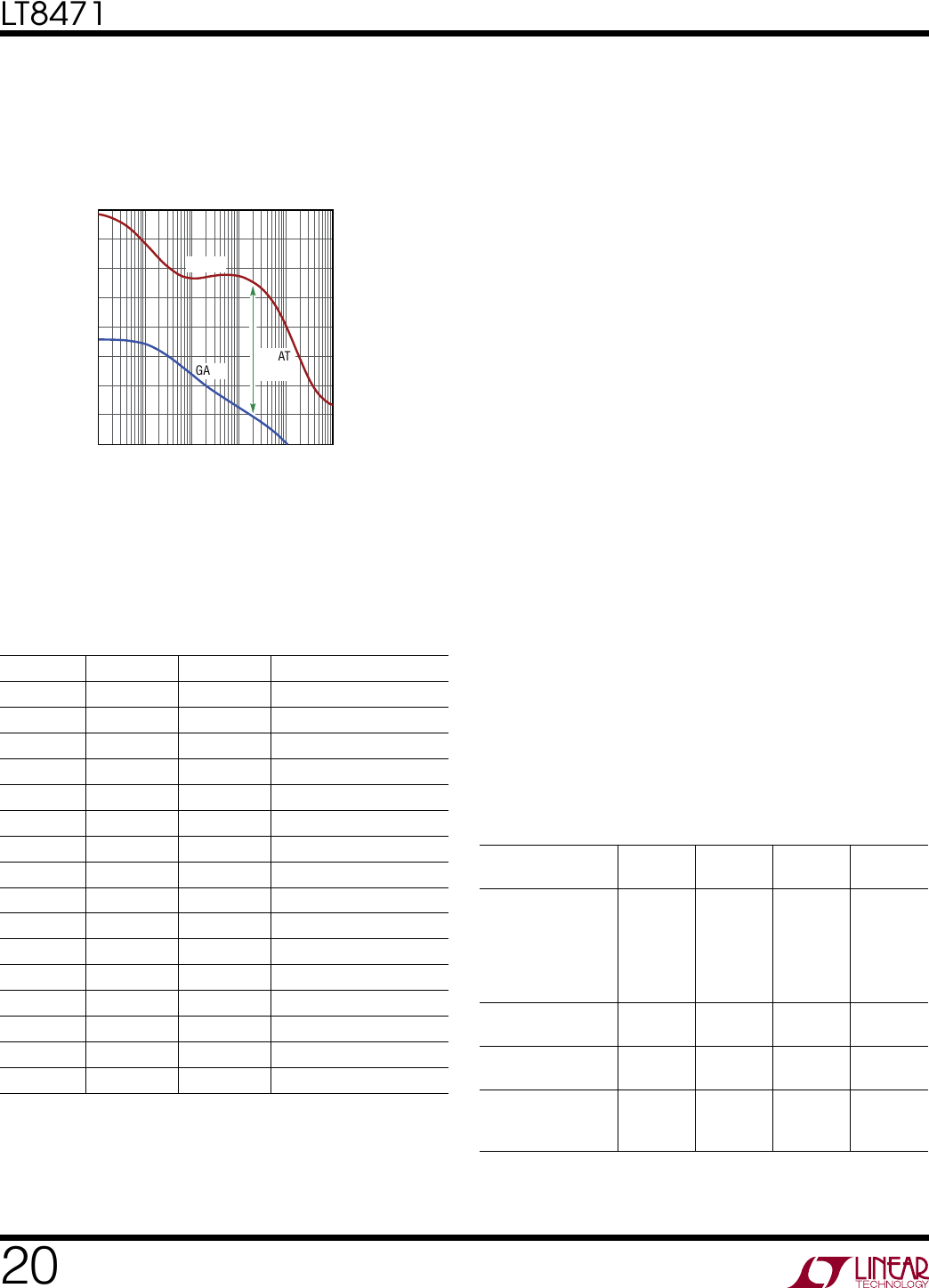

Figure 4. Bode Plot for Example Buck Converter

FREQUENCY (Hz)

GAIN (dB)

120

10 10k 100k 1M

–20

100 1k

140

100

–225

PHASE (dB)

–135

–45

–360

–315

–180

–90

–270

8471 F04

GAIN

PHASE

70° AT

20kHz

Using the primary channel 1 in Figure 11a as an example,

Table 3 shows the parameters used to generate the bode

plot shown in Figure 4.

The previous discussion is a good start for narrowing

down the range of component values so that the overall

design meets the stability requirements. To obtain good

stability margin and transient response, some fine tuning

of the external components, i.e., the inductor and output

capacitor may be necessary.

Diode Selection (Primary Channels)

Schottky diodes, with their low forward-voltage drops and

fast switching speeds, are recommended for use with the

LT8471. Each of the primary channels need an external

diode as the second switch. The diode conducts current

only during the switch off-time. The average forward cur-

rent in normal operation can be calculated from:

ID(AVG) = IOUT •(1–DC)

where IOUT is the output load current, and DC is the switch

duty cycle in steady state.

Choose a diode rated to handle at least ID(AVG). Diodes

with higher current rating should be selected to handle

increased current during start-up, load transient and/or

output short. Choose a Schottky diode with low parasitic

capacitance to reduce reverse current spikes through the

power switch of the LT8471. In addition, when operating at

high ambient temperatures and with high reverse voltages

across the Schottky, choose diodes with lower reverse leak-

age current to avoid excessive heating in the diode. Table

4 lists several Schottky diodes and their manufacturers.

Table 4. Diode Vendors

PARAMETER

(V)

IAVE

(A)

VF AT 1A

(mV)

VF AT 2A

(mV)

Diodes, Inc.

B120

B130

B220

B230

DFLS260L

500

410

500

620

Microsemi

UPS140

450

Fairchild

SS16

700

International Rectifier

10BQ030

20BQ030

420

470

applicaTions inForMaTion

In Figure 4, the phase is –110° when the gain reaches 0dB,

giving a phase margin of 70°. The crossover frequency

is 20kHz.

Table 3. Bode Plot Parameters

PARAMETER VALUE UNITS COMMENT

RL 3.3 Ω Application Specific

COUT 94 μF Application Specific

RESR 1 mΩ Application Specific

RO1.35 MΩ Not Adjustable

CC 1 nF Not Adjustable

CF10 pF Not Adjustable

CPL 0 pF Optional/Adjustable

RC 155 kΩ Not Adjustable

RA319 kΩ Adjustable

RB59 kΩ Adjustable

VOUT 5 V Application Specific

VIN 12 V Application Specific

gma 70 μmho Not Adjustable

gmp 7.3 mho Not Adjustable

L 10 μH Application Specific

fS0.45 MHz Adjustable

LT847 1 Vcc (loun DC1 Iomz D02 L7 LJUW 2 1

LT8471

8471fd

For more information www.linear.com/8471

Skyhook Configuration Requirements

The Skyhook provides the boosted VIN voltage required

for channels operating in the high side configuration. High

side channels have their respective C pin tied to a posi-

tive DC voltage supply (usually VCC) while the respective

E pin toggles. The channel’s VIN pin should be at least

2.2V (typical) higher than the respective C pin to provide

adequate base drive for the NPN power switch. Internal

circuits monitor the voltage difference between VIN1 and

E1 (and VIN2 and E2). If the voltage difference is less

than 2.2V (typical), the power switch will be turned off

immediately for that clock cycle. Increasing voltage dif-

ference between VIN and the respective C pin increases

power loss and reduces efficiency. VIN must not be more

than 40V higher than the respective C pin for high side

configurations. If use of Skyhook channel is not desired,

then the boosted VIN voltage can instead be provided by

an external power supply or by the output of the opposite

channel if the voltage is high enough.

The Skyhook output (SHOUT) is regulated to ~4.25V above

the C2 pin voltage and can be connected to the appropriate

VIN pin(s) as shown in the Typical Applications section.

When in use, the Skyhook can only be configured as a

boost converter (i.e., as in Figure 1a). Also, since SHOUT

is regulated to ~4.25V above C2, the C2 pin must be

connected to a DC voltage (usually VCC) and must not be

toggling. Because of this requirement, if channel 2 is used

while the Skyhook is operating, channel 2 must be in the

high side configuration such as buck or single-inductor

inverting. If not being used, the Skyhook channel can be

disabled by connecting the C3 pin to ground. When the

Skyhook channel is disabled VIN1 current is reduced.

Capacitor and Diode Selection (Skyhook)

A low ESR capacitor should be used at the Skyhook output

to minimize voltage ripple. Ceramic capacitors make a

good choice for this (see the discussion in the Capacitor

Selection (Primary Channels) section). The capacitor value

can affect stability. Read the upcoming Compensation

(Skyhook) section for more information.

For the best noise performance, the Skyhook output

capacitor should be connected from SHOUT to GND, and

the capacitors should be placed close to the pins (VIN1

or VIN2) that SHOUT is shorted to. The Skyhook output

capacitor can also be connected from SHOUT to the C2

pin (usually VCC), as shown in Figure 9a. By doing this, the

output voltage of the Skyhook, or the boosted base drive

voltage for the primary channels will have better tracking

with the supply voltage of the channel. In addition, the

voltage across the capacitor is lower, thus reducing the

size and required voltage rating of the capacitor.

The Skyhook has a Schottky diode built on-chip. Nev-

ertheless, an external Schottky diode can be connected

from C3 to SHOUT to improve performance when load

currents are high. The diode choice can be made based

on the discussion in the Diode Selection (Primary Chan-

nels) section. The output current (IOUT) for the Skyhook

channel can be estimated as:

IOUT ≅

CC +

4.25V)•(I

OUT1

•DC

OUT2

•DC

)

β•VCC •η

where:

VCC = Input voltage of the Skyhook.

IOUT1 = Average output current of channel 1 if VIN1 is

connected to SHOUT (0 otherwise).

IOUT2 = Average output current of channel 1 if VIN2 is

connected to SHOUT (0 otherwise).

DC1 = Duty cycle of channel 1 in steady state.

DC2 = Duty cycle of channel 2 in steady state.

η = Power conversion efficiency of the Skyhook (typically

87%).

β = Channel 1/channel 2 power switch beta (typically 35)

applicaTions inForMaTion

LT847 1 4.25v vDSH (low Iomz 2 i 1 Vcc‘to L DCSH Vac Vcc (low 'omz 22 L7ELUEN2

LT8471

8471fd

For more information www.linear.com/8471

Inductor Selection (Skyhook)

The general guidelines are the same as the ones for pri-

mary channels, and can be found in the previous section.

Minimum Inductance: There are three conditions that limit

the minimum inductance for the Skyhook boost converter:

1. Provide adequate load current;

2. Avoid excessive power switch current overshoot;

3. Maintain good loop stability (see the subsequent Com-

pensation (Skyhook) section).

Choose an inductance that satisfies the minimum require-

ments for all three criteria. At least 20% of additional

margin is recommended for the inductance.

Adequate Load Current: Starting by assuming the Skyhook

operates in discontinuous mode (DCM), the minimum

inductance (LDCM(MIN)) to provide adequate load current is:

LDCM(MIN) >

OUT1

•DC1

OUT2

•DC2)•4.25V •2

35 •η•f•I

LIM

Next, verify if the Skyhook will actually operate in DCM

with the following inequality:

ILIM •LDCM(MIN) •f•1

VCC

4.25V

⎛

⎝

⎜

⎞

⎠

⎟<

If this inequality is true, then the Skyhook will operate in

DCM, and IDCM(MIN) is the minimum inductance needed

to provide adequate load current. Otherwise, the Skyhook

will operate in continuous mode (CCM) when providing

maximum load current, and the minimum inductance

(LCCM(MIN)) needed is:

CCM(MIN) >

DCSH •VCC

2•f•ILIM –(VCC +4.25V) •(IOUT1 •DC1+IOUT2 •DC2)

35 •VCC •η

⎛

⎝

⎜

⎞

⎠

⎟

where:

DCSH = Skyhook duty cycle in steady state:

DCSH ≅

4.25V

DSH

VC2 +4.25V +VDSH

VDSH = Skyhook diode forward voltage drop (see the

Electrical Characteristics section).

VCC= Input voltage of the Skyhook.

ILIM = Skyhook switch fault current limit, typically 500mA.

IOUT1 = Average output current of channel 1 if VIN1 is

connected to SHOUT (0 otherwise).

IOUT2 = Average output current of channel 2 if VIN2 is

connected to SHOUT (0 otherwise).

DC1 = Duty cycle of channel 1 in steady state.

DC2 = Duty cycle of channel 2 in steady state.

η = Power conversion efficiency of Skyhook (typically 87%).

f = Switching frequency.

Skyhook Power Switch Current Overshoot: In order to

avoid excessive current overshoot in the Skyhook power

switch, LOS(MIN) should be:

LOS(MIN) >

•t

where:

VCC = Input voltage of the Skyhook.

tD = Skyhook fault current limit comparator delay (typi-

cally 50ns).

IOS = The amount of overshoot current that can be toler-

ated (typically 100mA).

Current Rating: The maximum switch current limit for

the Skyhook is 500mA. Choose an inductor that has a

saturation current of 500mA or higher to avoid saturating

the inductor.

applicaTions inForMaTion

LT847 1 Vum ’ VIN VD m m 12V+045V7021V VDUT"0UT 12V-0,67A Vw mas-5v Vw"w'DC 5V'185A-DEDB as ea L7 LJUW 23

LT8471

8471fd

For more information www.linear.com/8471

Table 5. LT8471 Power Dissipation

DEFINITION OF VARIABLES EQUATIONS DESIGN EXAMPLE VALUE

DC = Switch Duty Cycle

DC =

OUT

– V

IN +

OUT

– V

CESAT

DC =

12V – 5V

0.45V

12V +0.45V – 0.21V

DC = 60.9%

IIN = Average Switch Current

η = Power Conversion Efficiency

(typically 88% at high currents)

IN =

OUT

•I

OUT

η•V

IIN =

12V •0.67A

0.88 •5V

IIN = 1.85A

PSWDC = Switch I2R Loss (DC)

RSW = Switch Resistance

(typically 200mΩ)

PSWDC = DC•IIN2•RSW PSWDC=0.609•(1.85A)2•200mΩ PSWDC = 417mW

PSWAC = Switch Dynamic

Loss (AC) PSWAC = 13ns•IIN•VOUT•fOSC PSWAC = (13ns)•1.85A•12V•(1MHz) PSWAC = 289mW

PBDC = Base Drive Loss (DC)

BDC =

•I

•DC

BDC =

5V •1.85A •0.609

PBDC = 148mW

PINP = Input Power Loss PINP = 2.5mA•VIN PINP = 2.5mA•5V PINP = 12.5mW

PTOTAL = (PSWDC + PSWAC + PBDC)•2+PINP PTOTAL=(0.417+0.289+0.148)•2+0.0125 PTOTAL = 1.72W

Compensation (Skyhook)

Like the primary channels, the Skyhook is internally com-

pensated, and the loop stability is adjusted through the

inductor and the output capacitor. In most applications,

a 15μH Skyhook inductor such as Würth 744025150.

and a 0.47μF Skyhook output capacitor (C3 in the Block

Diagram) will give good stability. For high input voltage

applications, more inductance is typically required to

reduce the current overshoot.

A good technique to compensate the Skyhook regulator

is to start with a 15μH Skyhook inductor and a 0.47μF

output capacitor (C3 in the Block Diagram), and use the

subsequent list to make additional adjustments if needed.

More output capacitance (C3 in the Block Diagram) can

help with:

• Reducing the SHOUT overshoot and undershoot during

primary channel(s) load steps.

Less output capacitance (C3 in the Block Diagram) can

help with:

• Improving loop stability.

• Reducing peak inductor current during start-up.

More Skyhook inductance can help with:

• Reducing peak inductor current.

Less Skyhook inductance can help with:

• Improving loop stability when the SHOUT current load is

consistently high (i.e., the primary channel(s) powered

by SHOUT is switching every cycle).

Adding a resistor between SHOUT and C2, to introduce a

few mA of constant load, can help with:

• Improving the loop stability, SHOUT undershoot and

overshoot when the SHOUT current load is consistently

very light (i.e., the primary channel(s) powered by

SHOUT is not switching every cycle).

Thermal Considerations

For the LT8471 to deliver its full output power, it is

imperative that a good thermal path be provided to dis-

sipate the heat generated within the package. This can be

accomplished by taking advantage of the thermal pad on

the underside of the IC. It is recommended that multiple

vias in the printed circuit board be used to conduct heat

away from the IC and into a copper plane with as much

area as possible.

applicaTions inForMaTion

LT8471

8471fd

For more information www.linear.com/8471

Power and Thermal Calculations

Power dissipation in the LT8471 chip comes from four

primary sources: switch I2R losses, switch dynamic

losses, NPN base drive DC losses, and miscellaneous

input current losses. These formulas assume continuous

mode operation, so they should not be used for calculating

thermal losses or efficiency in discontinuous mode or at

light load currents.

The following example calculates the power dissipation

in the LT8471 for a particular boost application on both

CH1 and CH2 (VIN = 5V, VOUT = 12V, IOUT = 0.67A, fOSC

= 1MHz, VD = 0.45V, VCESAT = 0.21V).

To calculate die junction temperature, use the appropriate

thermal resistance number and add in worst-case ambient

temperature:

TJ = TA + θJA•PTOTAL

where TJ = Die Junction Temperature, TA = Ambient Tem-

perature, PTOTAL is the final result from the calculations

shown in Table 5, and θJA is the thermal resistance from

the silicon junction to the ambient air.

The θJA value is 38°C/W for the 20-lead TSSOP package

and 44°C/W for the 28-lead (4mm × 5mm) QFN package. In

practice, lower θJA values can be realized if board layout is

performed with appropriate grounding (accounting for heat

sinking properties of the board) and other considerations

listed in the Layout Guidelines section.

Thermal Lockout

A fault condition occurs when the die temperature exceeds

164°C (see Operation Section), and the part goes into

thermal lockout. The fault condition ceases when the die

temperature drops by ~1.5°C (nominal).

VIN Ramp Rate

While initially powering a switching converter application,

the VIN ramp rate should be limited. High VIN ramp rates can

cause excessive inrush currents in the passive components

of the converter. This can lead to current and/or voltage

overstress and may damage the passive components or

the chip. Ramp rates less than 500mV/μs, depending on

component parameters, will generally prevent these issues.

Also, be careful to avoid hot-plugging. Hot-plugging occurs

when an active voltage supply is “instantly” connected or

switched to the input of the converter. Hot-plugging results

in very fast input ramp rates and is not recommended.

Finally, for more information, refer to Linear application

note AN88, which discusses voltage overstress that can

occur when an inductive source impedance is hot-plugged

to an input pin bypassed by ceramic capacitors.

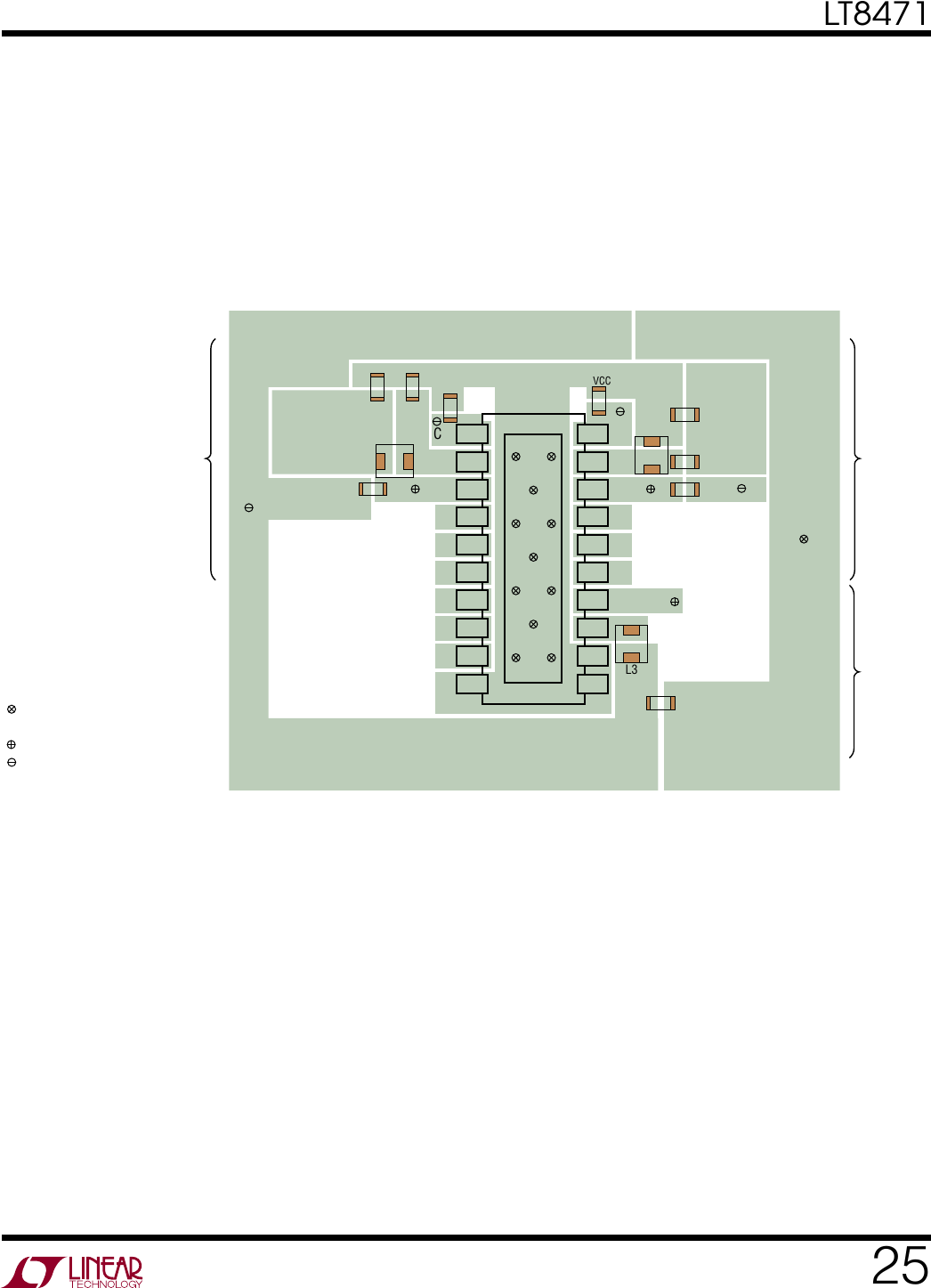

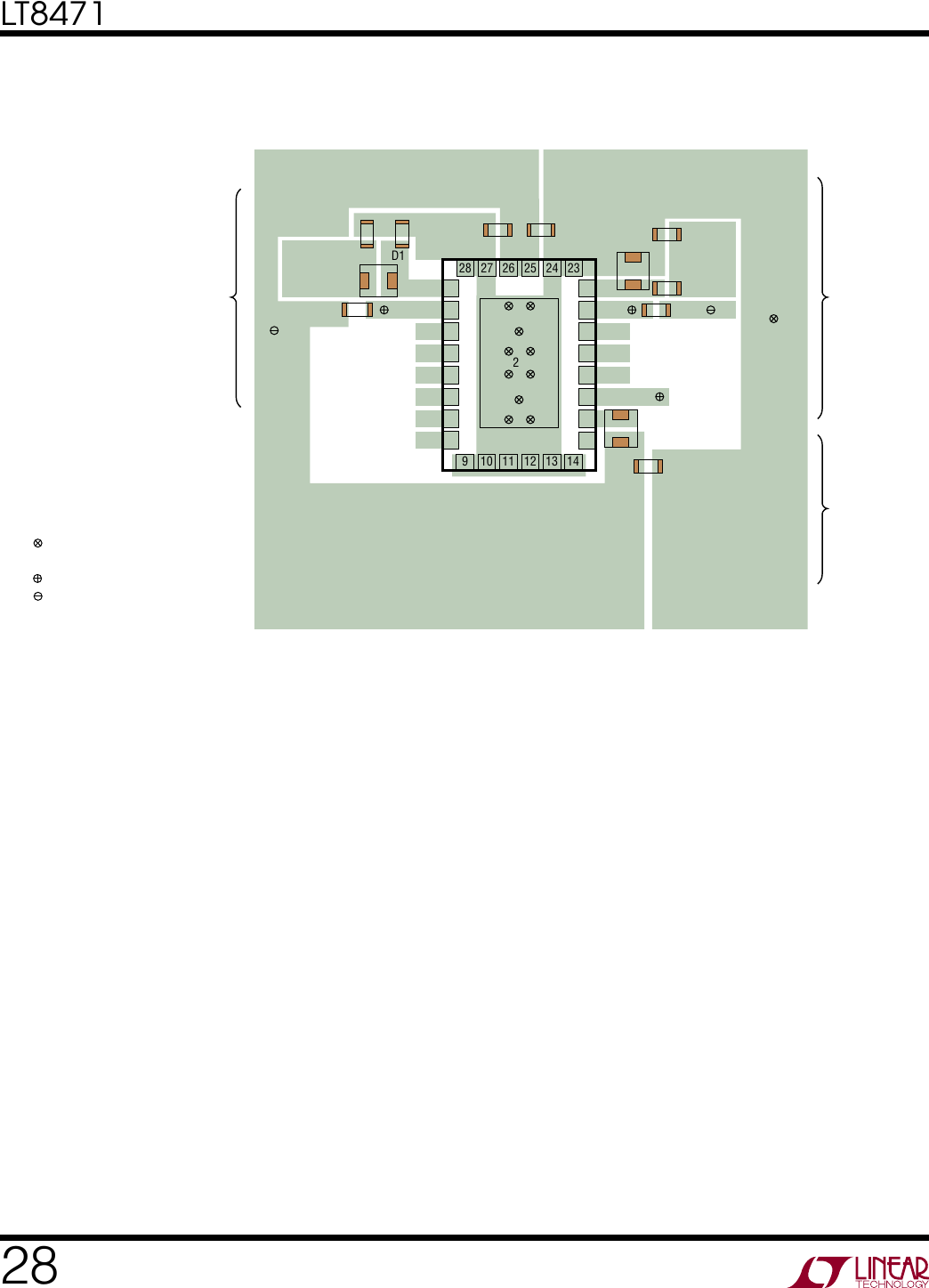

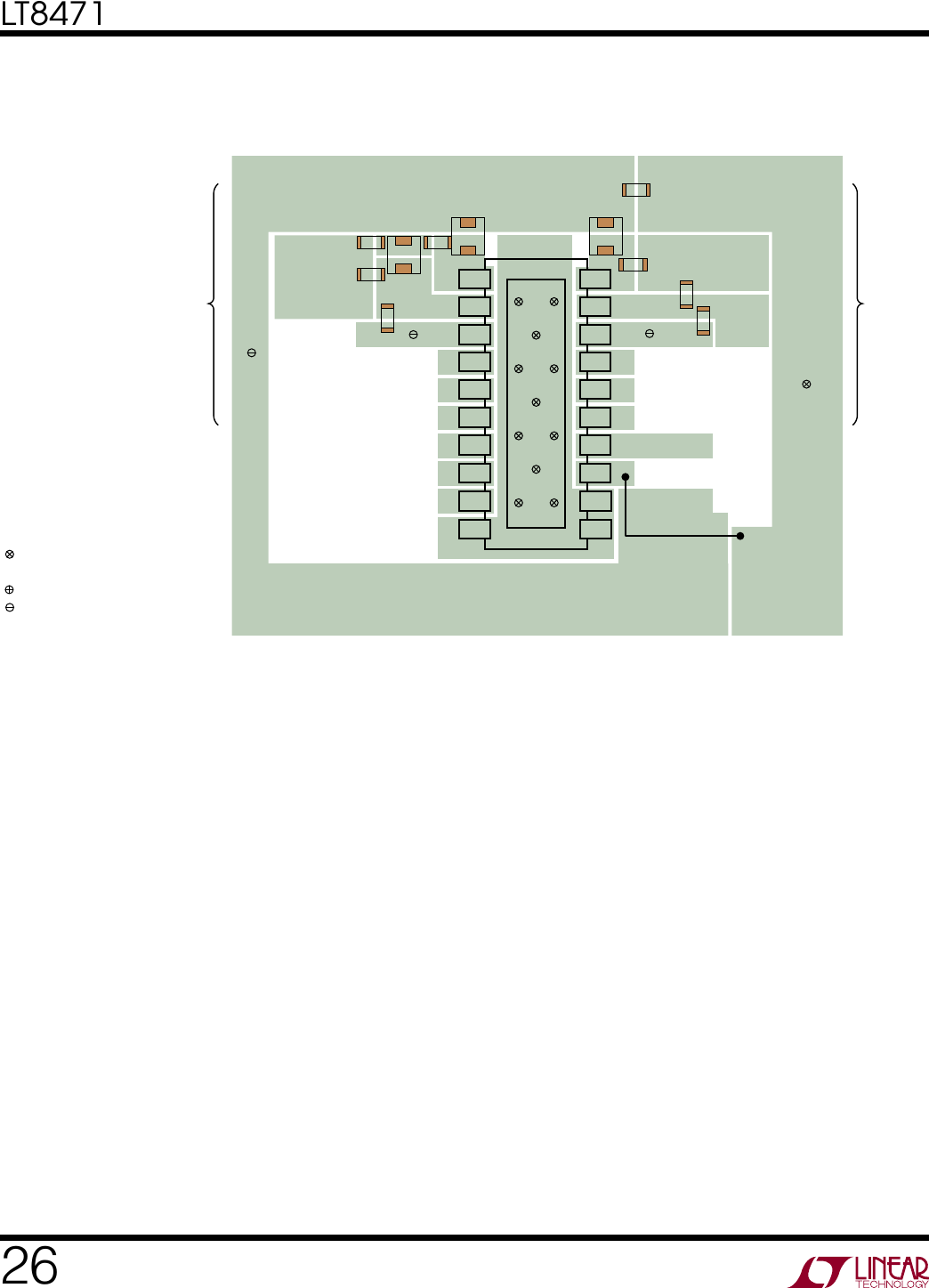

Layout Guidelines

As with all high frequency switchers, when considering

layout, care must be taken to achieve optimal electrical,

thermal and noise performance. One will not get advertised

performance with a careless layout. To prevent noise, both

radiated and conducted, the high speed switching current

paths must be kept as short as possible. For each channel,

the high speed switching current flows in a loop through

the following components:

• Boost: NPN power switch (C-E pins), external Schottky

diode and output capacitor

• Buck: NPN power switch (C-E pins), external Schottky

diode and input capacitor

• 1L Inverting: NPN power switch (C-E pins), external

Schottky diode, input capacitor and output capacitor

The area inside the loop formed by these components

should be kept as small as possible. This is implemented

in the suggested layouts shown in Figure 5, Figure 6 and

Figure 7. Shortening the loop will also reduce the para-

sitic trace inductance. As the NPN switch turns off, the

parasitic inductance can produce a flyback spike across

the LT8471 switch. When operating at higher currents

and output voltages, with poor layout, the spike can

generate voltages across the switch that may exceed its

absolute maximum rating. A ground plane should also

be used under the switcher circuitry to prevent interplane

coupling and overall noise. However, there should be

no ground plane under the planes that are connected to

applicaTions inForMaTion

L7Lé£k§l§g LT847 1 25

LT8471

8471fd

For more information www.linear.com/8471

Figure 5. Suggested Component Placement for a Buck and Single-Inductor Inverting Converter (TSSOP Package)

applicaTions inForMaTion

8471 F05

1L INV

CHANNEL 2

BUCK

CHANNEL 1

GND

SHOUT

VOUT2

VCC

CVCC

VOUT1

CVOUT1 CVOUT2

CVIN1 CVIN2

CVCC

VIN1

VIN2

VIAS TO GROUND PLANE REQUIRED

TO IMPROVE THERMAL PERFORMANCE

VIAS TO VIN1

VIAS TO VCC

SKYHOOK

the switching pins to keep the stray capacitance on the

switching pins small.

Board layout also has a significant effect on thermal re-

sistance. The exposed package ground pad is the copper

plate that runs under the LT8471 die. This is a good thermal

path for conducting heat out of the package. Soldering the

pad onto the board reduces die temperature and increases

the power capability of the LT8471. Provide as much

copper area as possible around this pad. Adding multiple

feedthroughs around the pad to the ground plane will also

help. Figure 5, Figure 6, Figure 7 and Figure 8 show the

recommended component placement for various DC/DC

converter topologies.

LT847 1 26 Lmim

LT8471

8471fd

For more information www.linear.com/8471

Figure 6. Suggested Component Placement for a SEPIC and Boost Converter (TSSOP Package)

applicaTions inForMaTion

8471 F06

BOOST

CHANNEL 2

SEPIC

CHANNEL 1

SHOUT

VOUT2

VOUT1

CVOUT1

CVOUT2

CVIN1

CVIN2

CVCC

VIN1

VIN2

VIAS TO GROUND PLANE REQUIRED

TO IMPROVE THERMAL PERFORMANCE

VIAS TO VIN1

VIAS TO VCC

VCC

GND

L7Lé£k§l§g LT847 1 27

LT8471

8471fd

For more information www.linear.com/8471

applicaTions inForMaTion

Figure 7. Suggested Component Placement for a Boost and Dual-Inductor Inverting Converter (TSSOP Package)

8471 F07

2L INV

CHANNEL 2

BOOST

CHANNEL 1

L1 L2

SHOUT

VOUT2

VOUT1

CVOUT2

CVIN1 CVIN2

CVCC

VIN1

VIN2

VIAS TO GROUND PLANE REQUIRED

TO IMPROVE THERMAL PERFORMANCE

VIAS TO VIN1

VIAS TO VCC

GND

VCC

LT8471

8471fd

For more information www.linear.com/8471

Figure 8. Suggested Component Placement for a Buck and Single-Inductor Inverting Converter (QFN Package)

applicaTions inForMaTion

8471 F08

IL INV

CHANNEL 2

SKYHOOK

BUCK

CHANNEL 1

C1 C2

VIN1 VIN2

CVOUT2

CVCC

SHOUT

VCC GND

910 11 12 13

28 27 26 25 24

815

CVOUT1

CVIN1 CVIN2

VOUT1 VOUT2

VIAS TO GROUND PLANE REQUIRED

TO IMPROVE THERMAL PERFORMANCE

VIAS TO VIN1

VIAS TO VCC

LT847 1 H l— «H |- LL; 3 L7 LJUW $ 2f F" I ”‘7 g 29

LT8471

8471fd

For more information www.linear.com/8471

Typical applicaTions

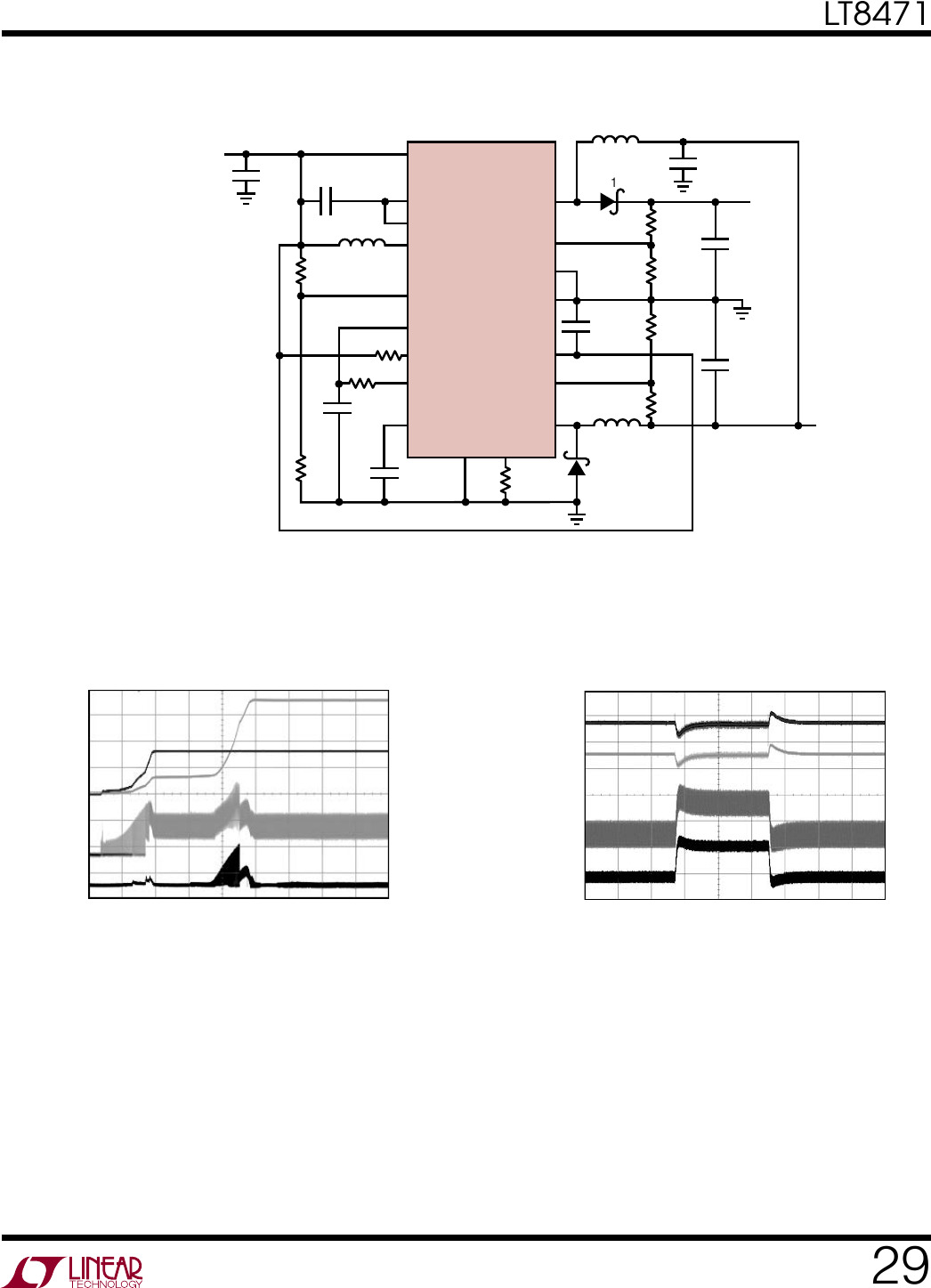

Figure 9a. Wide Input Range Buck Converter with 3.3V Output and Boost Converter with 18V Output at 400kHz

Figure 9b. Start-Up Waveforms Figure 9c. Load Step on VOUT1 from 40mA to 135mA to 40mA

IL2

500mA/DIV

IL1

500mA/DIV

VOUT1

5V/DIV

VOUT2

2V/DIV

8471 F09b

5ms/DIV

IL2

500mA/DIV

IL1

500mA/DIV

VOUT2

100mV/DIV

AC-COUPLED

VOUT1

500mV/DIV

AC-COUPLED

8471 F09c

500µs/DIV

RTSYNC

LT8471

8471 F09a

SHOUT

VIN2

VIN1

SS1

SS2

OV/UV

FB2

GND

FB1

VOUT1

18V

150mA

VOUT2

3.3V

0.8A

22µF

×5

1µF

2.2µF

0.1µF 215k

PG2

PG1

27.4k

604k

100k

31.6k

22µF

×4

VCC

5.3V TO 28V C6

2.2µF

15µH

100k

147k

33µH

0.1µF

280k

432k

15µH

C1: 25V, X7R, 1206

C2, C3, C6: 10V, X7R, 1206

C4: 50V, X7R, 1206

C5: 50V, X7R, 1206

D1: MICROSEMI UPS140

L1: SUMIDA CDRH105RNP-330NC

L2: COILCRAFT MSS1038-153

L3: WÜRTH 744025150

LT847 1 1'“ :E05 f :Z-é- E D % i r LT J T $ __ ‘v / w\\\ \

LT8471

8471fd

For more information www.linear.com/8471

Typical applicaTions

Figure 10a. Tracking* ±12V Supplies from 6V to 36V Input at 800kHz

Figure 10b. Efficiency and Power Loss

(VCC = 18V, Load from VOUT1 to VOUT2)

Figure 10c. 12V and –12V Outputs vs Load Current

(VCC = 18V, Load from VOUT1 to VOUT2)

Figure 10d. Load Step Between VOUT1 and VOUT2 from 150mA to 780mA to 150mA (VCC = 18V)

100

LOAD CURRENT (A)

EFFICIENCY (%)

POWER LOSS (W)

8471 F10b

00.2 0.4 0.6 0.8 1.0

EFFICIENCY

POWER LOSS

LOAD CURRENT (A)

VOUT1 (V)

VOUT2 (V)

–12.10

–12.14

–12.22

–12.30

–12.18

–12.26

12.00

12.04

12.12

12.20

12.08

12.16

8471 F10c

00.2 0.4 0.6 0.8 1.0

VOUT1 = 12V

VOUT2 = –12V

8471 F10d

2.2ms/DIV

IL2

1A/DIV

IL1

1A/DIV

VOUT2

500mV/DIV

AC-COUPLED

VOUT1

500mV/DIV

AC-COUPLED

RTSYNC

LT8471

8471 F10a

SHOUT

VIN2

VIN1

SS2

SS1

OV/UV

FB2

GND

FB1

VOUT1

12V 1.1A (VCC = 36V)

1.02A (VCC = 27V)

0.92A (VCC = 18V)

0.7A (VCC = 10V)

0.4A (VCC = 6V)

1.1A (VCC = 36V)

1.02A (VCC = 27V)

0.92A (VCC = 18V)

0.7A (VCC = 10V)

0.4A (VCC = 6V)

C1: 25V, X7R, 1206

C2, C3: 10V, X7R, 1206

C4, C5, C8: 50V, X7R, 1206

C6: 100V, X7R, 1206

C7: 6.3V, X7R, 0603

D1: DIODES INC SBR3U100LP-7

D2: MICROSEMI UPS140

L1: COOPER BUSSMANN DRQ74-150-R

L2: COILCRAFT MSS1038-123

L3: WÜRTH 744025 150

VOUT2

–12V

22µF

×2

1µF

L1A, 15µH

12µH

L1B

15µH

2.2µF

0.1µF 107k

0.1µF

453k

VCC

6V TO 36V

PG1 PG2

232k

20k

287k

20k

22µF

×2

1µF D1

•

47nF

*OUTPUTS DO NOT TRACK DURING START-UP

LT847 1 L7 LJUW 3 1

LT8471

8471fd

For more information www.linear.com/8471

Typical applicaTions

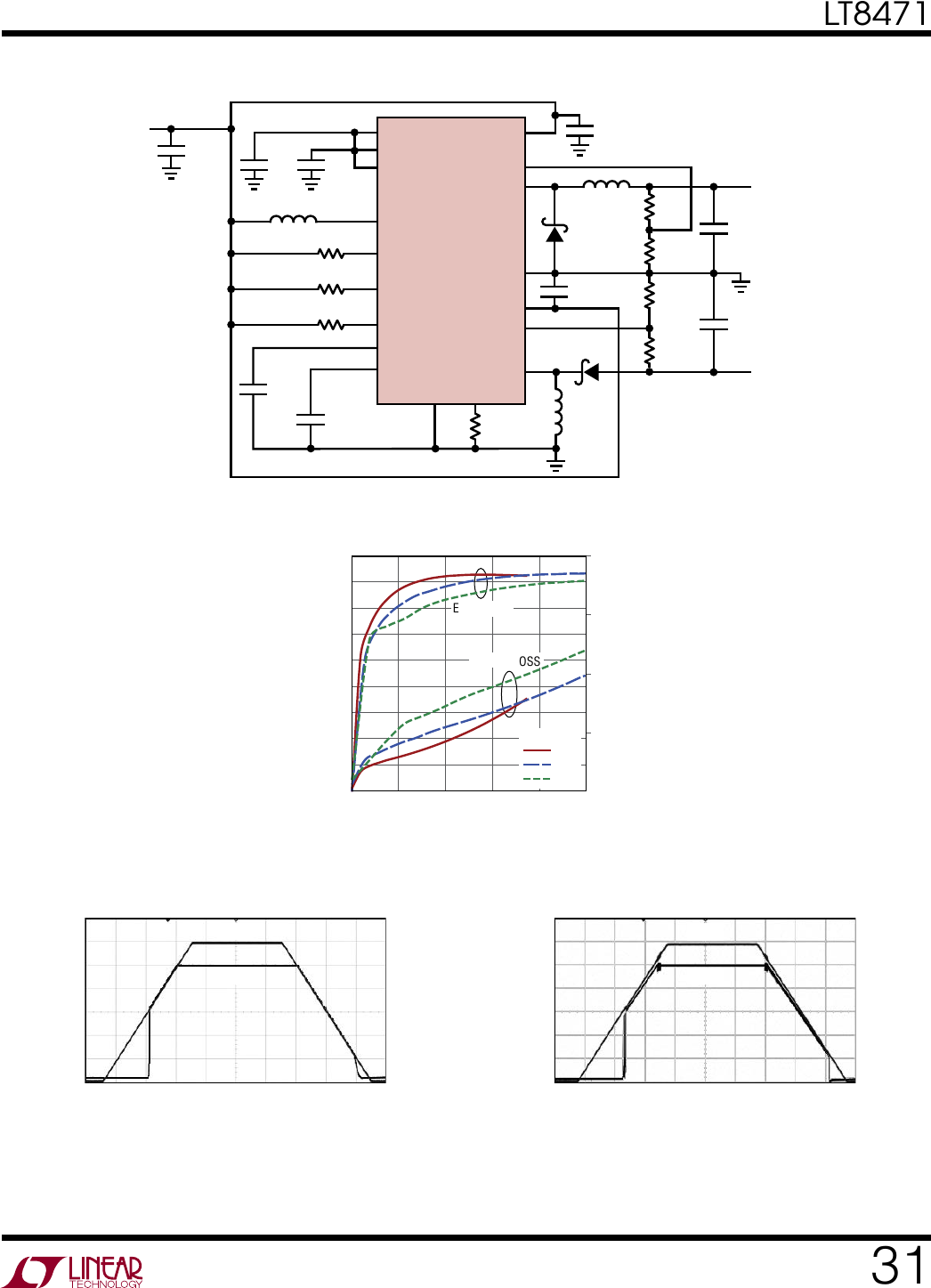

Figure 11a. Wide Input Range Converter with ±5V Output Voltages at 450kHz

Figure 11c. Start-Up/Dropout Performance

VCC Is Ramped from 0V Up to 6V and Then Back

Down to 0V. Channel 1 Output Voltage Is Loaded

by a 100Ω Resistor

VCC Is Ramped from 0V Up to 6V and Then Back

Down to 0V. Channel 1 Output Voltage Is Loaded

by a 5Ω Resistor

Figure 11d. Start-Up/Dropout Performance

Figure 11b. Efficiency and Power Loss (Load from VOUT1 to VOUT2)

8471 F11c

100ms/DIV

1V/DIV

VCC

VOUT1

8471 F11d

100ms/DIV

1V/DIV

VCC

VOUT1

RTSYNC

LT8471

8471 F11a

SHOUT

VIN2

VIN1

SS2

SS1

OV/UV

FB2

GND

FB1 VOUT1

5V 1.6A (VCC = 6V)

1.5A (VCC = 18V)

1.5A (VCC = 32V)

0.65A (VCC = 6V)

0.95A (VCC = 18V)

1.05A (VCC = 32V)

C1, C2: 10V, X7R, 1210

C3, C4, C5, C6, C7: 50V, X7R, 1206

D1, D2: DIODES INC SBR3U100LP-7

L1: WÜRTH 74437346 100

L2: WÜRTH 74437346 100

L3: WÜRTH 744025 150

VOUT2

–5V

47µF

×2

10µH

15µH

1µF

2.2µF

0.1µF 187k

0.1µF

PG1

PG2

59k

316k

59k

1µF

47µF

×2

VCC

6V TO 32V

10µH

100k

475k

POWER LOSS

LOAD CURRENT (A)

EFFICIENCY (%)

POWER LOSS (W)

8471 F11b

00.2 0.4 0.6 0.8 1.0

EFFICIENCY

18V

32V

VCC =

LT8471 1—,M _L ,r‘ I—E J 'l— —: —M— _L —w»— T ”H—I’T L7 LINE/“2

LT8471

8471fd

For more information www.linear.com/8471

Typical applicaTions

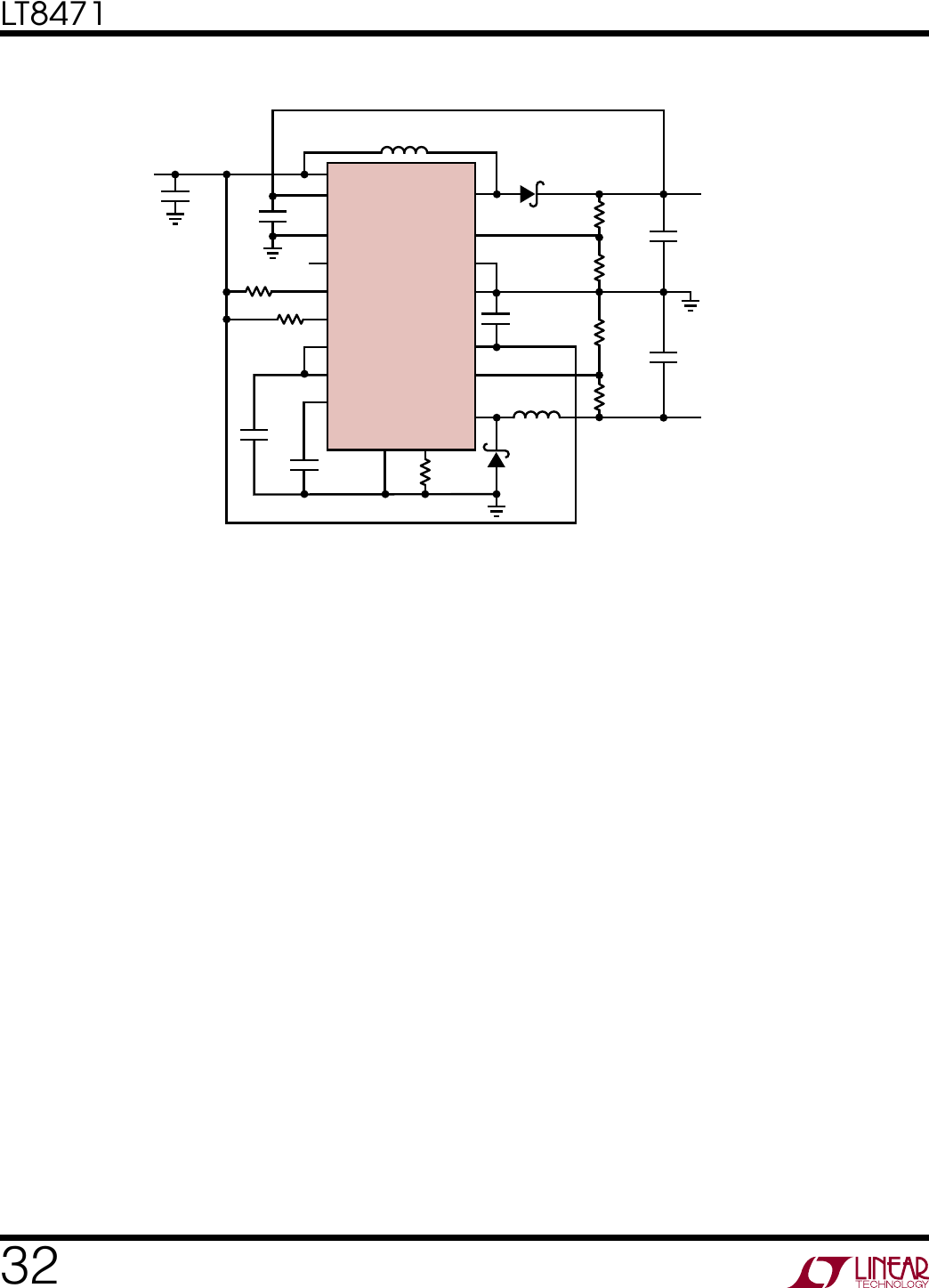

Figure 12. Boost Converter with 24V Output and Buck Converter with 5V Output at 550kHz

RTSYNC

LT8471

8471 F12

SHOUT

VIN2

VIN1

SS1

SS2

OV/UV

FB2

GND

FB1

VOUT1

24V 0.5A (VCC = 12V)

0.75A (VCC = 16V)

C1, C4: 35V, X7R, 1206

C2: 10V, X7R, 1206

C3, C5: 25V, X7R, 1206

D1, D2: MICROSEMI UPS140

L1, L2: WÜRTH 74437346082

VOUT2

1.25A

22µF

×2

2.2µF

0.1µF 154k

0.1µF

PG2

PG1

15k

442k

80.6k

15k

10µF

×3

VCC

12V TO 18V

8.2µH

100k

255k

8.2µH

LT847 1 i <7 eoureeu‘="" freq="" (2527="" mm="" ’7ijjijijiiiiiiiiiiiieiii="" j1="" 5+3?)="" 4‘="" [="" ﬂﬂﬂﬂﬂﬂﬂﬂ="" l="" \="" 9"“="" 1i="" ,7’nnnnnnq1qmnil="" ,,,,,="" 4="" 4="" e="" j="" hhhhhhhhhh="" pm="" ‘="" (my,="" my="" '="" 7="" ‘="" a="" ‘="" m="" 7="" ‘="" [0035="" ,="" dun)="" ~=""> ‘ (an; Ea 065 m4 ‘9 M Ma? [WWW (UEI777L7HB) L7 LJUW 3 3

LT8471

8471fd

For more information www.linear.com/8471

package DescripTion

Please refer to http://www.linear.com/designtools/packaging/ for the most recent package drawings.

FE20 (CB) TSSOP REV J 1012

0.09 – 0.20

(.0035 – .0079)

0° – 8°

0.25

REF

RECOMMENDED SOLDER PAD LAYOUT

0.50 – 0.75

(.020 – .030)

4.30 – 4.50*

(.169 – .177)

1 3 4 5678 9 10

111214 13

6.40 – 6.60*

(.252 – .260)

3.86

(.152)

2.74

(.108)

20 1918 17 16 15

1.20

(.047)

MAX

0.05 – 0.15

(.002 – .006)

0.65

(.0256)

BSC 0.195 – 0.30

(.0077 – .0118)

TYP

2.74

(.108)

0.45 ±0.05

0.65 BSC

4.50 ±0.10

6.60 ±0.10

1.05 ±0.10

3.86

(.152)

MILLIMETERS

(INCHES) *DIMENSIONS DO NOT INCLUDE MOLD FLASH. MOLD FLASH

SHALL NOT EXCEED 0.150mm (.006") PER SIDE

NOTE:

1. CONTROLLING DIMENSION: MILLIMETERS

2. DIMENSIONS ARE IN

3. DRAWING NOT TO SCALE

SEE NOTE 4

4. RECOMMENDED MINIMUM PCB METAL SIZE

FOR EXPOSED PAD ATTACHMENT

6.40

(.252)

BSC

FE Package

20-Lead Plastic TSSOP (4.4mm)

(Reference LTC DWG # 05-08-1663 Rev J)

Exposed Pad Variation CB

LT8471 CECE: L7LJCUEN2 \ 333: 4 EEmEEmf _\ ¥ * E 1Dqu H Eﬂ \ xxxxxxx , nu inn. HT; :0 ,,,,,,, fﬁBElfhﬂﬁBﬁ 7% III ESL, W, [b EEI 7 \ 1 34

LT8471

8471fd

For more information www.linear.com/8471

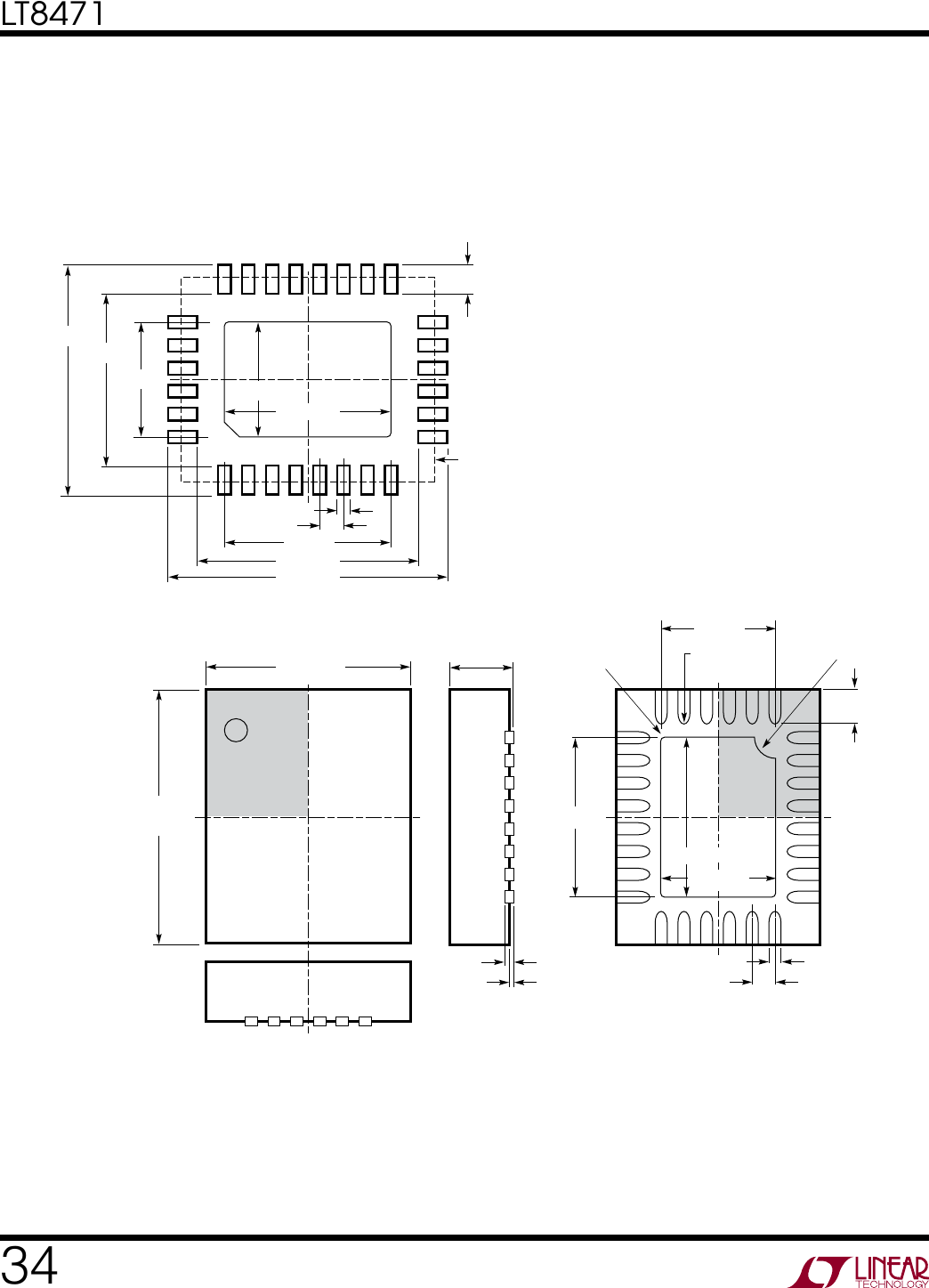

package DescripTion

Please refer to http://www.linear.com/designtools/packaging/ for the most recent package drawings.

4.00 ±0.10

(2 SIDES)

2.50 REF

5.00 ±0.10

(2 SIDES)

NOTE:

1. DRAWING PROPOSED TO BE MADE A JEDEC PACKAGE OUTLINE MO-220 VARIATION (WXXX-X).

2. DRAWING NOT TO SCALE

3. ALL DIMENSIONS ARE IN MILLIMETERS

4. DIMENSIONS OF EXPOSED PAD ON BOTTOM OF PACKAGE DO NOT INCLUDE

MOLD FLASH. MOLD FLASH, IF PRESENT, SHALL NOT EXCEED 0.15mm ON ANY SIDE

5. EXPOSED PAD SHALL BE SOLDER PLATED

6. SHADED AREA IS ONLY A REFERENCE FOR PIN 1 LOCATION

ON THE TOP AND BOTTOM OF PACKAGE

PIN 1

TOP MARK

(NOTE 6)

0.40 ±0.10

27 28

BOTTOM VIEW—EXPOSED PAD

3.50 REF

0.75 ±0.05 R = 0.115

TYP

R = 0.05

TYP

PIN 1 NOTCH

R = 0.20 OR 0.35

× 45° CHAMFER

0.25 ±0.05

0.50 BSC

0.200 REF

0.00 – 0.05

(UFD28) QFN 0506 REV B

RECOMMENDED SOLDER PAD PITCH AND DIMENSIONS

APPLY SOLDER MASK TO AREAS THAT ARE NOT SOLDERED

0.70 ±0.05

0.25 ±0.05

0.50 BSC

2.50 REF

3.50 REF

4.10 ±0.05

5.50 ±0.05

2.65 ±0.05

3.10 ±0.05

4.50 ±0.05

PACKAGE OUTLINE

2.65 ±0.10

3.65 ±0.10

3.65 ±0.05

UFD Package

28-Lead Plastic QFN (4mm × 5mm)

(Reference LTC DWG # 05-08-1712 Rev B)

LT847 1 L7 LJUW 35

LT8471

8471fd

For more information www.linear.com/8471

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

revision hisTory

REV DATE DESCRIPTION PAGE NUMBER

A 06/14 Clarified Applications Information

Clarified Typical Applications 14

28, 29, 30, 31, 34

B 08/14 Clarified Operation Paragraph

Clarified Applications Information 2nd Paragraph

Clarified Typical Application

C 05/15 Added H-Grade Option 2, 3, 4

D 09/15 Added QFN Package Option

Added Zeta Configuration in Skyhook Channel Description

Clarified Voltages to 1.4V

Clarified Figure to 9A on Start-Up Sequencing Description

Clarified Figure to 11A on Start-Up Sequencing Description

Clarified Figure to 9A on Capacitor and Diode Selection Description

Added QFN θJA

Clarified Figure 5 (for TSSOP Package) added Reference to Figure 8

Clarified Figure 5 (for TSSOP Package)

Added Figure 8

Relabeled Figures to 9A, 9B, 9C

Relabeled Figures to 10A, 10B, 10C, 10D

Relabeled Figures to 11A, 11B, 11C, 11D

Relabeled Figures to 12

Added QFN Package Drawing

Relocated TSSOP Package Drawing

Was Page 34-Now Page 36

1, 2

LT847 1 36 L7ELUEN2

LT8471

8471fd

For more information www.linear.com/8471

Linear Technology Corporation

1630 McCarthy Blvd., Milpitas, CA 95035-7417

(408) 432-1900

● FAX: (408) 434-0507 ●

www.linear.com/8471

 LINEAR TECHNOLOGY CORPORATION 2014

LT 0915 REV D • PRINTED IN USA

relaTeD parTs

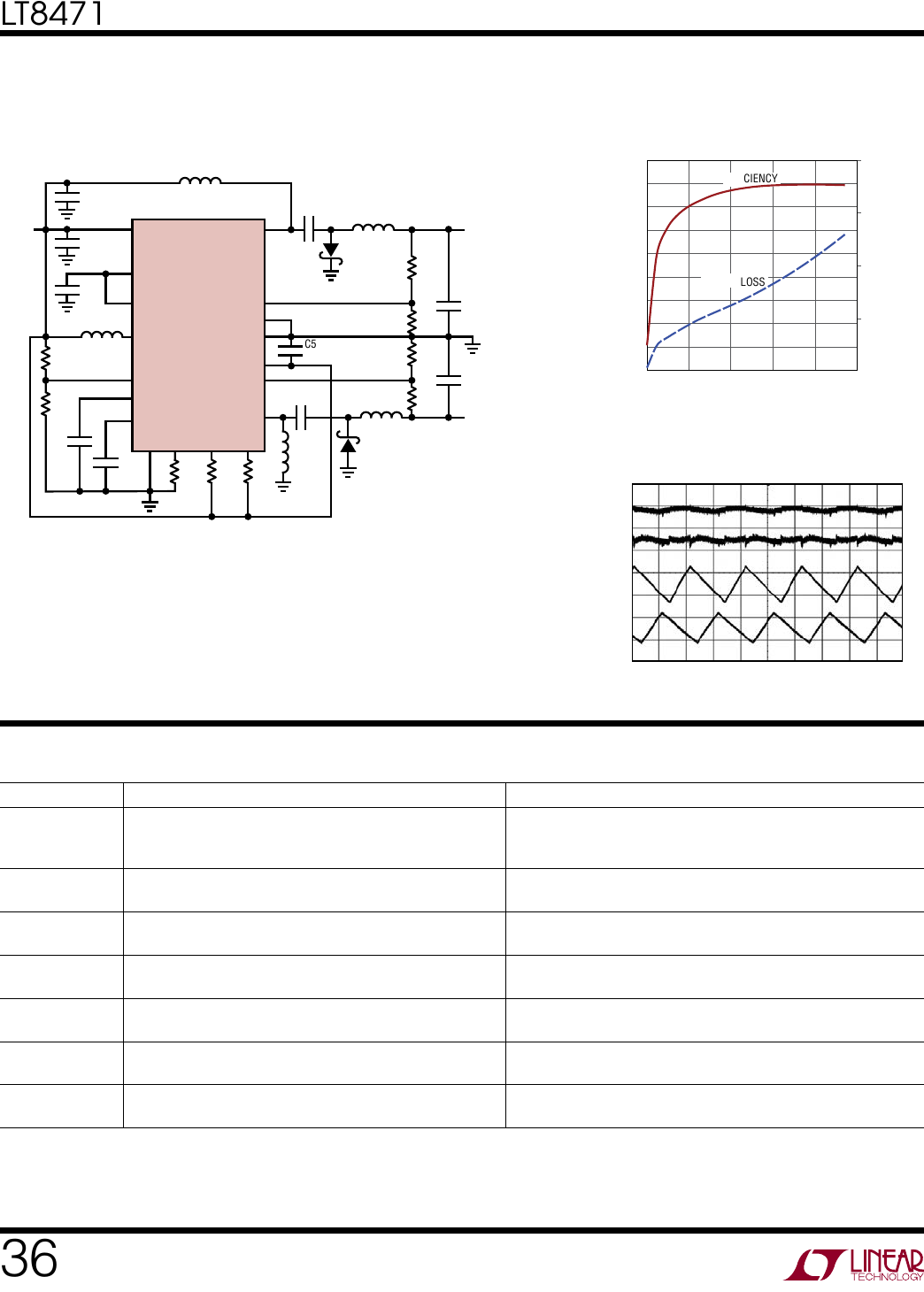

Typical applicaTion

PART NUMBER DESCRIPTION COMMENTS

LT8610/LT8611 42V, 2.5A, 96% Efficiency, 2.2MHz Synchronous Micropower

Step-Down DC/DC Converter with IQ = 2.5µA and Input/

Output Current Limit/Monitor (LT8611 Only)

VIN: 3.4V to 42V, VOUT(MIN) = 0.985V, IQ = 2.5µA, ISD <1µA,

MSOP-16E and 3mm × 5mm QFN-24 Packages

LT8610A/

LT8610AB 42V, 3.5A, 96% Efficiency, 2.2MHz Synchronous Micropower

Step-Down DC/DC Converter with IQ = 2.5µA VIN: 3.4V to 42V, VOUT(MIN) = 0.985V, IQ = 2.5µA, ISD <1µA,

MSOP-16E and 3mm × 5mm QFN-24 Package

LT8582 40V, Dual 3A, 2.5MHz High Efficiency Boost Converter VIN: 2.5V to 22V, 40VMAX, VOUT(MAX) = ±40V, IQ = 2.8µA, ISD <1µA,

7mm × 4mm DFN-24 Package

LT3581 40V, 3.3A, 2.5MHz High Efficiency Boost Converter VIN: 2.5V to 22V, 40VMAX, VOUT(MAX) = ±40V, IQ = 1mA, ISD <1µA,

4mm × 3mm DFN-14 and MSOP-16E Packages

LT8582 40V, Dual 3A Boost, Inverter, SEPIC, 2.5MHz High Efficiency

Boost Converter VIN: 2.5V to 22V, 40VMAX, VOUT(MAX) = ±40V, IQ = 2.1mA,

ISD <1µA, 7mm × 4mm DFN-24 Package

LT3579/LT3579-1 40V, 3.3A Boost, Inverter, SEPIC, 2.5MHz High Efficiency

Boost Converter VIN: 2.5V to 22V, 40VMAX, VOUT(MAX) = ±40V, IQ = 1mA, ISD <1µA,

4mm × 5mm QFN-20 and TSSOP-20E Packages

LT3471 40V Dual 1.3A Boost, Inverter, 1.2MHz High Efficiency

Boost Converter VIN: 2.4V to 16V, 40VMAX, VOUT(MAX) = ±40V, IQ = 2.4mA,

ISD <1µA, 3mm × 3mm DFN Package

LOAD CURRENT (A)

EFFICIENCY (%)

POWER LOSS (W)

8471 TA02b

00.2 0.4 0.6 0.8 1.0

EFFICIENCY

POWER LOSS

RTSYNC

LT8471

8471 TA02a

SHOUT

VIN2

VIN1

SS2

SS1

OV/UV

FB2

GND

FB1

VOUT1, –5V

0.55A (VCC = 4V)

0.95A (VCC = 12V)

1.05A (VCC = 24V)

0.55A (VCC = 4V)

0.95A (VCC = 12V)

1.05A (VCC = 24V)

C1, C2: 10V, X7R, 1210

C3, C4, C5, C7: 35V, X7R, 1206

C6, C8: 50V, X7R, 1206

D1, D2: MICROSEMI UPS140

L1, L2: COOPER BUSSMANN DRQ74-100-R

L3: WÜRTH 744025 150

VOUT2, 5V

47µF

×3

1µF

L1A, 10µH

L2A

10µH

15µH

2.2µF

0.1µF 169k

0.1µF

280k

VCC

4V TO

25V

PG1 PG2

100k 100k

182k

15k

80.6k

15k

1µF C1

47µF

×3

1µF

•

L2B, 10µH

•

L1B

10µH

•

•D2

500kHz ZETA and 2L Inverting Converters Generates

±5V Outputs with Low Output Ripple

Efficiency and Power Loss

VCC = 12V, with Load Current

from VOUT2 to VOUT1

Output Voltage Ripple in CCM, VCC = 10V

IL2

500mA/DIV

IL1

500mA/DIV

VOUT1

20mV/DIV

AC-COUPLED

VOUT2

20mV/DIV

AC-COUPLED

8471 TA02c

1µs/DIV

Products related to this Datasheet

IC REG MULT CONFG ADJ DL 20TSSOP

LT8471IFE#TRPBF

IC REG MULT CONFG ADJ DL 20TSSOP

LT8471IFE#TRPBF

IC REG MULT CONFG ADJ DL 20TSSOP

LT8471EFE#PBF

IC REG MULT CONFG ADJ DL 20TSSOP

LT8471IFE#PBF

IC REG MULTI CONFG ADJ DL 28QFN

LT8471IUFD#PBF

IC REG MULT CONFG ADJ DL 20TSSOP

LT8471EFE#TRPBF

IC REG MULT CONFG ADJ DL 20TSSOP

LT8471HFE#PBF

IC REG MULTI CONFG ADJ DL 28QFN

LT8471EUFD#PBF

BOARD EVAL FOR LT8471EFE

DC1854A

IC REG MULT CONFG ADJ DL 20TSSOP

LT8471EFE#TRPBF

IC REG MULT CONFG ADJ DL 20TSSOP

LT8471HFE#TRPBF

IC REG MULTI CONFG ADJ DL 28QFN

LT8471EUFD#TRPBF

IC REG MULTI CONFG ADJ DL 28QFN

LT8471IUFD#TRPBF

IC REG MULT CONFG ADJ DL 20TSSOP

LT8471EFE#TRPBF

IC REG MULT CONFG ADJ DL 20TSSOP

LT8471IFE#TRPBF
