Intel® LXT970A Dual-Speed Fast
Ethernet Transceiver
Datasheet
The Intel® LXT970A Dual-Speed Fast Ethernet Transceiver (called hereafter the LXT970A
Transceiver) is an enhanced derivative of the Intel® LXT970 10/100 Mbps Fast Ethernet PHY
Transceiver that supports selectable driver strength capabilities and link-loss criteria. The
LXT970A Transceiver supports 100BASE-TX, 10BASE-T, and 100BASE-FX applications. It
provides a Media Independent Interface (MII) for easy attachment to 10/100 Media Access
Controllers (MAC)s and a pseudo-ECL interface for use with 100BASE-FX fiber networks.
The LXT970A Transceiver supports full-duplex operation at 10 and 100 Mbps. Its operating
condition is set using auto-negotiation, parallel detection or manual control. The encoder may be
bypassed for symbol mode applications.
The LXT970A Transceiver is fabricated with an advanced CMOS process and requires only a
single 5V power supply. The MII may be operated independently with either a 5V or a 3.3V
supply.
Applications
Product Features
■Combination 10BASE-T/100BASE-TX
Network Interface Cards (NICs)
■10/100 Switches, 10/100 Printservers
■100BASE-FX Network Interface Cards
(NICs)
■IEEE 802.3 Compliant:
—10BASE-T and 100BASE-TX using a
single RJ-45 connection.
—Supports auto-negotiation and parallel
detection for legacy systems.
—MII interface with extended register
capability.
■Robust baseline wander correction
performance.
■100BASE-FX fiber optic capable.
■Standard CSMA/CD or full-duplex
operation.
■Configurable via MII serial port or external
control pins.
■Configurable for DTE or switch
applications.
■CMOS process with single 5Vsupply
operation
with provision for interface to 3.3V MII
bus.
■Integrated LED drivers.
■Integrated supply monitor and line
disconnect during low supply fault.
■Available in:
—64-pin TQFP:
FALXT970ATC Transceiver
JALXT970ATC Transceiver (RoHS-
Compliant)
—64-pin PQFP:
SLXT970AQC Transceiver
EGLXT970AQC Transceiveer (RoHS-
Compliant)
■Commercial temperature range (0 - 70oC
ambient).
Order Number: 249099-002
.25-Nov-2005
intele
Datasheet
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY
ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN
INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS
ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES
RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER
INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or
in nuclear facility applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the
presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by
estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.
The Intel® LXT970A Dual-Speed Fast Ethernet Transceiver may contain design defects or errors known as errata which may cause the product to
deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an order number and are referenced in this document, or other Intel literature may be obtained by calling
1-800-548-4725 or by visiting Intel's website at http://www.intel.com.
Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2005, Intel Corporation. All Rights Reserved.
intele
Datasheet 3
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Contents
1.0 Pin Assignments and Signal Descriptions....................................................10
2.0 Functional Description...........................................................................................18
2.1 Introduction..........................................................................................................18
2.2 Interfaces (Network Media/Protocol Support) .....................................................19
2.2.1 Twisted-Pair Interface ............................................................................19
2.2.2 Fiber Interface ........................................................................................19
2.2.3 MII Interface ...........................................................................................20
2.2.3.1 Selectable Driver Levels............................................................20
2.2.3.2 MII Data Interface......................................................................21
2.2.3.3 Repeater Mode..........................................................................24
2.2.3.4 MII Management Interface ........................................................24
2.2.4 Hardware Control Interface ....................................................................26
2.3 Operating Requirements .....................................................................................27
2.3.1 Power Supply Requirements..................................................................27
2.3.1.1 Optional MII Power Supply........................................................27
2.3.2 Reference Clock Requirements .............................................................28
2.3.2.1 Master Clock Mode ...................................................................28
2.3.2.2 Slave Clock Mode .....................................................................28
2.3.3 Bias Circuit Requirements......................................................................29
2.4 Initialization..........................................................................................................29
2.4.1 Control Mode Selection ..........................................................................29
2.4.1.1 MDIO Control Mode ..................................................................29
2.4.1.2 Manual Control Mode ................................................................29
2.4.2 Link Configuration ..................................................................................29
2.4.2.1 Manual Configuration ................................................................30
2.4.2.2 Auto-Negotiation/Parallel Detection ..........................................30
2.4.2.3 Controlling Auto-Negotiation .....................................................31
2.5 Monitoring Operational Status.............................................................................31
2.5.1 Monitoring Status via MII Registers........................................................31
2.5.2 Monitoring Status via Indicator Pins .......................................................32
2.6 100BASE-X Operation ........................................................................................32
2.6.1 100BASE-X MII Operations....................................................................32
2.6.2 100BASE-X Network Operations ...........................................................33
2.7 10BASE-T Operation...........................................................................................35
2.7.1 10BASE-T MII Operations......................................................................35
2.7.2 10BASE-T Network Operations..............................................................35
2.8 Protocol Sublayer Operations .............................................................................35
2.8.1 PCS Sublayer.........................................................................................35
2.8.1.1 100X Preamble Handling ..........................................................36
2.8.1.2 10T Preamble Handling.............................................................36
2.8.1.3 Data Errors (100X Only)............................................................36
2.8.1.4 Collision Indication ....................................................................37
2.8.1.5 SQE (10T Only).........................................................................38
2.8.1.6 Jabber (10T Only) .....................................................................38
2.8.2 PMA Layer..............................................................................................38
2.8.2.1 100TX Link Options...................................................................38
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
4 Datasheet
2.8.2.2 10T Link Test.............................................................................38
2.8.2.3 Carrier Sense (CRS) .................................................................39
2.8.3 Twisted-Pair PMD Layer ........................................................................39
2.8.3.1 Scrambler/Descrambler (100TX Only) ......................................39
2.8.3.2 Baseline Wander Correction
(100TX Only)39
2.8.3.3 Polarity Correction.....................................................................39
2.8.4 Fiber PMD Layer ....................................................................................39
2.8.5 Additional Operating Features ...............................................................40
2.8.6 Low-Voltage-Fault Detect.......................................................................40
2.8.7 Power Down Mode.................................................................................40
2.8.8 Software Reset.......................................................................................40
2.8.9 Hardware Reset .....................................................................................40
3.0 Application Information.........................................................................................41
3.1 Magnetics Information.........................................................................................41
3.2 Crystal Information..............................................................................................41
3.3 Design Recommendations ..................................................................................42
3.3.1 General Design Guidelines ....................................................................42
3.3.2 Power Supply Filtering ...........................................................................42
3.3.3 Ground Noise .........................................................................................43
3.3.4 Power and Ground Plane Layout Considerations ..................................43
3.3.5 Interfaces for Twisted-Pair /Fiber ...........................................................43
3.3.5.1 Twisted-Pair ..............................................................................43
3.3.5.2 Fiber ..........................................................................................44
3.3.6 Interface for the MII ................................................................................44
3.3.6.1 Transmit Hold Time Adjustment................................................44
3.3.6.2 MII Terminations........................................................................44
3.3.7 Typical Application .................................................................................45
3.3.7.1 Voltage Divider For MF Inputs...................................................45
4.0 Test Specifications..................................................................................................47
5.0 Register Definitions ................................................................................................63
6.0 Mechanical Specifications ...................................................................................73
6.1 Top Label Markings.............................................................................................75
7.0 Ordering Information..............................................................................................77
intele
Datasheet 5
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Figures 1 Block Diagram.......................................................................................................9
2 Pin Assignments .................................................................................................10
3 Network Interface Card (NIC) Application ..........................................................18
4 MII Interface .......................................................................................................20
5 MII Data Interface ...............................................................................................21
6 Loopback Paths ..................................................................................................23
7 Repeater Block Diagram ....................................................................................24
8 MDIO Interrupt Signaling ....................................................................................25
9 Management Interface - Read Frame Structure .................................................25
10 Management Interface - Write Frame Structure .................................................26
11 Initialization Sequence .......................................................................................30
12 Auto-Negotiation Operation ................................................................................31
13 100BASE-TX Frame Structure ...........................................................................33
14 100BASE-TX Data Flow .....................................................................................33
15 Protocol Sublayers .............................................................................................36
16 100BASE-TX Reception with No Errors .............................................................37
17 00BASE-TX Reception with Invalid Symbol .......................................................37
18 00BASE-TX Transmission with No Errors ..........................................................37
19 00BASE-TX Transmission with Collision ............................................................37
20 Voltage Divider ...................................................................................................45
21 Typical Interface Circuitry ...................................................................................46
22 MII - 100BASE-TX Receive Timing / 4B Mode ...................................................51
23 MII - 100BASE-TX Transmit Timing / 4B Mode .................................................52
24 MII - 100BASE-TX Receive Timing / 5B Mode ...................................................53
25 100BASE-TX Transmit Timing / 5B Mode ..........................................................54
26 MII - 100BASE-FX Receive Timing / 4B Mode ...................................................55
27 MII - 100BASE-FX Transmit Timing / 4B Mode ..................................................56
28 MII - 10BASE-T Receiving Timing ......................................................................57
29 MII - 10BASE-T Transmit Timing .......................................................................58
30 10BASE-T SQE (Heartbeat) Timing ...................................................................59
31 10BASE-T Jab and Unjab Timing ......................................................................59
32 Auto Negotiation and Fast Link Pulse Timing ....................................................60
33 Fast Link Pulse Timing .......................................................................................60
34 MDIO Timing when Sourced by STA .................................................................61
35 MDIO Timing when Sourced by PHY .................................................................61
36 Power-Down Recovery Timing (Over Recommended Range) ...........................62
37 PHY Identifier Bit Mapping .................................................................................66
38 64-Pin QFP Package Diagram ...........................................................................73
39 64-Pin TQFP Package Diagram .........................................................................74
40 Sample TQFP Package – Intel® FALXT970ATC Transceiver.............................75
41 Sample Pb-Free (RoHS-Compliant) TQFP Package – Intel® JALXT970ATC
Transceiver75
42 Sample PQFP Package – Intel® SLXT970AQC Transceiver..............................76
43 Sample Pb-Free (RoHS-Compliant) PQFP Package – Intel® EGLXT970AQC
Transceiver76
44 Ordering Information Matrix – Sample ................................................................78
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
6 Datasheet
Tables 1 Power Supply Signal Descriptions ......................................................................10
2 MII Signal Descriptions .......................................................................................11
3 Fiber Interface Signal Descriptions .....................................................................12
4 Twisted-Pair Interface Signal Descriptions .........................................................13
5 LED Indicator Signal Descriptions.......................................................................13
6 Miscellaneous Signal Descriptions......................................................................13
7 Hardware Control Interface Signal Descriptions .................................................14
8 MF Pin Function Settings1, 3 ..............................................................................16
9 Auto-Negotiation Operating Speed/Full-Duplex Advertisement Settings ............17
10 Test Loopback Operation....................................................................................23
11 Carrier Sense, Loopback, and Collision Conditions............................................23
12 Configuring the Intel® LXT970A Transceiver Via Hardware Control...................26
13 Operating Configurations / Auto-Negotiation Enabled ........................................26
14 Operating Configurations / Auto-Negotiation Disabled .......................................27
15 Mode Control Settings.........................................................................................29
16 Status using FDS/LED Pins ................................................................................32
17 4B/5B Coding ......................................................................................................34
18 Magnetics Requirements ....................................................................................41
19 Crystal Requirements..........................................................................................41
20 Crystal Component Manufacturers .....................................................................41
21 Absolute Maximum Ratings ................................................................................47
22 Operating Conditions ..........................................................................................47
23 Digital I/O Characteristics1..................................................................................48
24 Digital I/O Characteristics - MultiFunction Pins MF<4:0>....................................48
25 Required Clock Characteristics...........................................................................48
26 Low Voltage Fault Detect Characteristics ...........................................................49
27 100BASE-TX Transceiver Characteristics ..........................................................49
28 100BASE-FX Transceiver Characteristics ..........................................................49
29 10BASE-T Transceiver Characteristics...............................................................50
30 10BASE-T Link Integrity Timing Characteristics .................................................50
31 MII - 100BASE-TX Receive Timing Parameters / 4B Mode................................51
32 MII - 100BASE-TX Transmit Timing Parameters / 4B Mode...............................52
33 MII - 100BASE-TX Receive Timing Parameters / 5B Mode................................53
34 MII - 100BASE-TX Transmit Timing Parameters / 5B Mode...............................54
35 MII - 100BASE-FX Receive Timing Parameters / 4B Mode................................55
36 MII - 100BASE-FX Transmit Timing Parameters / 4B Mode...............................56
37 MII - 10BASE-T Receive Timing Parameters......................................................57
38 MII - 10BASE-T Transmit Timing Parameters.....................................................58
39 10BASE-T SQE (Heartbeat) Timing Parameters................................................59
40 10BASE-T Jab and Unjab Timing Parameters....................................................59
41 Auto Negotiation and Fast Link Pulse Timing Parameters..................................60
42 MDIO Timing Parameters ...................................................................................61
43 Power-Down Recovery Timing Parameters ........................................................62
44 Register Set ........................................................................................................63
45 Control Register (Address 0)...............................................................................64
46 Status Register (Address 1) ................................................................................65
47 PHY Identification Register 1 (Address 2)...........................................................66
48 PHY Identification Register 2 (Address 3)...........................................................66
49 Auto Negotiation Advertisement Register (Address 4)........................................67
intele
Datasheet 7
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
50 Auto Negotiation Link Partner Ability Register (Address 5).................................68
51 Auto Negotiation Expansion (Address 6) ............................................................69
52 Mirror Register (Address 16, Hex 10)..................................................................69
53 Interrupt Enable Register (Address 17, Hex 11) .................................................70
54 Interrupt Status Register (Address 18, Hex 12) ..................................................70
55 Configuration Register (Address 19, Hex 13)......................................................71
56 Chip Status Register (Address 20, Hex 14) ........................................................72
57 Product Information .............................................................................................77
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
8 Datasheet
Revision History
Revision Date Description
002 25-Nov-2005 Modified Figure 2 “Pin Assignments” on page 10.
Added Section 6.1, “Top Label Markings” on page 75.
Added Table 57 “Product Information” on page 77.
Added Figure 44 “Ordering Information Matrix – Sample” on page 78.
001 January 2001 Initial Release.
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 9
Figure 1. Block Diagram
Management/
Mode Select
Logic
Decoder &
Descrambler
RXD<0:4>
FIBO
N
FIBO
P
+
-
ECL
Driver
TPON
TPOP
+
TP
Driver
FIBIN
FIBIP
+
-
ECL
Rcvr
TPIN
TPIP
+
-
TP
Rcvr
Serial to
Parallel
Converter
Scrambler
& Encoder
TX_CLK
TXD<0:4> Parallel
to Serial
Converter
TX_ER
TX_EN
Carrier Sense
Collision Detect
Data Valid
Error Detect
COL
CRS
RX_ER
RX_DV
MF<0:4>
CFG<0:1>
Crystal Osc
& PLL
RX_CLK
LED
Drivers
TRSTE
LED_
RESET
FDS/MDINT
MDIO
XTALI/O
Clock
Generator
Auto
Negotiation
Baseline
Wander
Correction
MDDIS
PwrDown/
Line Energy
Monitor
PWR_DWN
FDE
Slicer
Manchester
Decoder
Pulse
Shaper
Manchester
Encoder 10
100
10
100
MII
TX
MII
RX
MII
MGMT
2
-100Mbps
Loopback
10Mbps
Loopback
MDC
H
ardware
Interface
intele
jjjjjjjjjjjjjjjj
7_H_H_H_H_H_H_H_‘V_H_H_‘V_H_H_H_H_‘
av
om
Fm
mm
mm
«m
mm
mm
km
mm
mm
om
5
Nw
mm
vw
uw
.m
1
l_H_H_H_H_H_H_H_H_H_H_H_H_H_H_H_l
[[[EEEEEEEEEEEEE
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
10 Datasheet
1.0 Pin Assignments and Signal Descriptions
Figure 2. Pin Assignments
Table 1. Power Supply Signal Descriptions
Pin#1Pin Name I/O Signal Description
19, 22 VCCT, GNDT - Transmitter Supply (+5V) and Ground. (Analog plane)
37, 31 VCCR, NDR - Receiver Supply (+5V) and Ground. (Analog plane)
24, 26 VCCA, NDA - Analog Supply (+5V) and Ground.
9, 43 VCCD, GNDD - Digital Supply (+5V) and Ground.
53, 52 VCCIO, GNDIO - MII Supply (+3.3V or +5V) and Ground. (Digital plane)
1. Pin numbers apply to all package types.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
RXD2
RXD3
RXD4
MDC
MDIO
GNDD
LEDR
LEDT
LEDL
LEDC
LEDS
VCCR
N/C
N/C
PWRDWN
CFG1
CRS
FDS/MDINT
TRSTE
MF4
MF3
MF2
MF1
MF0
VCCD
TEST
XO
XI
FDE
CFG0
MDDIS
RESET
COL
TXD4
TXD3
TXD2
TXD1
TXD0
TX_EN
TX_CLK
TX_ER
RX_ER
RX_CLK
VCCIO
GNDIO
RX_DV
RXD0
RXD1
FIBOP
FIBON
VCCT
TREF
TPOP
GNDT
TPON
VCCA
RBIAS
GNDA
FIBIP
FIBIN
TPIP
TPIN
GNDR
N/C
LXT970AQC/ATC XX
XXXXXXXX
Part #
FPO #
Rev #
BSMC
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 11
Table 2. MII Signal Descriptions (Sheet 1 of 2)
Pin#1Pin Name I/O2,3 Signal Description4
MII Data Interface Pins
63
62
61
60
59
TXD4
TXD3
TXD2
TXD1
TXD0
ITransmit Data. The Media Access Controller (MAC) drives data to the
LXT970A Transceiver using these inputs. TXD4 is monitored only in Symbol
(5B) Mode. These signals must be synchronized to the TX_CLK.
58 TX_EN I Transmit Enable. The MAC asserts this signal when it drives valid data on the
TXD inputs. This signal must be synchronized to the TX_CLK.
57 TX_CLK I/O
Transmit Clock. Normally the LXT970A Transceiver drives TX_CLK; in Slave
Clock Mode, TX_CLK is an input. Refer to the Clock Requirements discussion in
the Functional Description section on page 18.
25 MHz for 100 Mbps operation.
2.5 MHz for 10 Mbps operation.
56 TX_ER I
Transmit Coding Error. The MAC asserts this input when an error has
occurred in the transmit data stream. When the LXT970A Transceiver is
operating at 100 Mbps, the LXT970A Transceiver responds by sending invalid
code symbols on the line.
46
47
48
49
50
RXD4
RXD3
RXD2
RXD1
RXD0
O
Receive Data. The LXT970A Transceiver drives received data on these
outputs, synchronous to RX_CLK.
RXD4 is driven only in Symbol (5B) Mode.
51 RX_DV O Receive Data Valid. The LXT970A Transceiver asserts this signal when it
drives valid data on RXD. This output is synchronous to RX_CLK.
55 RX_ER O Receive Error. The LXT970A Transceiver asserts this output when it receives
invalid symbols from the network. This signal is synchronous to RX_CLK.
54 RX_CLK O
Receive Clock. This continuous clock provides reference for RXD, RX_DV, and
RX_ER signals. Refer to the Clock Requirements discussion in the Functional
Description section.
25 MHz for 100 Mbps operation.
2.5 MHz for 10 Mbps operation.
64 COL O
Collision Detected. The LXT970A Transceiver asserts this output when
detecting a collision. This output remains High for the duration of the collision.
This signal is asynchronous and inactive during full-duplex operation.
1 CRS O
Carrier Sense. During half-duplex operation (bit 0.8 = 0), the
LXT970A Transceiver asserts this output when either transmit or receive
medium is non-idle. During full-duplex operation (bit 0.8 = 1) or repeater
operation
(bit 19.13 = 1), CRS is asserted only when the receive medium is non-idle.
1. Pin numbers apply to all package types.
2. I/O Column Coding: I = Input, O = Output, OD = Open Drain, A = Analog.
3. If bit 17.3 = 0, 55Ω series termination resistors are recommended on all output signals to avoid undershoot/overshoot, even
on short traces.
If bit 17.3 = 1, termination resistors are not required.
4. The LXT970A Transceiver supports the 802.3 MDIO register set. Specific bits in the registers are referenced using an “X.Y”
notation, where X is the register number (0-6 or 16-20) and Y is the bit number (0-15).
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
12 Datasheet
3TRSTEI
Tri-state. In DTE Mode (19.13 = 0), when TRSTE input is High, the
LXT970A Transceiver isolates itself from the MII Data Interface, and controls the
MDIO register bit 0.10 (Isolate bit).
When MDDIS is High, TRSTE provides continuous control over bit 0.10. When
MDDIS is Low, TRSTE sets initial (default) values only and reverts control back
to the MDIO interface.
In Repeater Mode (19.13 = 1), when TRSTE input is High, the
LXT970A Transceiver tri-states the receive outputs of the MII (RXD<4:0>,
RX_DV, RX_ER, RX_CLK).
MII Control Interface Pins
15 MDDIS I
Management Disable. When MDDIS is High, the MDIO is restricted to Read
Only and the MF<4:0>, CFG<1:0>, and FDE pins provide continual control of
their respective bits. When MDDIS is Low at power up or Reset, the MF<4:0>,
CFG<1:0>, and FDE pins control only the initial or “default” values of their
respective register bits. After the power-up/reset cycle is complete, bit control
reverts to the MDIO serial channel.
45 MDC I Management Data Clock. Clock for the MDIO serial data channel. Maximum
frequency is 2.5 MHz.
44 MDIO I/O Management Data Input/Output. Bidirectional serial data channel for PHY/
STA communication.
2 FDS/MDINT OD
Full-Duplex Status. When bit 17.1 = 0 (default), this pin indicates full-duplex
status. (High = full-duplex, Low = half-duplex)
This pin can drive a high efficiency LED. (See Table 23 for detail specifications).
Management Data Interrupt. When bit 17.1 = 1, an active Low output on this
pin indicates status change.
Interrupt is cleared by sequentially reading Register 1, then Register 18.
Table 3. Fiber Interface Signal Descriptions
Pin#1Pin Name I/O2Signal Description
17
18
FIBOP
FIBON OFiber Output, Positive and Negative. Differential pseudo-ECL driver pair compatible with
standard fiber transceiver for 100BASE-FX.
27
28
FIBIP
FIBIN IFiber Input, Positive and Negative. Differential pseudo-ECL receive pair compatible with
standard fiber transceiver for 100BASE-FX.
1. Pin numbers apply to all package types.
2. I/O Column Coding: I = Input, O = Output, OD = Open Drain, A = Analog.
Table 2. MII Signal Descriptions (Continued) (Sheet 2 of 2)
Pin#1Pin Name I/O2,3 Signal Description4
1. Pin numbers apply to all package types.
2. I/O Column Coding: I = Input, O = Output, OD = Open Drain, A = Analog.
3. If bit 17.3 = 0, 55Ω series termination resistors are recommended on all output signals to avoid undershoot/overshoot, even
on short traces.
If bit 17.3 = 1, termination resistors are not required.
4. The LXT970A Transceiver supports the 802.3 MDIO register set. Specific bits in the registers are referenced using an “X.Y”
notation, where X is the register number (0-6 or 16-20) and Y is the bit number (0-15).
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 13
Table 4. Twisted-Pair Interface Signal Descriptions
Pin#1Pin Name I/O2Signal Description
21
23
TPOP
TPON AO Twisted-Pair Output, Positive and Negative. Differential driver pair produces 802.3-
compliant pulses for either 100BASE-TX or 10BASE-T transmission.
20 TREF AO Transmit Reference. Tie to center tap of output transformer.
29
30
TPIP
TPIN AI Twisted-Pair Input, Positive and Negative. Differential input pair for either 100BASE-TX
or 10BASE-T reception.
1. Pin numbers apply to all package types.
2. I/O Column Coding: I = Input, O = Output, OD = Open Drain, A = Analog
Table 5. LED Indicator Signal Descriptions
Pin#1Pin Name I/O2Signal Description3
38 LEDS O Speed LED. Active Low output indicates 100 Mbps operation is selected.
42 LEDR O Receive LED. Active Low output indicates that receiver is active.
41 LEDT O Transmit LED. Active Low output indicates transmitter is active.
40 LEDL O
Link LED. Active Low output;
During 100 Mbps operation, indicates scrambler lock and receipt of valid Idle codes.
During 10 Mbps operation, indicates Link Valid status.
39 LEDC O
Collision LED. In default mode, active Low output indicates collision. However, LEDC is
programmable and may be set for other indications. For programming options, see
Configuration Register 19 in Table 55, “Configuration Register (Address 19, Hex 13)” on
page 71.
1. Pin numbers apply to all package types.
2. I/O Column Coding: I = Input, O = Output, OD = Open Drain, A = Analog.
3. LEDs are read at power-up to determine scrambler seed values.
Table 6. Miscellaneous Signal Descriptions
Pin#1Pin Name I/O2Signal Description
10 TEST I Test. Must be tied Low.
12
11
XI
XO
I
O
Crystal Input and Output. Use a clock at XI or connect a 25 MHz crystal oscillator across
XI and XO. Refer to the Functional Description section for detailed clock requirements on
page 18.
25 RBIAS AI Bias Control. Controls operating circuit bias via an external 22.1 kΩ, 1% resistor to
ground.
16 RESET I Reset. This active Low input is OR’ed with the control register Reset bit (0.15). The
LXT970A Transceiver reset cycle is extended 300 μs (nominal) after Reset is de-asserted.
34 PWRDWN I Power Down. When High, forces LXT970A Transceiver into power down mode. This pin is
OR’ed with the Power Down bit (0.11). Refer to Table 45 for more information.
32, 35,
36 N/C - No Connection. Leave open.
1. Pin numbers apply to all package types.
2. I/O Column Coding: I = Input, O = Output, OD = Open Drain, A = Analog.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
14 Datasheet
Table 7. Hardware Control Interface Signal Descriptions (Sheet 1 of 2)
Pin#1Pin Name I/O2Signal Description3
8
7
6
5
4
MF0
MF1
MF2
MF3
MF4
I
Multi-Function (MF). Five dual-function configuration inputs. Each pin accepts one of four
input voltage levels (VMF1 = 5V, VMF2 = 3.5V, VMF3 = 1.5V, VMF4 = 0V).
A simple resistor divider network, as shown in Figure 20 on page 45, is required to establish
Mid-level (VMF2 and VMF3) settings. VMF1 and VMF4 (default) settings, can be established
with the LXT970A Transceiver standard power supply and do not require a voltage divider.
One voltage divider may be used to drive the MF pins in designs using multiple
LXT970A Transceivers.
Each MF pin internally drives two different configuration functions. The first function
determines the 5-bit address that the LXT970A Transceiver responds to on the MDIO line.
The second function determines a particular operational mode of the LXT970A Transceiver.
Each MF pin also determines the state of a particular bit in the MII registers. The MDDIS input
determines if this effect occurs only at initialization (MDDIS = 0) or continuously (MDDIS = 1).
The relationship between the input levels and the two configuration functions are shown in
Table 8 on page 16 and Table 9 on page 17.
The operating functions of MF4, CFGO, and CFG1 change depending on the state of MF0
(Auto-Negotiation enabled or disabled). The functions of MF4, CFG1 and FDE are
interrelated.
The functions of the five MF inputs are as follows:
1. Pin numbers apply to all package types.
2. I/O Column Coding: I = Input, O = Output, OD = Open Drain, A = Analog.
3. FDE, CFG0, and CFG1 are affected by the MDDIS input pin. When MDDIS = 0, these inputs determine only the initial state
of the function they control. When MDDIS = 1, these inputs provide continuous hardware control over their corresponding
functions.
Pin MII Address MII Bit Operating Function
MF0 0 0.12 Auto-Negotiation
MF1 1 19.13 Repeater Mode (Disabling DTE Mode)
MF2 2 19.4 5B Symbol Mode (Disabling 4B Nibble Mode)
MF3 3 19.3 Scrambler Operation (Disabling Scrambler)
MF4 4
4.7
4.8 Auto-Negotiation Enabled - Advertise 100 Mbps
19.2 Auto-Negotiation Disabled - Selects TX/FX
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 15
13 FDE I
Full-Duplex Enable.
When A/N is enabled, FDE determines full-duplex advertisement capability in combination
with MF4 and CFG1.
When A/N is disabled, FDE directly affects full-duplex operation and determines the value of
bit 0.8 (Duplex Mode).
When FDE is High, full-duplex is enabled and 0.8 = 1.
When FDE is Low, full-duplex is disabled and 0.8 = 0.
14 CFG0 I
Configuration Control 0.
When A/N is enabled, Low-to-High transition on CFG0 causes auto-negotiate to re-start and
0.9 = 1.
When A/N is disabled, this input selects operating speed and directly affects bit 0.13.
When CFG0 is High, 100 Mbps is selected and 0.13 = 1. If FX Operation is selected, this
input must be tied High.
When CFG0 is Low, 10 Mbps is selected and 0.13 = 0.
33 CFG1 I
Configuration Control 1.
When A/N is enabled, CFG1 determines operating speed advertisement capabilities in
combination with MF4.
When A/N is disabled, CFG1 enables 10 Mbps link test function and directly affects bit 19.8.
When CFG1 is High, 10 Mbps link test is disabled and 19.8 = 1.
When CFG1 is Low, 10 Mbps link test is enabled and 19.8 = 0.
Table 7. Hardware Control Interface Signal Descriptions (Continued) (Sheet 2 of 2)
Pin#1Pin Name I/O2Signal Description3
1. Pin numbers apply to all package types.
2. I/O Column Coding: I = Input, O = Output, OD = Open Drain, A = Analog.
3. FDE, CFG0, and CFG1 are affected by the MDDIS input pin. When MDDIS = 0, these inputs determine only the initial state
of the function they control. When MDDIS = 1, these inputs provide continuous hardware control over their corresponding
functions.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
16 Datasheet
Table 8 summarizes the relationship between input voltage levels (VMF1, VMF2, VMF3, VMF4) and
the configuration function for each of the MF input pins. Each MF pin shows two configuration
inputs; configuration function and MII address. The initial setting of the corresponding bit is also
shown.
Table 8. MF Pin Function Settings1, 3
Input Voltage Levels2
Pin Function VMF1 (5V) VMF2 (3.5V) VMF3 (1.5V) VMF4 (0V)
MF0
MII Address Bit 0 1 1 0 0
Auto-Negotiation
Sets the initial value of bit
0.12
Disabled
(0.12 = 0)
Enabled
(0.12 = 1)
Enabled
(0.12 = 1)
Disabled
(0.12 = 0)
MF1
MII Address Bit 1 1 1 0 0
Repeater / DTE Mode
Sets the initial value of bit
19.13
DTE
(19.13 = 0)
Repeater
(19.13 = 1)
Repeater
(19.13 = 1)
DTE
(19.13 = 0)
MF2
MII Address Bit 2 1 1 0 0
Nibble (4B) / Symbol (5B) Mode
Sets the initial value of bit
19.4
Nibble (4B)
(19.4 = 0)
Symbol (5B)
(19.4 = 1)
Symbol (5B)
(19.4 = 1)
Nibble (4B)
(19.4 = 0)
MF3
MII Address Bit 3 1 1 0 0
Scrambler Operation
Sets the initial value of bit
19.3
Enabled
(19.3 = 0)
Bypassed
(19.3 = 1)
Bypassed
(19.3 = 1)
Enabled
(19.3 = 0)
MF4
MII Address Bit 4 1 1 0 0
If Auto-Negotiate Enabled via
MF0, MF4 works in combination
with CFG1 to control operating
speed and duplex advertisement
capabilities via bits 4.5 - 4.8.
See Table 9 for details.
If Auto-Negotiate Disabled via
MF0, MF4 selects either
TX or FX Mode
Sets the initial value of bit
19.2
100TX
(19.2 = 0) 100FX
(19.2 = 1) 100FX
(19.2 = 1) 100TX
(19.2 = 0)
1. In MDIO Control Mode, the MF pins control only the initial or default value for the respective register bits. In Manual Control
mode, the MF pins provide continuous control of the respective register bits.
2. Input Voltage Levels (VMF1, VMF2, VMF3, VMF4) for MF pins.
3. See Table 12 through Table 14 for operating configuration set-up.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 17
Table 9. Auto-Negotiation Operating Speed/Full-Duplex Advertisement Settings
Desired Configuration Input Value MDIO Registers
MF4 CFG1 FDE
Advertise all capabilities
Ignore FDE VMF1, VMF4 Low – Sets 4.5, 4.6, 4.7 and 4.8 = 1
Advertise 10 Mbps only
Advertise FD VMF1, VMF4 High High
Sets 4.5 = 1
Sets 4.7 and 4.8 = 0
Sets 4.6 = 1
Advertise 10 Mbps only
Do Not Advertise FD Low
Sets 4.5 = 1
Sets 4.7 and 4.8 = 0
Sets 4.6 = 0
Advertise 100 Mbps only
Advertised FD VMF2, VMF3 Low High
Sets 4.7 = 1
Sets 4.5 and 4.6 = 0
Sets 4.8 = 1
Advertise 100 Mbps only
Do Not Advertise FD Low
Sets 4.7 = 1
Sets 4.5 and 4.6 = 0
Sets 4.8 = 0
Advertise 10/100 Mbps
Advertise FD VMF2, VMF3 High High Sets 4.5 and 4.7 = 1
Sets 4.6 and 4.8 = 1
Advertise 10/100 Mbps
Do Not Advertise FD Low Sets 4.5 and 4.7 = 1
Sets 4.6 and 4.8 = 0
intelg
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
18 Datasheet
2.0 Functional Description
2.1 Introduction
The LXT970A Transceiver, a new-generation version of the LXT970 10/100 PHY Fast Ethernet
Transceiver incorporates several functional enhancements for a more robust Ethernet solution. The
LXT970A Transceiver supports optional MII driver strength capabilities and link-loss criteria
selectable via the MDIO register set.
The LXT970A Transceiver can directly drive a twisted-pair cable for up to 100 meters. The
LXT970A Transceiver also provides a pseudo-ECL interface for driving a 100BASE-FX fiber
connection. On power-up, the LXT970A Transceiver uses auto-negotiation with parallel detection
to automatically determine line operating conditions. If the PHY device on the other side of the
link supports auto-negotiation, the LXT970A Transceiver auto-negotiates using Fast Link Pulse
(FLP) bursts. If the PHY partner does not support auto-negotiation, the LXT970A Transceiver
automatically detects the presence of either link pulses (10 Mbps PHY) or Idle symbols (100 Mbps
PHY) and set its operating speed accordingly. When the line speed selection is made via the
parallel detection method, the duplex mode sets to half. The user may later select full-duplex
operation by subsequent writes to the appropriate MDIO register. Line operation can also be set
using the Hardware Control Interface.
The LXT970A Transceiver interfaces to a 10/100 MAC through the MII interface. The
LXT970A Transceiver performs all functions of the Physical Coding Sublayer (PCS) and Physical
Media Attachment (PMA) sublayer as defined in the IEEE 802.3 100BASE-X specification. It
also performs all Physical Media Dependent (PMD) sublayer functions for 100BASE-TX
connections. The MII speed is automatically set once line operating conditions have been
determined.
See Figure 3 for a typical Network Interface Card (NIC). The LXT970A Transceiver supports NIC,
repeater, and switch applications. It provides half- and full-duplex operation at 100 Mbps and 10
Mbps. The LXT970A Transceiver supports the 802.3 MDIO register set. Specific bits in the
registers are referenced using an “X.Y” notation, where X is the register address (0-6 or 16-20) and
Y is the bit number (0:15).
Figure 3. Network Interface Card (NIC) Application
PC Bus
(EISA,PCI)
MAC
Controller LXT970A
Magneti
c
RJ-45
Connectio
n
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 19
2.2 Interfaces (Network Media/Protocol Support)
The LXT970A Transceiver provides the following interfaces:
•A Twisted-Pair Interface which directly supports 100BASE-TX and 10BASE-T applications.
•A pseudo-ECL (PECL) Fiber Interface which supports 100BASE-FX applications through an
external fiber transceiver.
•An MII (Media Independent Interface) for interfacing 10/100 Media Access Controllers
(MACs).
•A Hardware Control Interface to configure various operating characteristics.
2.2.1 Twisted-Pair Interface
The Twisted-Pair Interface directly supports both 100BASE-TX and 10BASE-T applications. The
interface is capable of directly driving an RJ-45 interface through magnetics and termination
resistors. The interface uses two signal pairs - one for transmit and one for receive. A third output,
TREF, connects to the center-tap of the transmit transformer. The same signal pairs, magnetics, and
termination resistors are used for both 10 and 100 Mbps operation.
When the LXT970A Transceiver is operating as a 100 Mbps device, it transmits and receives a 125
Mbps, 5B-encoded, scrambled MLT-3 waveform on this interface. The MLT-3 waveform is
continuous. When there is no data to send, “IDLE” symbols are sent and received.
When the LXT970A Transceiver is operating as a 10 Mbps device, it transmits and receives 10
Mbps Manchester-encoded data. The waveform is not continuous. When there is no data to send,
the line is left in an idle state. Link pulses are transmitted periodically to keep the link up.
The LXT970A Transceiver supports both fixed operation and auto-negotiation with parallel
detection on this interface. Fixed operation allows the designer to specify the line speed and
duplex mode. With auto-negotiation enabled, the LXT970A Transceiver automatically determines
line speed and duplex state by exchanging capability “pages” with its link partner.
A 4 kΩ passive load is always present across the twisted-pair inputs. When enabled, the twisted-
pair inputs are actively biased to approximately 2.8V.
In applications where the Twisted-Pair Interface is not used, the inputs and outputs may be left
unconnected.
The Twisted-Pair Interface is disabled in power down mode, when the Fiber Interface is selected,
or when the transmit disconnect (bit 19.0) is set. When the Twisted-Pair Interface is disabled its
outputs are tri-stated and inputs are unbiased.
2.2.2 Fiber Interface
The pseudo-ECL Fiber Interface is suitable for driving 100BASE-FX applications through an
external fiber transceiver. This interface consists of a transmit and receive pair. The
LXT970A Transceiver sends and receives a continuous 125 Mbps, 5B-encoded NRZI stream on
this interface. Scrambling and MLT-3 are not used in fiber connections.
There is no industry standard for auto-negotiation on 100BASE-FX. The LXT970A Transceiver
only supports forced operation on the Fiber Interface. The LXT970A Transceiver does not support
10FL (10 Mbps fiber) applications.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
20 Datasheet
The LXT970A Transceiver does not support the Signal Detect Function. However, the PMA
functions of the LXT970A Transceiver guarantee that it will detect invalid link conditions and
break down a link, even without the Signal Detect function.
In applications where the Fiber Interface is not used, the inputs and outputs may be left
unconnected. The Fiber Interface is disabled in power down mode and when the Twisted-Pair
Interface is enabled. When the Fiber Interface is disabled its outputs are pulled to ground.
2.2.3 MII Interface
The LXT970A Transceiver implements the Media Independent Interface (MII) as defined in the
IEEE 802.3. This interface consists of a data interface and a management interface as shown in
Figure 4. The data interface is used for exchanging data between a 10/100 802.3 compliant
Ethernet Media Access Controller (MAC) and the LXT970A Transceiver. The management
portion of the interface allows network management functions to control and monitor the
LXT970A Transceiver.
2.2.3.1 Selectable Driver Levels
The LXT970A Transceiver supports two options for driver-strength capabilities that can be
selected via bit 17.3.
High-strength (bit 17.3 = 0, default) MII driver level can effectively source 50 - 60 mA. To avoid
undershoot or overshoot, series termination resistors are recommended on all output signals when
this driver level is selected.
Reduced (bit 17.3 = 1) MII driver level relaxes the pull-down strength of the MII signals by a
factor of ten and the pull-up strength by a factor of eight. Termination resistors are not required on
the MII outputs when this driver level is selected.
Figure 4. MII Interface
LXT970A
Media Access Controller
Media Independent
Interface (MII) DataMgmt
Datash eet
LXT970A
HiiiiTTT‘

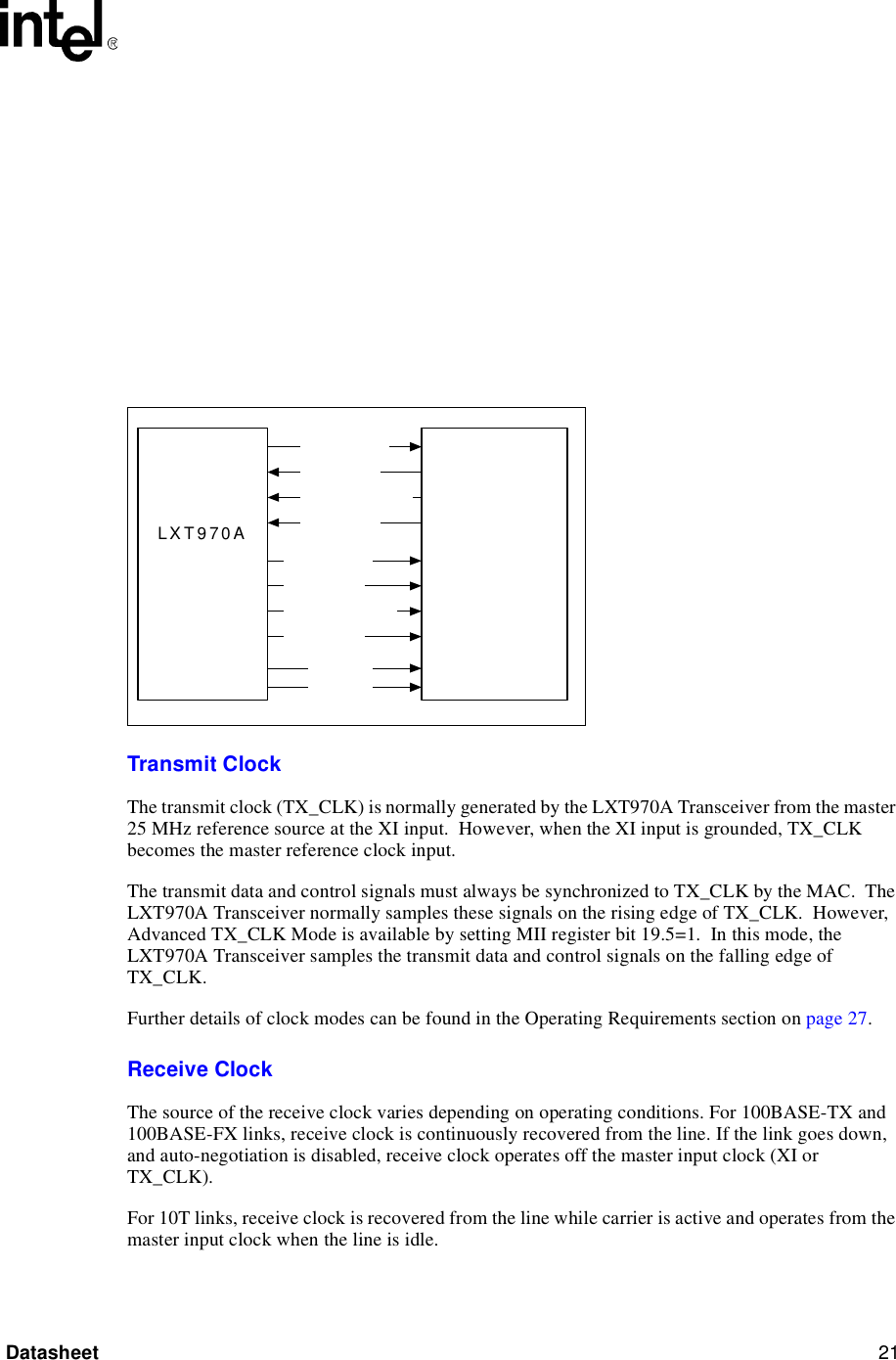

Transmit clock
The transmit clock (TX_CLK) is normally generated by the LXT97()A Transceiver {mm the master
25 MHz reference source at the x1 input. However. when the x1 input is grounded, TX_CLK
becomes the master retereiice clock input.
The transmit data and control signals must always be synchronized to TX_CLK by the MAC. The
LXT97Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 21
2.2.3.2 MII Data Interface
Figure 5 shows the data portion of the MII interface. Separate channels are provided for
transmitting data from the MAC to the LXT970A Transceiver (TXD), and for receiving data
(RXD) from the line.
Each channel has its own clock, data bus and control signals. The LXT970A Transceiver supplies
both clock signals as well as separate outputs for carrier sense and collision.
Normal data transmission across the MII is implemented in 4-bit wide nibbles known as 4B Nibble
Mode. In 5B Symbol Mode, a fifth bit allows 5-bit symbols to be sent across the MII. Refer to the
100 Mbps Operation section on page 32 for additional information.
Transmit Clock
The transmit clock (TX_CLK) is normally generated by the LXT970A Transceiver from the master
25 MHz reference source at the XI input. However, when the XI input is grounded, TX_CLK
becomes the master reference clock input.
The transmit data and control signals must always be synchronized to TX_CLK by the MAC. The
LXT970A Transceiver normally samples these signals on the rising edge of TX_CLK. However,
Advanced TX_CLK Mode is available by setting MII register bit 19.5=1. In this mode, the
LXT970A Transceiver samples the transmit data and control signals on the falling edge of
TX_CLK.
Further details of clock modes can be found in the Operating Requirements section on page 27.
Receive Clock
The source of the receive clock varies depending on operating conditions. For 100BASE-TX and
100BASE-FX links, receive clock is continuously recovered from the line. If the link goes down,
and auto-negotiation is disabled, receive clock operates off the master input clock (XI or
TX_CLK).
For 10T links, receive clock is recovered from the line while carrier is active and operates from the
master input clock when the line is idle.
Figure 5. MII Data Interface
LXT970A Media Access
Controller
MAC
RX_CLK
RXD<3:0>
RX_DV
RX_ER
TX_CLK
TXD<3:0>
TX_EN
TX_ER
CRS
COL
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
22 Datasheet
The LXT970A Transceiver synchronizes the receive data and control signals to RX_CLK. The
LXT970A Transceiver always changes these signals on the falling edge of RX_CLK in order to
stabilize the signals at the rising edge of the clock with 10 ns setup and hold times.
Transmit Enable
The MAC must assert TX_EN the same time as the first nibble of preamble, and de-assert TX_EN
after the last bit of the packet.
Receive Data Valid
The LXT970A Transceiver asserts RX_DV when it receives a valid packet. Timing changes
depend on line operating speed and MII mode:
•For 100TX and 100FX links with the MII in 4B mode, RX_DV is asserted from the first nibble
of preamble to the last nibble of the data packet.
•For 100TX and 100FX links with the MII in 5B mode, RX_DV is asserted starting with the /K
symbol and ending with the /T symbol.
•For 10BT links, the entire preamble is truncated. RX_DV is asserted with the first nibble of
the SFD “5D” and remains asserted until the end of the packet.
Error Signals
In 100TX mode, when the LXT970A Transceiver receives an errored symbol from the network, it
asserts RX_ER and drives “1110” (4B) or “01110” (5B) on the RXD pins.
When the MAC asserts TX_ER, the LXT970A Transceiver drives “H” symbols out on the line.
There are no error functions in 10T mode.
Carrier Sense
Carrier sense (CRS) is an asynchronous output. It is always generated when a packet is received
from the line and in some modes when a packet is transmitted.
On transmit CRS is asserted on a 10BT, half-duplex link when MII Register 19.11 = 0 (default
state), or on any 100 Mbps half-duplex link. Carrier sense is not generated on transmit when the
link operation is full-duplex, or with 10BT half-duplex links when 19.11=1.
Usage of CRS for Interframe Gap (IFG) timing is not recommended for the following reasons:
•De-assertion time for CRS is slightly longer than assertion time. This causes the IFG interval
to appear somewhat shorter to the MAC than it actually is on the wire.
•CRS de-assertion is not aligned with TX_EN de-assertion on transmit loopbacks in half-
duplex mode.
Operational Loopback
Operational loopback is provided for 10 Mbps half-duplex links when bit 19.11 = 0. Data
transmitted by the MAC will be looped back on the receive side of the MII. Operational loopback
is not provided for 100 Mbps links, full-duplex links, or when 19.11 = 1.
intele
\/
HH
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 23
Test Loopback
A test loopback function is provided for diagnostic testing of the LXT970A Transceiver. During
test loopback the twisted-pair interface is disabled. Data transmitted by the MAC is internally
looped back by the LXT970A Transceiver and returned to the MAC.
Test loopback is available for 100 Mbps and 10 Mbps operation. Loopback paths for the two modes
of operation are shown in Figure 6.
Test loopback is enabled by setting bit 0.14 = 1 (loopback), bit 0.8 = 1 (full-duplex), and bit 0.12 =
0 (disable auto-negotiation). The desired mode of operation for test loopback is set using bits 0.13
and 19.2 as shown in Table 10.
Collision
The LXT970A Transceiver asserts its collision signal, asynchronously to any clock, whenever the
line state is half-duplex and the transmitter and receiver are active at the same time. Table 11
summarizes the conditions for assertion of carrier sense, collision, and data loopback signals.
Table 10. Test Loopback Operation
Mode of Operation Bit
19.2 0.13
10 Mbps Test Loopback 0 0
100 Mbps Test Loopback 1 1
1. Also set bit 0.14 = 1, bit 0.8 = 1, and 0.12 = 0 to enable Test
Loopback.
Figure 6. Loopback Paths
Digital
Block
MII Analog
Block
FX
Driver
TX
Driver
100 Mbps
Loopback
10 Mbps
Loopback
Table 11. Carrier Sense, Loopback, and Collision Conditions
Speed & Duplex Condition Carrier Sense Operational
Loopback Collision
Full-Duplex at 10 Mbps or 100 Mbps
Repeater Mode Receive only None None
100 Mbps, Half-Duplex Transmit or Receive None Transmit and Receive
10 Mbps, Half-Duplex, 19.11 = 0 Transmit or Receive Yes Transmit and Receive
10 Mbps, Half-Duplex, 19.11 = 1 Receive only None Transmit and Receive
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
24 Datasheet
2.2.3.3 Repeater Mode
The LXT970A Transceiver MII normally operates in DTE Mode (19.13 = 0). An alternative
operating mode is available for repeater applications (19.13 = 1).
In Repeater Mode, the Carrier Sense (CRS) and Tri-state (TRSTE) signals request and grant bus
access. The TRSTE pin controls only the receive channel of the MII (RX_DV, RX_ER, RX_CLK,
and RXD).
As shown in Figure 7, a central Repeater State Machine (RSM) is required to perform arbitration
and determine which LXT970A Transceiver drives the MII Data Interface. The RSM is responsible
for enforcing collisions, and ensuring packets are not transmitted to the port they were received
from. This is accomplished by supplying each LXT970A Transceiver with individual TX_EN
outputs. Although repeater operation is half-duplex, the LXT970A Transceiver operates the MII as
a full-duplex interface in Repeater Mode. CRS is generated only on receive and Collision (COL) is
never generated.
Repeater Mode is normally used with Slave Clock Mode (XI = GND and TX_CLK is an input).
2.2.3.4 MII Management Interface
The LXT970A Transceiver supports the IEEE 802.3 MII Management Interface also known as the
Management Data Input/Output (MDIO) Interface. This interface allows upper-layer devices to
monitor and control the state of the LXT970A Transceiver. MDIO interface consists of a physical
connection, a specific protocol which runs across the connection, and an internal set of addressable
Figure 7. Repeater Block Diagram
Repeater
State Machine
(RSM)
CRS
TRSTE
TX_EN
CRS
TRSTE
TX_EN
CRS
TRSTE
TX_EN
CRS
TRSTE
TX_EN
Receive Channel (RXD)
Transmit Channel (TXD)
LXT970A
LXT970A
LXT970A
LXT970A
WWW
fifl¥
\ i
Hi“iiW/inré/Niiim‘ii—w;
an» u 4.
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 25
registers. The physical interface consists of a data line (MDIO) and clock line (MDC), a control
line (MDDIS) and an optional interrupt line (MDINT). The LXT970A Transceiver can signal an
interrupt using the MDIO signal as shown in Figure 8. The user can also assign a separate pin for
this function. If bit 17.1 = 1, pin 2 (FDS/MDINT) will be used as an MDINT pin.
The protocol allows one controller to communicate with multiple LXT970A Transceiver devices.
The MF pins control one bit each of the 5-bit address setting. Each LXT970A Transceiver is
assigned an MII address between 0 and 31. Details of the MF inputs are shown in Table 7 on
page 14. Timing for the MDIO Interface is shown in Table 42 on page 61. Read and write
operations are shown in Figure 9 and Figure 10. Operation of this interface is controlled by the
MDDIS input pin. When MDDIS is High, the MDIO operates as a read-only interface. When
MDDIS is Low, read and write are enabled.
The LXT970A Transceiver supports twelve 16-bit MDIO registers. Registers 0-6 are required and
their functions are specified by the IEEE 802.3 specification. Additional registers are included for
expanded functionality. The MDIO Register set for the LXT970A Transceiver is described in Table
45 through Table 56. Specific bits in the registers are referenced using an “X.Y” notation, where X
is the register number (0-6 or 16-20) and Y is the bit number (0-15).
MII Management Interrupt
The MDINT/FDS pin functions as a management data interrupt on the MII when 17.1 = 1. An
active Low on this pin indicates a status change on the LXT970A Transceiver. The interrupt is
activated when changes are made to the following conditions:
•Link Status
•Duplex Status
This interrupt is cleared by sequentially reading Register 1 and Register 18.

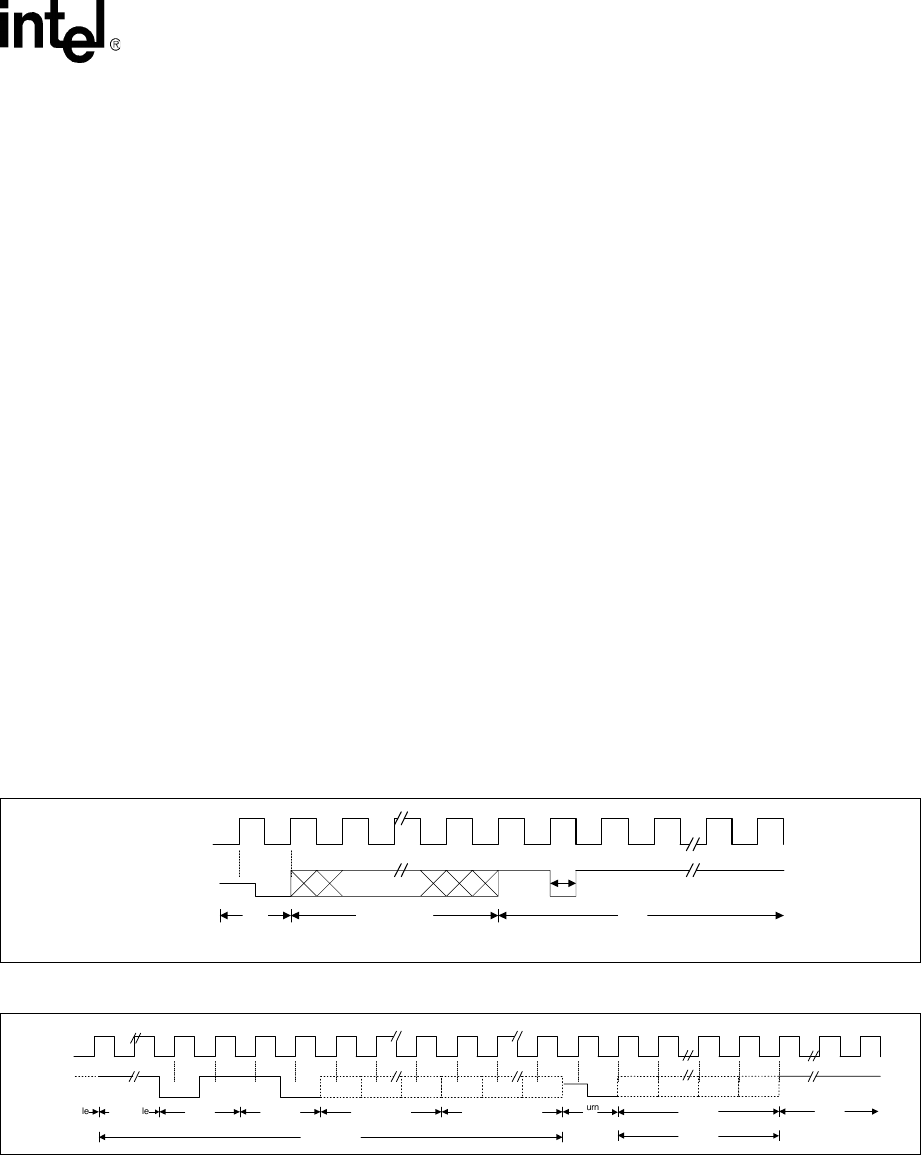

Figure 8. MDIO Interrupt Signaling
Figure 9. Management Interface - Read Frame Structure
MDC
MDIO
Interrupt
Turn
Around
Z
Idle
0
INT
Read Data
Sourced by
LXT970A
MDIO FRAME
MDC
MDIO
(
Read)
32 "1"s 0110
Preamble SFD Op Code PHY Address Turn
Around
Z0
A4 A3 A0 R4 R3 R0
Register Address
D15 D14 D1
Data
Idle
Write Read
D15 D14 D1 D0
Idle
intele
WWWMN
m 7mm L L L’*HLL=51~(LL1L
Lae*>vnm 5m 090m: ”were; Ream“; ”131:“ u
am he 4.
2.2.4 Hardware Control Interface
The Hardware Comm] Interface 601151515 of MF<4:()>, CFG <1 :0=""> and FDE mpm [31115 Thrs
Inlertace 15 used to configure opemlmg chax'aclensucs of 1113 LXT970A Transcewer and to
derer-nnne [he MDIO Address, When MDDIS 15 Low. the Hardware Comrol Inlerface provides
rnrna1 va1ues tor the MDIO reglsters, and men passes comm] m the MDIO Imerraee.
When MDDIS 15 Hrgh, me Hardware Control Inlerface pmwdes commuous control over Ihe
LXT970A Transeewer- Ind1v1dual ch1p nddressmg allows rnu1hp1e LXT970A Transcewer devrees
to share the M11 1n enher mode. Tah1e 12‘ Table 13 and Table 14 show how 10 set up rhe deslred
opermmg configurauons Ilsmg the Hardware Comm] Inrer-raee,
26 Datasheel
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
26 Datasheet
2.2.4 Hardware Control Interface
The Hardware Control Interface consists of MF<4:0>, CFG <1:0> and FDE input pins. This
interface is used to configure operating characteristics of the LXT970A Transceiver and to
determine the MDIO Address. When MDDIS is Low, the Hardware Control Interface provides
initial values for the MDIO registers, and then passes control to the MDIO Interface.
When MDDIS is High, the Hardware Control Interface provides continuous control over the
LXT970A Transceiver. Individual chip addressing allows multiple LXT970A Transceiver devices
to share the MII in either mode. Table 12, Table 13 and Table 14 show how to set up the desired
operating configurations using the Hardware Control Interface.
.
Figure 10. Management Interface - Write Frame Structure
MDC
MDIO
(
Write) 32 "1"s 0101
Preamble SFD Op Code PHY Address Turn
Around
10
A4 A3 A0 R4 R3 R0
Register Address
D15 D14 D1 D0
Data Idle
Idle
Write
Table 12. Configuring the Intel® LXT970A Transceiver Via Hardware Control
Desired Configuration Pin Name Voltage Level MDIO Registers
Auto-Negotiation Enabled1MF0 VMF2, VMF30.12 = 1
Auto-Negotiation Disabled2MF0 VMF1, VMF40.12 = 0
Normal Operation
(DTE Mode, Nibble Mode, Scrambler Enabled)
MF1
MF2
MF3
VMF1, VMF4
19.13 = 0
19.4 = 0
19.3 = 0
Repeater Mode MF1 VMF2, VMF319.13 = 1
Symbol Mode MF2 VMF2, VMF3 19.4 = 1
Scrambler Bypass Mode MF3 VMF2, VMF3 19.3 = 1
1. Refer to Table 13 for Hardware Control Interface functions available when auto-negotiation is enabled.
2. Refer to Table 14 for Hardware Control Interface functions available when auto-negotiation is disabled.
Table 13. Operating Configurations / Auto-Negotiation Enabled (Sheet 1 of 2)
Desired
Configuration1,2
Input Value MDIO Registers
MF4CFG1FDE4.54.64.74.8
Advertise All VMF1, VMF4 Low Ignore 1111
Advertise 100 HD VMF2, VMF3 Low Low 0010
Advertise 100 HD/FD VMF2, VMF3 Low High 0011
Advertise 10 HD VMF1, VMF4 High Low 1000
1. Refer to Table 12 for basic configurations.
2. Refer to Table 14 for Hardware Control Interface functions available when auto-negotiation is disabled.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 27
2.3 Operating Requirements
2.3.1 Power Supply Requirements
The LXT970A Transceiver requires a 5V power supply. Power should be supplied from a single
source to the VCC, VCCA, VCCT, and VCCR power pins. A ground return path must be provided
to the GND, GNDA, GNDT, and GNDR pins. As a matter of practice, the power supply should be
as clean as possible. Filtering is recommended for the analog power pins (VCCA, VCCT, VCCR)
at least in the initial design. Consult the Design Recommendations section on page 42 for details. A
decoupling capacitor is recommended between each VCC pin and its respective GND, placed as
close to the device as possible.
2.3.1.1 Optional MII Power Supply
The MII may be powered by either a 3.3V or 5V source via the VCCIO pin. To avoid power
sequencing issues, the VCCIO pin should be supplied from the same source used to power the
other side of the MII interface. When VCCIO is supplied with 3.3V, the MII inputs are not tolerant
of 5V signal levels. The MDIO and MDC pins must be operated at the same voltage as the rest of
the MII interface.
Advertise 10 HD/FD VMF1, VMF4 High High 1 1 0 0
Advertise 10/100 HD VMF2, VMF3 High Low 1010
Advertise 10/100 HD/FD VMF2, VMF3 High High 1 1 1 1
Table 14. Operating Configurations / Auto-Negotiation Disabled
Desired Configuration1,2 Pin Name Input Value MDIO Registers
Force 100FX Operation MF4 VMF2, VMF319.2 = 1
CFG0 High 0.13 = 1
MF3 VMF1, VMF419.3 = 0
Force 100TX Operation MF4 VMF1, VMF419.2 = 0
CFG0 High 0.13 = 1
Force 10T Operation MF4 VMF1, VMF419.2 = 0
CFG0 Low 0.13 = 0
Force Full-Duplex Operation FDE High 0.8 = 1
Disable 10T Link Test CFG1 High 19.8 = 1
Enable 10T Link Test CFG1 Low 19.8 = 0
1. Refer to Table 12 for basic configurations.
2. Refer to Table 13 for Hardware Control Interface functions available when auto-negotiation is enabled.
Table 13. Operating Configurations / Auto-Negotiation Enabled (Sheet 2 of 2)
Desired
Configuration1,2
Input Value MDIO Registers
MF4CFG1FDE4.54.64.74.8
1. Refer to Table 12 for basic configurations.
2. Refer to Table 14 for Hardware Control Interface functions available when auto-negotiation is disabled.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
28 Datasheet
2.3.2 Reference Clock Requirements
The LXT970A Transceiver requires a continuous, stable reference clock. There are two clock
modes, Master Clock Mode and Slave Clock Mode. Depending on the mode of operation, the clock
may be supplied at the crystal oscillator pins (XI, XO), or at the Transmit Clock pin (TX_CLK).
See Table 25 on page 48 for input clock requirements.
2.3.2.1 Master Clock Mode
The Master Clock mode is recommended in most Network Interface Cards (NICs) and switch
applications. In Master Clock mode the LXT970A Transceiver is the master clock source for data
transmission, and requires a 25 MHz reference signal at XI. The reference clock may be supplied
either from a crystal oscillator or from a digital clock circuit with the following specifications:
•A frequency of 25 MHz +/-100 ppm
•40/60 duty cycle or better
•CMOS voltage levels (VOH >3.2V).
In Master Clock Mode, TX_CLK is an output and the LXT970A Transceiver automatically sets the
speed of TX_CLK to match line conditions. If the line is operating at 100 Mbps, TX_CLK will be
set to 25 MHz. If the line is operating at 10 Mbps, TX_CLK will be set to 2.5 MHz.
External Crystal
A crystal is typically used in NIC applications. If using a crystal oscillator, it should be
fundamental-mode and parallel-resonant, with a drive capacity of at least 7 pF. Attach between the
XI and XO pins. Add compensating capacitors between each leg and digital ground. The correct
value to use is the nominal drive capacity of the crystal minus 3 pF (input capacitance of the XI and
XO pins). One crystal can be used to drive two LXT970A Transceivers. Connect the XO pin of
only one 970 to one side of the crystal, and connect the other side to both XI pins. Calculate
compensation accordingly.
External Clock
An external 25 MHz clock source, rather than a crystal, is frequently used in switch applications.
When a clock is supplied to XI, XO is left open.
TX Clock Advance Mode
When operating in Master Clock mode under MDIO Control, the user can advance the transmit
clock relative to TXD<4:0> and TX_ER. When TX_CLK Advance is selected, the
LXT970A Transceiver clocks TXD data in on the falling edge of TX_CLK, instead of the rising
edge.
This mode provides an increase in timing margins of TXD, relative to TX_CLK. TX_CLK
Advance is enabled when bit 19.5 = 1.
2.3.2.2 Slave Clock Mode
The Slave Clock mode is typically used for repeater applications, where the LXT970A Transceiver
is not the master clock source for data transmissions. In Slave Clock Mode, a digital clock circuit
with TTL levels (VOH >2.4V) must supply the TX_CLK input. The frequency may be either 25
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 29
MHz or 2.5 MHz. Either frequency can be used during auto-negotiation. However, once link is
established, the supplied frequency must match the link state. A 25 MHz clock must be supplied
for correct operation of a 100TX or 100FX link, and a 2.5 MHz clock must be supplied for correct
operation of a 10BT link. In Slave Clock mode, XI is connected to ground and XO is left open.
2.3.3 Bias Circuit Requirements
A 22.1 kΩ 1% resistor must be tied between the RBIAS input and ground. High-speed signals
should be kept away from this resistor. Follow the layout recommendations given in the Design
Recommendations section on page 42.
2.4 Initialization
At power-up or reset, the LXT970A Transceiver performs the initialization sequence shown in
Figure 11.
2.4.1 Control Mode Selection
Mode control selection is provided via the MDDIS pin as shown in Table 15. When pin 15
(MDDIS) is High, the LXT970A Transceiver enters Manual Control Mode. When MDDIS is Low,
MDIO Control Mode is enabled.
2.4.1.1 MDIO Control Mode
In the MDIO Control mode, the LXT970A Transceiver reads the Hardware Control Interface pins
to set the initial (default) values of the MDIO registers. Once the initial values are set, bit control
reverts to the MDIO interface.
2.4.1.2 Manual Control Mode
In the Manual Control Mode, LXT970A Transceiver disables direct write operations to the MDIO
registers via the MDIO Interface. The LXT970A Transceiver continuously monitors the Hardware
Control Interface pins and updates the MDIO registers accordingly.
2.4.2 Link Configuration
When the LXT970A Transceiver is first powered on, reset, or encounters a link failure state, it
must determine the line speed and operating conditions to use for the network link. The
LXT970A Transceiver first checks the MDIO registers (initialized via the Hardware Control
Table 15. Mode Control Settings
Mode MDDIS RESET PWRDWN
MDIO Control Low High Low
Manual Control High High Low
Reset - Low Low
Power Down - - High
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
30 Datasheet
Interface or MDIO Interface) for operating instructions. Both control modes allow the user to
either force the LXT970A Transceiver to a specific configuration or allow it to auto-negotiate the
optimum configuration with its link partner.
2.4.2.1 Manual Configuration
The LXT970A Transceiver can be manually configured to force operation in the following modes:
•100FX, full-duplex
•100FX, half-duplex
•100TX, full-duplex
•100TX, half-duplex
•10T, full-duplex
•10T, half-duplex
Refer to Table 12 through Table 14 in the Hardware Control Interface discussion for specific
manual configuration settings.
2.4.2.2 Auto-Negotiation/Parallel Detection
With auto-negotiation enabled at power-up or reset, the LXT970A Transceiver attempts to
establish link operating conditions with its partner by sending Fast Link Pulse (FLP) bursts.
If the link partner is also capable of auto-negotiation, the two devices exchange FLP bursts to
communicate their capabilities to each other. Each side finds the highest common capabilities that
both sides can support and then begins operating in that mode.
Figure 11. Initialization Sequence
Power-up or Reset
Check Value
MDDIS
High
Low
MDIO Control
Mode
Exit
Manual Control
Mode
Disable MDIO Writes
Read H/W Control
Interface
Initialize MDIO Registers
Read H/W Control
Interface
Pass Control to MDIO
Interface Update MDIO Registers
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 31
If the link partner is not capable of auto-negotiation, it transmits either 10 Mbps Normal Link
Pulses (NLP) or 100 Mbps Idle symbols. When the LXT970A Transceiver detects either NLPs or
Idle symbols, it automatically configures to match the detected operating speed in half-duplex
mode. This ability allows the LXT970A Transceiver to communicate with devices that do not
support auto-negotiation.
2.4.2.3 Controlling Auto-Negotiation
When auto-negotiation is controlled by software, the following steps are recommended:
•After a reset or power-up (initial or from power down mode), the power down recovery time
(refer to Table 43 on page 62) must be exhausted before proceeding.
•Set MDIO Register 4 advertisement capabilities before setting MDIO bit 0.12 = 1 to enable
auto-negotiation.
2.5 Monitoring Operational Status
2.5.1 Monitoring Status via MII Registers
The Chip Status Register (Table 56 on page 72) provides a convenient indication of several status
conditions:
•Bit 20.13 is set to 1 once the link is established.
•Bits 20.11 and 20.12 indicate the link speed and duplex condition respectively.
•Bits 20.9 and 20.8 indicate the progress and status of auto-negotiation.
Figure 12. Auto-Negotiation Operation
Auto
Negotiation
Start
Done
Enable
Auto-Neg/Parallel Detection
Go To Forced
Settings Attempt Auto-
Negotiation Listen for 10T
Link Pulses
Listen for 100TX
Idle Symbols
Link Set? NOYES
Power-Up, Reset,
Link Failure
Disable
Auto-Negotiation
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
32 Datasheet
Refer to the Register Definition section on page 63 for additional details on specific registers.
2.5.2 Monitoring Status via Indicator Pins
The LEDS, LEDR, LEDT, LEDL, and LEDC pins are CMOS digital outputs that drive LEDs.
These pins along with the FDS/MDINT output, can also be used to externally monitor the status of
the LXT970A Transceiver. The following notes apply to the FDS/MDINT and LED pins:
•LEDR, LEDT and LEDC pulse Low to indicate receive, transmit, and collision activity
respectively. When the LXT970A Transceiver asserts these signals, it automatically extends
them for 100 ms.
•LEDL indicates link status and LEDS indicates link speed. LEDL and LEDS are active Low.
•In its default state (17.1 = 0), the MDINT/FDS output indicates duplex condition. FDS is
active High.
Table 16 shows the state of the LXT970A Transceiver according to the status of LEDL, LEDS, and
FDS pins.
2.6 100BASE-X Operation
2.6.1 100BASE-X MII Operations
The MAC exchanges data with the LXT970A Transceiver over the MII interface. The
LXT970A Transceiver converts the digital data from the MAC into an analog waveform that is
transmitted to the network via the copper (TX) or fiber (FX) interface. The LXT970A Transceiver
converts analog signals received from the network into a digital format and sends them to the MAC
via the MII. Refer to the MII interface discussion on page 20 for details on MII control and data
signals.
The 100BASE-X protocol specifies the use of a 5-bit symbol code on the network media. However,
data is normally transmitted across the MII interface in 4-bit nibbles. The LXT970A incorporates a
4B/5B encoder/decoder circuit that translates 4-bit nibbles from the MII into 5-bit symbols for the
100BASE-X connection, and translates 5-bit symbols from the 100BASE-X connection into 4-bit
nibbles for the MII. Figure 14 shows the data conversion flow from nibbles to symbols. Table 17
shows 4B/5B symbol coding (not all symbols are valid).
Table 16. Status using FDS/LED Pins
Intel® LXT970A Transceiver State Pin Status
LEDL LEDS FDS
During Power-up High High Low
During Auto-Negotiation or
Link Failure High High Low
Link-up; 100 Mbps; full-duplex Low Low High
Link-up; 100 Mbps; half-duplex Low Low Low
Link-up; 10 Mbps; full-duplex Low High High
Link-up; 10 Mbps; half-duplex Low High Low
intele
D
A)S
POP
m
La La ;
LILJ}
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 33
In some applications it may be desirable to bypass the 4B/5B encoder/decoder circuit, and operate
the MII as a 5-bit symbol mode interface. The LXT970A Transceiver provides additional lines in
both the receive and transmit channels (RXD4 & TXD4) to accommodate MACs that accept 5-bit
symbols.
2.6.2 100BASE-X Network Operations
During 100BASE-X operation, the LXT970A Transceiver transmits and receives 5-bit symbols
across the network link. Figure 13 shows the structure of a standard frame packet. When the MAC
is not actively transmitting data, the LXT970A Transceiver sends out Idle symbols on the line.
In 100TX mode, the LXT970A Transceiver scrambles the data using a polynomial key, and
transmits it to the network using MLT-3 line code. The MLT-3 signals received from the network
are descrambled and decoded by the LXT970A Transceiver, and sent across the MII to the MAC.
In 100FX mode, the LXT970A Transceiver transmits and receives NRZI signals across the pseudo-
ECL interface. An external 100FX transceiver module is required to complete the fiber
connection. To enable 100FX operation, auto-negotiation must be disabled and FX selected.

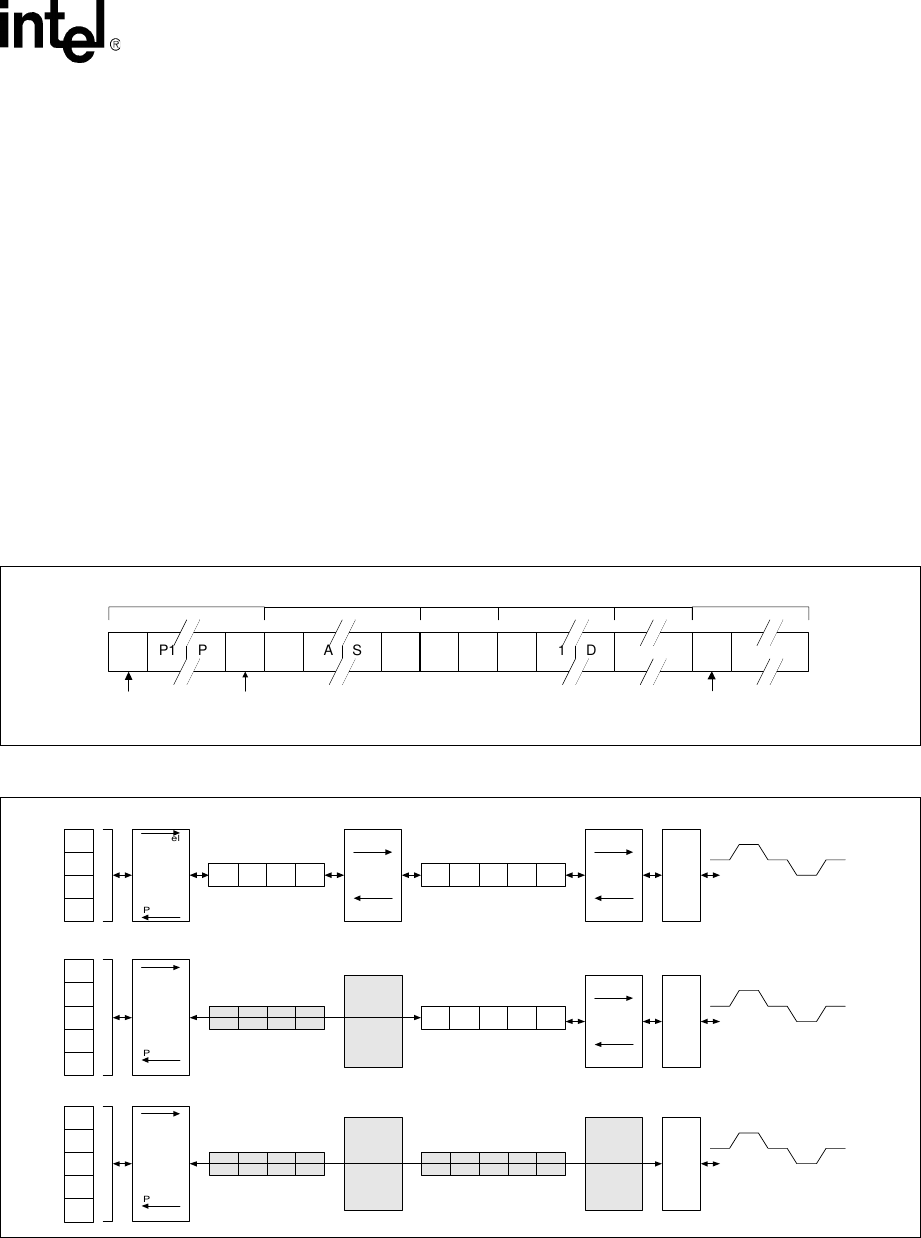

Figure 13. 100BASE-TX Frame Structure
Figure 14. 100BASE-TX Data Flow
P0 P1 P6
SFD
64-Bit Preamble
(8 Octets)
Start of Frame
Delimiter (SFD)
DA DA SA SA
Destination and Source
Address (6 Octets each)
L1 L2
Packet Length
(2 Octets)
D0 D1 Dn
Data Field
(Pad to minimum packet size)
Frame Check Field
(4 Octets)
CRC I0
InterFrame Gap / Idle Code
(> 12 Octets)
Replaced by
/T/R/ code-groups
End of Stream Delimiter (ESD)
IFG
Replaced by
/J/K/ code-groups
Start of Stream
Delimiter (SSD)
Standard Data Flow
D0
D1
D2
D3
Parallel
to
Serial
Serial
to
Parallel
D0 D1 D2 D3
4B/5B
S0 S1 S2 S3 S4
MLT3
0
+1
-1
00
Transition = 1.
No Transition = 0.
All transitions must follow
pattern: 0, +1, 0, -1, 0, +1..
.
Scramble
De-
Scramble
S0
S1
S2
S3
S4
Parallel
to
Serial
Serial
to
Parallel
S0 S1 S2 S3 S4
MLT3
0
+1
-1
00
Transition = 1.
No Transition = 0.
All transitions must follow
pattern: 0, +1, 0, -1, 0, +1..
.
Scramble
De-
Scramble
Symbol (5B) Mode Data Flow
S0
S1
S2
S3
S4
Parallel
to
Serial
Serial
to
Parallel
MLT3
0
+1
-1
00
Transition = 1.
No Transition = 0.
All transitions must follow
pattern: 0, +1, 0, -1, 0, +1..
.
Scrambler Bypass Data Flow
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
34 Datasheet
Table 17. 4B/5B Coding
Code Type 4B Code
3 2 1 0 Name 5B Symbol
4 3 2 1 0 Interpretation
0 0 0 0 0 1 1 1 1 0 Data 0
0 0 0 1 1 0 1 0 0 1 Data 1
0 0 1 0 2 1 0 1 0 0 Data 2
0 0 1 1 3 1 0 1 0 1 Data 3
0 1 0 0 4 0 1 0 1 0 Data 4
0 1 0 1 5 0 1 0 1 1 Data 5
0 1 1 0 6 0 1 1 1 0 Data 6
DATA 0 1 1 1 7 0 1 1 1 1 Data 7
1 0 0 0 8 1 0 0 1 0 Data 8
1 0 0 1 9 1 0 0 1 1 Data 9
1 0 1 0 A 1 0 1 1 0 Data A
1 0 1 1 B 1 0 1 1 1 Data B
1 1 0 0 C 1 1 0 1 0 Data C
1 1 0 1 D 1 1 0 1 1 Data D
1 1 1 0 E 1 1 1 0 0 Data E
1 1 1 1 F 1 1 1 0 1 Data F
IDLE undefined I 1 1 1 1 1 1 Idle. Used as inter-stream fill code
0 1 0 1 J 2 1 1 0 0 0 Start-of-Stream Delimiter (SSD), part 1 of 2
CONTROL 0 1 0 1 K 2 1 0 0 0 1 Start-of-Stream Delimiter (SSD), part 2 of 2
undefined T 3 0 1 1 0 1 End-of-Stream Delimiter (ESD), part 1 of 2
undefined R 3 0 0 1 1 1 End-of-Stream Delimiter (ESD), part 2 of 2
undefined H 4 0 0 1 0 0 Transmit Error. Used to force signaling errors
undefined Invalid 0 0 0 0 0 Invalid
undefined Invalid 0 0 0 0 1 Invalid
undefined Invalid 0 0 0 1 0 Invalid
INVALID undefined Invalid 0 0 0 1 1 Invalid
undefined Invalid 0 0 1 0 1 Invalid
undefined Invalid 0 0 1 1 0 Invalid
undefined Invalid 0 1 0 0 0 Invalid
undefined Invalid 0 1 1 0 0 Invalid
undefined Invalid 1 0 0 0 0 Invalid
undefined Invalid 1 1 0 0 1 Invalid
1. The /I/ (Idle) code-group is sent continuously between frames.
2. The /J/ and /K/ (SSD) code-groups are always sent in pairs; /K/ follows /J/.
3. The /T/ and /R/ (ESD) code-groups are always sent in pairs; /R/ follows /T/.
4. An /H/ (Error) code-group is used to signal an error condition.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 35
2.7 10BASE-T Operation
2.7.1 10BASE-T MII Operations
The MAC transmits data to the LXT970A Transceiver over the MII interface. The
LXT970A Transceiver converts the digital data from the MAC into an analog waveform that is
transmitted to the network via the copper interface. The LXT970A Transceiver converts analog
signals received from the network into a digital format suitable for the MAC. The
LXT970A Transceiver sends the received data to the MAC via the MII. The 5-bit symbol code is
not used for 10BASE-T operation. The MII operates only as a 4-bit interface and the RXD4 &
TXD4 lines are not used.
2.7.2 10BASE-T Network Operations
During 10BASE-T operation, the LXT970A Transceiver transmits and receives Manchester-
encoded data across the network link. When the MAC is not actively transmitting data, the
LXT970A Transceiver sends out link pulses on the line.
In 10BASE-T mode, the polynomial scrambler/descrambler is inactive. Manchester-encoded
signals received from the network are decoded by the LXT970A Transceiver and sent across the
MII to the MAC.
The LXT970A Transceiver does not support fiber connections at 10 Mbps.
2.8 Protocol Sublayer Operations
With respect to the 7-layer communications model, the LXT970A Transceiver is a Physical Layer
1 (PHY) device. The LXT970A Transceiver implements the Physical Coding Sublayer (PCS),
Physical Medium Attachment (PMA), and Physical Medium Dependent (PMD) sublayers of the
reference model defined by the IEEE 802.3u specification. The following paragraphs discuss
LXT970A Transceiver operation from the reference model point of view.
2.8.1 PCS Sublayer
The Physical Coding Sublayer (PCS) provides the MII interface, as well as the 4B/5B encoding/
decoding function when the MII is operating as a 4B interface.
For 100TX and 100FX operation, the PCS layer provides IDLE symbols to the PMD-layer line
driver as long as TX_EN is de-asserted.
When the MII is operating in 5B mode, the encoder/decoder function is disabled, and symbol data
presented at the MII is transparently passed downstream, and vice versa.
For 10T operation, the PCS layer merely provides a bus interface and serialization/de-serialization
function. 10T operation does not use the 4B/5B encoder, and is not supported when the MII is in
5B mode.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
36 Datasheet
2.8.1.1 100X Preamble Handling
When the MAC asserts TX_EN, the PCS substitutes a /J/K symbol pair, also known as the Start of
Stream Delimiter or SSD, for the first two nibbles received across the MII. The PCS layer
continues to encode the remaining MII data, following Table 17, until TX_EN is de-asserted. It
then returns to supplying IDLE symbols to the line driver.
In the receive direction, the PCS layer performs the opposite function, substituting two preamble
nibbles for the SSD.
2.8.1.2 10T Preamble Handling
In 10BASE-T Mode, the LXT970A Transceiver strips the entire preamble off of received packets.
CRS is asserted a few bit times after carrier is detected. RX_DV is held for the duration of the
preamble.
When RX_DV is asserted, the very first two nibbles driven by the LXT970A Transceiver are the
SFD “5D” hex followed by the body of the packet. In 10T loopback, the LXT970A Transceiver
loops back whatever the MAC transmits to it, including the preamble.
2.8.1.3 Data Errors (100X Only)
Figure 16 shows normal reception. When the LXT970A Transceiver receives invalid symbols from
the line, it asserts RX_ER, as shown in Figure 17.
Figure 15. Protocol Sublayers
Encoder/Decoder
Serializer/De-serializer
Scrambler/De-
scrambler
Link/Carrier Detect
PCS
Layer
PMA
Layer
PMD
Layer
MII Interface
PECL Interfac
e
Fiber Transceiver
LXT970A
100BASETX 100BASE-FX
AIME—MW
XXXXXXIY' IY
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 37
2.8.1.4 Collision Indication
Figure 18 shows normal transmission. The LXT970A Transceiver detects a collision if transmit
and receive are active at the same time. As shown in Figure 19 upon detection of a collision, the
COL output is asserted and remains asserted for the duration of the collision.
Figure 16. 100BASE-TX Reception with No Errors
Figure 17. 00BASE-TX Reception with Invalid Symbol
Figure 18. 00BASE-TX Transmission with No Errors
Figure 19. 00BASE-TX Transmission with Collision
RX_CLK
RX_DV
R
XD<3:0>
RX_ER
SFD SFD DA DA DA DA CRC CRC CRC CRCpreamble
RX_CLK
RX_DV
R
XD<3:0>
RX_ER
SFD SFD DA DA DA XX DA DA DA DA DA DA DA DA
preamble
TX_CLK
TX_EN
TXD<3:0>
CRS
COL
PREA MBL E
DA DA DA DA DA DA
DA DA DA
1. In half-duplex mode, CRS asserts when receive or transmit are active. In full-duplex mode, CRS asserts during receive only.
TX_CLK
TX_EN
T
XD<3:0>
CRS
COL
PREA MBL E JAM JAM JAM JAM
1. In half-duplex mode, CRS asserts when receive or transmit is active. In full-duplex mode, CRS asserts during receive only.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
38 Datasheet
2.8.1.5 SQE (10T Only)
When the SQE (heartbeat) function is enabled, the LXT970A Transceiver asserts its COL output
for 5-15 BT after each packet. By default, the SQE function is disabled on the
LXT970A Transceiver. To enable SQE, set bit 19.10 = 1. See Figure 30 on page 59 for SQE timing
parameters.
2.8.1.6 Jabber (10T Only)
If the MAC transmission exceeds the jabber timer, the LXT970A Transceiver disables the transmit
and loopback functions and asserts the COL pin. The LXT970A Transceiver automatically exits
jabber mode after 250-750 ms. This function can be disabled by setting bit 19.9 = 1. See Figure 31
on page 59 for Jabber timing parameters.
2.8.2 PMA Layer
The Physical Medium Attachment (PMA) layer provides link and carrier status functions.
2.8.2.1 100TX Link Options
The LXT970A Transceiver uses standard symbol error rate criteria to establish a link and has two
options for 100TX and 100FX applications to break down a link:
•Standard (symbol error rate).
•Enhanced (scrambler lock).
Standard link criteria (17.2 = 0 default), takes down the link when the Bit Error Rate (BER)
exceeds the allowable standards. If the link goes down and auto-negotiation is enabled, the device
automatically restarts the auto-negotiation process. Otherwise the device continues to monitor the
line for a valid link. With this option both link up and link loss are based on symbol error rate.
Enhanced link-loss criteria (17.2 = 1) works independent of symbol error rate. The loss of
scrambler lock for more than 1 - 2 msec brings the link down. Enhanced link-loss criteria is not
available in 5B mode.
2.8.2.2 10T Link Test
For 10T operation, link is detected via Normal Link Pulses (NLPs). In 10T mode, the
LXT970A Transceiver always transmits link pulses. If the Link Test Function is enabled, it
monitors the connection for link pulses. Once it detects 2 to 7 link pulses, data transmission will
be enabled and remains enabled as long as the link pulses or data transmission continues. Link
failure occurs if Link Test is enabled and link pulses are no longer received. When this condition
occurs, the LXT970A Transceiver returns to the auto-negotiation phase if auto-negotiation is
enabled. If the Link Test function is disabled, the LXT970A Transceiver transmits to the
connection regardless of detected link pulses. The Link Test function can be disabled by setting bit
19.8 = 1 or by setting MF0 to disable auto-negotiation and setting CFG1 input High.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 39
2.8.2.3 Carrier Sense (CRS)
For 100TX and 100FX links, a start-of-stream delimiter or /J/K symbol pair causes assertion of
carrier sense (CRS). An end-of-stream delimiter, or /T/R symbol pair causes deassertion of CRS.
The PMA layer also de-asserts CRS if IDLE symbols are received without /T/R, however, in this
case RX_ER asserts for one clock cycle when CRS is de-asserted.
For 10T links, CRS assertion is based on reception of valid preamble, and de-assertion on reception
of an end-of-frame (EOF) marker.
The PMA layer in the LXT970A Transceiver does not support the optional Far-End-Fault function.
2.8.3 Twisted-Pair PMD Layer
The twisted-pair Physical Medium Dependent (PMD) layer provides the signal scrambling and
descrambling, line coding and decoding (MLT-3 for 100TX, Manchester for 10T), as well as
receiving, polarity correction, and baseline wander correction functions.
2.8.3.1 Scrambler/Descrambler (100TX Only)
The scrambler spreads the signal power spectrum and reduces EMI and baseline wander.
Scrambling is done with an 11-bit, non-data-dependent polynomial. The receiver automatically
decodes the polynomial whenever IDLE symbols are received.
The LXT970A Transceiver provides a scrambler-bypass mode for testing purposes. Bypassing the
scrambler causes the PCS-layer encoder to be bypassed as well, and the MII to operate in 5B mode.
2.8.3.2 Baseline Wander Correction
(100TX Only)
The LXT970A Transceiver provides a baseline wander correction function that makes the device
robust under all network operating conditions. The MLT3 coding scheme used in 100BASE-TX is
by definition “unbalanced”, which means the average DC value of the signal voltage can “wander”
significantly over short time intervals (tenths of seconds). In less robust PHY devices, this wander
can cause receiver errors, particularly at long line lengths (100 meters). The exact characteristics of
the wander are completely data dependent. The LXT970A Transceiver baseline wander correction
circuitry allows error-free data recovery, even at long line lengths.
2.8.3.3 Polarity Correction
The LXT970A Transceiver automatically detects and corrects for the condition where the receive
signal (TPIP/N) is inverted. Reversed polarity is detected if eight inverted link pulses, or four
inverted end-of-frame markers, are received consecutively. If link pulses or data are not received
for 96-128 ms, the polarity state is reset to a non-inverted state.
2.8.4 Fiber PMD Layer
The LXT970A Transceiver provides a pseudo-ECL interface for connection to an external fiber
optic transceiver. (The external transceiver provides the PMD function for fiber media.) The
LXT970A Transceiver uses an NRZI format for the fiber interface. The fiber interface operates at
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
40 Datasheet
100 Mbps and is intended for 100FX applications. It does not support 10FL applications. The
fiber interface does not support the signal detect function supplied by most fiber optic transceivers.
However, the link detection function in the PMA layer quickly detects faults in the fiber link.
2.8.5 Additional Operating Features
2.8.6 Low-Voltage-Fault Detect
The LXT970A Transceiver low-voltage fault detection function prevents transmission of invalid
symbols when VCC goes below normal operating levels. If this condition occurs, the
LXT970A Transceiver disables the transmit outputs and sets 20.2 = 1. Operation is automatically
restored when VCC returns to normal. Table 26 on page 49 indicates voltage levels that detect and
clear the low-voltage fault condition.
2.8.7 Power Down Mode
The LXT970A Transceiver goes into power down mode when PWRDWN is asserted. In this mode,
all functions are disabled except the MDIO. The power supply current is significantly reduced.
This mode can be used for energy-efficient applications or for redundant applications where there
are two devices and one is left as a stand-by. When the LXT970A Transceiver is returned to normal
operation, configuration settings of the MDIO registers are maintained. Refer to Table 22 on
page 47 for power down specifications.
2.8.8 Software Reset
Software reset causes all state machines to be reset and the LXT970A Transceiver to re-configure
itself to the settings of the hardware configuration pins (MF<4:0>, FDE, CFG0, CFG1).
The LXT970A Transceiver is reset via software(0.15 = 1). This bit setting is maintained while the
reset operation is running. When the reset operation is complete, the LXT70 resets bit 0.15 = 0.
2.8.9 Hardware Reset
Hardware reset causes the LXT970A Transceiver to reset all of its functions and re-configure itself
based on the hardware configuration pin settings.
The LXT970A Transceiver performs a hardware reset when a Low signal is detected at the RESET
pin. All operational conditions must be met for this function to operate. VCC must be above 4.75V
and stable, and the RESET signal must be asserted for two cycles of the master input clock. The
LXT970A Transceiver continues to drive an internal reset for a period of 300 μs after the RESET
signal is de-asserted to ensure that all functions start up smoothly. MII registers are not available
and the MDIO output is tri-stated during the internal reset period. Refer to Table 43 on page 62 for
hardware reset specifications.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 41
3.0 Application Information
3.1 Magnetics Information
The LXT970A Transceiver requires a 1:1 ratio for both the receive and the transmit transformers.
Refer to Table 18 for magnetics requirements.
A cross-reference list of magnetic manufacturers and part numbers is available in Application Note
73, Magnetic Manufacturers, which can be found on the Intel web site (developer.intel.com/design/
network/). Designers must test and evaluate all components for suitability in their applications.
3.2 Crystal Information
The LXT970A Transceiver requires a parallel-resonant fundamental-mode crystal that meet
specifications as shown in Table 19. XI and XO input capacitance and voltage requirements are
provided in Table 25 on page 48.
Crystals are available from various manufacturers. Designers should test and validate all crystals
before committing to a specific component. Based on limited evaluation, Table 20 provides
suitable crystal component manufacturers.
Table 18. Magnetics Requirements
Parameter Min Nom Max Units Test Condition
Rx and Tx Turns Ratio – 1:1 – –
Insertion Loss 0.0 – 1.1 dB
Primary Inductance 350 – – μH
Transformer Isolation – 2 – kV
Differential to common mode rejection – – -40 dB .1 to 60 MHz
– – -35 dB 60 to 100 MHz
Return Loss – – -17 dB .1 to 60 MHz
– – -15 dB 60 to 100 MHz
Rise Time 2.0 – 3.5 ns 10% to 90%
Table 19. Crystal Requirements
Parameter Min Nom Max Units Test Condition
Frequency – 25.0 – MHz
Frequency Stability – – ±100 ppm -40 - 85oC
1. See Table 25 (Clock Characteristics) for additional device specifications.
Table 20. Crystal Component Manufacturers
Component Manufacturer Part Number
Crystal Epson America MA-505-25.000M
Caliber Electronics AA18C1-25.000MHz
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
42 Datasheet
3.3 Design Recommendations
The LXT970A Transceiver is designed in accordance with IEEE requirements and provides
outstanding receive Bit Error Ratio (BER) and long-line-length performance. Lab tests show that
the LXT970A Transceiver performs well beyond the required distance of 100 meters. Ensuring
maximum performance from the LXT970A Transceiver requires attention to detail and good
design practices. Refer to the LXT970 Design and Layout Guide for detailed design and layout
information.
3.3.1 General Design Guidelines
Adherence to generally accepted design practices is essential to minimize noise levels on power
and ground planes. Up to 50 mV of noise is considered acceptable. 50 to 80 mV of noise is
considered marginal. High-frequency switching noise can be reduced, and its effects can be
eliminated, by following these simple guidelines throughout the design:
•Fill in unused areas of the signal planes with solid copper and attach them with vias to a VCC
or ground plane that is not located adjacent to the signal layer.
•Use ample bulk and decoupling capacitors throughout the design (a value of .01 μF is
recommended for decoupling caps).
•Provide ample power and ground planes.
•Provide termination on all high-speed switching signals and clock lines.
•Provide impedance matching on long traces to prevent reflections.
•Route high-speed signals next to a continuous, unbroken ground plane.
•Filter and shield DC-DC converters, oscillators, etc.
•Do not route any digital signals between the LXT970A Transceiver and the RJ-45 connectors
at the edge of the board.
•Do not extend any circuit power and ground plane past the center of the magnetics or to the
edge of the board. Use this area for chassis ground, or leave it void.
3.3.2 Power Supply Filtering
Power supply ripple and digital switching noise on the VCC plane can cause EMI problems and
degrade line performance. It is generally difficult to predict in advance the performance of any
design, although certain factors greatly increase the risk of having these problems:
•Poorly-regulated or over-burdened power supplies.
•Wide data busses (>32-bits) running at a high clock rate.
•DC-to-DC converters.
Many of these issues can be improved by following good general design guidelines. Intel also
recommends filtering between the power supply and the analog VCC pins of the
LXT970A Transceiver. Filtering has two benefits. First, it keeps digital switching noise out of the
analog circuitry inside the LXT970A Transceiver, which helps line performance. Second, if the
VCC planes are laid out correctly, it keeps digital switching noise away from external connectors,
reducing EMI problems.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 43
The recommended implementation is to divide the VCC plane into two sections. The digital
section supplies power to the digital VCC pin, VCCIO pin, and to the external components. The
analog section supplies power to VCCA, VCCT, and VCCR pins of the LXT970A Transceiver.
The break between the two planes should run under the device. In designs with more than one
LXT970A Transceiver, a single continuous analog VCC plane can be used to supply them all.
The digital and analog VCC planes should be joined at one or more points by ferrite beads. The
beads should produce at least a 100Ω impedance at 100 MHz. The beads should be placed so that
current flow is evenly distributed. The maximum current rating of the beads should be at least
150% of the current that is actually expected to flow through them. A bulk cap (2.2 -10 μF) should
be placed on each side of each ferrite bead to stop switching noise from traveling through the
ferrite.
In addition, a high-frequency bypass cap (.01μf) should be placed near each analog VCC pin.
3.3.3 Ground Noise
The best approach to minimize ground noise is strict use of good general design guidelines and by
filtering the VCC plane.
3.3.4 Power and Ground Plane Layout Considerations
Great care needs to be taken when laying out the power and ground planes. The following
guidelines are recommended:
•Follow the guidelines in the LXT970 Layout Guide for locating the split between the digital
and analog VCC planes.
•Keep the digital VCC plane away from the TPOP/N and TPIP/N signals, away from the
magnetics, and away from the RJ-45 connectors.
•The ground plane should be one continuous, unbroken plane.
•Place the layers so that the TPOP/N and TPIP/N signals can be routed near or next to the
ground plane. It is more important to shield TPOP/N than TPIP/N for EMI reasons.
3.3.5 Interfaces for Twisted-Pair /Fiber
3.3.5.1 Twisted-Pair
Figure 21 on page 46 shows the recommended termination circuits for the fiber and twisted-pair
interfaces. The twisted-pair interface consists of magnetics and a 100Ω termination resistance in
parallel on the device-side of the winding. On the transmit pair, a common-mode bypass capacitor
to ground is strongly recommended. A similar technique on the receive side can improve
performance in some cases, however the results are highly application specific and must be
verified. Route TREF nearby, but not in-between TPOP and TPON. A “Bob Smith” termination is
often provided for the unused signal pairs.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
44 Datasheet
3.3.5.2 Fiber
The fiber interface consists of a pseudo-ECL transmit and receive pair to an external fiber optic
transceiver. The transmit pair should be AC-coupled to the transceiver, and biased to 3.7V with a
50Ω equivalent impedance. The receive pair can be DC-coupled, and should be biased to 3.0V with
a 50Ω equivalent impedance. Figure 21 on page 46 shows the correct bias networks to achieve
these requirements.
The following guidelines apply to when laying out any differential pair:
•Space both members close together allowing nothing to come between them.
•Keep distances as short as possible, both traces should have the same length.
•Avoid layer changes as much as possible.
•Keep termination circuits close together and on the same side of the board.
•Always put termination circuits close to the source end of any circuit.
3.3.6 Interface for the MII
3.3.6.1 Transmit Hold Time Adjustment
Transmit hold time for TXD, TX_EN, and TX_ER from TX_CLK High is currently specified in
Table 32, Table 34, Table 36, and Table 38 as 5 ns minimum. 0 ns minimum is the IEEE
specification. Depending on the specification of the MAC or ASIC used in your design, you may or
may not need to account for this in your PC board design.
If you determine that a timing adjustment is required, there are a couple of recommended ways to
do this.
•If using series resistors in the TXD lines, increase the value of the resistors to achieve the
necessary delay.
•An alternative method is to add the appropriate delay in the TX_CLK line. Depending on the
amount of delay required, this may be accomplished with a series resistor or by adding a buffer
to the TX_CLK line.
Note that some delay is introduced by the actual PC board traces themselves.
3.3.6.2 MII Terminations
When the LXT970A Transceiver is configured with high-strength MII driver levels (bit 17.3 = 0),
55Ω series termination resistors are recommended on all MII output signals to avoid undershoot
and overshoot.
When 17.3 = 1, the MI driver levels are reduced by a factor of ten and termination resistors are not
required on the MII outputs.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 45
3.3.7 Typical Application
Figure 21 on page 46 is typical interface circuitry of the LXT970A Transceiver. The diagram
groups similar pins; it does not portray the actual chip pinout. The Media Independent Interface
(MII) pins are at the upper left. Hardware Control Interface pins are center left. The line interface
pins for twisted-pair and fiber are shown on the top and bottom right respectively.
The VCCD and VCCIO pins are at the bottom of the diagram. VCCT, VCCR, and VCCA are at the
center right. All VCC pins (except VCCIO) use a single power supply. VCCIO may be powered by
a 3.3V supply, and may be separately connected.
3.3.7.1 Voltage Divider For MF Inputs
The LXT970A Transceiver requires an external voltage divider to provide optional (VMF2 and
VMF3) multi-level inputs to the Multi-Function (MF) pins. These voltage levels are designated as
VMF1 - VMF4. A single voltage divider may be used to drive the MF pins in designs using
multiple PHYs. Figure 20 shows a voltage divider with three 1 kΩ resistors configured in series
between VCC and Ground.
Figure 20. Voltage Divider
V
MF
4V
MF
3V
MF
2
+5V
V
MF
1
1k 1k 1k
intelW
owe ”QM wflTW Q
W X :M T? W1, A
W W W WW #1 fi
11% k : 1T 5 . fi . .1,
A%%P§x F :1? W1 ;T .%w A
1% {{{{{ ,r
W :WWWWWWWWWEEWWWWWWWEIW
A
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
46 Datasheet
Figure 21. Typical Interface Circuitry
LXT970A
25.0 MHz
C1 C2
XI
TX_EN
TPIN
TPIP
RJ45
To Twisted-Pair Network
RBIAS
GNDD
TXD<4:0>
TX_CLK
TX_ER
COL
RX_DV
RX_ER
RX_CLK
RXD<4:0>
CRS
MDIO
FDS/MDINT
MDC
MII
Data
I/F
+5 V
VCCD
XO
TPON
50
Ω
1%
TPOP
50
Ω
1%
50
Ω
50
Ω
50
Ω
75
Ω
50
Ω
50
Ω
TREF
VCCIO
+3.3V
or
+5V
GNDIO
50
Ω
6
5
4
3
2
1
8
7
VCCT
GNDT
FIBON
191
FIBOP
FIBIN
FIBIP
191
69 69
Fiber Txcvr
To Fiber Network
.01 F
130
130
80 80
+5 V
.01 F
TD
TD
RD
RD
3
2
1
VCCA
GNDA
TEST
LEDS
LEDR
LEDT
LEDL
LEDC
330
330
330
330
330
+5 V
75
Ω
VCCR
GNDR
.01
μ
F
.01
μ
F
MF<4:0>
CFG<1:0>
RESET
PWRDWN
H/W
Control
I/F
FDE
TRSTE
MDDIS
MII
Control
I/F
.01
μ
F
.01
μ
F
0.001
μ
F/2kV
.01
μ
F.01
μ
F
22.1k
Ω
1%
.01
μ
F
.01 F
10
μ
F
GNDD GNDD
GNDA
GNDA
GNDA
GNDA
VCCR
GNDD
VCCD
Ferrite Bead
+5 V
10
μ
F
VCCA
GNDA
10
μ
F
+
+
4
VCCT
+5 V
+
.01 F
50
Ω
1%
50
Ω
1%
.01
μ
F
GNDR
5
6
7
55
Ω
55
Ω
55
Ω
55
Ω
55
Ω
55
Ω
55
Ω
1. Refer to Table 19 and Table 20 for crystals.
2. Refer to Table 18 for magnetics.
3. Refer to fiber transceiver manufacturers recommendations for termination circuitry. Suitable fiber transceivers include:
HFBR-5103 and HFBR-5105.
4. Bypassing to chassis ground (if available) provides additional EMI shielding.
5. If the fiber interface is not used, FIBIN, FIBIP, FIBON, and FIBOP may be left unconnected.
6. Placement of this cap should be verified for each application. This cap typically reduces error rates at long line lengths but
is implementation specific.
7. If bit 17.3 = 0, series terminations resistors are recommended for all MII outputs. The proper value is application specific.
If bit 17.3 = 1, termination resistors are not required.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 47
4.0 Test Specifications
Note: Table 21 through Table 43 and Figure 22 through Figure 36 represent the performance
specifications of the LXT970A Transceiver. These specifications are guaranteed by test except
where noted “by design.” Minimum and maximum values listed in Table 23 through Table 43
apply over the recommended operating conditions specified in Table 22.
Table 21. Absolute Maximum Ratings
Parameter Sym Min Max Units
Supply Voltage VCC -0.3 6 V
Operating Temperature Ambient TOPA -15 +85 ºC
Case TOPC –+120ºC
Storage Temperature TST -65 +150 ºC
Caution: Exceeding these values may cause permanent damage. Functional operation under these
conditions is not implied. Exposure to maximum rating conditions for extended periods may
affect device reliability.
Table 22. Operating Conditions
Parameter Sym Min Typ1Max Units
Recommended Supply Voltage2Except MII Supply VCC 4.75 5.0 5.25 V
MII Supply VCCIO 3.125 – 5.25 V
Recommended Operating Temperature Ambient TOPA 0–70ºC
Case TOPC 0–110ºC
Power Consumption
(+5V Only)
100BASE-TX ICC –170–mA
100BASE-FX ICC –80–mA
10BASE-T ICC –185–mA
Power-Down Mode ICC –9–mA
Auto-Negotiation ICC – 240 270 mA
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. Voltages with respect to ground unless otherwise specified.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
48 Datasheet
Table 23. Digital I/O Characteristics1
Parameter Symbol Min Typ Max Units Test Conditions
Input Low Voltage3VIL ––.8V
Input High Voltage3VIH 2.0 – – V
Input Current II-10 – 10 μA0.0 < VI < VCC
Output Low Voltage VOL ––0.4VIOL = 4 mA
Output High Voltage (MII only) VOH 2.2 – – V IOH = -4 mA, VCCIO =3.3V
Output High Voltage VOH 2.4 – – V IOH = -4 mA, VCCIO =5.0V
MII Driver Output Resistance
(Line Driver Output Enabled)
RO2,4 6.0 – 25.0 ΩVCCIO = 3.3V
RO2,4 6.0 – 25.0 ΩVCCIO = 5.0V
1. Applies to all pins except MF<4:0> pins. Refer to Table 24 for MF pin I/O Characteristics.
2. Parameter is guaranteed by design and not subject to production testing.
3. Does not apply to XI or TX_CLK pins. Refer to Table 25 for clock input levels.
4. Applies to default MII driver level (bit 17.3= 0).
Table 24. Digital I/O Characteristics - MultiFunction Pins MF<4:0>
Parameter Symbol Min Typ1Max Units Test Conditions
Input Voltage Level 1 VMF1VCC - 0.5 – – V
Input Voltage Level 2 VMF2(VCC/2) + 0.5 – VCC - 1.2 V
Input Voltage Level 3 VMF31.2 –VCC/2 - 0.5 V
Input Voltage Level 4 VMF4– –0.5V
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
Table 25. Required Clock Characteristics
Parameter Sym Min Typ1Max Units Test Conditions
Master Clock Mode - External XI Clock Input
Input Low Voltage2VIL ––1.0V
Input High Voltage2VIH 3.2 – – V
Input Clock Frequency Tolerance2Δf – – ± 100 ppm Clock frequency is 25
MHz or 2.5 MHz
Input Clock Duty Cycle2Tdc 40 – 60 %
Input Capacitance (XI and XO) CIN –3.0–pF
Slave Clock Mode - External TX_CLK Input
Input Low Voltage VIL ––.8V
Input High Voltage VIH 2.0 – – V
Input Clock Frequency Tolerance2Δf – – ± 100 ppm Clock frequency is 25
MHz or 2.5 MHz
Input Clock Duty Cycle2Tdc 35 – 65 %
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. Parameter is guaranteed by design; not subject to production testing.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 49
Table 26. Low Voltage Fault Detect Characteristics
Parameter Sym Min Typ1Max Units Test Conditions
Detect Fault Threshold VLT 3.4–4.0V –
Clear Fault Threshold VLH 4.1–4.7V –
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
Table 27. 100BASE-TX Transceiver Characteristics
Parameter Sym Min Typ1Max Units Test Conditions
Peak Differential Output Voltage VOP 0.95 – 1.05 V Note 2
Signal Amplitude Symmetry Vss 98 – 102 % Note 2
Signal Rise/Fall Time TRF 3.0 – 5.0 ns Note 2
Rise/Fall Time Symmetry TRFS – – 0.5 ns Note 2
Duty Cycle Distortion DCD ––± 0.5ns
Offset from 16ns
pulse width at 50% of
pulse peak
Overshoot/Undershoot VOS ––5% –
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. Measured at the line side of the transformer, line replaced by 100Ω (±1%) resistor.
Table 28. 100BASE-FX Transceiver Characteristics
Parameter Sym Min Typ1Max Units Test Conditions
Transmitter
Peak Differential Output Voltage
(Single Ended) VOP 0.6–1.0V –
Signal Rise/Fall Time TRF ––1.6ns
10 <–> 90%
2.0 pF load
Jitter (Measured Differentially) – – – 1.3 ns –
Receiver
Peak Differential Input Voltage VIP 0.55 – 1.5 V –
Common-Mode Input Range VCMIR 2.25 – VCC - 0.5 V –
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
50 Datasheet
Table 29. 10BASE-T Transceiver Characteristics
Parameter Sym Min Typ1Max Units Test Conditions
Transmitter
Peak Differential
Output Voltage VOP 2.2 2.5 2.8 V With transformer, line
replaced by 100Ω (±1%)
resistor
Transmit Timing Jitter added by the
MAU and PLS Sections2,3 –0211ns
After line model specified by
IEEE 802.3 for 10BASE-T
MAU
Receiver
Receive Input Impedance2ZIN –3.6–kΩBetween TPIP/TPIN
Differential Squelch Threshold VDS 300 420 585 mV 5 MHz square wave input
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. Parameter is guaranteed by design; not subject to production testing.
3. IEEE 802.3 specifies maximum jitter additions at 1.5 ns for the AUI cable, 0.5ns from the encoder, and 3.5ns from the MAU.
Table 30. 10BASE-T Link Integrity Timing Characteristics
Parameter Sym Min Typ1Max Units Test Conditions
Time Link Loss Receive TLL 50 64 150 ms –
Link Pulse TLP 2 4 7 Link Pulses –
Link Min Receive Timer TLR MIN 247 ms –
Link Max Receive Timer TLR MAX 50 64 150 ms –
Link Transmit Period Tlt 8 10 24 ms –
Link Pulse Width Tlpw – 100 – ns –
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 51

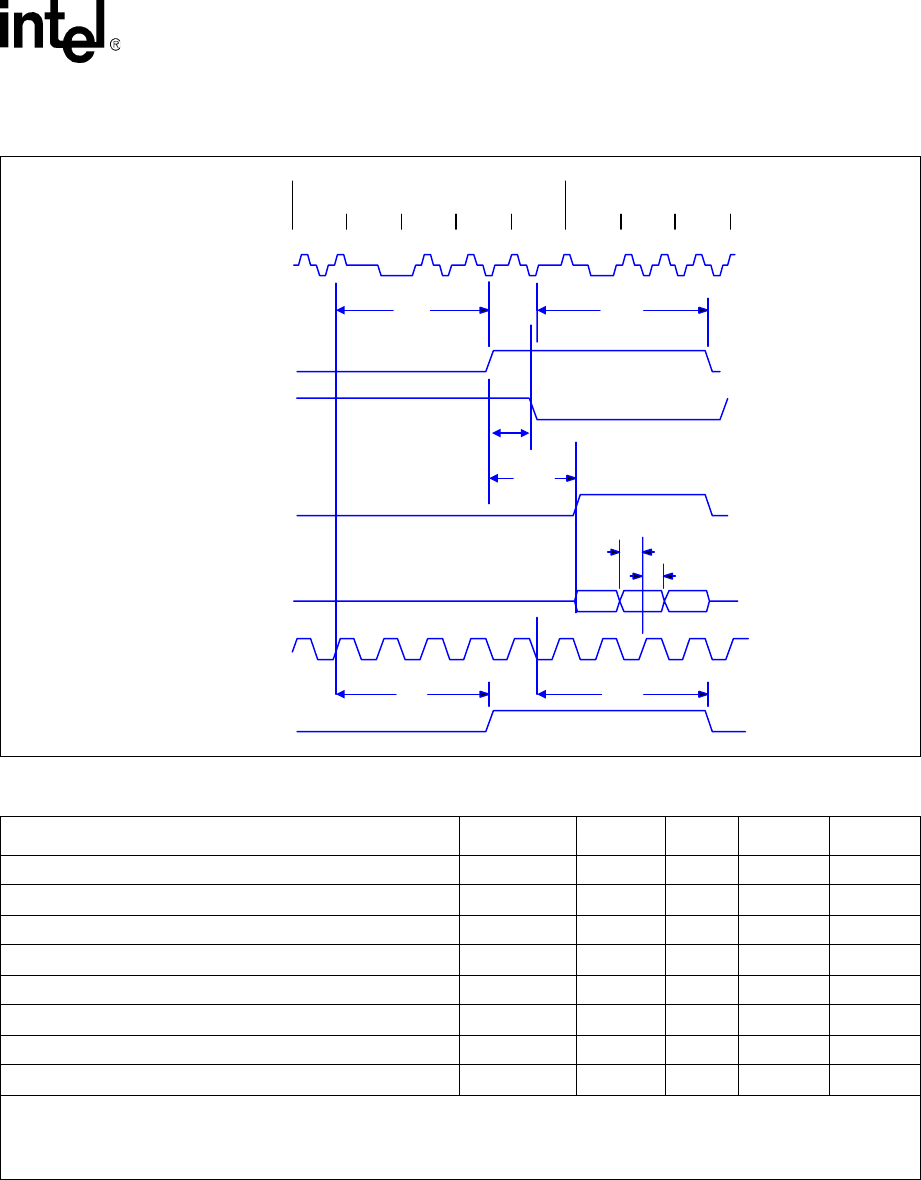

Figure 22. MII - 100BASE-TX Receive Timing / 4B Mode
Table 31. MII - 100BASE-TX Receive Timing Parameters / 4B Mode
Parameter Sym Min Typ1Max Units3
RXD, RX_DV, RX_ER Setup to RX_CLK High t1A 10 – – ns
RXD, RX_DV, RX_ER Hold from RX_CLK High t1B 10 – – ns
CRS asserted to RXD<3:0>, RX_DV asserted t1C – 8 – BT
Receive start of “J” to CRS asserted t1D 0 15 - 19 20 BT
Receive start of “T” to CRS de-asserted t1E 13 23 - 27 28 BT
Receive start of “J” to COL asserted t1F 0 15 - 19 20 BT
Receive start of “T” to COL de-asserted t1G 13 23 - 27 28 BT
TRSTE asserted to RX_DV, RXD<3:0> driven2t1H – 20 – ns
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. These parameters apply only when the device is operated in Repeater Mode.
3. BT is the duration of one bit as transferred to and from the MAC and is the reciprocal of the bit rate. 100BASE-T bit time = 10-
8 s or 10 ns.
t1D t1E
t1C
t1F t1G
0ns 250ns
CRS
TRSTE
1
RX_DV
RXD<3:0>
RX_CLK
COL
t1A
t1B
TPIP
t1H
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
52 Datasheet

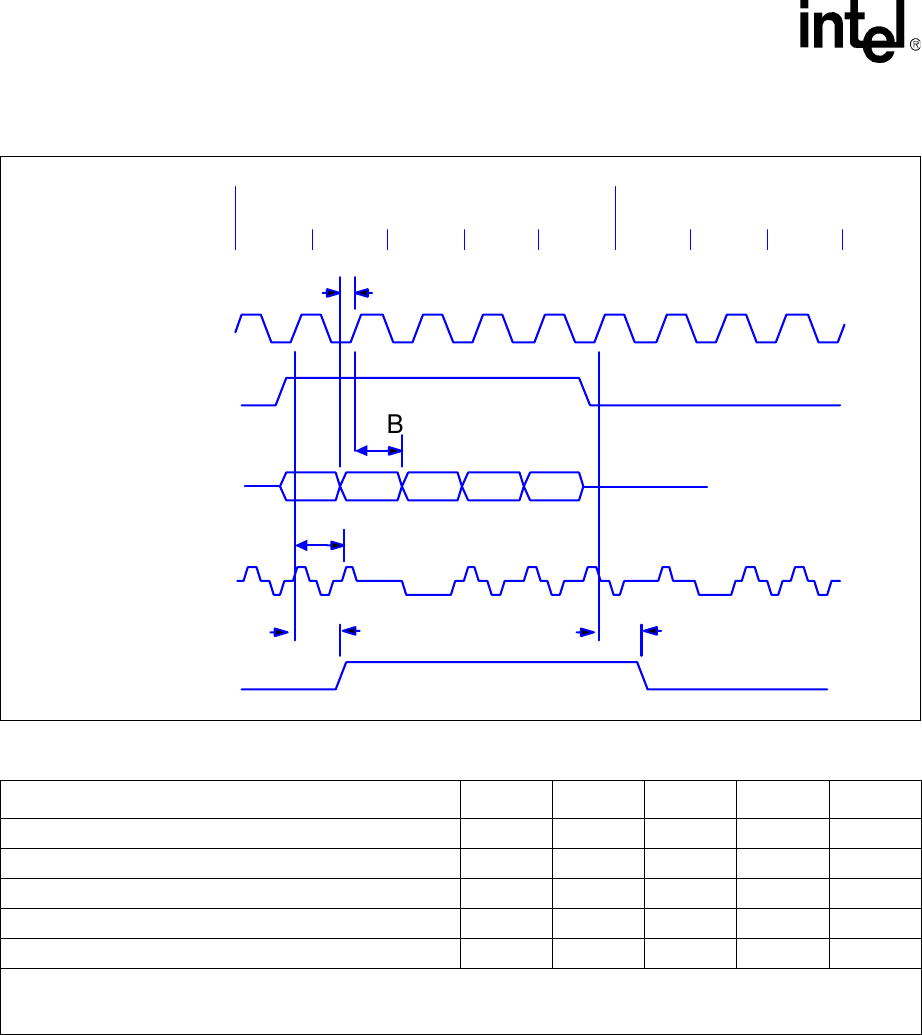

Figure 23. MII - 100BASE-TX Transmit Timing / 4B Mode
Table 32. MII - 100BASE-TX Transmit Timing Parameters / 4B Mode
Parameter Sym Min Typ1Max Units2
TXD<3:0>, TX_EN, TX_ER Setup to TX_CLK High t2A 10 – – ns
TXD<3:0>, TX_EN, TX_ER Hold from TX_CLK High t2B 5 – – ns
TX_EN sampled to CRS asserted t2C – 3 4 BT
TX_EN sampled to CRS de-asserted t2D – 4 16 BT
TX_EN sampled to TPO out (Tx latency) t2E 6 10 14 BT
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. BT is the duration of one bit as transferred to and from the MAC and is the reciprocal of the bit rate. 100BASE-T bit time = 10-
8 s or 10 ns.
t2A
t2B
t2E
t2C t2D
0ns 250ns
TXCL
K
TX_E
N
T
XD<3:0>
CR
S
TPOP
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 53
Figure 24. MII - 100BASE-TX Receive Timing / 5B Mode
Table 33. MII - 100BASE-TX Receive Timing Parameters / 5B Mode
Parameter Sym Min Typ1Max Units3
RXD, RX_DV, RX_ER Setup to RX_CLK High t3A 10 – – ns
RXD, RX_DV, RX_ER Hold from RX_CLK High t3B 10 – – ns
CRS asserted to RX_DV asserted t3C – 8 – BT
CRS asserted to RXD<4:0> asserted t3D – 4 – BT
Receive start of “J” to CRS asserted t3E 0 15 - 19 20 BT
Receive start of “T” to CRS de-asserted t3F 13 23 - 27 28 BT
Receive start of “J” to COL asserted t3G 0 15 - 19 20 BT
Receive start of “T” to COL de-asserted t3H 13 23 - 27 28 BT
TRSTE asserted to RX_DV, RXD<4:0> driven2t3I – 20 – ns
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. These parameters apply only when the device is operated in Repeater Mode.
3. BT is the duration of one bit as transferred to and from the MAC and is the reciprocal of the bit rate. 100BASE-T bit time = 10-
8 s or 10 ns.
Note
2
t3E t3 F
t3C
t3I1
t3D
t3G t3 H
0ns 250ns
TPIP
CR
S
TRSTE1
RX_D
V
RXD<4:0>
RX_CLK
CO
L
t3A
t3B
1. This parameter applies only when the device is operated in Repeater Mode.
2. In Repeater Mode, application circuit must assert TRSTE within time period specified by t4 - t10.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
54 Datasheet
Figure 25. 100BASE-TX Transmit Timing / 5B Mode
Table 34. MII - 100BASE-TX Transmit Timing Parameters / 5B Mode
Parameter Sym Min Typ1Max Units2
TXD, TX_EN, TX_ER Setup to TX_CLK High t4A 10 – – ns
TXD, TX_EN, TX_ER Hold from TX_CLK High t4B 5 – – ns
TX_EN sampled to CRS asserted t4C – 3 4 BT
TX_EN sampled to CRS de-asserted t4D – 4 16 BT
TX_EN sampled to TPO out (Tx latency) t4E 4 6 9 BT
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. BT is the duration of one bit as transferred to and from the MAC and is the reciprocal of the bit rate. 100BASE-T bit time = 10-
8 s or 10 ns.
t4A
t4B
t4E
t4C t4D
0ns 250ns
TXCL
K
TX_E
N
T
XD<3:0>
CR
S
TPOP
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 55
Figure 26. MII - 100BASE-FX Receive Timing / 4B Mode
Table 35. MII - 100BASE-FX Receive Timing Parameters / 4B Mode
Parameter Sym Min Typ1Max Units3
RXD, RX_DV, RX_ER Setup to RX_CLK High t5A 10 – – ns
RXD, RX_DV, RX_ER Hold from RX_CLK High t5B 10 – – ns
CRS asserted to RXD<3:0>, RX_DV asserted t5C – 8 – BT
Receive start of “J” to CRS asserted t5D 0 13 - 17 20 BT
Receive start of “T” to CRS de-asserted t5E 13 21 - 25 26 BT
Receive start of “J” to COL asserted t5F 0 13 - 17 20 BT
Receive start of “T” to COL de-asserted t5G 13 21 - 25 26 BT
TRSTE asserted to RX_DV, RXD<3:0> driven2t5H – 20 – ns
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. These parameters apply only when the device is operated in Repeater Mode.
3. BT is the duration of one bit as transferred to and from the MAC and is the reciprocal of the bit rate. 100BASE-T bit time = 10-
8 s or 10 ns.
t5H1
t5D t5E
t5C
t5F t5G
0ns 250ns
CR
S
TRSTE1
RX_D
V
R
XD<3:0>
RX_CLK
CO
L
t5A
t5B
Note
2
FIBIP
1. These parameters apply only when the device is operated in Repeater Mode.
2. In Repeater Mode, application circuit must assert TRSTE within time period specified by t4 - t10.
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
56 Datasheet

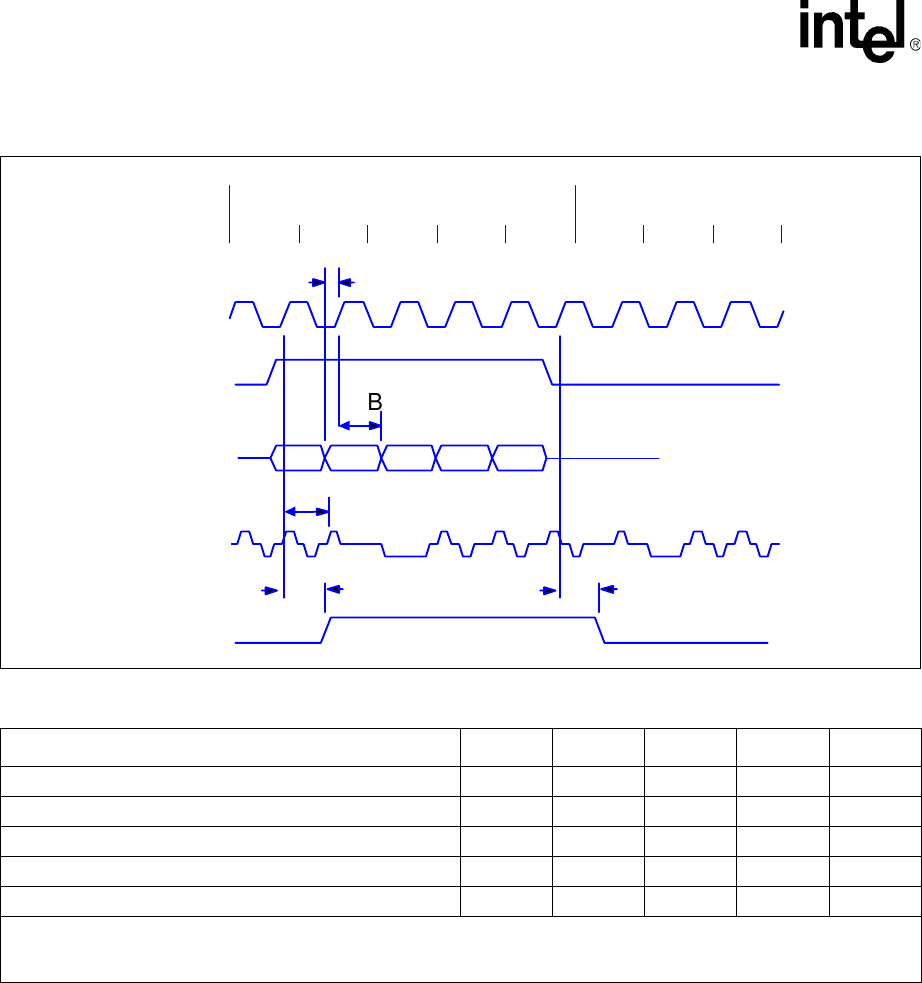

Figure 27. MII - 100BASE-FX Transmit Timing / 4B Mode
Table 36. MII - 100BASE-FX Transmit Timing Parameters / 4B Mode
Parameter Sym Min Typ1Max Units2
TXD<3:0>, TX_EN, TX_ER Setup to TX_CLK High t6A 10 – – ns
TXD<3:0>, TX_EN, TX_ER Hold from TX_CLK High t6B 5 – – ns
TX_EN sampled to CRS asserted t6C – 3 4 BT
TX_EN sampled to CRS de-asserted t6D – 4 16 BT
TX_EN sampled to TPO out (Tx latency) t6E 6 11 14 BT
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. BT is the duration of one bit as transferred to and from the MAC and is the reciprocal of the bit rate. 100BASE-T bit time = 10-
8 s or 10 ns.
t6A
t6B
t6E
t6C t6D
0ns 250ns
TXCL
K
TX_E
N
T
XD<3:0>
CR
S
FIBOP
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 57
Figure 28. MII - 10BASE-T Receiving Timing
Table 37. MII - 10BASE-T Receive Timing Parameters
Parameter Sym Min Typ1Max Units2
RXD, RX_DV, RX_ER Setup to RX_CLK High t7A 10 – – ns
RXD, RX_DV, RX_ER Hold from RX_CLK High t7B 10 – – ns
TPI in to RXD out (Rx latency) t7C – – 733BT
CRS asserted to RXD, RX_DV, RX_ER asserted t7D 0 – 693BT
RXD, RX_DV, RX_ER de-asserted to CRS de-asserted t7E 0 2.5 - 5.5 6 BT
TPI in to CRS asserted t7F 0 4 5 BT
TPI quiet to CRS de-asserted t7G 0 18 19 BT
TPI in to COL asserted t7H 0 4 5 BT
TPI quiet to COL de-asserted t7I 0 18 19 BT
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. BT is the duration of one bit as transferred to and from the MAC and is the reciprocal of the bit rate. 10BASE-T bit time = 10-
7 s or 100 ns.
3. CRS is asserted. RXD/RX_DV are driven at the start of SFD (64 BT).
RX_CLK
RXD,
R
X_DV,
RX_ER
CRS
TPI
t7C
t7D
t7B
t7F
t7A
t7G
t7E
COL t7H
t7I
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
58 Datasheet
Figure 29. MII - 10BASE-T Transmit Timing
Table 38. MII - 10BASE-T Transmit Timing Parameters
Parameter Sym Min Typ1Max Units2
TXD, TX_EN, TX_ER Setup to TX_CLK High t8A 10 – – ns
TXD, TX_EN, TX_ER Hold from TX_CLK High t8B 5 – – ns
TX_EN sampled to CRS asserted t8C – 0 4 BT
TX_EN sampled to CRS de-asserted t8D – 8 – BT
TX_EN sampled to TPO out (Tx latency) t8E – 3 - 5 – BT
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. BT is the duration of one bit as transferred to and from the MAC and is the reciprocal of the bit rate. 10BASE-T bit time = 10-
7 s or 100 ns.
TX_CLK
TXD,
T
X_EN,
TX_ER
CRS
TPO
t8A
t8C t8E
t8D
t8B
intele
q
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 59
Figure 30. 10BASE-T SQE (Heartbeat) Timing
Table 39. 10BASE-T SQE (Heartbeat) Timing Parameters
Parameter Sym Min Typ1Max Units Test Conditions
COL (SQE) Delay after TX_EN off t9A 0.65 1.0 1.6 μs
COL (SQE) Pulse duration t9B .5 1.0 1.5 μs
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
Figure 31. 10BASE-T Jab and Unjab Timing
Table 40. 10BASE-T Jab and Unjab Timing Parameters
Parameter Sym Min Typ1Max Units Test Conditions
Maximum Transmit time t10A 20 96 - 1282150 ms
Unjab time t10B 250 525 750 ms
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
2. Typical transmit time may be either of these values depending on internal 32 ms clock synchronization.
T
X_CLK
TX_EN
t9A
t9B
COL
TXD
COL
t10A
t10B
T
X_EN
intele
‘¥ j
.—
k4
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
60 Datasheet
Figure 32. Auto Negotiation and Fast Link Pulse Timing
Figure 33. Fast Link Pulse Timing
Table 41. Auto Negotiation and Fast Link Pulse Timing Parameters
Parameter Sym Min Typ1Max Units Test Conditions
Clock/Data pulse width t1 – 100 – ns
Clock pulse to Data pulse t2 55.5 62.5 69.5 μs
Clock pulse to Clock pulse t3 111 125 139 μs
FLP burst width t4 – 2 – ms
FLP burst to FLP burst t5 8 12 24 ms
Clock/Data pulses per burst – 17 – 33 ea
1. Typical values are at 25 °C and are for design aid only; not guaranteed and not subject to production testing.
TPOP
t1 t1
t2 t3
Clock Pulse Data Pulse Clock Pulse
TPOP
t4
t5
FLP Burst FLP Burst
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 61
Figure 34. MDIO Timing when Sourced by STA
Figure 35. MDIO Timing when Sourced by PHY
Table 42. MDIO Timing Parameters
Parameter Sym Min Typ1Max Units Test Conditions
MDIO Setup before MDC – 10 – – ns When sourced by
STA
MDIO Hold after MDC – 10 – – ns When sourced by
STA
MDC to MDIO Output delay – 0 10 300 ns When sourced by
PHY
1. Typical values are at 25° C and are for design aid only; not guaranteed and not subject to production testing.
10 ns
(Min)
MDC
MDIO
10 ns
(Min)
0 - 300 ns
MDC
MDIO
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
62 Datasheet
Figure 36. Power-Down Recovery Timing (Over Recommended Range)
Table 43. Power-Down Recovery Timing Parameters
Parameter Sym Min Typ1Max Units Test Conditions
Power-Down recovery time tPDR –1.0–ms
Hardware reset time tHR –300– μs
1. Typical values are at 25° C and are for design aid only; not guaranteed and not subject to production testing.
tPDR
VCC
RESET
MDIO,etc
VCC = 4.75V
tHR
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 63
5.0 Register Definitions
The LXT970A Transceiver register set includes a total of twelve 16-bit registers. Refer to Table 44
for a complete register listing.
•Seven base registers (0 through 6) are defined in accordance with the “Reconciliation Sublayer
and Media Independent Interface” and “Physical Layer Link Signalling for 10/100 Mbps
Auto-Negotiation” sections of the IEEE 802.3 specification (Register 7, Next Page, is not
supported).
•Five additional registers (16 through 20) are defined in accordance with the IEEE 802.3
specification for adding unique chip functions.
Table 44. Register Set
Address Register Name Bit Assignments
0 Control Register Refer to Table 45 on page 64
1 Status Register Refer to Table 46 on page 65
2 PHY Identification Register 1 Refer to Table 47 on page 66
3 PHY Identification Register 2 Refer to Table 48 on page 66
4 Auto-Negotiation Advertisement Register Refer to Table 49 on page 67
5 Auto-Negotiation Link Partner Ability Register Refer to Table 50 on page 68
6 Auto-Negotiation Expansion Register Refer to Table 51 on page 69
16 Mirror Register Refer to Table 52 on page 69
17 Interrupt Enable Register Refer to Table 53 on page 70
18 Interrupt Status Register Refer to Table 54 on page 70
19 Configuration Register Refer to Table 55 on page 71
20 Chip Status Register Refer to Table 56 on page 72
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
64 Datasheet
Table 45. Control Register (Address 0)
Bit Name Description Type 1Default
0.15 Reset 1 = Reset chip.
0 = Enable normal operation.
R/W
SC 0
0.14 Loopback
1 = Enable loopback mode. When Loopback is enabled, during 100
Mbps operation, the LXT970A Transceiver disconnects its transmitter
and receiver from the network. Data sent by the controller passes
through the chip and then gets looped back to the MII. During 10 Mbps
operation the preamble, SFD, and data loop directly back to the MII.
0 = Disable loopback mode.
R/W 0
0.13 Speed
Selection 1 = 100 Mbps
0 = 10 Mbps R/W Note 2
0.12 Auto-
Negotiation
Enable
1 = Enable auto-negotiate process (overrides speed select and duplex
mode bits).
0 = Disable auto-negotiate process. R/W Note 3
0.11 Power Down 1 = Enable power down.
0 = Enable normal operation. R/W Note 4
0.10 Isolate 1 = Electrically isolate LXT970A Transceiver from MII.
0 = Normal operation. R/W Note 5
0.9 Restart Auto-
Negotiation 1 = Restart auto-negotiation process.
0 = Normal operation.
R/W
SC Note 6
0.8 Duplex Mode 1 = Enable full-duplex.
0 = Enable half-duplex. R/W Note 7
0.7 Collision Test 1 = Enable COL signal test. Bit 0.14 must be enabled to use this bit.
This bit is used in conjunction with bit 0.14 to test the COL output.
0 = Disable COL signal test. R/W 0 Note
8
0.6:4 Transceiver
Test Mode Not Supported. RO 0
0.3 Master-Slave
Enable Not Supported. RO 0
0.2 Master-Slave
Value Not Supported. RO 0
0.1:0 Reserved R/W 0
1. R/W = Read/Write
SC = Self Clearing
2. If auto-negotiation is enabled, this bit is ignored. If auto-negotiation is disabled, the default value of bit 0.13 is determined by
pin CFG0.
3. The default value of bit 0.12 is determined by pin MF0.
4. The LXT970A Transceiver internally maintains all set values of the configuration registers upon exiting power-down mode. A
delay of 500 ns minimum is required from the time power down is cleared until any register can be written.
5. The default value of bit 0.10 is determined by pin TRSTE.
6. If auto-negotiation is enabled, the default value of bit 0.9 is determined by pin CFG0. If auto-negotiation is disabled, the
default value of
bit 0.9 = 0.
7. If auto-negotiation is enabled, this bit is ignored. If auto-negotiation is disabled, the default value of bit 0.8 is determined by
pin FDE.
8. This bit is ignored unless loopback is enabled (0.14 = 1).
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 65
Table 46. Status Register (Address 1)
Bit Name Description Type 1Default
1.15 100BASE-T4 Not Supported. RO 0
1.14 100BASE-X
full-duplex 1 = LXT970A Transceiver able to perform full-duplex 100BASE-X. RO 1
1.13 100BASE-X
half-duplex 1 = LXT970A Transceiver able to perform half-duplex 100BASE-X. RO 1
1.12 10 Mb/s
full-duplex 1 = LXT970A Transceiver able to operate at 10 Mb/s in full-duplex mode. RO 1
1.11 10 Mb/s
half-duplex 1 = LXT970A Transceiver able to operate at 10 Mb/s in half-duplex mode. RO 1
1.10 100BASE-T2
full-duplex Not Supported. RO 0
1.9 100BASE-T2
half-duplex Not Supported. RO 0
1.8 Reserved Ignore on read. RO 0
1.7 Master-Slave
Configuration
Fault Not Supported. RO 0
1.6 MF Preamble
Suppression 0 = LXT970A Transceiver will not accept management frames with
preamble suppressed. RO 0
1.5 Auto-Neg.
Complete
1 = Auto-negotiation process complete.
0 = Auto-negotiation process not complete. RO 0
1.4 Remote Fault
1 = Remote fault condition detected.
0 = No remote fault condition detected.
This bit is set when:
Link partner transmits a remote fault condition (bit 5.13 = 1)
Link partner protocol is anything other than CSMA-CD
(bits 5.4:0 = <00001>)
Link partner advertises T4 capability only
(bits 5.9:5 ¼ <10000>)
RO/LH 0
1.3 Auto-Neg.
Ability 1 = LXT970A Transceiver is able to perform auto-negotiation. RO 1
1.2 Link Status 1 = Link is up.
0 = Link is down. RO/LL 0
1.1
Jabber Detect
(10BASE-T
Only)
1 = Jabber condition detected.
0 = No jabber condition detected. RO/LH 0
1.0 Extended
Capability 1 = Extended register capabilities. RO 1
1. RO = Read Only
LL = Latching Low (This bit remains Low until read, and then returns High).
LH = Latching High (This bit remains High until read, and then returns Low).
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
66 Datasheet
Table 47. PHY Identification Register 1 (Address 2)
Bit Name Description Type 1Default
2.15:0 PHY ID
Number The PHY identifier composed of bits 3 through 18 of the OUI. RO 7810 hex
1. RO = Read Only
Table 48. PHY Identification Register 2 (Address 3)
Bit Name Description Type 1Default
3.15:10 PHY ID number The PHY identifier composed of bits 19 through 24 of the OUI. RO 000000 bin
3.9:4 Manufacturer’s
model number 6 bits containing manufacturer’s part number. RO 000000 bin
3.3:0 Manufacturer’s
revision number 4 bits containing manufacturer’s revision number. RO 0011 bin
1. RO = Read Only
Figure 37. PHY Identifier Bit Mapping
a b c r s x
Organizationally Unique Identifier
1 2 3 18 19 24
PHY ID Register 1
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
PHY ID Register 2
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Manufacturers Revision
Part Number Number
5 4 3 2 1 0 3 2 1 0
The Intel OUI is 00207B hex.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 67
Table 49. Auto Negotiation Advertisement Register (Address 4)
Bit Name Description Type 1Default
4.15 Next Page Not Supported RO 0
4.14 Reserved Ignore on read. RO 0
4.13 Remote Fault 1 = Remote fault.
0 = No remote fault. R/W 0
4.12:11 Reserved Ignore on read. R/W 0
4.10 Pause 1 = Pause operation is enabled for full-duplex links.
0 = Pause operation is disabled. R/W 0
4.9 100BASE-T4
1 = 100BASE-T4 capability is available.
0 = 100BASE-T4 capability is not available.
(The LXT970A Transceiver does not support 100BASE-T4, but allows this
bit to be set to advertise in the Auto-Negotiation sequence for 100BASE-T4
operation. An external 100BASE-T4 transceiver could be switched in if this
capability is desired.)
R/W 0
4.8 100BASE-TX
full-duplex
1 = DTE is 100BASE-TX full-duplex capable.
0 = DTE is not 100BASE-TX full-duplex capable. R/W Note 2
4.7 100BASE-TX 1 = DTE is 100BASE-TX capable.
0 = DTE is not 100BASE-TX capable. R/W Note 3
4.6 10BASE-T
full-duplex
1 = DTE is 10BASE-T full-duplex capable.
0 = DTE is not 10BASE-T full-duplex capable. R/W Note 4
4.5 10BASE-T 1 = DTE is 10BASE-T capable.
0 = DTE is not 10BASE-T capable. R/W Note 5
4.4:0 Selector Field,
S<4:0>
<00001> = IEEE 802.3
<00010> = IEEE 802.9 ISLAN-16T
<00000> = Reserved for future Auto-Negotiation development
<11111> = Reserved for future Auto-Negotiation development
Unspecified or reserved combinations should not be transmitted.
R/W 00001
1. R/W = Read/Write
RO = Read Only
2. The default value of bit 4.8 is determined by pin FDE AND’ed with pin MF4.
3. The default value of bit 4.7 is determined by pin MF4.
4. The default value of bit 4.6 is determined by pin FDE AND’ed with pin CFG1.
5. The default value of bit 4.5 is determined by pin CFG1.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
68 Datasheet
Table 50. Auto Negotiation Link Partner Ability Register (Address 5)
Bit Name Description Type 1 Default
5.15 Next Page 1 = Link Partner has ability to send multiple pages.
0 = Link Partner has no ability to send multiple pages. RO N/A
5.14 Acknowledge
1 = Link Partner has received Link Code Word from LXT970A Transceiver.
0 = Link Partner has not received Link Code Word from
LXT970A Transceiver.
RO N/A
5.13 Remote Fault 1 = Remote fault.
0 = No remote fault. RO N/A
5.12:11 Reserved Ignore on read. RO N/A
5.10 Pause 1 = Pause operation is enabled for link partner.
0 = Pause operation is disabled. RO N/A
5.9 100BASE-T4 1 = Link Partner is 100BASE-T4 capable.
0 = Link Partner is not 100BASE-T4 capable. RO N/A
5.8 100BASE-TX
full-duplex
1 = Link Partner is 100BASE-TX full-duplex capable.
0 = Link Partner is not 100BASE-TX full-duplex capable. RO N/A
5.7 100BASE-TX 1 = Link Partner is 100BASE-TX capable.
0 = Link Partner is not 100BASE-TX capable. RO N/A
5.6 10BASE-T
full-duplex
1 = Link Partner is 10BASE-T full-duplex capable.
0 = Link Partner is not 10BASE-T full-duplex capable. RO N/A
5.5 10BASE-T 1 = Link Partner is 10BASE-T capable.
0 = Link Partner is not 10BASE-T capable. RO N/A
5.4:0 Selector Field
S[4:0]
<00001> = IEEE 802.3
<00010> = IEEE 802.9 ISLAN-16T
<00000> = Reserved for future Auto-Negotiation development
<11111> = Reserved for future Auto-Negotiation development
Unspecified or reserved combinations shall not be transmitted.
RO N/A
1. RO = Read Only
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 69
Table 51. Auto Negotiation Expansion (Address 6)
Bit Name Description Type 1Default
6.15:5 Reserved Ignore. RO 0
6.4 Parallel
Detection Fault
1 = Parallel detection fault has occurred.
0 = Parallel detection fault has not occurred.
RO/
LH 0
6.3 Link Partner
Next Page Able
1 = Link partner is next page able.
0 = Link partner is not next page able. RO 0
6.2 Next Page Able Not Supported. RO 0
6.1 Page Received
1 = 3 identical and consecutive link code words have been received from
link partner.
0 = 3 identical and consecutive link code words have not been received
from link partner.
RO/
LH 0
6.0 Link Partner
Auto Neg Able
1 = Link partner is auto-negotiation able.
0 = Link partner is not auto-negotiation able. RO 0
1. RO = Read Only
LH = Latching High (This bit remains High until read, and then returns Low).
Table 52. Mirror Register (Address 16, Hex 10)
Bit Name Description Type 1 Default
16.15:0 User Defined This register is intended for use in checking the MII serial port and has no
effect on chip operation. R/W 0
1. R/W = Read /Write
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
70 Datasheet
Table 53. Interrupt Enable Register (Address 17, Hex 11)
Bit Name Description Type 1 Default
17.15:4 Reserved Write as 0; ignore on read. R/W N/A
17.3 MIIDRVLVL
1 = Reduced MII driver levels. Pull-down strength of the MII driver is
reduced by a factor of 10, and the pull-up strength is reduced by a factor
of 8. Reduced driver levels on the MII I/O pins are recommended for
managed multi-port applications.
0 = High-strength MII driver levels that can effectively source 50 - 60 mA.
Series termination resistors (55Ω) are recommended on all output
signals when using this level to avoid undershoot or overshoot.
R/W 0
17.2
LNK
CRITERIA
1 = Enhanced link loss criteria. Link loss criteria is independent of symbol
error rate. Loss of scrambler lock for more than 1 - 2 msec will brings the
link down. Link up criteria is based on symbol error rate.
0 = Standard link criteria. Both link up and link loss are based on symbol
error rate.
R/W 0
17.1 INTEN
1 = Enable interrupts. Must be enabled for bit 17.0 or 19.12 to be
effective.
0 = Disable interrupts.
R/W 0
17.0 TINT
1 = Forces MDINT Low and sets bit 18.15 = 1. Also forces interrupt
pulse on MDIO when bit 19.12 = 1.
0 = Normal operation.
This bit is ignored unless the interrupt function is enabled (17.1 = 1).
R/W 0
1. R/W = Read /Write
Table 54. Interrupt Status Register (Address 18, Hex 12)
Bit Name Description Type 1 Default
18.15 MINT
1 = Indicates MII interrupt pending.
0 = Indicates no MII interrupt pending. This bit is cleared by reading
Register 1 followed by reading Register 18.
RO N/A
18.14 XTALOK
1 = Indicates that the LXT970A Transceiver is fully powered up and the
on-chip clocks are stable.
0 = Indicates that XTAL circuit is not stable.
RO 0
18.13:0 Reserved Ignore RO 0
1. RO = Read Only
m 7 m 6 Descngmm
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 71
Table 55. Configuration Register (Address 19, Hex 13) (Sheet 1 of 2)
Bit Name Description Type 1 Default
19.15 Reserved Write as 0; ignore on read. R/W N/A
19.14 Txmit Test
(100BASE-TX)
1 = 100BASE-T transmit test enabled, LXT970A Transceiver transmits
data regardless of link status. This function is the analog of the link test
function (19.8) for 100BASE-TX.
0 = Normal operation.
R/W 0
19.13 Repeater Mode 1 = Enable Repeater Mode.
0 = Enable DTE Mode. R/W Note 2
19.12 MDIO_INT
1 = Enable interrupt signaling on MDIO (if 17.1 = 1).
0 = Normal operation (MDIO Interrupt disabled).
Bit is ignored unless the interrupt function is enabled (17.1 = 1).
R/W 0
19.11 TP Loopback
(10BASE-T)
1 = Disable 10BT TP Loopback. Data transmitted by the MAC will not
loopback to the RXD, RX_DV, and CRS pins.
0 = Enable 10BT TP Loopback - Preamble, SFD, and data are directly
looped back to the MII.
R/W 0
19.10 SQE
(10BASE-T)
1 = Enable SQE.
0 = Disable SQE (Default). R/W 0
19.9 Jabber
(10BASE-T)
1 = Disable jabber.
0 = Normal operation (jabber enabled). R/W 0
19.8 Link Test
(10BASE-T)
1 = Disable 10BASE-T link integrity test.
0 = Normal operation (10BASE-T link integrity test enabled). R/W Note 3
19.7:6 LEDC
Programming bits
Determine condition indicated by LEDC.
bit 7 bit 6 Description
0 0 LEDC indicates collision
0 1 LEDC is off
1 0 LEDC indicates activity.
1 1 LEDC is continuously on (for diagnostic use).
R/W 0,0
19.5 Advance TX Clock
1 = TX clock is advanced relative to TXD<4:0> and TX_ER by 1/2
TX_CLK cycle.
0 = Normal operation.
R/W 0
19.4
5B Symbol/
(100BASE-X only)
4B Nibble
1 = 5-bit Symbol Mode (Bypass encoder/decoder);
RXD<4:0> symbol data is not aligned.
0 = 4-bit Nibble Mode (Normal operation).
R/W Note 4
19.3 Scrambler
(100BASE-X only)
1 = Bypass transmit scrambler and receive descrambler.
0 = Normal operation (scrambler and descrambler enabled).
In FX mode, the LXT970A Transceiver automatically bypasses the
Scrambler. Selecting Scrambler bypass in FX mode causes the
LXT970A Transceiver to also bypass the 4B/5B encoder and enable
Symbol mode MII operation.
R/W Note 5
1. R/W = Read/Write
2. The default value of bit 19.13 is determined by pin MF1.
3. If auto-negotiation is disabled, the default value of bit 19.8 is determined by pin CFG1. If auto-neg is enabled, the default
value of bit 19.8 = 0.
4. The default value of bit 19.4 is determined by pin MF2 Operation.
5. The default value of bit 19.3 is determined by pin MF3 Operation.
6. If auto-negotiation is disabled, default value of bit 19.2 is determined by pin MF4. If auto-negotiation is enabled, default value
of bit 19.2 = 0.
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
72 Datasheet
19.2 100BASE-FX 1 = Enable 100BASE fiber interface.
0 = Enable 100BASE twisted-pair interface. R/W Note 6
19.1 Reserved Write as 0; Ignore on read. R/W 0
19.0 Transmit
Disconnect
1 = Disconnect TP transmitter from line.
0 = Normal operation. R/W 0
Table 56. Chip Status Register (Address 20, Hex 14)
Bit Name Description Type 1Default
20.15:1
4Reserved Ignore on read. RO N/A
20.13 Link
1 = Link is up.
0 = Link is down.
Link bit 20.13 is a duplicate of bit 1.2, except that it is a dynamic
indication, whereas bit 1.2 latches Low.
RO 0
20.12 Duplex Mode 1 = Full-duplex.
0 = Half-duplex. RO Note 2
20.11 Speed 1 = 100 Mbps operation.
0 = 10 Mbps operation. RO Note 2
20.10 Reserved Ignore on read. RO N/A
20.9 Auto-Negotiation
Complete
1 = Auto-negotiation process complete.
0 = Auto-negotiation process not complete.
Auto-Negotiation Complete bit 20.9 is a duplicate of bit 1.5. RO/LH 0
20.8 Page Received
1 = Three identical and consecutive link code words have been
received.
0 = Three identical and consecutive link code words have not been
received.
Page Received bit 20.8 is a duplicate of bit 6.1
RO/LH 0
20:7 Reserved Ignore on read. RO 0
20.6 Reserved Ignore on read. RO 0
20.5 Reserved Ignore on read. RO N/A
20.4 Reserved Ignore on read. RO N/A
20.3 Reserved Ignore on read. RO N/A
20.2 Low-Voltage 1 = Low-voltage fault on VCC has occurred.
0 = No fault. RO N/A
20.1 Reserved Ignore on read. RO N/A
20.0 Reserved Ignore on read. RO N/A
1. RO = Read Only
LH = Latching High (This bit remains High until read, and then returns Low).
2. Bits 20.12 and 20.11 reflect the current operating mode of the LXT970A Transceiver.
Table 55. Configuration Register (Address 19, Hex 13) (Continued) (Sheet 2 of 2)
Bit Name Description Type 1 Default
1. R/W = Read/Write
2. The default value of bit 19.13 is determined by pin MF1.
3. If auto-negotiation is disabled, the default value of bit 19.8 is determined by pin CFG1. If auto-neg is enabled, the default
value of bit 19.8 = 0.
4. The default value of bit 19.4 is determined by pin MF2 Operation.
5. The default value of bit 19.3 is determined by pin MF3 Operation.
6. If auto-negotiation is disabled, default value of bit 19.2 is determined by pin MF4. If auto-negotiation is enabled, default value
of bit 19.2 = 0.
4%
/EHHHHHHHWHHHHHHE
W
H
flHHHHHHH
\
x
i
i
\
7,777,477,77777,,
\
x
i
i
\
UHHUHHHUMHUUHHUU
HHHHHHHH
UHUHUUUHMUUUUUUU4444444,,
H4
Datash eel
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 73
6.0 Mechanical Specifications

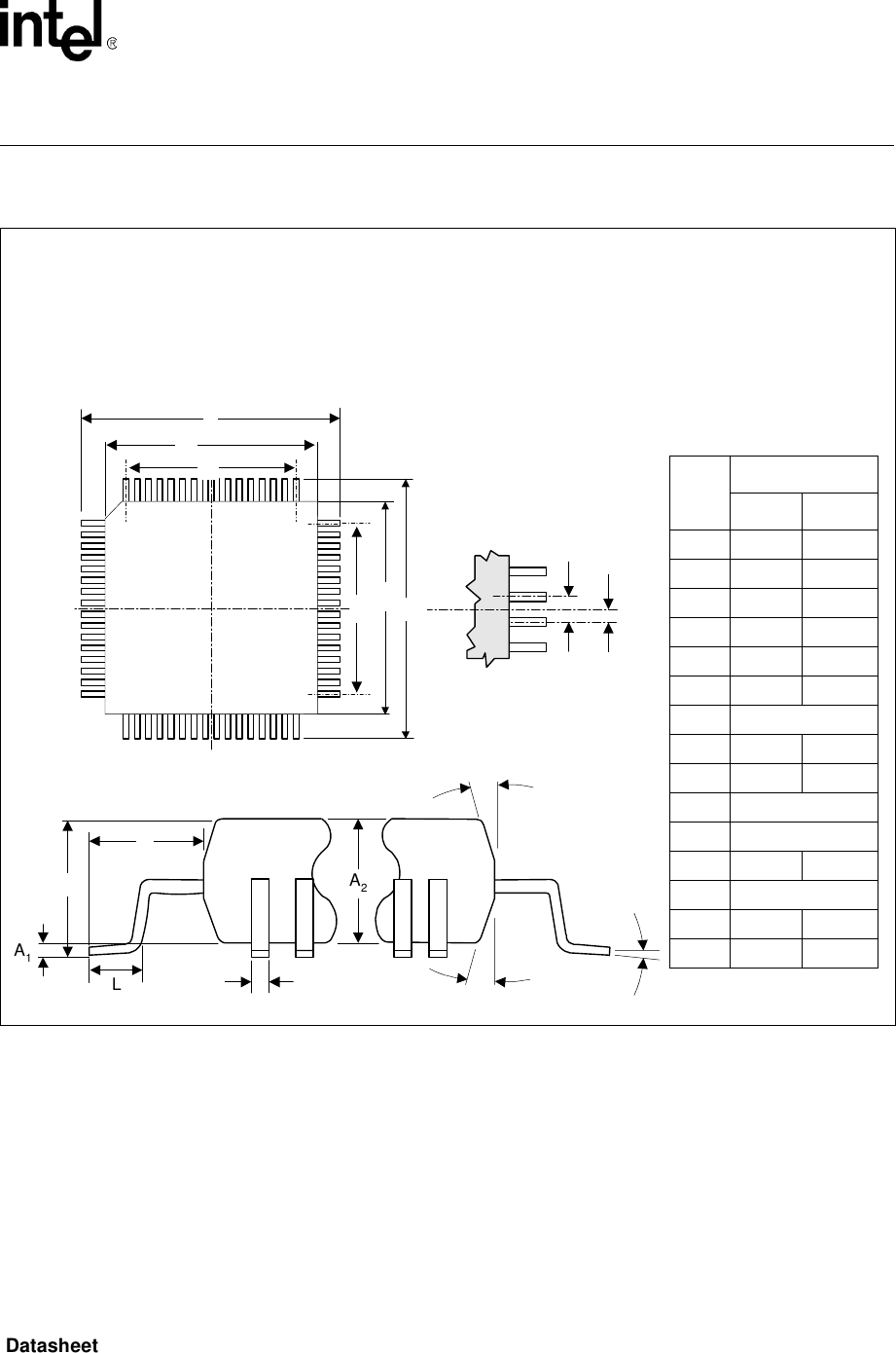

Figure 38. 64-Pin QFP Package Diagram
Dim
Millimeters
Min Max
A – 3.30
A10.000 0.25
A22.55 3.05
B0.300.45
D 17.65 18.15
D113.95 14.05
D312.00 REF
E 17.65 18.15
E113.95 14.05
E312.00 REF
e0.80 BSC
L0.731.03
L11.95 REF
θ35° 16°
θ0° 7°
64-Pin Quad Flat Pack
• Part Number - LXT970AQC
• Commercial Temperature Range (0 to +70ºC)
A
1
A
2
L
A
B
L
1
θ
3
θ
3
θ
D
D
1
E
E
1
e
/
2
e
E
3
D
3
intele
. EEE‘E
LZEEEEE
74
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
74 Datasheet
Figure 39. 64-Pin TQFP Package Diagram
64-Pin Thin Quad Flat Pack
• Part Number - LXT970ATC
• Commercial Temperature Range (0 to +70ºC)
Dim Millimeters
Min Max
A – 1.20
A10.05 0.15
A20.95 1.05
B0.170.27
D12.0 REF
D110.0 REF
E12.0 REF
E1 10.0 REF
e0.50 REF
L0.450.75
L11.00 REF
θ311o13o
θ0o7o
1. Basic Spacing between Centers.
D
D
1
A
1
A
2
L
A
B
L
1
θ
3
θ
3
θ
E
E
1
e
/
2
e
intele
intelm
114—
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 75
6.1 Top Label Markings
Figure 40 shows a sample TQFP package for the LXT970ATC Transceiver.
Note: In contrast to the Pb-Free (RoHS-compliant) TQFP package, the non-RoHS-compliant packages
do not have the “e3” symbol in the last line of the package label.
Figure 41 shows a sample Pb-free RoHS-compliant TQFP package for the LXT970ATC
Transceiver..
Figure 40. Sample TQFP Package – Intel® FALXT970ATC Transceiver
P
in 1
LXT970ATC B11
XXXXXXXX
Part Number
FPO Number
BSMC
Bottom Side Mark Cod
e
B5427-01
Figure 41. Sample Pb-Free (RoHS-Compliant) TQFP Package – Intel® JALXT970ATC
Transceiver
P
in 1
JALXT970C B11
XXXXXXXX
Part Number
FPO Number
e3BSMC
Bottom Side Mark Cod
e
Pb-Free Indication
B5428-01
intele
intel‘,‘
14—
4——
asm (7‘) 4——
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
76 Datasheet
Figure 42 shows a sample PQFP package for the LXT970AQC Transceiver.
Figure 43 shows a Pb-Free (RoHS-Compliant) PQFP package for the LXT970AQC Transceiver.
Figure 42. Sample PQFP Package – Intel® SLXT970AQC Transceiver
P
in 1
LXT970AQC B11
XXXXXXXX
Part Number
FPO Number
BSMC
Bottom Side Mark Cod
e
B5429-01
Figure 43. Sample Pb-Free (RoHS-Compliant) PQFP Package – Intel® EGLXT970AQC
Transceiver
P
in 1
EGLXT970C B11
XXXXXXXX
Part Number
FPO Number
e3BSMC
Bottom Side Mark Cod
e
Pb-Free Indication
B5430-01
intele
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
Datasheet 77
7.0 Ordering Information
Table 57 lists the LXT970A Transceiver product ordering information. Figure 44 provides the
ordering information matrix.
Table 57. Product Information
Intel Number Revision Package Type Pin Count RoHS Compliant
FALXT970ATC.B11 B11 TQFP 64 No
JALXT970ATC.B11 B11 TQFP 64 Yes
SLXT970AQC.B11 B11 PQFP 64 No
EGLXT970AQC.B11 B11 PQFP 64 Yes
mm; Package Leaded
m LQFF m
EJ LQFF n
A 'QFF FA
E. mam FL
E. Pam FL
FR sen Fw
FR PEGA Fw
LU PBGA GD
2w sen 5w
wa HOFP HE
wu vow ND
w: nae»: HF
we om HG
JP ream m
RU EGA NO
on PQFP x4
us om LE
EE warp N
a: 550: FA
uc um: pa
pc MMAP a:
so POFP 5L
so How SL
56 Pan: 5L
sc mam n
Intel® LXT970A Dual-Speed Fast Ethernet Transceiver
78 Datasheet
Figure 44 shows an order matrix with sample information for the LXT970A Transceiver.
Figure 44. Ordering Information Matrix – Sample
SC970A QLXT B11
Product Revision
xn = 2 Alphanumeric characters
Temperature Range
A = Ambient (0 – 550C)
C = Commercial (0 – 700C)
E = Extended (-40 – 850C)
Internal Package Designator
L = LQFP
P = PLCC
N = DIP
Q = PQFP
H = QFP
T = TQFP
B = BGA
C = CBGA
E = TBGA
K = HSBGA (BGA with heat slug
Product Code
xxxxx = 3-5 Digit alphanumeric
IXA Product Prefix
LXT = PHY layer device
IXE = Switching engine
IXF = Formatting device (MAC/Frame
r)
IXP = Network processor
Intel Package Designator
B5426-0
1
Products related to this Datasheet
IC REG LIN POS ADJ 1.5A 16TSSOP
IC REG LIN POS ADJ 1.5A 16TSSOP
IC REG LIN POS ADJ 1.5A 16TSSOP
