Closure Selection Guide

To order SLiC Aerial Closures and Terminals, follow these steps:

1. What is your pair count?

2. What is your cable size?

3. What is your sheath opening?

4. What type of connector are you using? Module (MS2or 710) or Discrete (Scotchlok)?

Note: Bundles built with modular connectors are half the size of discretes.

5. What is your splice bundle diameter?

These questions should guide you in choosing the correct closure.

™

SLiC

™

Aerial Closures and Terminals

Floating Bond, Rigid Bond,

Spiral End Seal

Fewer parts and easier installation with

the SLiC Aerial Closure.

• Superior seal

• Easily adaptable

• Single piece design

• Double wall molded construction

• Made from durable, rugged materials

• Easy to access and reenter

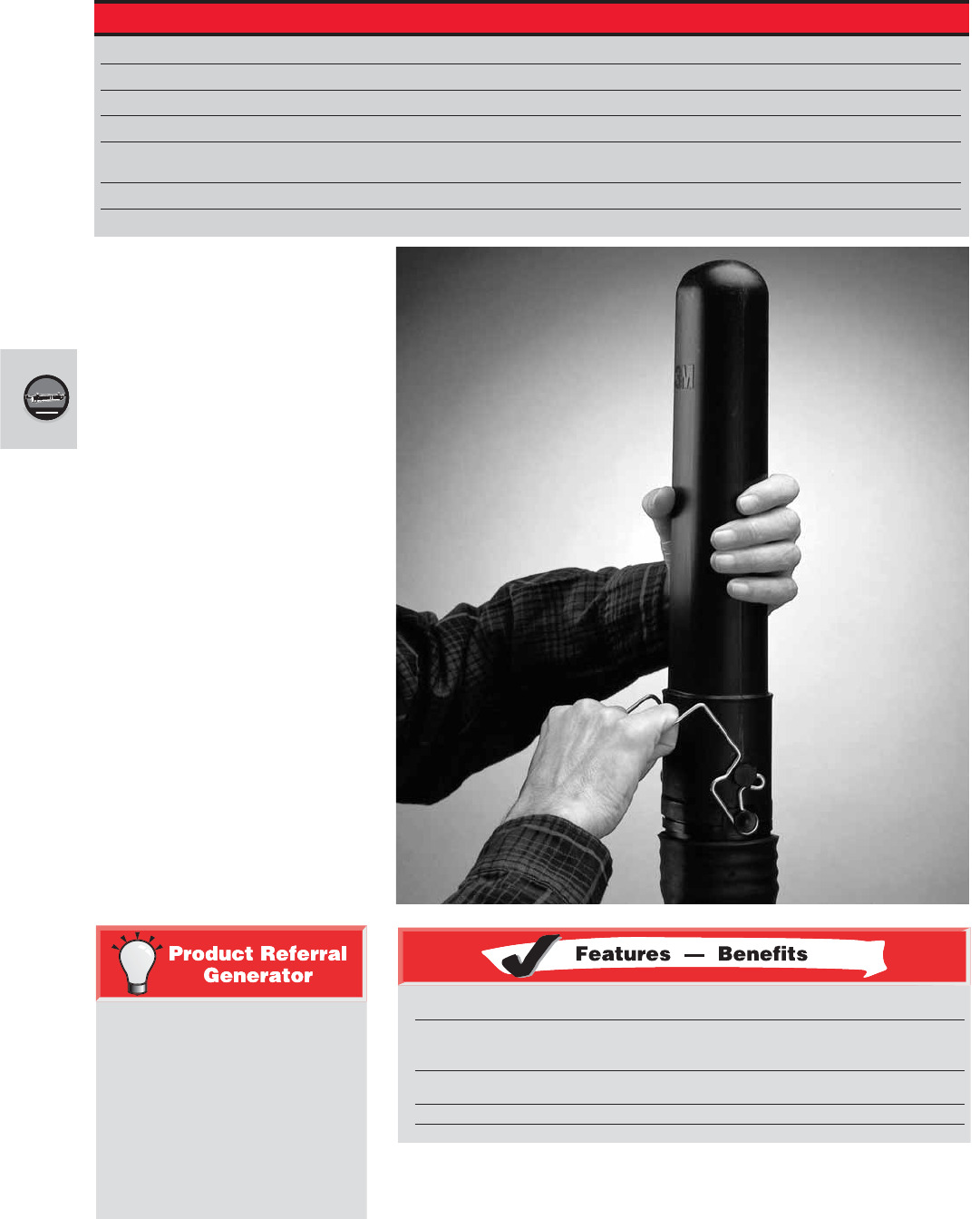

The SLiC aerial closure is a single-

piece aerial closure, easily installed in

construction or maintenance situations.

The one-piece construction permits

complete splice access after placement

without removal of the closure or

bonding from the cables. The closures

are free breathing and suitable for

straight, butt, and branch splices of

non-pressurized communication cables.

Splices are protected by the

closure’s double-wall molded

polyethylene construction. The durable

SLiC closure will not crack or break

in even the harshest environment.

All components are attached to the

closure; there are no parts to lose.

Because of its interlocking ends,

the SLiC aerial closure can expand to

meet any size sheath opening without

special kits, eliminating excess

inventory. The 2 x 29, 3 x 33, 5 x 33,

and 7 x 33 closures can be extended

while maintaining their initial strength.

The SLiC aerial closure does not

require taping, bricking or any special

labor-intensive practices. The end seals

assure a snug fit on cables and eliminate

the need for a drip collar. Sealing

collars or tape are not required when

using the SLiC closure.

The two-, three-, five-, seven-, and

nine-inch diameter closures feature a

universal end seal to handle any plant

configuration. There are six sizes

available, accommodating splice

openings from 254 to 635 mm

(10 to 25 inches).

RUS Listed

193

SLiC Aerial Closure

One piece construction Provides easy installation; no loose parts

Double walled, molded construction Resists breaking or cracking

Interlocking ends Extendible for long sheath openings

Hanger/bonding system No external or additional bonding material

required

Quick release latch Easy reentry

Attached sheath retention (SR) bracket Protects cable sheath pull-out or movement

(only for rigid bond)

Spiral end seal One size fits multiple cable configurations

Sheath Scuff pg. 199

3M™Scotchlok™Connectors pg. 2

Shield Bonding pg. 200

Tapes and Sealing pg. 189

Cable Lubricants pg. 322

3M™MS2™ Modules pg. 6

Cable Ties pg. 204

194

125

195

197

196

3M SLiC Aerial Closures with Rigid Bond/Sheath Retention

Product Contains Packaging Min. Order UPC

Number kg (lbs.)/cs.

Aerial Closure Kit with Spiral End Seal

SLiC 2" x 19"-SR/SES Spiral End Seal 1/cs., 1.1 (2.5) 1 kit 054007-92612

SLiC 2" x 29"-SR/SES Spiral End Seal 1/cs., 1.7 (3.7) 1 kit 054007-92613

SLiC 3" x 33"-SR/SES Spiral End Seal 1/cs., 2.6 (5.8) 1 kit 054007-92614

SLiC 5" x 33"-SR/SES Spiral End Seal 1/cs., 3.9 (8.6) 1 kit 054007-92615

SLiC 7" x 33"-SR/SES Spiral End Seal 1/cs., 5.1 (11.2) 1 kit 054007-92616

SLiC 9" x 36"-SR/SES Spiral End Seal 1/cs., 7.4 (16.3) 1 kit 054007-92617

™

SLiC

™

Aerial Closures with Floating Bond

Product Contains Packaging Min. Order UPC

Number kg (lbs.)/cs.

SLiC Aerial Closure Kit with Spiral End Seal

SLiC 2" x 19"-SES Spiral End Seal 1/cs., 1.0 (2.3) 1 kit 054007-92600

SLiC 2" x 29"-SES Spiral End Seal 1/cs., 1.7 (3.7) 1 kit 054007-92601

SLiC 3” x 19”-SES Spiral End Seal 1/cs., 2.0 (4.4) 1 kit 051138-75544

SLiC 3" x 33"-SES Spiral End Seal 1/cs., 2.4 (5.3) 1 kit 054007-92602

SLiC 5" x 33"-SES Spiral End Seal 1/cs., 3.8 (8.3) 1 kit 054007-92603

SLiC 7" x 33"-SES Spiral End Seal 1/cs., 5.0 (11.1) 1 kit 054007-92604

SLiC 9" x 36"-SES Spiral End Seal 1/cs., 7.5 (16.5) 1 kit 054007-92605

SLiC Aerial Closure Kit with Rubber End Seal

SLiC 2" x 19" 2 Double Port 1/cs., 1.1 (2.4) 1 kit 054007-71241

SLiC 2" x 29" 2 Double Port 1/cs., 1.7 (3.7) 1 kit 054007-68300

SLiC 3” x 19” 2 Triple Port 1/cs., 2.1 (4.6) 1 kit 051138-75546

SLiC 3" x 33" 2 Triple Port 1/cs., 2.4 (5.6) 1 kit 054007-68299

SLiC 5" x 33" 2 Triple Port 1/cs., 3.6 (8.0) 1 kit 054007-68298

SLiC 7" x 33" 2 Triple Port 1/cs., 4.8 (10.6) 1 kit 054007-68297

SLiC 9" x 36" 2 Triple Port 1/cs., 7.3 (16.0) 1 kit 054007-57088

3M SLiC Aerial Closures with

Bond Assembly attached(4462-SN)

Product Contains Packaging Min. Order UPC

Number kg (lbs.)/cs.

Aerial Closure Kit with Spiral End Seal

SLiC 2" x 19"-BA/SES Spiral End Seal 1/cs., 4.3 (9.4) 4 kits 054007-92606

SLiC 2" x 29"-BA/SES Spiral End Seal 1/cs., 6.5 (14.4) 4 kits 054007-92607

SLiC 3” x 19”-BA/SES Spiral End Seal 1/cs., 7.2 (15.7) 4 kits 051138-75545

SLiC 3" x 33"-BA/SES Spiral End Seal 1/cs., 9.1 (20.0) 4 kits 054007-92608

SLiC 5" x 33"-BA/SES Spiral End Seal 1/cs., 3.9 (8.6) 1 kit 054007-92609

SLiC 7" x 33"-BA/SES Spiral End Seal 1/cs., 5.0 (11) 1 kit 054007-92610

SLiC 9" x 36"-BA/SES Spiral End Seal 1/cs., 7.6 (16.8) 1 kit 054007-92611

Aerial Closure Kit with Rubber End Seal

SLiC 2" x 19" BA 2 Double Port 1/cs., 4.3 (9.5) 4 kits 054007-71483

SLiC 2" x 29" BA 2 Double Port 1/cs., 6.6 (14.5) 4 kits 054007-71484

SLiC 3" x 19" BA 2 Double Port 1/cs., 7.5 (16.3) 4 kits 051138-75577

SLiC 3" x 33" BA 2 Double Port 1/cs., 9.1 (20.0) 4 kits 054007-71485

SLiC 5" x 33" BA 2 Double Port 1/cs., 3.8 (8.3) 1 kit 054007-71348

SLiC 7" x 33" BA 2 Double Port 1/cs., 4.8 (10.5) 1 kit 054007-71349

SLiC 9" x 36" BA 2 Double Port 1/cs., 7.4 (16.4) 1 kit 054007-57089

126

198

3M SLiC Aerial Closure Capabilities

SLiC SLiC SLiC SLiC SLiC SLiC SLiC

2 x 19 2 x 29 3 x 19 3 x 33 5 x 33 7 x 33 9 x 36

mm (in.) mm (in.) mm (in.) mm (in.) mm (in.) mm (in.) mm (in.)

Max. Splice Opening 356 (14) 432 (17) 356 (14) 533 (21) 533 (21) 533 (21) 635 (25)

Max. Bundle Diameter 55.9 (2.2) 66 (2.6) 91.4 (3.6) 91.4 (3.6) 142.2 (5.6) 193.0 (7.6) 244 (9.6)

Approx. Cable 100-pair **200-pair 200-pair *400-pair *1200-pair *2400-pair *3600-pair

Range Pair Count (26 or 24 AWG) (26 or 24 AWG) (26 or 24 AWG) (26 AWG) (26 AWG) (26 AWG)

0.4 or 0.5 0.4 or 0.5 0.4 or 0.5 0.4 0.4 0.4

Spiral End Seal Port Capacity

End Seal Dia. Port #1 20-41 20-41 20-66 20-66 30-76 38-97 38-97

(0.8-1.6) (0.8-1.6) (0.8-2.6) (0.8-2.6) (1.2-3.0) (1.5-3.8) (1.5-3.8)

End Seal Dia. Port #2 13-25 13-25 13-25 13-25 20-36 30-46 30-46

(0.5-1.0) (0.5-1.0) (0.5-1.0) (0.5-1.0) (0.8-1.4) (1.2-1.8) (1.2-1.8)

End Seal Dia. Port #3 13-25 13-25 13-25 13-25 36-51 13-30 13-30

(0.5-1.0) (0.5-1.0) (0.5-1.0) (0.5-1.0) (1.4-2.0) (0.5-1.2) (0.5-1.2)

End Seal Dia. Port #4 NA NA NA NA 13-30 46-61 46-61

(0.5-1.2) (1.8-2.4) (1.8-2.4)

End Seal Dia. Port #5 NA NA NA NA NA 13-30 13-30

(0.5-1.2) (0.5-1.2)

Rubber End Seal Port Capacity

1 Port End Seal Dia. Port #1 5-41 5-41 5-66 5-66 NA NA NA

(0.2-1.6) (0.2-1.6) (0.2-2.6) (0.2-2.6)

2 Port End Seal Dia. Port #1 5-25 5-25 5-51 5-51 20-56 41-81 41-81

(0.2-1.0) (0.2-1.0) (0.2-2.0) (0.2-2.0) (0.8-2.2) (1.6-3.2) (1.6-3.2)

2 Port End Seal Dia. Port #2 5-15 5-15 5-15 5-15 5-56 5-81 5-81

(0.2-0.6) (0.2-0.6) (0.2-0.6) (0.2-0.6) (0.2-2.2) (0.2-3.2) (0.2-3.2)

3 Port End Seal Dia. Port #1 NA NA 5-41 5-41 15-56 36-97 36-97

(0.2-1.6) (0.2-1.6) (0.6-2.2) (1.4-3.8) (1.4-3.8)

3 Port End Seal Dia. Port #2 NA NA 5-25 5-25 5-36 15-46 15-46

(0.2-1.0) (0.2-1.0) (0.2-1.4) (0.6-1.8) (0.6-1.8)

3 Port End Seal Dia. Port #3 NA NA 5-25 5-25 5-36 15-46 15-46

(0.2-1.0) (0.2-1.0) (0.2-1.4) (0.6-1.8) (0.6-1.8)

* Based on 2-Bank Straight Splice using MS2™ 4000-DWP Module

** Based on more than one cable

™

SLiC

™

Aerial Closures with

Bond Assembly included (4460-S)

Product Contains Packaging Min. UPC

Number kg (lbs.)/cs. Order

Aerial Closure Kit with Spiral End Seal

SLiC 2" x 19"

4460S/SES

Spiral End Seal 1/cs., 1.1 (2.4) 1 kit 054007-92618

SLiC 2" x 29"

4460S/SES

Spiral End Seal 1/cs., 1.7 (3.8) 1 kit 054007-92619

SLiC 3" x 33"

4460S/SES

Spiral End Seal 1/cs., 2.4 (5.2) 1 kit 054007-92620

SLiC 5" x 33"

4460S/SES

Spiral End Seal 1/cs., 3.7 (8.1) 1 kit 054007-92621

SLiC 7" x 33"

4460S/SES

Spiral End Seal 1/cs., 5.0 (11.1) 1 kit 054007-92622

SLiC 9 " x 36"

4460S/SES

Spiral End Seal 1/cs., 7.2 (15.9) 1 kit 054007-92623

Aerial Closure Kit with Rubber End Seal

SLiC 2" x 19" 4460S Double Port/Double Port 1/cs., 1.1 (2.5) 1 kit 054007-71564

SLiC 2" x 29" 4460S Double Port/Double Port 1/cs., 1.8 (3.9) 1 kit 054007-71565

SLiC 3" x 33" 4460S Double Port/Triple Port 1/cs., 2.4 (5.2) 1 kit 054007-71566

SLiC 5" x 33" 4460S Double Port/Triple Port 1/cs., 3.5 (7.8) 1 kit 054007-71567

SLiC 7" x 33" 4460S Double Port/Triple Port 1/cs., 4.8 (10.6) 1 kit 054007-71568

SLiC 9" x 36" 4460S Double Port/Triple Port 1/cs., 7.0 (15.4) 1 kit 054007-57091

( Features — Benefits Product Referral 7 Generamr E

127

3M™SLiC™Aerial Terminal

and SLiC Aerial Terminal

with Spiral End Seal

199

The 3M SLiC Aerial Terminal and the

SLiC Aerial Terminal with Spiral End

Seal are distribution terminals and

closures contained within a

lightweight, double-wall molded-

plastic housing designed for fixed-

count termination of aerial drop wires.

Special block configurations required

by the individual customer are also

available and may be completed either

at the factory or by the customer.

End seals of the SLiC Terminal are

designed to assure proper sizing and a

snug fit around the cable sheath. This

eliminates the need for drip collars to

prohibit water from entering the splice

chamber. The SLiC Terminal with

Rubber End Seal comes packaged with

single-port end seals; however,

customers may use double-port or

triple-port end seals as their

applications require. The 7.6 cm SLiC

Terminal with spiral end seal comes

packaged with three port end seals.

And, the 12.7 cm terminal comes

packaged with four port end seals.

RUS Listed

Ordering Information for Empty SLiC Aerial Terminals

Product Block Initial Pair Packaging Minimum UPC

Number Type Capacity kg (lbs.)/cs. Order 051138-

Empty Terminals with Spiral End Seals

328-MTPI/SES ATS/IDC 5 - 25 11.7 (26.0) 4 58545

530-MTPI/SES ATS/IDC 5 - 25 4.1 (9.1) 1 58776

Empty Housings Available with Rubber End Seals Upon Request

328 & 530 MT Housing will accommodate other manufacturer's blocks

* Blocks must be purchased from manufacturer or through your distributor.

Shield Bonding pg. 200

Sheath Scuff pg. 199

Tapes and Sealing pg. 189

3M™Scotchlok™Connectors pg. 2

3M™MS2™ Modules pg. 6

SLiC Aerial Terminals

Two-closure-in-one housing design Separates splice and drop chamber

One piece construction Eases installation

Self-healing drop wire ports Minimizes weather and insect problems

Sleeves extend in either or both directions Eliminates need for separate rehabilitation

and distribution splices; accommodates long

sheath openings

Accommodates a variety of terminating blocks Adaptable to user requirements

Multiple distribution counts Counts range in multiples of 5, from 5 to 25

Spiral end seal One size fits multiple cable configurations

Ordering Information for Filled SLiC Aerial Terminals

Product Block Initial Pair Packaging Minimum UPC

Number Type Capacity kg (lbs.)/cs. Order 051138-

Filled Terminals with Spiral End Seals

328-PI-5/SES ATS/IDC 5, 10, 15, 25 12.0 (26.4) 4 75416

328-PI-10/SES ATS/IDC 5, 10, 15, 25 12.0 (26.4) 4 58546

328-PI-20/SES ATS/IDC 5, 10, 15, 25 12.0 (26.4) 4 58547

328-PI-25/SES ATS/IDC 5, 10, 15, 25 13.8 (30.6) 4 58548

530-PI-5/SES ATS/IDC 5, 10, 15, 25 5.0 (11.0) 1 75417

530-PI-10/SES ATS/IDC 5, 10, 15, 25 5.0 (11.0) 1 58777

530-PI-20/SES ATS/IDC 5, 10, 15, 25 5.0 (11.0) 1 58778

530-PI-25/SES ATS/IDC 5, 10, 15, 25 5.1 (11.22) 1 58779

NOTE: 3" SLiC terminals have an approximate splice bundle capacity of 78.7 mm (3.1"). Based on 24 AWG (.5 mm) 2 bank straight splices

using MS24000DWP modules; splice capacity is approximately 300 pair. 5" SLiC terminals have an approximate splice bundle capacity of

129.5 mm (5.1"). Based on 26 AWG (.4 mm) 2 bank straight splices using MS24000DWP modules; splice capacity is approximately 900 pair.

_ i . . okrva ,\ a j ..0 . ﬁH \ ,p O o .0 CM

128

3900-A Aerial Service Wire

Closure Kit

205

Features

• Butt splicing 2-pair aerial drop wire

• Pole and wall mount applications

• Wire gauges ranging from 18 to 24

AWG

• Utilizes available connectors

(i.e. Scotchlok™ UY2 and UR2

Connectors)

• Provides primary physical

protection

• Free breathing

• Resistant to UV rays

™

SLiC

™

Aerial Closure and Terminal Accessories

# Product Description Pkg. Min. Order UPC

kg (lbs.)/cs.

1. AC-HB1 Offset Hanger Brackets

1/cs., 2.4 (5.3) 1 set/bag, 054007-34416

10 sets/case

[529936]

2. AC-HB2 Extended Hanger Brackets

1/cs., 2.4 (5.3) 1 set/bag, 054007-92926

10 sets/case

3. SLiC Rubber End Seal Kits

2" Single Port Rubber End Seal 10/cs., 0.6 (1.4) 10 each 054007-57092

2" Double Port Rubber End Seal 10/cs., 0.5 (1.2) 10 each 054007-71218

3" Single Port Rubber End Seal 10/cs., 1.0 (2.2) 10 each 054007-57093

3" Double Port Rubber End Seal 10/cs., 1.0 (2.1) 10 each 054007-57094

3" Triple Port Rubber End Seal 10/cs., 1.0 (2.2) 10 each 054007-71221

5" Single Port Rubber End Seal 5/cs., 2.51 (5.5) 5 each 054007-91694

5" Double Port Rubber End Seal 5/cs., 2.46 (5.4) 5 each 054007-71458

5" Triple Port Rubber End Seal 5/cs., 1.3 (2.8) 5 each 054007-71220

7" Double Port Rubber End Seal* 5/cs., 2.4 (5.2) 5 each 054007-71457

7" Triple Port Rubber End Seal* 5/cs., 2.3 (5.0) 5 each 054007-71219

4. SLiC Spiral End Seal Kits

2" Triple Port Spiral End Seal 10/cs., 0.5 (1.2) 10 each 054007-92648

3" Triple Port Spiral End Seal 10/cs., 1.2 (2.7) 10 each 054007-92649

5" Four Port Spiral End Seal 5/cs., 2.1 (4.7) 5 each 054007-92650

7" Five Port Spiral End Seal* 5/cs., 3.5 (7.8) 5 each 054007-92651

5. Sheath Retention Kits

SR-3 adds sheath retention to 3" SLiC Terminals 10/cs. 10 kits per case 051138-57641

and Closures 1 kit per bag

SR-5 adds sheath retention to 5" SLiC Terminals 10/cs. 10 kits per case 051138-57642

and Closures 1 kit per bag

* Also fits in a 9" closure.

1. 200

3. 202

4. 203

2. 201

5. 204

129

2000 Aerial Terminal with

Contour Drop Box

A free breathing terminal closure

in combination with a separate

distribution chamber (with block

installed) that may be used with

lashed or figure-8 cable in non-

pressurized aerial application to

quickly and easily terminate up

to 25 pairs.

The contour drop box will

accommodate 10, 20 and 25 pair

raised post nonprotected terminal

blocks. In addition, various pair count

IDC terminal blocks may be used with

the contour drop box.

2000 Aerial Terminal with

10 or 25 Pair Protected

Drop Box

The drop box is for protected terminal

blocks which are available with or

without arrestors.

5000 and 7000

Aerial Terminal with

Contour Drop Box

The contour drop box will

accommodate 10, 20 and 25 pair

raised post nonprotected terminal

block. In addition, various pair count

IDC terminal blocks may be used

with the Contour drop box.

5000 and 7000 Aerial

Terminal with 10 or 25 Pair

Protected Drop Box

The drop box is for protected terminal

blocks which are available with or

without arrestors.

206

GATM Series Closures and Terminals

All metal parts are of non-corrosive materials Durable, long-lasting construction

No special tools, tapes glues or sealants Provides easy installation

required for assembly

Floating bond system is “built in” to closure For flexibility in terminations

“Free-breathing” terminal closure Vents moisture while prohibiting dirt,

dust and insect entry

Re-enterable Quick and easy terminations

Pre-cut end seals Provides rapid sizing to fit a variety of

cable sizes

Closures may be extended to protect large Ensures product performance

damaged sections of cable

Standard 10, 20, and 25 pair configurations Easily fits a variety of applications

Protected and non-protected terminal blocks Features that fit your application

are available – raise post only

3M™GATM Series Closures

Closure Selection Guide

To order GATM Series Closures, follow these steps:

1. What is your pair count?

2. What is your cable size?

3. What is your sheath opening?

4. What type of connector are you using? Module (MS2or 710) or Discrete (Scotchlok)?

Note: Bundles built with modular connectors are half the size of discretes.

5. What is your splice bundle diameter?

These questions should guide you in choosing the correct closure.

130

3M™Closures GATM Series

GATM “Super Stretch” Closure for aerial splice protection and sheath repairs. 207

Ordering Information for 3M

™

Non-protected Terminals GATM Series 2000, 5000 and 7000

Product Sealing Cable Sheath Terminal Block Protection Approx. Min. UPC

Number Washer Diameter Range Pair Type Type Weight Order 051138-

Config. mm (in.) Count kg (lbs.) (each)

2000 Terminals

GATM92A251112 1 in / 1 out 7.6 - 38.1 (0.30 - 1.50) 25 Raised Post Non-protected 3.6 (8) 1 77837

5000 Terminals

GATM95A101112 1 in / 1 out 10.2 - 63.5 (0.40 - 2.5) 10 Raised Post Non-protected 4.1 (9) 1 77863

GATM95A251112 1 in / 1 out 10.2 - 63.5 (0.40 - 2.5) 25 Raised Post Non-protected 4.6 (10) 1 77865

7000 Terminals

GATM97A101112 1 in / 1 out 15.2 - 101.6 (0.60 - 4.0) 10 Raised Post Non-protected 7.7 (17) 1 77896

GATM97A251112 1 in / 1 out 15.2 - 101.6 (0.60 - 4.0) 25 Raised Post Non-protected 7.7 (17) 1 77897

Standard Package = Kit. Minimum Order/Ordering Multiple = 1 Kit.

Ordering Information for 3M

™

Protected Terminals GATMSeries 2000, 5000 and 7000 with

10- or 25-Pair Protected Drop Box

Product Sealing Cable Sheath Terminal Block Protection Approx. Min. UPC

Number Washer Diameter Range Pair Type Type Weight Order 051138-

Config. mm (in.) Count kg (lbs.) (each)

2000 Terminals

GATM92B101112 1 in / 1 out 7.6 - 38.1 (0.30 -1.50) 10 Raised Post Gas 5.9 (13) 1 77838

GATM92B251112 1 in / 1 out 7.6 - 38.1 (0.30 -1.50) 25 Raised Post Gas 6.4 (14) 1 78190

5000 Terminals

GATM95B101112 1 in / 1 out 10.2 - 63.5 (0.40 - 2.5) 10 Raised Post Gas 6.4 (14) 1 77867

GATM95C101112 1 in / 1 out 10.2 - 63.5 (0.40 - 2.5) 20 Raised Post Carbon 6.4 (14) 1 78708

GATM95B251112 1 in / 1 out 10.2 - 63.5 (0.40 - 2.5) 25 Raised Post Gas 6.8 (15) 1 78707

7000 Terminals

GATM97B101112 1 in / 1 out 15.2 - 101.6 (0.60 - 4.0) 10 Raised Post Gas 7.7 (17) 1 77898

Standard Package = Kit. Minimum Order/Ordering Multiple = 1 Kit.

Shield Bonding pg. 200

Tapes and Sealing pg. 189

710 Modules pg. 22

3M™MS2™ Modules pg. 6

3M™Scotchlok™Connectors pg. 2

131

Sealing Washer Selection Chart for 3M

™

Aerial Super Stretch Closure GATM

Product Sealing Sealing Cable Qty. in Min. Order/ Approx. UPC

Number Washer Washer Dia. Dia. Range Standard Ordering Weight 051138-

Entry Config. mm (in.) mm (in.) Package Multiple kg (lbs.)

GATM9S71E Single entry 718 (7) 1 @ 18.3 - 101.6 1 1 pkg. 0.88 (1.95) 78323

(0.72 - 4.0)

GATM9S72E Double entry 718 (7) 2 @ 14.0 - 63.5 1 1 pkg. 0.88 (1.95) 78324

(0.55 - 2.5)

GATM9S73E Triple entry 718 (7) 3 @ 14.0 - 63.5 1 1 pkg. 0.88 (1.95) 78327

(0.55 - 2.5)

GATM9S92E Double entry 241 (9.5) 2 @ 14.0 - 101.6 1 1 pkg. 1.92 (4.25) 78330

(0.55 - 4.0)

GATM9S93E Triple entry 241 (9.5) 1 @ 14.0 - 88.9 1 1 pkg. 1.92 (4.25) 78333

(0.55 - 3.5)

2 @ 14.0 - 63.5

(0.55 - 2.5)

GATM9S94E Quadruple entry 241 (9.5) 2 @ 14.0 - 88.9 1 1 pkg. 1.92 (4.25) 78336

(0.55 - 3.5)

2 @ 14.0 - 53.3

(0.55 - 2.1)

Ordering Information for 3M

™

Aerial Super Stretch Closures GATM

Product Inside Max. Sheath Max. Number Number Overall Approx. Min. UPC

Number Diameter Opening Cable Pairs of Cable Length Weight Order 051138-

mm (in.) mm (in.) (24 gauge) Openings mm (in.) kg (lbs.) (each)

GATM9S7361111 178 (7) 635 (25) 2100 1 in / 1 out 914 (36) 10.3 (22.80) 1 78326

GATM9S7441111 178 (7) 851 (33.5) 2700 1 in / 1 out 1130 (44.5) 12.3 (27.10) 1 78329

GATM9S9362211 241 (9.5) 635 (25) 4200 2 in / 2 out 914 (36) 15.2 (33.5) 1 78332

GATM9S9442211 241 (9.5) 851 (33.5) 4800 2 in / 2 out 1130 (44.5) 17.9 (39.5) 1 78335

Standard Package = Kit. Minimum Order/Ordering Multiple = 1 Kit.

132

Ordering Information for 3M

™

Closure Accessories GATM Series

Product Description Quantity in Min. Order/ Weight per Min. UPC

Number Standard Ordering Min. Order Order 051138-

Package Multiple kg (lbs.) (each)

Drop Chamber Housing

Replacement housings for GATM aerial terminals.

GATM90100 10 - 25 pair contour housing 1 1 pkg. 0.9 (2) 1 77812

Closure Extender Kit

For connecting two closures together or covering sections of damaged cable.

GATM92960 For 2000 Series Closure 1 25 pkgs. 5.4 (12) 1 77831

GATM95960 For 5000 Series Closure 1 25 pkgs. 5.4 (12) 1 77860

GATM97960 For 7000 Series Closure 1 25 pkgs. 5.4 (12) 1 77894

Washer Housing Kit

Used in conjunction with splice closure extender kit to lengthen a closure.

GATM92961 For 2000 Series Closure 1 1 pkg. 0.23 (0.5) 1 77832

GATM95961 For 5000 Series Closure 1 1 pkg. 0.23 (0.5) 1 77861

GATM97961 For 7000 Series Closure 1 1 pkg. 0.23 (0.5) 1 77895

3M™Closure Accessories GATM Series

Ordering Information for 3M

™

Closure Washers and End Sealing GATM Series

Product Description Quantity in Min. Order/ Weight per UPC

Number Standard Ordering Min. Order 051138-

Package Multiple kg (lbs.)

2000 Washers

GATM92911 Single Entry Washer 1 50 pkgs. 4.6 (10) 77828

GATM92922 Double Entry Washer 1 50 pkgs. 5.4 (12) 77829

5000 Washers

GATM95911 Single Entry Washer 1 25 pkgs. 5.4 (12) 77855

GATM95922 Double Entry Washer 1 25 pkgs. 5.0 (11) 77856

GATM95933 Triple Entry Washer 1 25 pkgs. 4.6 (10) 77858

7000 Washers

GATM97911 Single Entry Washer 1 10 pkgs. 0.9 (2) 77890

GATM97922 Double Entry Washer 1 10 pkgs. 0.9 (2) 77891

GATM97933 Triple Entry Washer 1 10 pkgs. 0.9 (2) 77893

For sealing the ends of splice and terminal closures.

133

Ordering Information for 3M

™

Raised Post Terminal Blocks GATM

Product Description Quantity in Min. Order/ Weight per UPC

Number Standard Ordering Min. Order 051138-

Package Multiple kg (lbs.)

GATM96010 Non protected 10 pair block 1 1 pkg. 0.3 (0.7) 77877

Replacement for terminal blocks found in: GATM92A10-11, GATM95A10-11, GATM97A10-11.

GATM96110 Gas protected 10 pair block 1 1 pkg. 0.9 (2) 77879

Replacement for terminal blocks found in: GATM92B10-11, GATM95B10-11, GATM97B10-11.

GATM96025 Non protected 25 pair block 1 1 pkg. 0.9 (2) 77878

Replacement for terminal blocks found in: GATM92A25-11, GATM95A25-11, GATM97A25-11.

GATM96125 Protected 25 pair block 1 1 pkg. 2.3 (5) 77880

Replacement for terminal blocks found in: GATM92B25-11, GATM95B25-11, GATM97B25-11.

Generator

134

3M™Dome Closures

Closure Selection Guide

To order Dome Closures, follow these steps:

1. What is your pair count?

2. What is your cable size?

3. What is your sheath opening?

4. What type of connector are you using? Module (MS2or 710) or Discrete (Scotchlok)?

Note: Bundles built with modular connectors are half the size of discretes.

5. What is your splice bundle diameter?

These questions should guide you in choosing the correct closure.

Re-enterable Dome Closures

with Pull ‘N’ Shrink Tubing

(PST) offer fast, rugged splice

protection with easy reentry.

An economical method of protecting

butt splices for pedestal, hand hole or

pole mount applications is provided by

the Re-enterable PST Dome Closures.

The closure provides protection from

the harmful effects of moisture,

insects, and ultraviolet light, while

providing no cost re-entry.

The dome closure is an easily re-

enterable closure that protects the

splice–without requiring special tools

or flame for installation.

The splice is enclosed in a split

polypropylene dome which is clamped

together with a steel latch and sealed

with an O-ring. An expanded ethylene

propylene rubber tube (PST) is slipped

over the base of the enclosure and onto

a gel sealing collar. Pulling a plastic

rip cord on the PST allows it to shrink

to the minimum outside diameter

necessary to form a tight seal. The

flexible tubing material conforms

to the shape of the collar, sealing

out both air and water.

The kit is available in four sizes,

which accommodate splices from

25- to 900-pair. For encapsulated

plant, three sizes are available which

accommodate splices from 25- to

600-pair.

RUS Listed

Re-enterable PST Dome Closures

Unique latching system to secure dome to Easily re-enterable, no reentry kit, seal

the sealed base undisturbed at reentry, no tools needed to

reenter

Gel end seal Air tight seal over multiple cable diameters

and configurations

Retrofits existing PST Multiple applications

Compounds/Encapsulants pg. 185

Shield Bonding pg. 200

Cable Lubricants pg. 322

3M™Scotchlok™Connectors pg. 2

3M™MS2™ Modules pg. 6

Tapes pg. 189

Sheath Scuff pg. 199

Pair Saver pg. 199

Cable Ties pg. 204

208

135

Ordering Information for 3M

™

Re-enterable Dome Closure Accessories

Product Number Size Packaging Minimum Order UPC

cm (in.) kg (lbs.)

4604-PST Pull N’ Shrink Tubing 11.4 x 13.3 (4.8 x 5.25) 5/cs., 2,4 (5.5) 5 each 054007-92231

4606-PST Pull N’ Shrink Tubing 14.6 x 15.8 (5.75 x 6.25) 5/cs., 4,0 (8.92) 5 each 054007-92230

4608-PST Pull N’ Shrink Tubing 18.4 x 18.4 (7.25 x 7.25) 5/cs., 9,4 (20.78) 5 each 054007-92229

4600-GSS Gel Sealant Strip 6.3 x 50.7 (2.5 x 20) 50/cs., 9,4 (20.78) 50 each 054007-92221

4600-NID Non-Indicating – 100/cs., 3,6 (8.0) 100 each 051138-36517

Desiccant Bags

Specifications for 3M

™

Re-enterable PST Dome Closure Kits

4604 4606 4608

Closure Outside Dimension 97 x 71 (3.8 x 2.8) 142 x 99 (5.6 x 3.9) 178 x 137 (7.0 x 5.4)

W x D mm (in.)

Closure Height (H) mm (in.) 572 (22.5) 572 (22.5) 597 (23.5)

Approx. Bundle Diameter 64 (2.5) 99 (3.9) 135 (5.3)

mm (in.)

Minimum Reliable CAD CAD 4 CAD 6 CAD 8

Pedestal

Main Cables mm (in.) 13-28 (0.5-1.1) 23-41 (0.9-1.6) 36-64 (1.4-2.5)

Terminal Cables mm (in.) 10-15 (0.4-0.6) 10-15 (0.4-0.6) 10-20 (0.4-0.8)

Branch Cables mm (in.) – 18-25 (0.7-1.0) 23-33 (0.9-1.3)

Drop Cables mm (in.) 9 max. (0.35 max.) 9 max. (0.35 max.) 9 max. (0.35 max.)

2 cable max. 2 cable max. 2 cable max.

*Approx. Splice Range 100 pr.-MS2™300 pr.-MS2600 pr.-MS2

50 pr.-UR2 100 pr.-UR2 300 pr.-UR2

Ordering Information

Packaging 15/cs. 9/cs. 5/cs.

kg (lbs.) 17.0 (37.5) 15.6 (34.4) 12.2 (26.8)

Minimum Order 15 kits 9 kits 5 kits

UPC 051138-36513 051138-36514 051138-36515

*NOTE: Based on 2 bank MS2™ 4000-DWP Modules and Scotchlok™Connectors installed per 3M practices. Examples: 100-pair means 100-pair In and 100-pair

Out or 100 pair straight splice.

Kit components included: Closure Assembly, Dome, Base, O-Ring, Latch, Gel End Seal, Ground Wires,

PST Sheath Scuff, Desiccant Bag.

Companion products needed: Scotch®Vinyl Tape 88T 38 mm (1-1/2") Wide, 130C LR Rubber Tape,

3M™Scotchlok™Shield Bond Connectors 4460 Series, 3M™Scotchlok™UR2 or MS2Splice Connectors, 6228 Cable Ties,

381 mm (15").

136

Ordering Information for 3M

™

Gel-Wrap PST Closure Accessories

Product Number Packaging Minimum Order UPC

kg (lbs.)

GW-922- Gel Wrap 5.9 (13) 10 each/cs. 051138-57700

Ordering Information for 3M

™

PST Pedestal Closure Accessories

Product Number Size Packaging Minimum Order UPC

mm (in.) kg (lbs.)

4634-R PST Pedestal Splice 76.2 (3.0) 1/box, 10/cs., 3.4 (7.6) 10 kits 054007-17480

Closure Re-entry Kit

4635-R PST Pedestal Splice 114.3 (4.5) 1/box, 10/cs., 5.4 (12.1) 10 kits 054007-17481

Closure Re-entry Kit

4636-R PST Pedestal Splice 152.4 (6.0) 1/bag, 5/cs., 4.5 (9.95) 5 kits 054007-17654

Closure Re-entry Kit

2900-R Sealing Collar Tape 38 x 1.5 m (1.5 x 5') 5/box 50/cs.,14.4 (31.9) 50 rolls 054007-68546

4637-R PST Pedestal Splice – 5/cs., 10.1 (22.4) 5 kits 054007-71534

Closure Re-entry Kit

Producme'em- _ Generator ,

137

3M™Foam-Sealed Closures

Closure Selection Guide

To order Foam-Sealed Closures, follow these steps:

1. What is your pair count?

2. What is your cable size?

3. What is your sheath opening?

4. What type of connector are you using? Module (MS2or 710) or Discrete (Scotchlok)?

Note: Bundles built with modular connectors are half the size of discretes.

5. What is your splice bundle diameter?

These questions should guide you in choosing the correct closure.

Foam-Sealed Closures enclose cable

plant splices in direct buried, hand

hole, and man hole applications.

They also protect cable splices from

environmental elements found in these

applications and enclose a variety of

cable configurations. The closures are

also used to easily accommodate

distribution drops from the main cable.

The methods used in foam-sealed

closures have evolved from early

gravity filled methods to compound

compression methods.

Foam-Sealed Closure

Foam Sealed Closures use the

Compound Compression method to

apply the pressure to the encapsulant.

The polyethylene closure body is over

wrapped with the armorcast structural

material for physical strength. 3M

4411 expandable sealant is used to fill

the void between the closure body and

the compound compression splice. The

expandable foam adheres to the

closure body, E-Z wrap and the cable

sheath which in turn provides a water

tight barrier around the splice and

cables entering the closure.

Buried Compound

Compression

The Better Buried Compound

Compression Closure method forces

the encapsulant up the cable core to

stop water ingress. The product is

simple to install, comes with the

spacer web and plastic wrap and is

used to hold and force the encapsulant.

The product is offered in different

sizes to cover various cable ranges and

can be easily extended and bricked.

The Better Buried and 89 Series

Closures use a gravity fill method of

encapsulating and protecting the cable

splice. Both kits are simple to install

and are offered with a full product

offering to cover the complete cable

ranges found in the outside plant. In

addition, both kits can be ordered

with 4442 High Gel re-enterable

encapsulant. The 89 Series can also

be purchased with 4407 Encapsulant

for making a permanent, hard

encapsulated closure with maximum

water protection.

Compounds/Encapsulants pg. 185

Shield Bonding pg. 200

Cable Lubricants pg. 322

3M™Scotchlok™Connectors pg. 2

3M™MS2™ Modules pg. 6

Tapes pg. 189

Sheath Scuff pg. 199

Pair Saver pg. 199

Cable Ties pg. 204

209

Foam-Sealed Closures

Few loose parts Easy assembly and improved productivity

No heat required Eliminate safety concerns

Adjustable closure diameter Minimizes compound usage and total cost

Tough outer shell Can be used in harsh environments

Rigid body closure Easy re-entry, physical strength

Rigid bonding assembly Increased physical strength, provides more

support to the cable

Solvent resistant Gasoline won’t erode expandable foam

and armorcast

Can be cut with a zip cord Easy re-entry & saves time

Can be extended easily No need to stock different sizes

Total kit No need to order individual parts,

reduces total cost

Better Buried Closures 210

138

Ordering Information for 3M

™

Foam-Sealed Closure with Compound Compression

Product Number FSC- FSC- FSC- FSC- FSC- FSC- FSC- FSC- FSC- FSC-

2x12 3x12 S 3x12 L 3x19 3x21 4x19 4x21 6x19 8x19 8x19 L

Splice Bundle Diameter 31 (1.25) 50 (2) 76 (3) 76 (3) 76 (3.0) 100 (3.9) 100 (3.9) 145 (5.7) 190 (7.48) 190 (7.48)

mm (in.)

Max. Splice Opening 228 (9) 255 (10) 255 (10) 430 (17) 533 (21) 430 (17) 533 (21) 480 (19) 480 (19) 480 (19)

mm (in.)

Closure Length End-To-End 90 (15.25) 546 (21.5) 546 (21.5) 724 (28.5) 838.2 (33) 724 (28.5) 838.2 (33) 775 (30.5) 775 (30.5) 775 (30.5)

mm (in.)

3M™MS2™ 4000 DWP Module 0 100/24 200/24 400/24 400/24 600/24 600/24 1200/24 2400/26 2700/26

Splice Max.

3M™Scotchlok™Connector 25/22 75/24 200/24 400/24 400/24 600/24 600/24 1200/24 2400/26 2700/26

Splice UY2

Approx. Compound Required 165 385 769 1648 1868 2473 2857 5769 8242 9890

ml (g) -150 -350 -700 -1500 -1700 -2250 -2600 -5250 -7500 -9000

Ordering Information

Packaging 1 kit 1 kit 1 kit 1 kit 1 kit 1 kit 1 kit 1 kit 1 kit 1 kit

Minimum Order 1 kit 1 kit 1 kit 1 kit 1 kit 1 kit 1 kit 1 kit 1 kit 1 kit

UPC 051138- 75365 70899 70901 70900 76153 70902 76154 70903 70904 70905

Additional products needed to complete this product:

• Splicing Connectors and External Bonding Kit (if necessary)

• Encapsulant

• E-Z Wrap

3M Better Buried Closures

139

Closure Capacity for BB2x12 through BB4x12

Step 1 Better Buried Closures

Description BB2x12 BB2x24 BB3x12 BB3x24 BB4x12

Splice Bundle Diameter mm (in.) 50 (2) 50 (2) 75 (3) 75 (3) 100 (4)

Max. Splice Opening mm (in.) 177 (7) 425 (17) 177 (7) 425 (17) 177 (7)

Closure Length End To End mm (in.) 400 (16) 700 (28) 400 (16) 700 (28) 400 (16)

MS2™ 4000 DWP Module Splice 50-pr. 100-pr. 100-pr. 200-pr. 200-pr.

Maximum Pair Capacity

Scotchlok™ Connector UR2/UR 25-pr. 50-pr. 75-pr. 100-pr. 150-pr.

Approx. Compound Required 660 1,320 1,320 3,300 2,500

ml (g*) (600) (1,200) (1,200) (3,000) (2,250)

*Grams of 4442 High Gel Re-enterable Encapsulant based on the density of 1.1ml (0.9g). The density of other re-enterable encapsulants will vary.

Splice and Cable Configurations for BB2x12 through BB4x12

Step 2

Description BB2x12 BB2x24 BB3x12 BB3x24 BB4x12

In-line Splice With Single End Caps SB/2SC-LHS SB/2SC-LHS – SB/2SC-LHS SB/2DC-LHS

(1 in/1 out)

In-line Splice With 1 Single – SB/SC, DC-LHS – SB/SC, DC-LHS –

& 1 Double End Cap (1 in/2 out)

In-line Splice With 1 Single & 1 Double 4462/High Gel 4462/High Gel – 4462/High Gel –

End Cap, (SB/SC, DC-LHS), Plus SC, DC-LHS SC, DC-LHS SC, DC-LHS

4462 Shield Bond Connector And 4442

High Gel (1 in/2 out)

In-line Splice With 2 Double End Caps – – SB/2DC-LHS – –

(2 in/2 out)

In-line Splice With 1 Double & 1 Triple – – – – –

End Cap (2 in/3 out)

Butt Splice With End Cap 2BB BUTT-LHS – 3BB BUTT-LHS – 4BB BUTT-LHS

End Caps and Closure Extension Sleeves for BB2x12 through BB4x12

Accessories

Description BB2x12 BB2x24 BB3x12 BB3x24 BB4x12

Single Entry 2" SC-LHS BB 2" SC-LHS BB 3" SC-LHS BB 3" SC-LHS BB 4" SC-LHS BB

Double Entry 2" DC-LHS BB 2" DC-LHS BB 3" DC-LHS BB 3" DC-LHS BB 4" DC-LHS BB

Triple Entry – – – – –

1 Flat Cap, 1 Puddle Cap – – – – 4" BB FC/PC

Sleeve Name 2DS-12-BB 2DS-24-BB 3DS-24-BB 3DS-24-BB 4DS-24-BB

Closure Selection Guide

To order Better Buried Closures, follow these steps:

1. Determine closure size using pair capacity and maximum opening, (i.e. = BB2 x 12)

2. Using closure size from Step 1, determine splice and cable configuration code. (i.e. = SB/2SC-LHS)

(Combine steps 1 and 2 to determine product number (i.e. = BB2 x 12 SB/2SC-LHS))

3M™Better Buried Closures

Product Nomenclature:

BB = Better Buried SC = Single Port End Cap

FC = Flat Cap SB = Strain Relief Bond Bar

DC = Double Port End Cap PC = Puddle Cap

SW = Spaces Web TC = Triple Port End Cap

LHS = Locking Harness System DS = Double Sleeve

140

Ordering Example: BB2x24 SB/SC, DC-LHS

BB = A Better Buried Closure

2x24 = 2 inch Diameter, 24 inch Length

SB = Strain Relief Bond Bar

SC = One Single Port End Cap

DC = One Double Port End Cap

LHS = Locking Harness System

Closure Capacity for BB4x24 through BB9x26

Step 1 Better Buried Closures

Description BB4x24 BB5x26 BB6x26 BB7x26 BB9x26

Splice Bundle Diameter mm (in.) 100 (4) 125 (5) 150 (6) 175(7) 225(9)

Max. Splice Opening mm (in.) 425 (17) 475 (19) 475 (19) 475 (19) 475 (19)

Closure Length End To End mm (in.) 750 (30) 750 (30) 750 (30) 750 (30) 750 (30)

MS2™ 4000 DWP Module Splice 400-pr. 600-pr. 900-pr. 1,200-pr. 2,400-pr.

Maximum Pair Capacity

Scotchlok™ Connector UR2/UR 200-pr. 300-pr. 400-pr. 600-pr. 900-pr.

Approx. Compound Required 5,000 8,300 13,750 16,500 23,100

ml (g) (4,500) (7,200) (12,500) (15,000) (21,000)

Splice and Cable Configurations for BB4x24 through BB9x26

Step 2

Description BB4x24 BB5x26 BB6x26 BB7x26 BB9x26

In-line Splice With Single End Caps SB/2SC-LHS SB/2SC-LHS – – –

(1 in/1 out)

In-line Splice With 1 Single SB/SC, DC-LHS SB/SC, DC-LHS – – –

& 1 Double End Cap (1 in/2 out)

In-line Splice With 1 Single & 1 Double 4462/High Gel 4462/High Gel

End Cap, (SB/SC, DC-LHS), Plus SC, DC-LHS SC, DC-LHS – – –

4462 Shield Bond Connector And 4442

High Gel (1 in/2 out)

In-line Splice With 2 Double End Caps – – SB/2DC-LHS SB/2DC-LHS SB/2DC-LHS

(2 in/2 out)

In-line Splice With 1 Double & 1 Triple – – – SB/DC, TC-LHS SB/DC, TC-LHS

End Cap (2 in/3 out)

Butt Splice With Double End Cap SW/FC, PC-LHS SW/FC, PC-LHS – SW/FC, PC-LHS –

End Caps and Closure Extension Sleeves for BB4x24 through BB9x26

Accessories

Description BB4x24 BB5x26 BB6x26 BB7x26 BB9x26

Single Entry 4" SC-LHS BB 5" SC-LHS BB – – –

Double Entry 4" DC-LHS BB 5" DC-LHS BB 6" DC-LHS BB 7" DC-LHS BB 9" DC-LHS BB

Triple Entry – – – 7" TC-LHS BB 9" TC-LHS BB

1 Flat Cap, 1 Puddle Cap 4" BB FC/PC 5" BB FC/PC – 7" BB FC/PC –

Sleeve Name 4DS-24-BB 5DS-26-BB 6DS-26-BB 7DS-26-BB 9DS-26-BB

141

Ordering Information for Better Buried Closure Accessories

Product Number Packaging Minimum Order UPC

kg (lbs.)

4430 Spacer Web 3x20 2/cs., 1.04 (2.3) 2 each 054007-30362

4430 Spacer Web 6x20 1/cs., 0.90 (2.0) 1 each 054007-30361

Ordering Information for Better Buried Closure Complete Kits

Product Number Packaging Minimum Order UPC

kg (lbs.)

BB2x12/4462/High Gel 1/cs., 1.4 (3.2) 1 kit 051138-36502

BB2x24/4462/High Gel 1/cs., 2.6 (5.8) 1 kit 051138-36503

BB3x24/4462/High Gel 1/cs., 5.9 (13.0) 1 kit 051138-36504

BB4x24/4462/High Gel 1/cs., 8.6 (19.0) 1 kit 051138-36505

BB5x26/4462/High Gel 1/cs., 13.1 (28.8) 1 kit 051138-36506

Note: Kits do not include Scotchlok, MS2 or 710 connectors.

Ordering Information for Better Buried Closure Kits

Product Number Packaging Minimum Order UPC

kg (lbs.)

BB2x12 SB/2SC-LHS 10/cs., 6.3 (13.8) 10 kits 054007-68228

BB2x24 SB/2SC-LHS 1/cs., 1.4 (3.0) 1 kit 054007-68230

BB3x24 SB/2SC-LHS 1/cs., 1.8 (3.9) 1 kit 054007-68236

BB4x24 SB/2SC-LHS 1/cs., 2.3 (5.1) 1 kit 054007-68241

BB5x26 SB/2SC-LHS 1/cs., 3.2 (7.1) 1 kit 054007-68246

BB2x12 SW/FC, DC-LHS 1/cs., 0.7 (1.5) 1 kit 054007-71342

BB3x12 SW/FC, DC-LHS 1/cs., 0.9 (2.0) 1 kit 054007-71343

BB4x12 SW/FC, DC-LHS 1/cs., 1.1 (2.5) 1 kit 054007-63209

BB4x24 SW/FC-PC 1/cs., 2.08 (4.6) 1 kit 054007-63923

BB5x26 SW/FC-PC 1/cs., 3.2 (7.0) 1 kit 054007-63836

BB7x26 SW/FC-PC 1/cs., 4.9 (9.0) 1 kit 054007-68215

BB2x24 SB/SC, DC-LHS 1/cs., 1.4 (3.0) 1 kit 054007-68229

BB3x12 SB/SC, DC-LHS 1/cs., 0.9 (2.0) 1 kit 051138-57551

BB3x24 SB/SC, DC-LHS 1/cs., 1.7 (3.7) 1 kit 054007-68235

BB4x24 SB/SC, DC-LHS 1/cs., 1.7 (3.7) 1 kit 054007-68240

BB5x26 SB/SC, DC-LHS 1/cs., 2.3 (5.0) 1 kit 051138-36506

BB3x24 SB/2SC, DC-LHS 1/cs., 1.8 (3.9) 1 kit 054007-68236

BB4x24 SB/2SC, DC-LHS 1/cs., 1.7 (3.7) 1 kit 054007-68240

BB4x12 SB/2DC-LHS 1/cs., 1.1 (2.5) 1 kit 051138-57936

BB6x26 SB/2DC-LHS 1/cs., 3.6 (8.0) 1 kit 054007-71373

BB7x26 SB/2DC-LHS 1/cs., 4.2 (9.3) 1 kit 054007-71375

BB9x26 SB/2DC-LHS 1/cs., 5.1 (11.3) 1 kit 054007-71377

BB7x26 SB/DC, TC-LHS 1/cs., 4.7 (10.4) 1 kit 054007-71374

BB9x26 SB/DC, TC-LHS 1/cs., 5.9 (13.0) 1 kit 054007-71376

Note: Kits do not include encapsulant, shield bond connectors or 2900R and 130C tapes.

142

Ordering Information for Better Buried Closure Kit Spare Parts

Product Number Packaging Minimum Order UPC

kg (lbs.)

2SC-LHS BB 10/cs., 0.9 (2.0) 10 each 054007-68289

2DC-LHS BB 10/cs., 1.0 (2.3) 10 each 054007-68290

2DS-24-BB 10/cs., 7.4 (16.4) 10 each 054007-31070

3SC-LHS BB 10/cs., 1.4 (3.0) 10 each 054007-68291

3DC-LHS BB 10/cs., 1.4 (3.0) 10 each 054007-68292

3DS-24-BB 10/cs., 12 (26.5) 10 each 054007-31071

4SC-LHS BB 10/cs., 1.8 (4.0) 10 each 054007-68293

4DC-LHS BB 10/cs., 2.3 (5.0) 10 each 054007-68294

4BB FC/PC 10/cs., 2.3 (5.0) 10 kits 054007-68283

4DS-24-BB 10/cs., 16.1 (35.4) 10 each 054007-31072

5SC-LHS BB 10/cs., 2.7 (6.0) 10 each 054007-68295

5DC-LHS BB 10/cs., 3.2 (7.0) 10 each 054007-68296

5BB FC/PC 10/cs., 3.2 (7.0) 10 kits 054007-68284

5DS-26-BB 10/cs., 13.6 (30.0) 10 each 054007-31809

6DC-LHS BB 1/cs., 0.5 (1.0) 1 each 054007-71391

6DS-26-BB 1/cs., 2.9 (6.5) 1 each 054007-34039

7DC-LHS BB 1/cs., 0.5 (1.0) 1 each 054007-71394

7TC-LHS BB 1/cs., 0.5 (1.0) 1 each 054007-71393

7BB FC/PC 5/cs., 2.3 (5.0) 5 kits 054007-68285

7DS-26-BB 1/cs., 3.4 (7.5) 1 each 054007-31915

9DC-LHS BB 1/cs., 0.5 (1.0) 1 each 054007-71395

9TC-LHS BB 1/cs., 0.5 (1.0) 1 each 054007-71396

9DS-26-BB 1/cs., 4.9 (9.0) 1 each 054007-31916

Ordering Information for Compound Compression Kits

Product Number Packaging Minimum Order UPC

kg (lbs.)

BB2x12CC SB/2SC-LHS 10/cs., 8.16 (18.0) 10 kits 054007-91422

BB2x24CC SB/2SC-LHS 10/cs., 1.49 (3.3) 1 kit 054007-91423

BB3x12CC SB/2SC-LHS 1/cs., 1.36 (3.0) 1 kit 054007-91572

BB3x24CC SB/2SC-LHS 1/cs., 1.81 (4.0) 1 kit 054007-92836

BB4x24CC SB/2SC-LHS 1/cs., 2.72 (6.0) 1 kit 054007-91424

BB5x26CC SB/2SC-LHS 1/cs., 3.62 (8.0) 1 kit 054007-92837

BB6x26CC SB/2DC-LHS 1/cs., 4.53 (10.0) 1 kit 054007-91425

BB7x26CC SB/2DC-LHS 1/cs., 5.21 (11.5) 1 kit 054007-92838

BB9x26CC SB/2DC-LHS 1/cs., 5.57 (12.3) 1 kit 054007-92839

BB/CC-R 1/cs., 0.90 (2.0) 1 kit 054007-92842

Note: Kits do not include encapsulant or shield bond connectors.

E ntry

143

Closure Dimension Guide for Better Buried Closures

Closure End Cap Port Diameters Max. Splice Openings Approx.

Amount of

Compound

Required

Closure Size Single Entry Multiple Entry (Maximum) Single Double Sheath Average

(Maximum) 1 2 3 Sheath Outer Inner Splice

BB2x12 1.2" 1.2" 0.7" – 5" – – 21 oz.

2" x 12" (50 x 305 mm) 30 mm 30 mm 18 mm 127 mm 600 g

BB3x12 1.6" 1.6" 1.0" – 5" – – 42 oz.

3" x 12" (76 x 305 mm) 41 mm 41 mm 25 mm 127 mm 1200 g

BB2x24 1.2" 1.2" 0.7" – 17" 17" 14" 42 oz.

2" x 24" (50 x 610 mm) 30 mm 30 mm 18 mm 432 mm 432 mm 356 mm 1200 g

BB3x24 1.6" 1.6" 1.0" – 17" 17" 14" 106 oz.

3" x 24" (76 x 610 mm) 41 mm 41 mm 25 mm 432 mm 432 mm 356 mm 3000 g

BB4x24 2.0" 2.0" 1.5" – 17" 17" 14" 159 oz.

4" x 24" (102 x 610 mm) 51 mm 51 mm 38 mm 432 mm 432 mm 356 mm 4500 g

BB5x26 2.4" 2.4" 1.8" – 19" 19" 16" 254 oz.

5" x 26" (127 x 660 mm) 61 mm 61 mm 46 mm 483 mm 483 mm 406 mm 7200 g

BB6x26 3.3" 2.7" 2.0" 1.5" 19" 19" 16" 441 oz.

6" x 26" (152 x 660 mm) 84 mm 68 mm 50 mm 38 mm 483 mm 483 mm 406 mm 12500 g

BB7x26 3.5" 3.5" 2.2" 2.2" 19" 19" 16" 530 oz.

7" x 26" (178 x 660 mm) 89 mm 89 mm 56 mm 56 mm 483 mm 483 mm 406 mm 15000 g

BB9x26 4.0" 4.0" 2.5" 2.5" 19" 19" 16" 742 oz.

9" x 26" (229 x 660 mm) 102 mm 102 mm 64 mm 64 mm 483 mm 483 mm 406 mm 21000 g

Maximum Splice Bundle Capacities (Straight Splice) for Better Buried Compound

Compression Kits

Product Number 4000-DWP or UR Connectors UPC

25-pair modular connector (w/3" Pigtails)

BB2x12CC SB/2SC-LHS 50 pr., 24 AWG (0.5 mm) 25 pr., 22 AWG (0.6 mm) 054007-91422

BB3x12CC SB/2SC-LHS 100 pr., 22 AWG (0.6 mm) 75 pr., 22 AWG (0.6 mm) 054007-91572

BB2x24CC SB/2SC-LHS 100 pr., 24 AWG (0.5 mm) 50 pr., 22 AWG (0.6 mm) 054007-91423

BB3x24CC SB/2SC-LHS 200 pr., 24 AWG (0.5 mm) 100 pr., 22 AWG (0.6 mm) 054007-92836

BB4x24CC SB/2SC-LHS 400 pr., 24 AWG (0.5 mm) 200 pr., 22 AWG (0.6 mm) 054007-91424

BB5x26CC SB/2SC-LHS 600 pr., 24 AWG (0.5 mm) 300 pr., 22 AWG (0.6 mm) 054007-92837

BB6x26CC SB/2DC-LHS 900 pr., 24 AWG (0.5 mm) 400 pr., 22 AWG (0.6 mm) 054007-91425

BB7x26CC SB/2DC-LHS 1200 pr., 24 AWG (0.5 mm) 600 pr., 22 AWG (0.6 mm) 054007-92838

BB9x26CC SB/2DC-LHS 2400 pr., 24 AWG (0.5 mm) 900 pr., 22 AWG (0.6 mm) 054007-92839

BB/CC-R Reentry Kit – – 054007-92842

144

3M™Scotchcast™Closures 89 Series

8981/High Gel, 8982/High Gel,

8983/High Gel, 8984/High Gel,

8985/High Gel, 8986/High Gel

RUS Listed

These rigid body closures use a

gravity fill method of encapsulating

and protecting cables. They are packed

with 4442 High Gel Re-enterable

Encapsulant/8882 High Gel

Re-enterable Encapsulant for easy

re-entry and include:

•3M

™Scotchlok™4462-Shield Bond

Connectors

• Scotch®130C Tape

• Scotch®88T Tape

•3M

™Scotchcast™4435 Sheath Scuff

RUS Listed

211

Ordering Information for 3M Scotchcast Closures 89 Series/Re-enterable Encapsulant

Product number 8981 8982-4462 8983-4462 8984-4462 8985-4462 8986-4462

High Gel High Gel High Gel High Gel High Gel High Gel

Splice Bundle Diameter mm (in.) 13 (0.5) 23 (0.9) 32 (1.25) 57 (2.25) 88 (3.5) 119 (4.75)

Max. Splice Opening mm (in.) 38 (1.5) 132 (5.25) 244 (9.75) 225 (9.0) 425 (17) 425 (17)

Closure Length End To End mm (in.) 182 (7.2) 273 (10.75) 396 (15.6) 400 (15.75) 622 (24.5) 635 (24.5)

Scotchlok Connector UR2/UR 4-pr. 18-pr. 50-pr. 100-pr. 400-pr. 600-pr.

MS2™ 4000 DWP Module Splice

Maximum Pair Capacity – – 50-pr. 100-pr. 400-pr. 600-pr.

Approx. Compound Included 90 ml 300ml 660 ml 1,320 ml 2,640 ml 6,600 ml

(82 grams) (266 grams) (600 grams) (1,200 grams) (3,000 grams) (6,000 grams)

Packaging 1/box 10/cs. 1/cs. 1/cs. 1/cs. 1/cs. 1/cs.

kgs (lbs.) 2.9 (6.4) 5.7 (12.5) 10.3 (22.6) 2.1 (4.6) 4.7 (10.3) 9.1 (20.0

Minimum Order 10 kits 10 kits 10 kits 1 kit 1 kit 1 kit

UPC 051138-36496 051138-36497 051138-36498 051138-36499 051138-36500 051138-36501

Additional products needed to complete this closure: 4458 Pair Save; Scotchlok™, MS2™ or 710 Connectors.

Closure Selection Guide

To order Scotchcast Closures 89 Series, follow these steps:

1. What is your pair count?

2. What is your cable size?

3. What is your sheath opening?

4. What type of connector are you using? Module (MS2or 710) or Discrete (Scotchlok)?

Note: Bundles built with modular connectors are half the size of discretes.

5. What is your splice bundle diameter?

These questions should guide you in choosing the correct closure.

Ordering Information for 8882 Re-enterable Closures

Product Number UPC

8981-8882 051115-14653

8982-8882 051115-14654

8983-8882 051115-14655

8984-8882 051115-14656

8985-8882 051115-14657

8986-8882 051115-14658

(2) 19 5" (495 mm

145

Ordering Information for 3M

™

Scotchcast

™

Closures 89 Series/Hard Encapsulant (non re-enterable)

Product Number 8981-07 8982-07 8983-07 8984-07 8985-07 8986-07

Splice Bundle Diameter mm (in.) 13 (0.5) 23 (0.9) 32 (1.25) 57 (2.25) 88 (3.5) 119 (4.75)

Max. Splice Opening mm (in.) 38 (1.5) 132 (5.25) 244 (9.75) 225 (9.0) 425 (17) 425 (17)

Closure Length End To End mm (in.) 182 (7.2) 273 (10.75) 396 (15.6) 400 (15.75) 622 (24.5) 635 (24.5)

Scotchlok Connector UR2/UR 4-pr. 18-pr. 50-pr. 100-pr. 400-pr. 600-pr.

MS24000 DWP Module Splice

Maximum Pair Capacity – – – 100-pr. 400-pr. 600-pr.

Approx. Compound Included 90 ml 300ml 660 ml 1,320 ml 2,640 ml 6,600 ml

(94 grams) (300 grams) (675 grams) (1,350 grams) (3,375 grams) (6,750 grams)

Packaging 1/box 10/cs. 1/box 10/cs. 1/box 10/cs. 1/cs. 1/cs. 1/cs.

kgs (lbs.) 3.1 (6.8) 6.2 (13.6) 11.2 (24.7) 2.1 (4.6) 4.9 (10.7) 9.3 (20.5)

Minimum Order 10 kits 10 kits 10 kits 1 kit 1 kit 1 kit

UPC 054007-30851 054007-30852 054007-30853 054007-33376 054007-33374 054007-30854

Additional products needed to complete this closure: 4458 Pair Saver; Scotchlok, MS2or 710 Connectors; Bonding Strap; Tapes (88T tape, DR tape, B sealing tape

strips); Shield Bond Connectors; Sheath-Stuff; Cable Ties.

3M™Scotchcast™PIC

Encapsulating Closure Kits

(Non Re-enterable)

These rigid body closures are made

of translucent polypropylene and are

packed with 4407 Urethane Compound

and rubber tape strips for sealing ends

of closure. 212

Kit Contents

4407 Kit 8981 8982 8983 8984 8985 8986

Left and Right Closure Halves yes yes yes – – –

Upper and Lower Closure Halves – – – yes yes yes

Pour Spouts (2) (2) (2) – – –

#23 Tape Strips (3) (3) (3) (3) (3) (3)

Spacer Web yes yes yes yes yes yes

Cover – – – yes yes yes

Fiberglass Strip-Bulk Roll – – – (2) (2) (2)

4407 Encapsulating Compound yes yes yes yes yes yes

4442 Kit 8981 8982 8983 8984 8985 8986

Left and Right Closure Halves yes yes yes – – –

Upper and Lower Closure Halves – – – yes yes yes

4442 Encapsulating Compound yes yes yes yes yes yes

4464 Service Wire Shield Connector yes – – – – –

4460-D Shield Bond Connectors (2) yes yes (2) – –

4462-FN Shield Connectors – – – – (4) (4)

Strain Relief Bar – – – 11.5" (292 mm)

(2) 9.5" (495 mm) (2) 19.5" (495 mm)

Bonding Strap 6.5" (165 mm) – yes yes – – –

Pour Spouts (2) (2) (2) – – –

#23 Tape Strips (3) – – – – –

DR Tape – (1) (1) (1) (1) (1)

88T Vinyl Tape – (1) (1) (1) (1) (1)

B Sealant Tape Strips – (1) (1) (2) (2) (2)

Spacer Web yes yes yes yes yes yes

Spacer Tube – yes yes yes (2) (2)

Sheath Scuff – (1) (1) (1) (1) (1)

Cable Ties (2) (2) (2) (2) (2) (2)

Cover – – – yes yes yes

146

3M™SLiC™5-Pair Buried

Service Wire Kit

Protecting a buried service wire splice

is now easier than ever with the SLiC

Buried Service Wire Kit. The BSW

kit is a three-part, rigid body closure

that self-encapsulates two- and five-

pair buried service wire. It has a built-

in bonding system that bonds the

buried service wire shield as the splice

is put together—and it contains a

revolutionary new sealant.

The special formulated sealant is a

one-part, no-mix, non-urethane

product containing no grease. The

sealant serves as an electrical insulator

and reacts upon moisture contact to

prevent water ingression. At the point

of water incursion, the sealant hardens

and forms a water-resistant barrier.

3M™Scotchcast™Buried

Service Wire Splicing/Cable

Capping Kit 3817

For buried service wire splicing and

end capping. Kit contains T foam

spacer pad, 17 compound in “J” size

bag, 75 g (2.65 oz.) Unipak container.

Packaged in poly bag with

instructions.

3M™Scotchcast Cable

Capping Kit 3821

Designed specifically for cable capping,

this kit includes a clear plastic cup. The

3821 kit accepts a 300-pair 0.6 mm (22

AWG) or 400-pair 0.5 mm (24 AWG).

Also included in the kit is fast

curing 17 compound in the Unipak

Container. Instructions are provided.

38 mm (1-1/2") O.D.

3M™Scotchcast Buried

Service Wire Splice Kit 3832

The Scotchcast Buried Service Wire

Splice Kit 3832 will accommodate

inline and butt splices of up to five-

pair filled or unfilled service wire. One

“A” size bag of 4403 encapsulant and

a split bolt are provided with the kit.

Once the compound has been poured,

an outer tube is rotated over the barrel

opening to seal the unit, requiring no

waiting for the compound to cure

before the kit is buried.

3M™PST/Gel Buried Service

Wire Splice Kit 3838

The 3838 PST/Gel Buried Service

Splice Kit is a flexible and “non-

compound” splicing system that

provides fast, reliable and easy

protection. This kit will accommodate

inline, butt and extended splices of up

to six pair buried service wire. The

new kit utilizes non-toxic PST and

Gel technology and provides an

excellent waterproof environment.

It meets tough qualification tests

such as impact and pull-out resistance,

water immersion and freeze thaw

cycle test in wet sand. The shield

bond connector is specially designed

to provide good electrical continuity

and strain relief at the same time.

The 3838 PST/Gel buried service

wire kit is simple to use and requires

minimal training.

214

216

215

217

218

213

147

Ordering Information for Buried Service Wire and End Capping Kits

Product Number Packaging Min. Order UPC

kg (lbs.)/cs.

SLiC™5-pair Buried Service Wire Kit 1 kit/bag, 12 kits/cs. 12 kits 054007-71531

2.3 (5.0)

3817 Buried Service Wire Splicing/Cable Capping Kit 1 kit/bag, 12 cs. 12 kits 054007-32217

38.100 mm (1 1/2"), O.D. 1.45 (3.2)

3832 Buried Service Wire Splice Kit with Split Bolt 1/bag, 12/cs. 12 kits 054007-32224

1.9 (4.2)

3821 Cable Capping Kit 1/bag, 12/cs. 12 kits 054007-32220

22.225 mm + 38.100 mm (7/8"+ 1 1/2") O.D. 1.7 (3.8)

3838 PST/Gel Buried Service Wire Splice Kit 1 kit/1 box (.625 lbs) 1 kit 054007-11455

includes the Gel Blanket (1)

following: 4360 Pull ‘N’ Shrink Tubing (1)

4463 Shield Bond Assembly (1)

23 Tape Strip (1)

3838 PST/Gel Buried Service Wire Splice Kit

PST/Gel technology Proven reliability; waterproof performance

saves maintenance costs, keeps lines up and

running

Passes freeze/thaw cycle test in wet sand No return dig-ups; saves repair costs

Used for butt and in-line splicing Addresses multiple splicing configurations;

reduces inventory hassles and costs

No encapsulant mixing Reduces installation time and reduces waste

Universal sizing, "push type" strain relief Fits all needs; inventory savings. No special

and shield connector tools required; no tooling costs

Fewer piece parts Fast assembly; reduced labor

No compound No curing time; can be buried immediately

Easy installation Craft friendly with minimal training

Applicable in extreme temperatures No scheduling or weather constraints

148

A pressure encapsulation technique

for spliced connections of filled

communication cable using the

3M 2-Type Closure System. For

underground or direct buried

applications in straight or multiple

branch configurations.

The PEAK Closure Kit provides

moisture protections and prevents

water migration into the splice bundle.

The closure is impact-tough and

provides double protection as static

air pressure surrounds the encapsulated

splice. The closure is re-enterable

and made for use with (PIC) filled,

waterproof cable.

This encapsulated closure system

will accommodate the entrance of

up to four cables, 81mm (3.2") in

diameter and up to 3,000 pairs of

copper conductor splices. It will also

allow cable sheath openings from

254 mm (10") to 914 mm (36").

3M™2-Type PEAK (Pressure

Encapsulated Apparatus Kit)

219

Ordering Information for 2-Type PEAK Closure Guide –

Re-entry Kits, Accessories and Replacement Parts

Product 2-Type Max. Splice Sheath Max. Encaps. Approx. Min. UPC

Number Cover Bundle Dia. Opening Number Req. Weight Order 051138-

Assembly mm (in.) mm (in.) Cable Pairs grams kg (lbs.)

PEAK Pressure Wrap Kit

PEAK-PWK-A 2B2A 152 (6.0) 483 (19.0) 900 5400 1.4 (3) 1 kit 78027

2C2A 178 (7.0) 483 (19.0) 1500 8450

2D2A 216 (8.5) 483 (19.0) 2400 10800

PEAK-PWK-B 2B2B 152 (6.0) 699 (27.5) 1500 6650 1.8 (4) 1 kit 78029

2C2B 178 (7.0) 699 (27.5) 2100 12000

2D2B 216 (8.5) 699 (27.5) 2700 15600

PEAK-PWK- C 2B2C 152 (6.0) 914 (36.0) 1800 9000 2.3 (5) 1 kit 78030

2C2C 178 (7.0) 914 (36.0) 2400 15600

2D2C 216 (8.5) 914 (36.0) 3000 21600

Closure Selection Guide

To order PEAK, follow these steps:

1. What is your pair count?

2. What is your cable size?

3. What is your sheath opening?

4. What type of connector are you using? Module (MS2or 710) or Discrete (Scotchlok)?

Note: Bundles built with modular connectors are half the size of discretes.

5. What is your splice bundle diameter?

These questions should guide you in choosing the correct closure.

149

Product 2-Type Sheath Encapsulant Approx. Min. UPC

Number Cover Opening Requirements* Weight Order 051138-

Assembly mm (in.) grams kg (lbs.)

PEAK Re-entry Kits

PEAK-RK-A 2B2A 483 (19.0) 5400 1.8 (4 ) 1 kit 78031

2C2A 483 (19.0) 8450

2D2A 483 (19.0) 10800

PEAK-RK-B 2B2B 699 (27.5) 6650 2.3 (5 ) 1 kit 78033

2C2B 699 (27.5) 12000

2D2B 699 (27.5) 15600

PEAK-RK-C 2B2C 914 (36.0) 9000 2.3 (5 ) 1 kit 78034

2C2C 914 (36.0) 15600

2D2C 914 (36.0) 21600

One (1) each PEAK re-entry kit is required for each closure reentry. Standard package = Kit. Minimum Order/Ordering Multiple = 1 Kit.

NOTE: 1. AAAA, AAA, AA, A = 1 roll required - B, C = 2 rolls required.

2. *PEAK Pressure Wrap Kit does not include encapsulant or Pressure Wrap Tape. Encapsulant requirements will vary due

to connector type and splicing method used.

Ordering Information for 3M

™

PEAK System –

Re-entry Kits, Accessories and Replacement Parts for the PEAK System

Product Endplate 2-Type Cover Number of Max. Diameter Approx. Min. UPC

Number Diameter Assembly Kit Cable Ea. Cable Opening Weight Order 051138-

mm (in.) Openings mm (in.) kg (lbs.)

PEAK Endplate Kits

PEAK-A1E 134 (5.25) 2A2 Series 1 56 (2.2) 1.4 (3) 1 kit 78019

PEAK-B1E 178 (7.0) 2B2 Series 1 81 (3.2) 1.8 (4) 1 kit 78020

PEAK-B2E 178 (7.0) 2B2 Series 2 56 (2.2) 56 (2.2) 2.7 (6) 1 kit 78021

PEAK-C1E 203 (8.0) 2C2 Series 1 81 (3.2) 2.3 (5) 1 kit 78022

PEAK-D1E 241 (9.5) 2D2 Series 1 81 (3.2) 2.3 (5) 1 kit 78023

PEAK-D2E 241 (9.5) 2D2 Series 2 81 (3.2) 81 (3.2) 3.6 (8) 1 kit 78024

PEAK-D3E 241 (9.5) 2D2 Series 3 81 (3.2) 56 (2.2) 56 (2.2) 3.6 (8) 1 kit 78025

A complete PEAK pressure wrap system requires:

One (1) PEAK pressure wrap kit, one (1) 2-type cover assembly and two (2) PEAK endplate assembly kits.

Standard package = Kit. Minimum Order/Ordering Multiple = 1 Kit.

Ordering Information for 3M

™

PEAK System Accessories

Product Descriptions/Dimensions Min. Order/ Weight per Min. Order UPC

Number mm (in.) Quantity kg (lbs.) 051138-

PEAK Accessories

PWK-BB-14 Bond Bar- 355.0 (14.0) 1 0.2 (0.43) 78751

PWK-BB-23 Bond Bar- 584.0 (23.0) 1 0.2 (0.44) 78037

PWK-BB-32 Bond Bar- 812.0 (32.0) 1 0.3 (0.61) 78038

PWK-BB-40 Bond Bar- 1,016 (40.0) 1 0.4 (0.88) 78039

PWK-PWT-100 Pressure Wrap Tape 1 0.3 (0.77) 78040

PEAK Tape

PWK-127T-72 72-inch roll 1 pkg of 20 Rolls 7.3 (16) 78036

PWK-127T-72 – Sealing tape used to seal liner against endplate flange adapter.

NOTE:AAAA, AAA, AA, A = 1 roll required - B, C = 2 rolls required.

Product Referral Generator

150

A complete pressure

tight re-enterable closure

system for enclosing

spliced connections of

communications cables

in a wide variety of

applications.

The 2-type Closure is available in a

wide variety of closure lengths and

diameters. Lengths range from 470

mm (18-1/2") to over 2096 mm

(82-1/2") and closure diameters range

from 77 mm (3") to 305 mm (12").

The 2-type kit comes complete with all

the components needed to install the

cover and end plates. The only tool

required for installation is a washer

cutter tool.

Each complete 2-Type Cover Kit

Selection Contains:

• Cover assembly with channel

bars and bolts

• Transparent splice wrap with

cable ties

• Cover sealing R-Type re-enterable

sealing tape

• Endplate sealing R-Type

re-enterable sealing tape

• Solvent cleaning wipe and

plastic gloves

• Back cover support clips with

cable ties

• Pressurization valve

• Internal shield continuity braid

with insulation

• External grounding ribbon

• Vented and solid continuity and

ground connectors with hex nuts

• Assembly Instructions

Each complete 2-Type Endplate Kit

Selection Contains:

• Endplate assembly with sheath

grip clamps

• Cable collar build-up R-Type

re-enterable sealing tape material

• Endplate mid-section sealing

R-Type re-enterable sealing tape

• Solvent cleaning wipe and

plastic gloves

• Cable diameter measuring tape

• Shield connector

• Cable sheath scuff

• Hose clamps for securing sheath

grip clamps to cable

• Additional sheath grip clamps

• Universal slotted washers for

sealing cable entrances

• Assembly Instructions

220

™

2-Type Pressurized Closures

3M™710 Modules pg. 22

3M™MS2™ Modules pg. 6

Tapes pg. 189

Splicing Rigs & Tools pg. 12

Closure Selection Guide

To order 2-Type Pressurized Closures, follow these steps:

1. What is your pair count?

2. What is your cable size?

3. What is your sheath opening?

4. What type of connector are you using? Module (MS2or 710) or Discrete (Scotchlok)?

Note: Bundles built with modular connectors are half the size of discretes.

5. What is your splice bundle diameter?

These questions should guide you in choosing the correct closure.

2-Type Closure System Ordering Code Inside Diameter 1/ : 77 mm 11 ') x 7 102 mm (4”) A 7 134 mm (5114") 11 7 173 mm (7 ‘) C 7 2m mm (x ‘1 1) 7 241 mm (971/2) 15 7 w; nun(lZ“] Inner I 11! Manufacture 2 : Sundud A 7 Fun kcurdam zType Series Illslde Diameter Y 7 77 mm (3“) x 710211111114") A 7114 mm 1571/4“) 13 1711 mm 17") c 7 201 mm 111") 1) 7 241 mm 1071/2”) F 7 105 11111102“) Covers 2D2A T_ Endplales 2D2-1E T— overall Lenglh ol cover AA 7 A70mm 113712) A 7 519 mm (274/2) 11 7 Wm". (15“1 C 7 1110 mm (4471/2“) D' 71232mm14371/2 ) ' 340 mm (5273/4‘) 4411 mm 157") 15m mm (c.1712) mm mm (654/?) 772 mm («71/ ) 880 mm (74”1 K‘ 71994mm17371/2“) 12 20% mm (3271/2“) Lnswm 31m -Type Closure System Ordering Code Number ol Gable Entries in Endplale Material or Manulachlre 2 : Smmlunl 4 : Fm; Rchu'dnm

151

152

Ordering Information for 3M

™

2-Type 2A2 Standard Closures (5-1/4" Diameter)

Product Inside Overall Sheath Max. Splice Pkg. Min. UPC

Number Diameter Length Opening Number Banks kg (lbs.) Order 051138-

mm (in.) mm (in.) mm (in.) Cable Pairs (each)

Cover Halves Assembly Selection

2A2AA-510 134 (5.25) 470 (18.5) 254 (10.0) 400 1 5.0 (11) 1 77133

2A2A-510 134 (5.25) 699 (27.5) 483 (19.0) 600 2 6.8 (15) 1 77126

2A2B-510 134 (5.25) 914 (36.0) 699 (27.5) Custom 3 8.6 (19) 1 77137

2A2C-510 134 (5.25) 1130 (44.5) 914 (36.0) Custom 4 10 (22) 1 77138

2A2F-510 134 (5.25) 1448 (57.0) 1232 (48.5) Custom – 14 (31) 1 77139

2A2H-510 134 (5.25) 1664 (65.5) 1448 (57.0) Custom – 16 (35) 1 77003

2A2K-510 134 (5.25) 1994 (78.5) 1778 (70.0) Custom – 18 (39) 1 77004

Ordering Information for 3M

™

2-Type 2A2 Standard Closure Kits

Product Endplate Cable Max. Diameter Pkg. Min. UPC

Number Diameter Openings Each Cable Opening kg (lbs.) Order 051138-

mm (in.) mm (in.) (each)

Endplate Selection

2A2-1E-510 134 (5.25) 1 56 (2.2) 1.4 (3) 1 77108

2A2-2E-510 134 (5.25) 2 41 (1.6) 33 (1.3) 1.4 (3) 1 77113

Grommet Selection

2A4-6E-130 134 (5.25) 6 28 (1.1) up to 33 (1.3) 1.4 (3) 1 77144

2A4-6S-130 134 (5.25) 6 28 (1.1) up to 33 (1.3) 0.9 (2) 1 77145

2A4-9E 134 (5.25) 9 22 (0.88) up to 28 (1.1) 1.4 (3) 1 77146

2A4-9S 134 (5.25) 9 22 (0.88) up to 28 (1.1) 1.4 (3) 1 77147

A complete 2-Type Closure System requires:

1 cover assembly kit and 2 endplate kits or 1 cover assembly kit, 1 endplate kit and 1 grommet kit.

NOTE: 1. Custom cover lengths are available on a special order basis.

2. Custom grommet hole configurations are available on a special order basis.

3. Bonding hardware included with solid grommets only.

4. Maximum number of cable pairs based on 0.51/0.40 mm (24/26") gauge cable using 25 pair modular connectors for straight,

in-line splice.

Ordering Information for 3M

™

2-Type 2A2 Standard Closure Kits (cover and endplates in kit)

Product Name Product Description UPC

2A2A-2-510 1 cable in, 1 cable out 051138-78787

2A2A-3-510 1 cable in, 2 cables out 051138-78788

Note: To determine maximum cable diameter, refer to the endplate selection chart on page 97. 1 cable = 1E, 2 cables = 2E, 3 cables = 3E.

153

Ordering Information for 3M

™

2-Type 2B2 Standard Closures (7" Diameter)

Product Inside Overall Sheath Max. Splice Pkg. Min. UPC

Number Diameter Length Opening Number Banks kg (lbs.) Order 051138-

mm (in.) mm (in.) mm (in.) Cable Pairs (each)

Cover Halves Assembly Selection

2B2AA-510 178 (7.0) 470 (18.5) 254 (10.0) 600 1 6 (13) 1 77206

2B2A-510 178 (7.0) 699 (27.5) 483 (19.0) 1200 2 8 (17) 1 77197

2B2B-510 178 (7.0) 914 (36.0) 699 (27.5) 2100 3 10 (22) 1 77213

2B2C-510 178 (7.0) 1130 (44.0) 914 (36.0) 2700 4 12 (27) 1 77218

2B2D-510 178 (7.0) 1232 (48.5) 1016 (40.0) Custom – 14 (31) 1 77014

2B2E-510 178 (7.0) 1340 (52.8) 1124 (44.3) Custom – 15 (33) 1 77015

2B2F-510 178 (7.0) 1448 (57) 1232 (48.5) Custom – 16 (36) 1 77221

2B2I-510 178 (7.0) 1772 (69.75) 1556 (61.25) Custom – 20 (44) 1 77016

2B2J-510 178 (7.0) 1880 (74.0) 1664 (65.5) Custom – 21 (46) 1 77222

2B2K-510 178 (7.0) 1994 (78.5) 1778 (70.0) Custom – 22 (49) 1 77017

Ordering Information for 3M

™

2-Type 2B2 Standard Closure Kits (cover and endplates in kit)

Product Name Product Description UPC

2B2A-2-510 1 cable in, 1 cable out 051138-78791

2B2A-3-510 1 cable in, 2 cables out 051138-77193

2B2A-4-510 1 cable in, 3 cables out 051138-78792

2B2A-5-510 2 cables in, 3 cables out 051138-78793

Note: To determine maximum cable diameter, refer to the endplate selection chart on page 97. 1 cable = 1E, 2 cables = 2E, 3 cables = 3E.

Product Endplate Cable Max. Diameter Pkg. Min. UPC

Number Diameter Openings Each Cable Opening kg (lbs.) Order 051138-

mm (in.) mm (in.) (each)

Endplate Selection

2B2-1E-510 178 (7.0) 1 86 (3.4) 1.8 (4) 1 77158

2B2-2E-510 178 (7.0) 2 56 (2.2) 56 (2.2) 2.3 (5) 1 77168

2B2-3E-510 178 (7.0) 3 56 (2.2) 25 (1.0) 25 (1.0) 2.3 (5) 1 77180

Grommet Selection

2B4-9E-130 178 (7.0) 9 28 (1.1) up to 33 (1.3) 2.3 (5) 1 77232

2B4-9S-130 178 (7.0) 9 28 (1.1) up to 33 (1.3) 1.8 (4) 1 77233

2B4-12E 178 (7.0) 12 22 (0.88) up to 28 (1.1) 2.3 (5) 1 77223

2B4-12S 178 (7.0) 12 22 (0.88) up to 28 (1.1) 2.3 (5) 1 77224

A complete 2-Type Closure System requires:

1 cover assembly kit and 2 endplate kits or 1 cover assembly kit, 1 endplate kit and 1 grommet kit.

NOTE: 1. Custom cover lengths are available on a special order basis.

2. Custom grommet hole configurations are available on a special order basis.

3. Bonding hardware included with solid grommets only.

4. Maximum number of cable pairs based on 0.51/0.40 mm (24/26") gauge cable using 25 pair modular connectors for straight,

in-line splice.

Ordering Information for 3M

™

2-Type 2B2 Standard Closure Kits

154

Ordering Information for 3M

™

2-Type 2C2 Standard Closures (8" Diameter)

Product Inside Overall Sheath Max. Splice Pkg. Min. UPC

Number Diameter Length Opening Number Banks kg (lbs.) Order 051138-

mm (in.) mm (in.) mm (in.) Cable Pairs (each)

Cover Halves Assembly Selection

2C2A-510 203 (8.0) 699 (27.5) 483 (19.0) 1800 2 8.6 (19) 1 77276

2C2B-510 203 (8.0) 914 (36.0) 699 (27.5) 3600 3 11 (25) 1 77287

2C2C-510 203 (8.0) 1130 (44.5) 914 (36.0) 4200 4 14 (30) 1 77293

2C2D-510 203 (8.0) 1232 (48.5) 1016 (40.0) Custom – 17 (37) 1 77296

2C2E-510 203 (8.0) 1340 (52.75) 1124 (44.25) Custom – 18 (39) 1 77297

2C2F-510 203 (8.0) 1448 (57.0) 1232 (48.5) Custom – 19 (41) 1 77298

2C2G-510 203 (8.0) 1563 (61.5) 1346 (53.0) Custom – 21 (46) 1 77299

2C2H-510 203 (8.0) 1664 (65.5) 1448 (57.0) Custom – 21 (47) 1 77300

2C2I-510 203 (8.0) 1772 (69.75) 1556 (61.25) Custom – 23 (50) 1 78632

2C2J-510 203 (8.0) 1880 (74.0) 1664 (65.5) Custom – 24 (52) 1 77301

2C2K-510 203 (8.0) 1994 (78.5) 1778 (70.0) Custom – 25 (55) 1 78633

2C2L-510 203 (8.0) 2096 (82.5) 1880 (74.0) Custom – 26 (57) 1 77302

2C2AA-510 203 (8.0) 470 (18.5) 254 (10.0) Custom 1 6.8 (15) 1 77532

Product Endplate Cable Max. Diameter Pkg. Min. UPC

Number Diameter Openings Each Cable Opening kg (lbs.) Order 051138-

mm (in.) mm (in.) (each)

Endplate Selection

2C2-1E-510 203 (8.0) 1 86 (3.4) 1.8 (4) 1 77244

2C2-2E-510 203 (8.0) 2 71 (2.8) 71 (2.8) 2.7 (6) 1 77251

2C2-3E-510 203 (8.0) 3 71 (2.8) 41 (1.6) 41 (1.6) 2.7 (6) 1 77258

Grommet Selection

2C4-12E-130 203 (8.0) 12 28 (1.1) up to 33 (1.3) 2.7 (6) 1 77303

2C4-12S-130 203 (8.0) 12 28 (1.1) up to 33 (1.3) 2.7 (6) 1 77304

2C4-18E 203 (8.0) 18 22 (0.88) up to 28 (1.1) 2.7 (6) 1 77305

2C4-18S 203 (8.0) 18 22 (0.88) up to 28 (1.1) 2.7 (6) 1 77306

A complete 2-Type Closure System requires:

1 cover assembly kit and 2 endplate kits or 1 cover assembly kit, 1 endplate kit and 1 grommet kit.

NOTE: 1. Custom cover lengths are available on a special order basis.

2. Custom grommet hole configurations are available on a special order basis.

3. Bonding hardware included with solid grommets only.

4. Maximum number of cable pairs based on 0.51/0.40 mm (24/26") gauge cable using 25 pair modular connectors for straight,

in-line splice.

Ordering Information for 3M

™

2-Type 2C2 Standard Closure Kits (cover and endplates in kit)

Product Name Product Description UPC

2C2A-2-510 1 cable in, 1 cable out 051138-78628

2C2A-3-510 1 cable in, 2 cables out 051138-78629

2C2A-4-510 1 cable in, 3 cables out 051138-78630

2C2A-5-510 2 cables in, 3 cables out 051138-78798

Note: To determine maximum cable diameter, refer to the endplate selection chart on page 97. 1 cable = 1E, 2 cables = 2E, 3 cables = 3E.

Ordering Information for 3M

™

2-Type 2C2 Standard Closure Kits

155

Ordering Information for 3M

™

2-Type 2D2 Standard Closures and Kits (9-1/2" Diameter)

Product Inside Overall Sheath Max. Splice Pkg. Min. UPC

Number Diameter Length Opening Number Banks kg (lbs.) Order 051138-

mm (in.) mm (in.) mm (in.) Cable Pairs (each)

Cover Halves Assembly Selection

2D2AA-510 241 (9.5) 470 (18.5) 254 (10.0) Custom 1 8.2 (18) 1 77362

2D2A-510 241 (9.5) 699 (27.5) 483 (19.0) 3300 2 10 (22) 1 77358

2D2B-510 241 (9.5) 914 (36.0) 699 (27.5) 4200 3 13 (29) 1 77365

2D2C-510 241 (9.5) 1130 (44.5) 914 (36.0) 4800 4 16 (35) 1 77370

2D2D-510 241 (9.5) 1232 (48.5) 1016 (40.0) Custom – 18 (40) 1 77373

2D2E-510 241 (9.5) 1340 (52.75) 1124 (44.25) Custom – 20 (43) 1 77374

2D2F-510 241 (9.5) 1448 (57.0) 1232 (48.5) Custom – 21 (46) 1 77375

2D2G-510 241 (9.5) 1563 (61.5) 1346 (53.0) Custom – 23 (50) 1 77376

2D2H-510 241 (9.5) 1664 (65.5) 1448 (57.0) Custom – 24 (53) 1 77377

2D2I-510 241 (9.5) 1772 (69.75) 1556 (61.25) Custom – 25 (56) 1 77378

2D2J-510 241 (9.5) 1880 (74.0) 1664 (65.5) Custom – 27 (59) 1 77379

2D2K-510 241 (9.5) 1994 (78.5) 1778 (70.0) Custom – 28 (62) 1 77380

2D2L-510 241 (9.5) 2096 (82.5) 1880 (74.0) Custom – 29 (64) 1 77381

Product Endplate Cable Max. Diameter Pkg. Min. UPC

Number Diameter Openings Each Cable Opening kg (lbs.) Order 051138-

mm (in.) mm (in.) (each)

Endplate Selection

2D2-1E-510 241 (9.5) 1 86 (3.4) 2.3 (5) 1 77323

2D2-2E-510 241 (9.5) 2 86 (3.4) 86 (3.4) 3.2 (7) 1 77330

2D2-3E-510 241 (9.5) 3 86 (3.4) 56 (2.2) 56 (2.2) 3.2 (7) 1 77339

Grommet Selection

2D4-18E 241 (9.5) 18 22 (0.88) up to 28 (1.1) 3.6 (8) 1 77383

2D4-18S 241 (9.5) 18 22 (0.88) up to 28 (1.1) 3.6 (8) 1 77385

2D4-18E-130 241 (9.5) 18 28 (1.1) up to 33 (1.3) 3.6 (8) 1 77384

2D4-18S-130 241 (9.5) 18 28 (1.1) up to 33 (1.3) 3.2 (7) 1 77386

2D4-27E 241 (9.5) 27 22 (0.88) up to 28 (1.1) 3.6 (8) 1 77389

2D4-27S 241 (9.5) 27 22 (0.88) up to 28 (1.1) 3.2 (7) 1 77390

2D4-36E 241 (9.5) 36 22 (0.88) up to 28 (1.1) 3.6 (8) 1 77394

2D4-36S 241 (9.5) 36 22 (0.88) up to 28 (1.1) 3.2 (7) 1 77395

2D4-42E 241 (9.5) 42 22 (0.88) up to 28 (1.1) 3.6 (8) 1 77398

A complete 2-Type Closure System requires:

1 cover assembly kit and 2 endplate kits or 1 cover assembly kit, 1 endplate kit and 1 grommet kit.

NOTE: 1. Custom cover lengths are available on a special order basis.

2. Custom grommet hole configurations are available on a special order basis.

3. Bonding hardware included with solid grommets only.

4. Maximum number of cable pairs based on 0.51/0.40 mm (24/26") gauge cable using 25 pair modular connectors for straight,

in-line splice.

Ordering Information for 3M

™

2-Type 2D2 Standard Closure Kits (cover and endplates in kit)

Product Name Product Description UPC

2D2A-2-510 1 cable in, 1 cable out 051138-78635

2D2A-3-510 1 cable in, 2 cables out 051138-78636

2D2A-4-510 1 cable in, 3 cables out 051138-78637

2D2A-5-510 2 cables in, 3 cables out 051138-78803

2D2A-6-510 3 cables in, 3 cables out 051138-78639

Note: To determine maximum cable diameter, refer to the endplate selection chart on page 97. 1 cable = 1E, 2 cables = 2E, 3 cables = 3E.

156

Ordering Information for 3M

™

2-Type 2E2-DD Standard Closures (12" Diameter)

Product Inside Overall Sheath Max. Splice Pkg. Min. UPC

Number Diameter Length Opening Number Banks kg (lbs.) Order 051138-

mm (in.) mm (in.) mm (in.) Cable Pairs (each)

Cover Halves Assembly Selection

2E2A-DD-510 305 (12.0) 699 (27.5) 483 (19.0) 3300 2 12 (26) 1 77412

2E2B-DD-510 305 (12.0) 914 (36.0) 699 (27.5) 4200 3 16 (34) 1 77422

2E2C-DD-510 305 (12.0) 1130 (44.5) 914 (36.0) Custom 4 20 (43) 1 77433

2E2D-DD-510 305 (12.0) 1232 (48.5) 1016 (40.0) Custom – 21 (47) 1 77436

2E2E-DD-510 305 (12.0) 1340 (52.75) 1124 (44.25) Custom – 23 (50) 1 77439

2E2F-DD-510 305 (12.0) 1448 (57.0) 1232 (48.5) Custom – 25 (54) 1 77442

2E2G-DD-510 305 (12.0) 1563 (61.5) 1346 (53.0) Custom – 27 (59) 1 77444

2E2H-DD-510 305 (12.0) 1664 (65.5) 1448 (57.0) Custom – 28 (62) 1 77446

2E2I-DD-510 305 (12.0) 1772 (69.75) 1556 (61.25) Custom – 30 (65) 1 78643

2E2J-DD-510 305 (12.0) 1880 (74.0) 1664 (65.5) Custom – 31 (69) 1 77450

2E2K-DD-510 305 (12.0) 1994 (78.5) 1778 (70.0) Custom – 32 (71) 1 77452

2E2L-DD-510 305 (12.0) 2096 (82.5) 1880 (74.0) Custom – 34 (74) 1 77454
