ISMART IoT EVB U sssss Manual
<9 inventek="" systems="" embedding="" connectivity="" everywhere="" ismart="" ismart="" evb="" top=""> ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 1
ISMART
Inventek Systems Module ARduino Test
IoT Evaluation Board
User’s Manual
802.11a/b/g/n/ac + BT/BLE
c Inventek Systems
E”"“‘"9‘“"“”“""’EW’“ ISMAFIT loT EVB User’s Manual
ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 2
Contents
1 Definitions............................................................................................................................... 3
2 Introduction ............................................................................................................................. 4
2.1 ORDERING INFORMATION ........................................................................................... 5
2.2 ISMART IoT EVB Overview ............................................................................................. 5
2.3 ISMART IoT EVB Hardware Features .............................................................................. 6
3 System Requirements.............................................................................................................. 7
3.1 ISMART EVB Configuration for UART interface option ................................................. 7
4 The ISAFE– Arduino Pin Out Map ........................................................................................ 8
5 ISAFE EVB Schematics ......................................................................................................... 9
5.1 USB Schematic ................................................................................................................... 9
5.2 FTDI Schematic ................................................................................................................ 10
6 Temp Rating.......................................................................................................................... 11
7 Revision Control ................................................................................................................... 11
8 Contact Information .............................................................................................................. 12
c Inventek Systems
E”"“‘"?‘“"““”"VEW"“ ISMAFIT loT EVB User's Manual
https://www.inventeksvs.com/iwin/qettinq»star1ed-quide/
https://www.voutube.com/watch?v=Tq2-CYm-CBQ
https://www.voutube.com/watch?v=tkPOLaNAKHo
https://www.voutube.com/watch?v=Mzmi»0DcUu0
ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 3
1 Definitions
eS-WiFi: embedded Serial Wi-Fi
• Inventek’s “modular” wireless product offering (Radio + MCU + Certified
Antenna). These modules consist of 802.11a/b/g/n/ac Wi-Fi radios and
combinations of these radios with BT/BLE.
• All eS-WiFi module options support the same foot print enabling customers to
migrate across the entire eS-WiFi portfolio without requiring any changes to the
customer’s original PCB design.
• eS-WiFi modules include antenna certifications for Chip, Etched, and u.fl
antennas.
IWIN: Inventek Systems Wireless Interoperability Network:
• Inventek’s proprietary AT Command SW.
o All associated collateral and documentation can be found at
▪ https://www.inventeksys.com/iwin/getting-started-guide/
• Requires a Host processor to communicate to the eS-WiFi module serially.
• Video References:
o Inventek Systems 802.11 b/g/n Serial to Wi-Fi & IWIN AT Introduction:
▪ https://www.youtube.com/watch?v=Tq2-CYm-c8Q
o Inventek Systems 802.11 b/g/n Serial to Wi-Fi & IWIN AT Command Set
Tutorial:
▪ https://www.youtube.com/watch?v=tkPOLaNAKHo
o Inventek 802.11 b/g/n Serial to Wi-Fi Product Overview & AT Command
Set Tutorial:
▪ https://www.youtube.com/watch?v=Mzmi-0DcUu0
ISMART: Inventek Systems Module ARduino Test IoT Evaluation Board
• Arduino form factor/footprint, no Arduino driver support.
• No additional hardware is required other than a PC to use the ISMART
evaluation board.
• Please Note: The three-way switch on the ISMART evaluation board must be in
the position closest to the Wi-Fi module (Position 1, UART USB), and use a
USB cable to plug the ISMART evaluation board into your PC.
c Inventek Systems
Emnmngcwmnynmm ISMAHT IoT EVB User’s Manual
www.inventeksys.com
ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 4
2 Introduction
The Inventek ISMART (Inventek Systems Module Arduino Test) IoT evaluation board
platform is a user-friendly Arduino form factor compliant evaluation board suited for all
of your wireless application needs. Please note that there is no Arduino software
provided for this IoT development board.
The ISMART IoT evaluation board enables customers to quickly launch IoT products
based on Inventek’s eS-WiFi (embedded Serial Wi-Fi), portfolio of 802.11a/b/g/n/ac Wi-
Fi radios and combinations of those radios with BT/BLE, a Host MCU and certified chip,
etched or u.fl antenna options.
The ISMART IoT evaluation board is also supported by Inventek’s IWIN (Inventek
Wireless Interoperability Network), firmware which provides customers a robust user
friendly AT command set to simplify and accelerate IoT design and development. IWIN
enables customers to quickly get a Wi-Fi connected application up and running.
The ISMART IoT evaluation board plugs directly onto any target Arduino compatible
MCU/CPU/Sensor Development Board offering. The ISMART IoT evaluation board also
supports complete HW & SW IoT platform projects for various MCU requirements.
Examples of the ISMART IoT MCU Reference Design Projects include Infineon’s
XMC4500 MCUs, ST Micro’s STM32F MCUs, Analog Devices’ Shark DSP and CUP360
MCUs, and Cypress PSoC MCUs. In addition, the ISMART IoT MCU Reference Design
Projects also support third party Cloud applications such as AWS. For more information
on complete ISMART IoT MCU Reference Design Projects, please visit:
➢ www.inventeksys.com
➢ AT Command Support
➢ IoT MCU Reference Designs
The ISMART IoT Evaluation Board User’s Manual provides a detailed hardware and
software requirements overview as well as all required board connections.
c Inveniek Systems
E”"”“‘"9‘“"“”“‘"’EW"“ ISMART loT EVB User's Manual
www.invemeksys.com
ISMART IoT EVB
UART Swiich
:0“ “gig: eS-WiFiModules
Z zziiuAR‘russ (Radin+MCU+CertifiedAntenna)
/ ISM43361: 2 46 Wi F', ARM Cortex” M3
, _/ ISM43903: 24G WI Fi ARM Cortexw R4
, ISM4343: 2. 4G Wi Fi + BT/BLE ARM CortexMMA
3: ISM4334D. 2 46/56 Wi Fi + BT/BLE, ARM Cortex'“M4
ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 5
2.1 ORDERING INFORMATION
NOTE:
• All ISMART EVBs are configured for the UART interface option.
• For SPI support, please download the appropriate SPI FW update from Inventek’s
website, www.inventeksys.com
• Please reference your target eS-WiFi module of choice Data Sheet for additional
information.
2.2 ISMART IoT EVB Overview
NOTE:
• The L44/L54 foot print compatible option for Inventek’s eS-WiFi modules enables
customers to migrate across Inventek’s portfolio as needed without requiring any
changes to a customer’s original PCB layout, enabling maximum flexibility as future
connectivity design requirements change.
• The ISMART IoT EVB is a 3.3V board not a 5V board (5V input & generates 3.3V IO
• The ISMART Mini USB connects to the Dual Port FTDI (Backside of EVB)
• The ISMART UART Position Switch selects the required UART connection
o Please reference Section 4, The ISMART – Arduino Pin Out Map for all details.
ISMART EVB EVALUATION BOARD DESCRIPTION eS-WiFi Module
ORDERING P/N
ETCHED/CHIP
ANTENNA OPTION
ORDERING P/N
U.FL ANTENNA
OPTION
ISMART43362 2.4G Wi-Fi, Cortex™ M3 ISM43362-M3G-L44 ISMART43362E-EVB ISMART43362U-EVB
ISMART43903 2.4G Wi-Fi, Cortex™ R4 ISM43903-R48-L54 ISMART43903C-EVB ISMART43903U-EVB
ISMART4343 2.4G Wi-Fi + BT/BLE, Cortex™M4 ISM4343-WBM-L54 ISMART4343C-EVB ISMART4343U-EVB
ISMART43340 2.4G/5G Wi-Fi + BT/BLE, Cortex™M4 ISM43340-M4G-L44 ISMART43340C-EVB ISMART43340U-EVB
cynventek Systems
Emnmfifiu Canmmlv Emma!
ISMAHT IoT EVB User’s Manual
ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 6
2.3 ISMART IoT EVB Hardware Features
• The ISMART EVB is a 3.3v board, not a 5v board. The ISAFE EVB takes 5v in
but generates 3.3v IO.
• FCC/CE/IC Certification is included with all eS-WiFi options including Etched,
Chip or u.fl antenna options.
• Configurable using Inventek IWIN AT Commands FW.
• Host interface: UART, SPI.
• Input Power: 5.0 V
• Dual Port FTDI for firmware development and testing.
• SPI Flash for Over The Air (OTA) updates
• All eS-WiFi module portfolio also support a standard L44/L54 package option to
enable customers to migrate between eS-WiFi module options once in mass
production without customers having to make any board layout changes to their
original PCB.
• Please note that there is no Arduino software provided for the ISMART IoT
development board.
c Inventek Systems
E ham 5 u m E m
m W: we ”I vw ISMAHT IoT EVB User's Manual
https://www.inventeksvs.com/iwin/demo-software/
httgs://www.inventeksys.com/iwin/wg-
content/uploads/WiFi AT Command- Set»Quick»Reference»1.pdf
ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 7
3 System Requirements
3.1 ISMART EVB Configuration for UART interface option
The ISMART EVB communication is configured using a PC over USB for all evaluation
and test purposes.
1. Set-Up:
a. Download and install the eS-WiFi PC Demo:
i. https://www.inventeksys.com/iwin/demo-software/
b. Run eS-WiFi PC Demo and Install Drivers:
i. Menu > Install Drivers
c. Set the Power source for the ISMART EVB by placing a jumper on J17
from Pin 1 to Pin 2
d. Set SW3 to Position 1, UART_USB (i.e.: Closest to eS-WiFi module)
e. Connect PC to the ISMART EVB using the Mini USB connector
f. Configure Serial Port:
i. Setup > Serial Port > Configure/Open
ii. In the Serial Port Config window:
• Select Serial Port
• Baud rate: 115,200
• Parity None
• Data Width 8
• Stop Bits 1
g. You are now ready to type IWIN AT Commands in to the Terminal window
i. IWIN AT Commands Quick Reference Guide can be found at:
ii. https://www.inventeksys.com/iwin/wp-
content/uploads/WiFi_AT_Command-_Set-Quick-Reference-1.pdf
Inventek Systems
E”"“‘"9‘“"“““""’EW’“ ISMAFIT loT EVB User's Manual
own Momma mm
Wm 17
D15 poo m2
mu m erc
w my 37m
127 25 Pawn m mm mm
ruins me Me D13 295 mm scK
om; 27m mug: m2 .22. mm Misc
37mm mm may on m IrmcLMos 125
mm ”.2 23v am .222 2mm. own»
mom 575v w 09 m mm m) pom
”No mm sun us no loom 2o 2 37mm
mus; mm Gun 22 Lemma
erHoo om vm o7 Pm m2 smog
3mm 29 m as m erc some
mm Wmmm Pm 2o 05 ms M2 moon
zrenus 1 Mm m m m m m Pm me oomou
243m)» m2 m 22 o; Pn; m2 1):
mm we no; 23 D2 292 5mm“ 373v;
mo; M: m M m m 7mm; Motown”
Hugo 57M: 22; 25 oo ux< mm="" m="" 2="" woo="" mm="" m="" sws-uanyseimn="" i="" mama="" 22,...”="" 2227252222:="" 222m="" 2="" wu="" m2="" m="" m="" i="" vcuvajouwn="" a="" mu;="" m,="" w="" green="" 2="" w5="" mo="" r75="" m="" a="" on»="" ”7.5va="" a="" tck="" 1="" vccjvuss)="" del-tun,="" h="" lmz="" s="" on»="" 2="" vccjvjmnn="" va03="" r3="" ago="" 5="" mo="" 2="" vooouso="" ,="" n:="" m="" s="" m="" 2222mm“,="" mm="" m="" om="" 976m)="" i="" voommom="" moon.“="" loam="" 2="" voosvuom="" swtrflfinflmuanammn="" gp‘od="" rsz(whup]="" mumonxawswfmhwo]="" jzsvauxuary="" he'wikwszhipdii‘y}="" i="" ,="" gnd="" i="" vccjvsjoarduuki="" default.="" gd!“="" 12mm="" 27“:="" 2="" boom="" miuajdcu="" r55="" chmmnzruswe="" 2="" n:="" tokalalemmaveresiflvfls}="" jvcfgj="" [lirmboaidsflasflcs="" 5="" m="" i="" mus"="" momma="" or“:="" 2="" macs»=""> ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 8
4 The ISAFE– Arduino Pin Out Map
CDInventek Systems
"""""" 9”“""”“""’EW’“ ISMAFIT loT EVB User’s Manual
ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 9
5 ISAFE EVB Schematics
5.1 USB Schematic
CDInventek Systems
E”"“‘"9‘“"“““""’EW’“ ISMAFIT loT EVB User’s Manual
warm r— r-
each or— r-
ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 10
5.2 FTDI Schematic
c Inventek Systems
E”"*‘“‘"?C“""”“‘"/E“5”'”"” ISMART loT eva User’s Manual
ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 11
6 Temp Rating
NOTE: Functionality is guaranteed, but specifications require derating at extreme
temperatures
7 Revision Control
Document: ISMART IoT User’s Manual
Evaluation Board
External Release
DOC-DS-201904
Date
Author
Revision
Comment
4/1/19
AS
1.0
Preliminary Release
4/10/19
AS
2.0
Draft Release
4/19/19
AS
3.0
Release
Symbol Description MIN TYP MAX UNIT
TA
Temperature(ambient)
070 °C
c Inventek Systems
Emnsmmzcnmwwnmwm ISMAHT IoT EVB User's Manual
Sales inventeks s.com
www.inventeksys.com
ISMART IoT EVB User’s Manual
DOC-DS-201904 www.Inventeksys.com Inventek Systems
Page 12

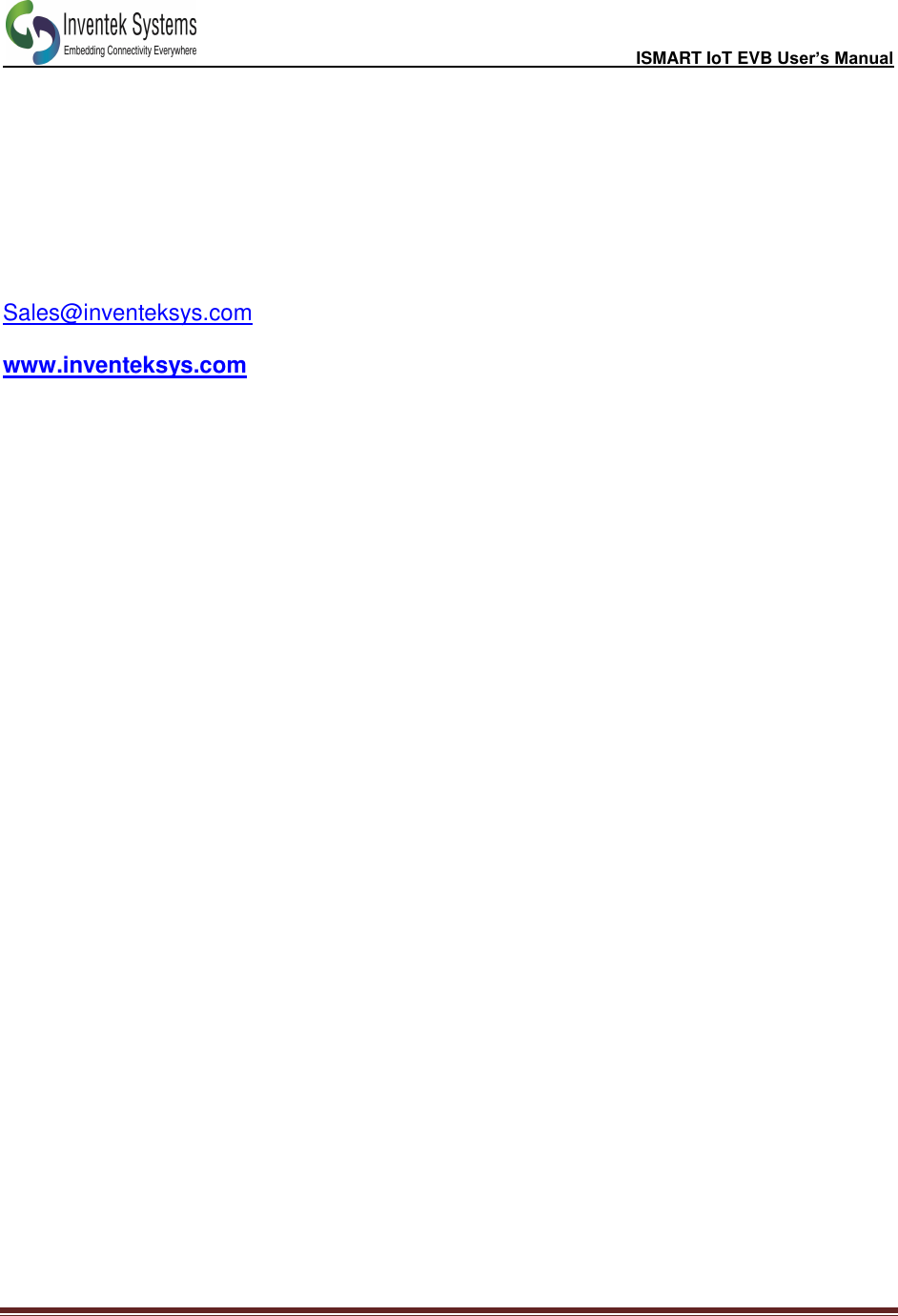

8 Contact Information
Inventek Systems
2 Republic Road
Billerica MA, 01862
Tel: 978-667-1962
Sales@inventeksys.com
www.inventeksys.com
Copyright 2017, Inventek Systems. All Rights Reserved. This software, associated
documentation and materials ("Software"), referenced and provided with this
documentation is owned by Inventek Systems and is protected by and subject to
worldwide patent protection (United States and foreign), United States copyright laws
and international treaty provisions. Therefore, you may use this Software only as
provided in the license agreement accompanying the software package from which you
obtained this Software ("EULA"). If no EULA applies, Inventek Systems hereby grants
you a personal, non-exclusive, non-transferable license to copy, modify, and compile
the Software source code solely for use in connection with Inventek’ s integrated circuit
products.
Any reproduction, modification, translation, compilation, or representation of this
Software except as specified above is prohibited without the express written permission
of Inventek. Disclaimer: THIS SOFTWARE IS PROVIDED AS-IS, WITH NO
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, NONINFRINGEMENT, IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
Inventek reserves the right to make changes to the Software without notice. Inventek
does not assume any liability arising out of the application or use of the Software or any
product or circuit described in the Software. Inventek does not authorize its products for
use in any products where a malfunction or failure of the Inventek product may
reasonably be expected to result in significant property damage, injury, or death ("High
Risk Product"). By including Inventek’ s product in a High-Risk product, the
manufacturer of such system or application assumes all risk of such use and in doing so
agrees to indemnify Inventek against all liability. Inventek Systems reserves the right to
make changes without further notice to any products or data herein to improve
reliability, function, or design. The information contained within is believed to be
accurate and reliable. However, Inventek does not assume any liability arising out of the
application or use of this information, nor the application or use of any product or circuit
described herein, neither does it convey any license under its patent rights nor the rights
of others.
Products related to this Datasheet
WI-FI / BT ARDUINO SHIELD
WI-FI ARDUINO SHIELD -802.11 B/G
