Amphenol Aerospace Operations

Centaur Series Solder Tail Connectors

Amphenol Aerospace's solder tail connectors support data rates up to 10 Gbps in a rugged, lightweight aluminum MIL-DTL-38999 shell

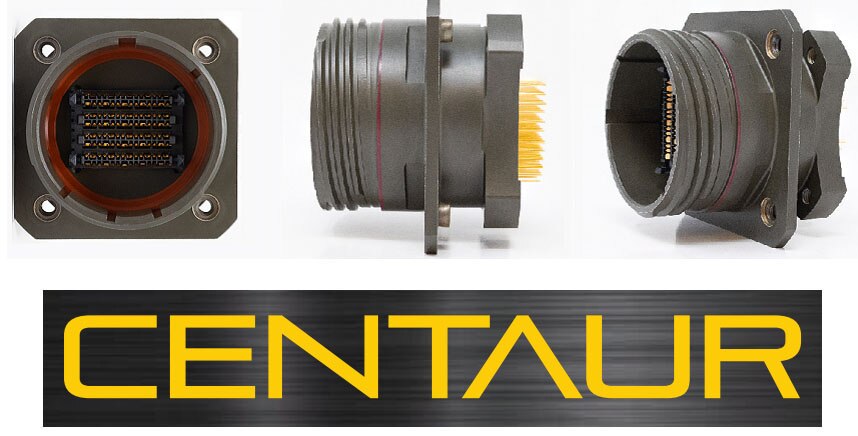

Image of Amphenol Aerospace's Centaur Series Solder Tail ConnectorsThe Centaur series high-speed, high-density, ruggedized connector system utilizes the advantages of Amphenol Aerospace's extensive legacy of Mil-Spec connectors and the latest in high-speed contact and connector technology. The Centaur interconnect provides a durable and high-bandwidth system perfect for military, aerospace, and other ruggedized, high-bandwidth applications. They support data rates up to 10 Gbps in a ruggedized, lightweight aluminum MIL-DTL-38999 shell. The Centaur solder tail connectors are rugged and versatile with an operating temperature of -40°C to +85°C and VITA 47 shock and vibration requirements.

Resources
Features and Benefits
  • Solder tail lengths: 0.100”, 0.150”, 0.200”, 0.250”, 0.300”, and 0.350”
  • Compatible with standard vertical header ExaMAX®
  • Keying: N (standard), A, B, C, D, E
  • Data rates up to 10 Gbps PAM4
  • Fully electrically tested
  • Impedance: 100 Ω
  • Mating cycles: 500
  • Ruggedized lightweight aluminum MIL-DTL-38999 style shells
  • Available in 40, 32, and 12 100Ω differential pairs (DP) depending on shell size
    • Shell size 25 DP to 40 DP plus 10 single-ended
    • Shell size 23 DP to 32 DP plus 8 single-ended
    • Shell size 17 DP to 12 DP plus 6 single-ended
Applications
  • Military helicopters
  • Military computers
  • Avionics
  • Satellites
  • Naval
  • C4ISR

Centaur Series Solder Tail Connectors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CENTAUR PCB RECPTECLE88-714985-12G2CENTAUR PCB RECPTECLE10 - Immediate$9,296.16View Details
CENTAUR PCB RECPTECLE88-714988-32G2CENTAUR PCB RECPTECLE10 - Immediate$10,888.52View Details
Published: 2023-05-03
