EVAFLEX® 5-HD Connectors

            EVAFLEX® 5-HD Connectors
                    Fully shielded, high-speed, auto-locking I-PEX connectors are ideal for demanding board-to-flex interconnects


Image of I-PEX EVAFLEX® 5-HD Connector I-PEX EVAFLEX 5-HD connectors are designed to meet the demands of high-speed, EMI-sensitive systems that require a secure connection. Featuring full 360° shielding, a one-touch auto-lock, and a compact 0.5 mm pitch, these connectors deliver uncompromising signal integrity and mechanical reliability in space-constrained device stacks. With a maximum mated height of 2.20 mm, these connectors can support data rates beyond 10 Gbps. EVAFLEX 5-HD connectors are ideal for applications with intense bandwidths where EMI control, shielding, and connector robustness are essential. These connectors utilize I-PEX ZenShield® multi-point ground coupling to mitigate leakage and crosstalk. The auto-locking design is operator-friendly and suitable for both robotic and hand assembly, ensuring easy mating and consistent retention that helps prevent disengagement, even in ruggedized environments.

Features

ZenShield technology: fully shielded with multi-point grounds to prevent EMI leakage

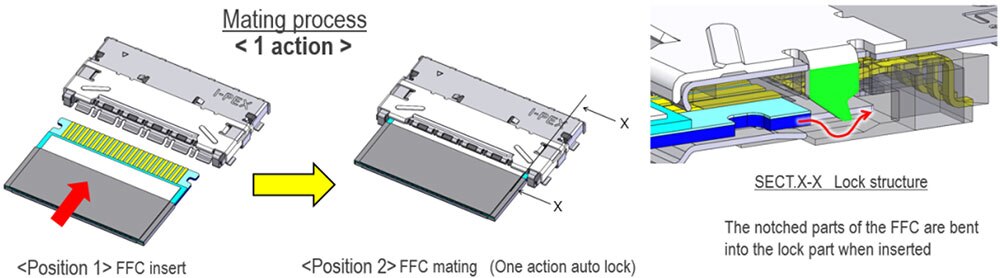

Auto-locking mechanism: one-touch locking ensures reliable retention; suited for manual or robotic insertion
Contact pitch: 0.50 mm fine pitch for compact layout density
Height: 2.20 mm (2.00 mm nominal) balances compactness and signal path clearance
Horizontal mating direction enables consistent routing and mechanical layout in various devices

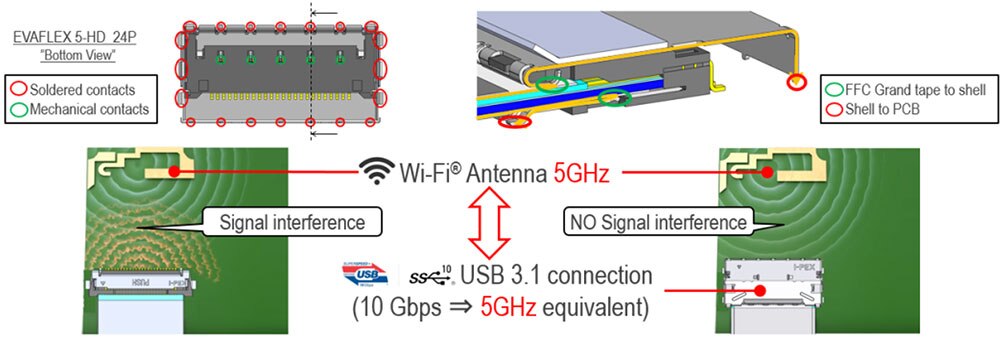

ZenShield fully shielded with multi-point grounds to prevent EMI leakage
