FH19-Slide6

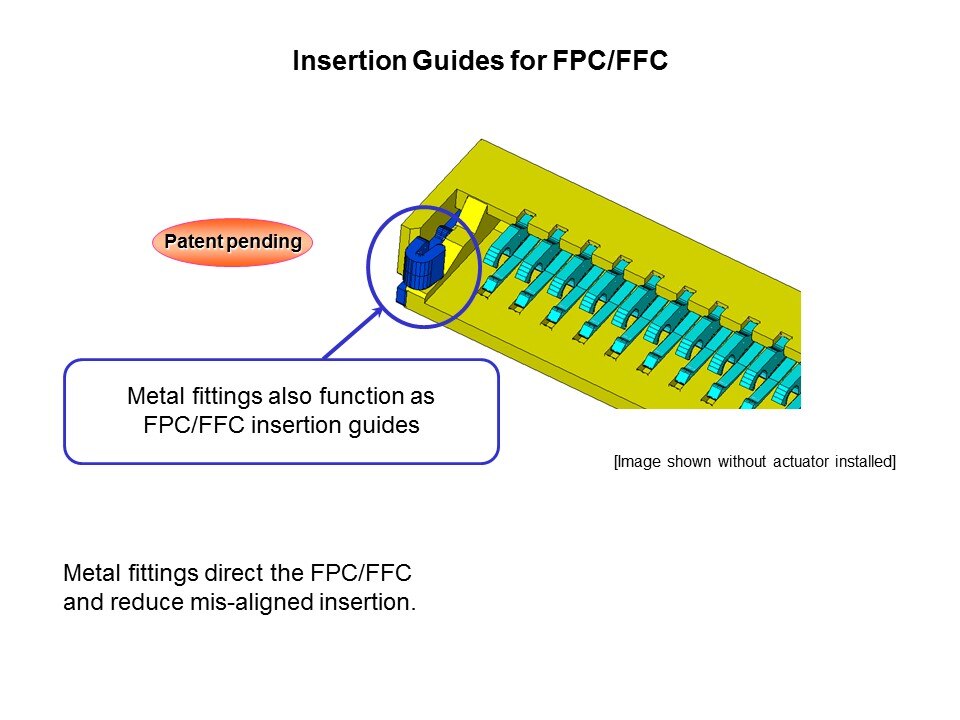

In addition to anchoring the forward portion of the connector to the PCB, the metal fittings also serve as a guide when inserting the FPC/FFC. The guides reduce the chance of the FPC/FFC from being “skewed” or angled during insertion.
