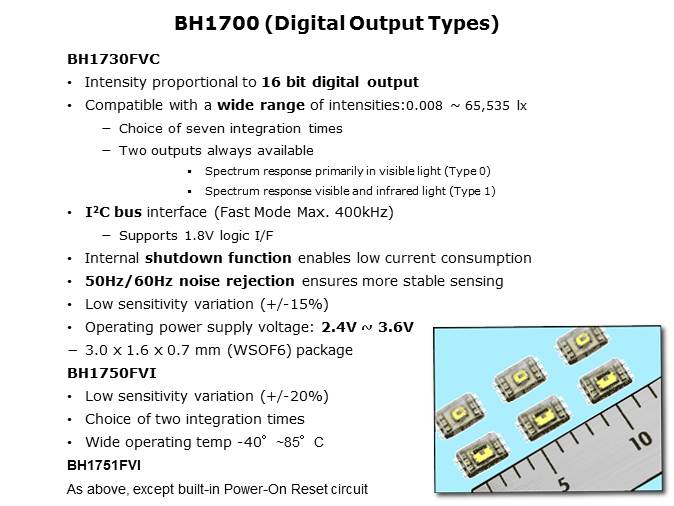

Ambient Light Sensors Slide 12

The BH1730FVC has two 16-bit digital outputs. One output responds primarily to visible light while the other responds to both visible and IR light. A choice of seven integration times are available. The BH1750FVI and BH1751FVI offer a wide operating temperature range from -40°C ~ 85°C, a choice of two integration times, an I2C interface, a 16 bit digital output, internal shutdown function, 50/60 Hz noise rejection for stable operation, and a 2.4 V to 3.6 V power supply voltage, with operation possible using 1.8 V I2C logic interface. The BH1751FVI also includes built-in Power ON Reset.

PTM Published on: 2012-01-09
