Ambient Light Sensors Slide 4

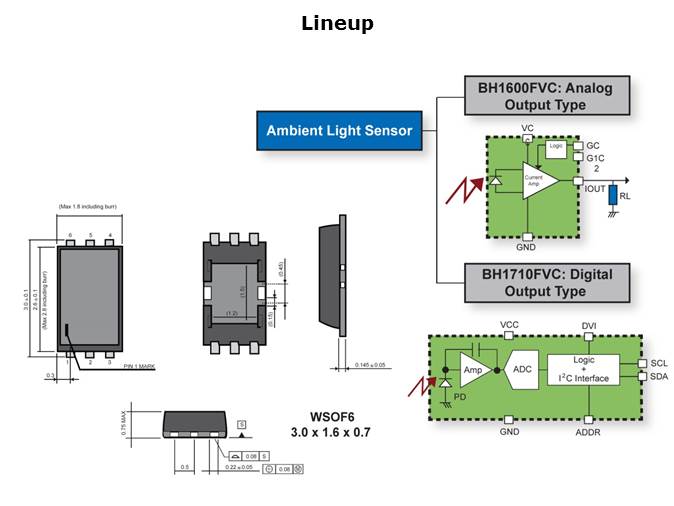

Rohm’s ambient light sensors are available with two output options, analog or digital. The analog output versions have a current output, while the digital output versions have 16-bit digital I2C outputs. Detailed analog and digital applications will be provided on the next slides. Both the analog and digital output devices are available in a 3.0 x 1.6 x 0.75 mm package and a 1.6 x 1.6 x 0.6 mm package.

PTM Published on: 2012-01-09
