Ambient Light Sensors Slide 13

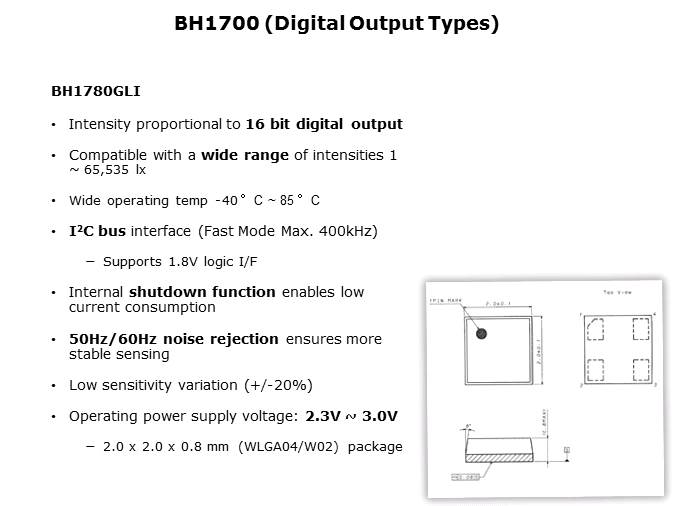

The BH1780GLI has a 16-bit I2C digital output. The output responds primarily to visible light. A six-bit “resolution” register allows the user to set sensitivity, that is how much light change per lsb. The BH1780GLI offers a wide operating temperature range from -40°C ~ 85°C , choice of sensitivity, an I2C interface, 16 bit digital output, internal power down function, 50/60 Hz noise rejection for stable operation, and a 2.3 V to 3.0 V power supply voltage, with operation possible using 1.8 V I2C logic interface.

PTM Published on: 2012-01-09
