Mini PushPull ix Industrial® AWG22-24 Connectors

HARTING Mini PushPull ix Industrial connectors for AWG22-24 are standardized according to IEC 61076-3-124 for Ethernet applications

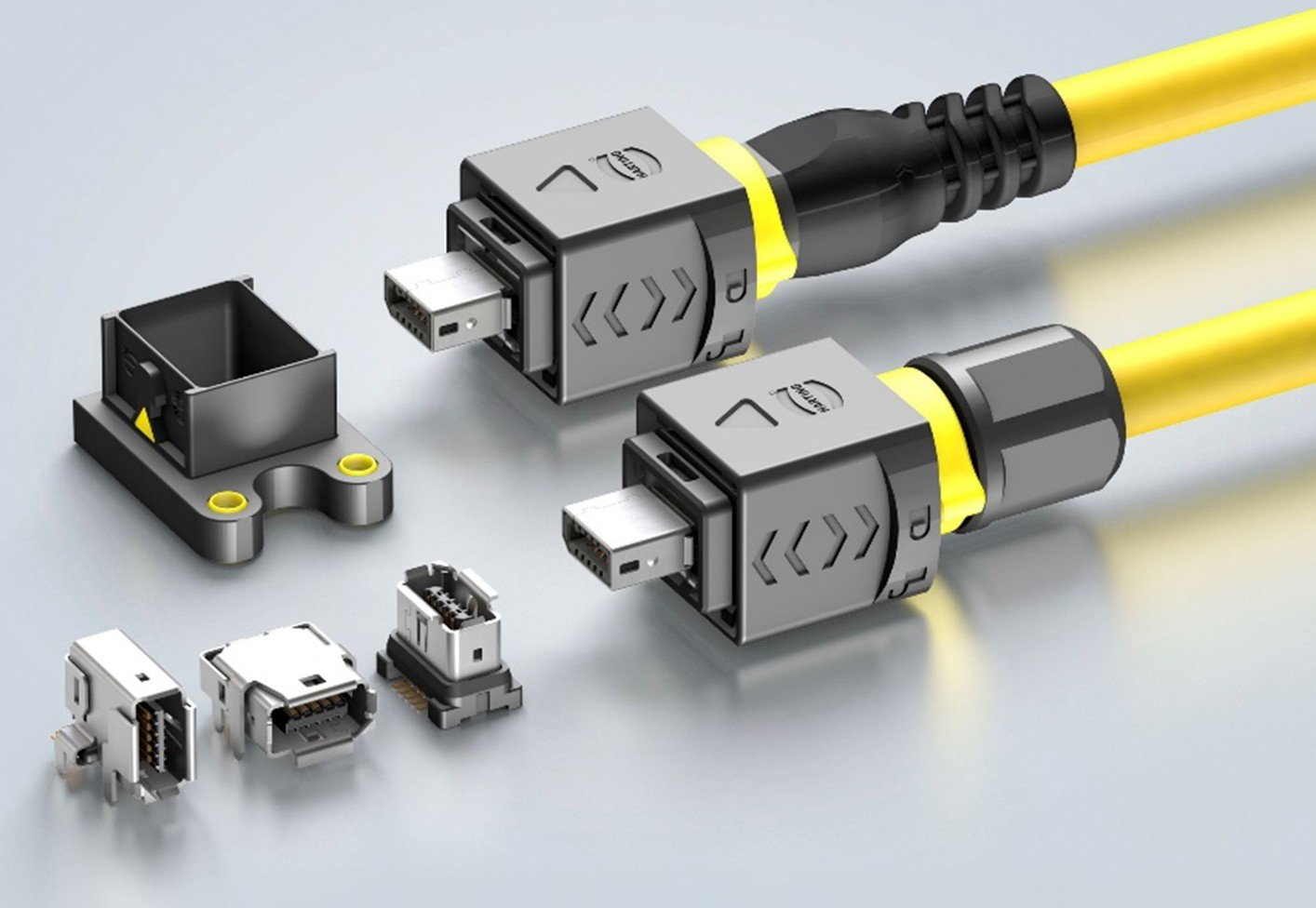

Image of Harting mini PushPull ix Industrial® AWG22-24 HARTING Mini PushPull ix Industrial connectors for AWG22-24 Type A for Ethernet and Type B for signal and serial bus systems are standardized according to IEC 61076-3-124 for Ethernet applications with IDC termination for the cable connectors. They offer reliable transmission performance and optional power via Power over Ethernet (PoE)/PoE+ with a 30% shorter housing compared to existing HARTING PushPull RJ45. The Mini PushPull ix Industrial feature IP65/IP67 ratings.

Technical Specifications
  • Transmission: Cat. 6A Class EA up to 500 MHz (for type A)
  • Data rate: 10 Mbit/s to 10 Gbit/s
  • Rated current: 1.5 A
    • 3 A per contact when used with 4 contacts
  • Rated voltage: 50 VAC, 60 VDC
  • Operating temperature: -40°C to +70°C
  • IP rating: IP65/IP67
  • Mating cycles: ≥750
  • IEC 61076-3-124
  • EN 50173-1 (for type A)
  • IEEE 802.3at Power over Ethernet (PoE+)
  • UL 1977 ECBT2.E102079
Features
  • Compact design
  • IDC termination
  • 360° shielding
Applications
  • Control cabinets
  • Electrical enclosures
  • Industrial robot arms
  • Industrial cameras
  • Server racks
  • HMI
  • Handheld devices
Markets
  • Data centers
  • Machinery
  • Robotics
  • Medical
  • Automation
  • Aerospace
  • Transportation

mini PushPull ix Industrial® AWG22-24

תמונהמק"ט יצרןתיאורכמות זמינהמחירהצגת הפרטים
MINI PUSHPULL IX INDUSTRIAL 8-PO09511210003MINI PUSHPULL IX INDUSTRIAL 8-POמיידית - 10$108.17הצגת הפרטים
MINI PUSHPULL IX INDUSTRIAL 8-PO09511210004MINI PUSHPULL IX INDUSTRIAL 8-POמיידית - 10$108.17הצגת הפרטים
